1. Introduction

The study of tectonics in the intra-arc Andean region, particularly in the Southern Volcanic Zone (SVZ; ~33-46° S), presents significant challenges due to the complexity of deformation processes and their associated structures, the abundance of recent volcanic products, and the intense glacial erosion (e.g., Rosenau et al., 2006; Cembrano and Lara, 2009). Crustal deformation due to plate convergence is unevenly accommodated by fault systems in the intra-arc region, resulting in both margin-parallel (N-to-NNE) and margin-oblique (~NW) faults (e.g., Cembrano et al., 2000; Melnick et al., 2006; Rosenau et al., 2006; Pérez-Flores et al., 2016). These structural domains exhibit diverse yet interconnected fault geometries and kinematics (e.g., Sielfeld et al., 2019a).

Riedel shears (Riedel, 1929) are a well-documented phenomena associated with strike-slip faults developed in relatively homogeneous rock lithologies and typically in a cover sequence over a transcurrent basement structure. In the SVZ, the interaction between margin-parallel and ~NW-striking Andean transverse faults results in rhomb-shaped domains, typically related to Riedel-type deformation. This structural array manifests at the surface in kilometer-scale morphostructural lineaments (e.g., Cembrano and Lara, 2009; Piquer et al., 2016; Salas et al., 2016; Giambiagi et al., 2019), which can be measured, quantified, and interpreted (e.g., Rosenau, et al., 2006; Göllner et al., 2021).

Large, regional-scale continuous lineaments are often the direct surface expression of deep structures that can be used to trace down fracture zones (Tripathi et al., 2000; Jordan et al., 2005; Solomon and Ghebreab, 2006; Soto-Pinto et al., 2013; Han et al., 2018). The spatial pattern of these lineaments is typically characteristic of the stress field that causes tectonic deformation. However, the mapping and interpretation of tectonic lineaments are complex tasks and require the inspection and integration of a number of geological and geomorphological features. Remote sensing techniques provide additional information on the spatial arrangement and distribution of faults and fractures in large and geologically variable areas (e.g., Grohmann, 2004; Jordan and Schott, 2005; Hashim et al., 2013; Soto-Pinto et al., 2013; Flores-Prieto et al., 2015). In recent years, extraction methods of geological lineaments from remote sensor data have focused on improving the algorithms for recognizing the linear geospatial components of raster images (e.g., Ahmadi and Pekkan, 2021). Many studies (e.g., Han et al., 2018; Abdelouhed et al., 2021; Villalta Echeverría et al., 2022) employ increasingly complex methods for the automatic extraction of lineaments and present results that seem to fit well with local tectonics, however, there is still no method successfully tested in different geological contexts (Ahmadi and Pekkan, 2021).

Our study therefore focuses on an area centered around the Laguna del Maule Volcanic Complex (Fig. 1A and B), which benefits from recent research providing numerous field measurements and detailed structural characterizations (Garibaldi et al., 2020; Sielfeld et al., 2019b) (Fig. 1C). The primary motivation of this study was to devise a semi-automated lineament extraction method, an aspect deemed relevant due to the challenges in formulating a systematic methodology for the extraction and analysis of lineaments in the intra-arc Andean region. This contribution underscores the importance of lineament analysis as a valuable tool for advancing the understanding of regional tectonic processes, particularly in volcanically active regions.

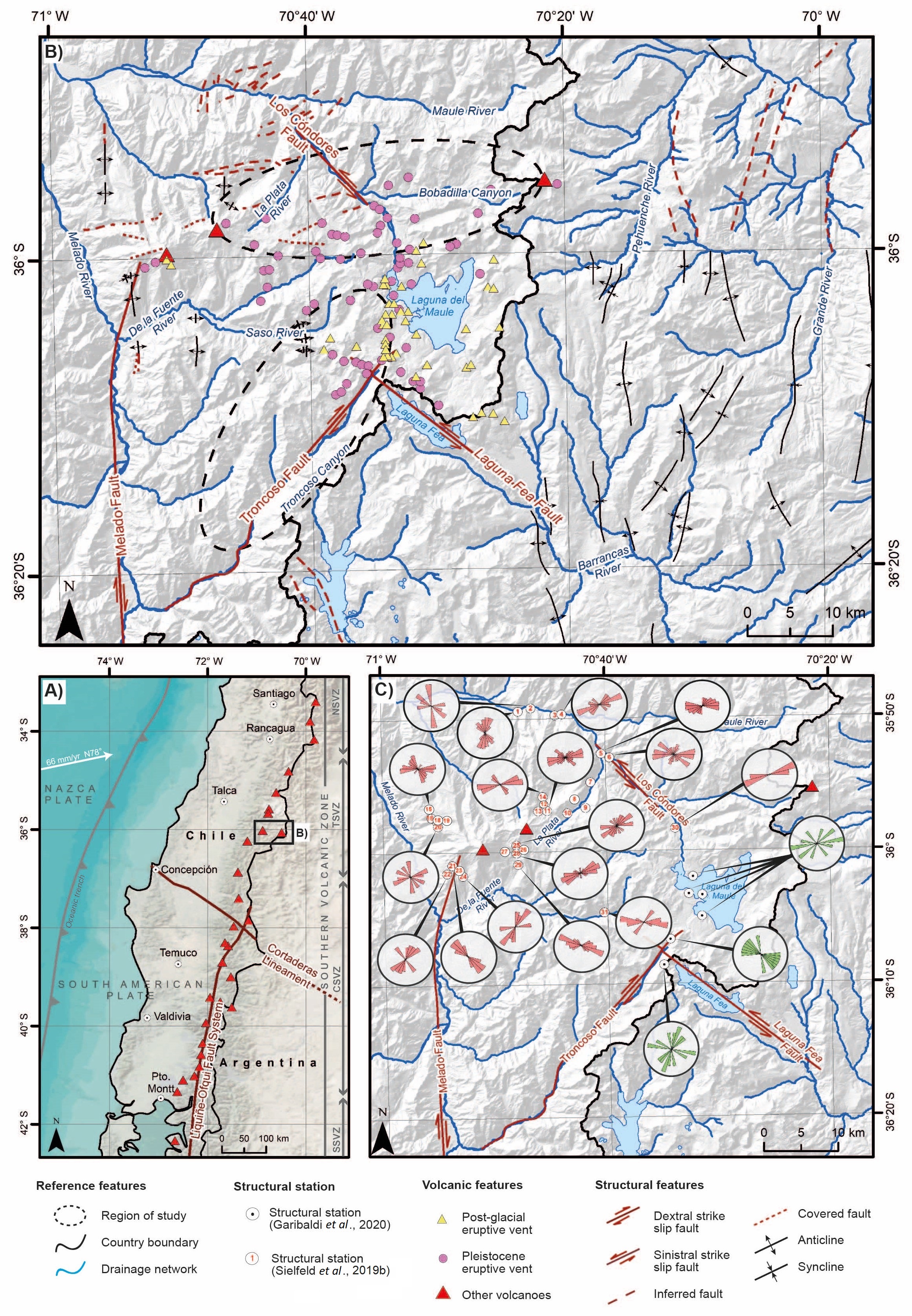

Fig. 1. A. Synthesis map of the Southern Volcanic Zone (SVZ) of the Andes and the main regional-scale tectonic structures. Arc segmentation after López-Escobar et al. (1995): Northern SVZ (NSVZ; 33-34.5° S), Transitional SVZ (TSVZ; 34.5-37° S), Central SVZ (CSVZ; 37-41.5° S), and Southern SVZ (SSVZ; 41.5-46° S). B. Hillshaded relief of the study area, centered around the Laguna del Maule Volcanic Complex, highlighting the drainage network. This map displays the locations of places referred to in the text, as well as the location of all relevant eruptive vents, faults and folds. Dashed ellipsoids delineate the two areas with structural characterizations that were chosen for the application and testing of the lineament extraction method. C. Hillshaded relief with the drainage network and structural information from previous studies, represented as rosette plots (data from Sielfeld et al., 2019b and Garibaldi et al., 2020).

2. Geological setting

The Laguna del Maule Volcanic Complex (LdMVC) is located at ~36° S, at the divide between Chile and Argentina (Fig. 1A and B). This volcanic field covers ~500 km² of the Andean intra-arc zone with Quaternary lavas and tuffs (e.g., Hildreth et al., 2010; Singer et al., 2014). The LdMVC has a few large edifices with at least 130 identified vents, from which >350 km³ of volcanic products have erupted since around 1.5 Ma (Andersen et al., 2017; Hildreth, 2021). The LdMVC hosts a ~96 km² volcanic caldera, whose northern half includes the Laguna del Maule lake, surrounded by 36 postglacial rhyolite and rhyodacite coulees and domes that erupted from 24 separate vents (Hildreth et al., 2010; Singer et al., 2014; Hildreth, 2021). Although there have been no historical eruptions, the extensive Holocene volcanism and significant uplift rates since at least 2007 (e.g., Fournier et al., 2010; Feigl et al., 2014; Le Mével et al., 2015; Singer et al., 2018) make this volcanic field one of the most hazardous volcanic systems in the SVZ (Stern, 2004; Romero et al., 2024). The drainage network around the volcanic caldera takes on an overall annular shape and is formed by four main rivers that flow outward from it (Fig. 1B). Several segments of the drainage network follow straight valleys, and some of these valleys coincide with the major strike-slip faults identified in the region (Cardona et al., 2018; Sielfeld et al., 2019b).

Recent published tectonic models of the LdMVC describe a NE-oriented transtensional zone that hosts the magmatic system (Miller et al., 2017; Cardona et al., 2018; Peterson et al., 2020). One such example is the Troncoso Fault (Fig. 1B), which corresponds to a NE-striking long-lived fault that reaches the LdMVC from the SW. The Troncoso Fault represents the limit between two different types of deformation and has apparently influenced post-glacial volcanism in the LdMVC area (Cardona et al., 2018; Garibaldi et al., 2020). In fact, the fault’s hanging wall (northwestern block) localizes numerous, small-volume rhyodacitic and andesitic volcanic deposits (Andersen et al., 2017), and contains abundant NNE-to-NE striking normal faults (Garibaldi et al., 2020; Peterson et al., 2020) (Fig. 1C). By contrast, the fault’s footwall (southeastern block) has few N-S striking faults (Peterson et al., 2020) and ample evidence of rhyolitic eruptions, particularly during the late Holocene (Singer et al., 2014, 2018; Andersen et al., 2017). The arc-oblique, Andean Transverse faults (ATFs), represented by the WNW-striking Laguna Fea Fault and the NW-striking Los Cóndores Fault (Fig. 1B and C), also seem to strongly influence magma emplacement (Cardona et al., 2018; Sielfeld et al., 2019b).

3. Methodology

Our working hypothesis was that the directionality of the drainage network would exhibit similar trends to that of the tectonic structures. To test this hypothesis, we developed a semi-automatic lineament extraction method (Fig. 2). The method relies on the drainage pattern and involves a statistical approach, and it was tested in two data-rich areas (Fig. 1B and C; Sielfeld et al., 2019b; Garibaldi et al., 2020; Peterson et al., 2020). These areas were: 1) an ENE-oriented ellipsoid centered in the Los Cóndores Fault, and 2) a NE-oriented ellipsoid parallel to the Troncoso Canyon.

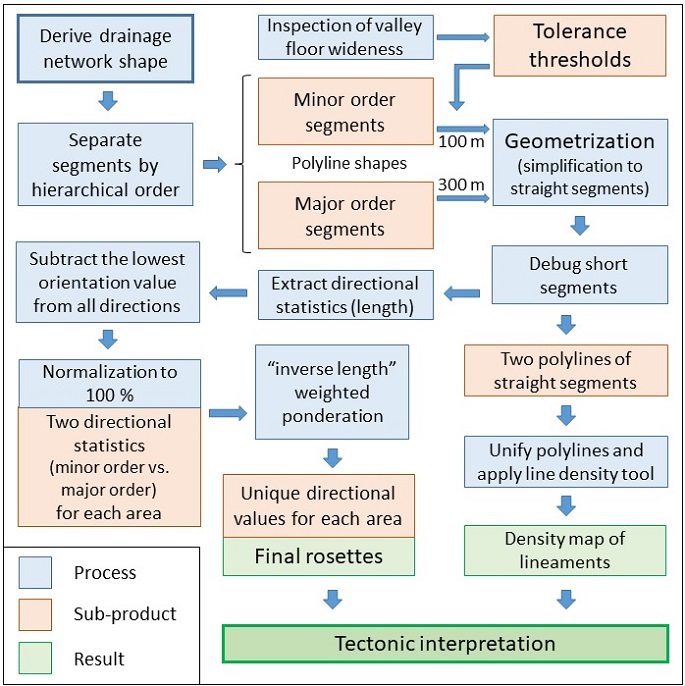

Fig. 2. Flowchart depicting the methodological steps followed in this study.

After successfully testing the lineament extraction method and azimuthal statistics in these two regions, we then proceeded to apply it to an approximately 4,500 km² area, centered around the LdMVC. We identified the predominant tectonic trends and conducted a comprehensive multiscale analysis. In order to facilitate the interpretation of regional tectonic patterns, the outcomes of our analysis are presented in the form of rosette diagrams and density maps of oriented lineaments.

3.1. Derivation of drainage network and Strahler order

In this study, the drainage network was derived from the ALOS PALSAR Digital Elevation Model (spatial resolution of 12.5 m), based on the D8 (multidirectional method) method using the Hydrology Toolset (Tarboton et al., 1991) in ArcGIS. The D8 model algorithm determines the flow direction based on water flow from a given cell into only one adjacent cell. The flow accumulation was calculated from the flow direction raster by assigning a threshold for the minimum contributing area (Jenson and Domingue, 1988), which also determines the drainage densities (e.g., Colombo et al., 2007).

The directional orientation of channels within the drainage network is widely recognized to vary according to their hierarchical order (e.g., Resmi et al., 2019; Duvall et al., 2020; Saidi et al., 2020). The stream order was based on the Strahler classification and also obtained from digital elevation data using specific GIS tools. The azimuthal statistics of the minor (1^st and 2^nd orders) and the major (3^rd to higher) order channels were calculated separately. It is worth to mention that what is considered a first-order channel is relative, since it depends on the contributing area threshold whereby the drainage network is derived (see above). Thus, the minimum contributing area determines the resulting stream ordering. A given basin can have segments of usually 4 to 7 hierarchical orders depending on the size of the basin. The minimum drainage area considered to be representative depends on the spatial resolution of the digital elevation model since it also controls the number, length, and density of lineaments (e.g., Smith and Wise, 2007; Das and Pardeshi, 2018; Meixner et al., 2018; Rajasekhar et al., 2018; Soliman and Han, 2019). In this study, an accumulation threshold of 1,600 cells (0.25 km² in total) was used as a routine criterion.

3.2. Segment geometrization process

The drainage network consists of meandering lines, which need to be transformed into straight segments so it can then be converted into linear lineaments. The Douglas-Peucker algorithm facilitates the transformation of the original drainage network into a series of rectilinear segments (Douglas and Peucker, 1973). This process is commonly referred to as 'geometrization' or 'simplification' of polylines. This process dismisses the local sinuosity due to the dynamics of the river itself or external factors, such as the contribution of sediments from valley sides. This algorithm is used to reduce the number of points needed to represent a river segment by assigning an amplitude tolerance threshold, which defines the maximum distance that any point (vertex) of the original river path can be laterally separated from the straight line that best fits the original river segment. Therefore, the tolerance threshold used to simplify the drainage network defines what is accepted as the local sinuosity of a river without disturbing its linear trend. A smaller tolerance distance generates more well-fitted straight segments to the original rivers, whereas a larger tolerance simplifies the drainage network as fewer straight segments are needed to represent it. Thus, the tolerance threshold controls the number of segments and their mean length, which is a fundamental parameter for defining tectonic lineaments (e.g., Han et al., 2018; Saidi et al., 2020). The mean length of segments increases when a wider tolerance is used.

In this study, we posit that variations in channel amplitude and valley width exist among river segments of differing hierarchical orders. Consequently, the tolerance thresholds employed to derive lineaments need to be adjusted according to the ordering of the river segments, specifically their valley floor amplitude. To establish suitable values for these tolerance thresholds, we conducted multiple measurements using Google Earth, basing our criteria on the absolute amplitude of the channels. Our measurements indicate that main rivers are generally straight (with a sinuosity index of less than 1.2), with some local sinuosity caused by endogenic dynamic processes such as dejection cones from the lateral hillslopes, lava flows, or localized meandering sections. On the other hand, minor-order segments are streams embedded in the hillslopes with limited lateral mobility. Therefore, we used a tolerance threshold of 100 meters to simplify the minor-order segments and 300 meters for major-order segments. An example of this procedure can be seen in figure 3 for the neighboring Tatara-San Pedro complex. After the geometrization process, we eliminated the segments shorter than the width tolerance to avoid the accumulation of small line segments that may have been deviated from their original orientation during geometrization.

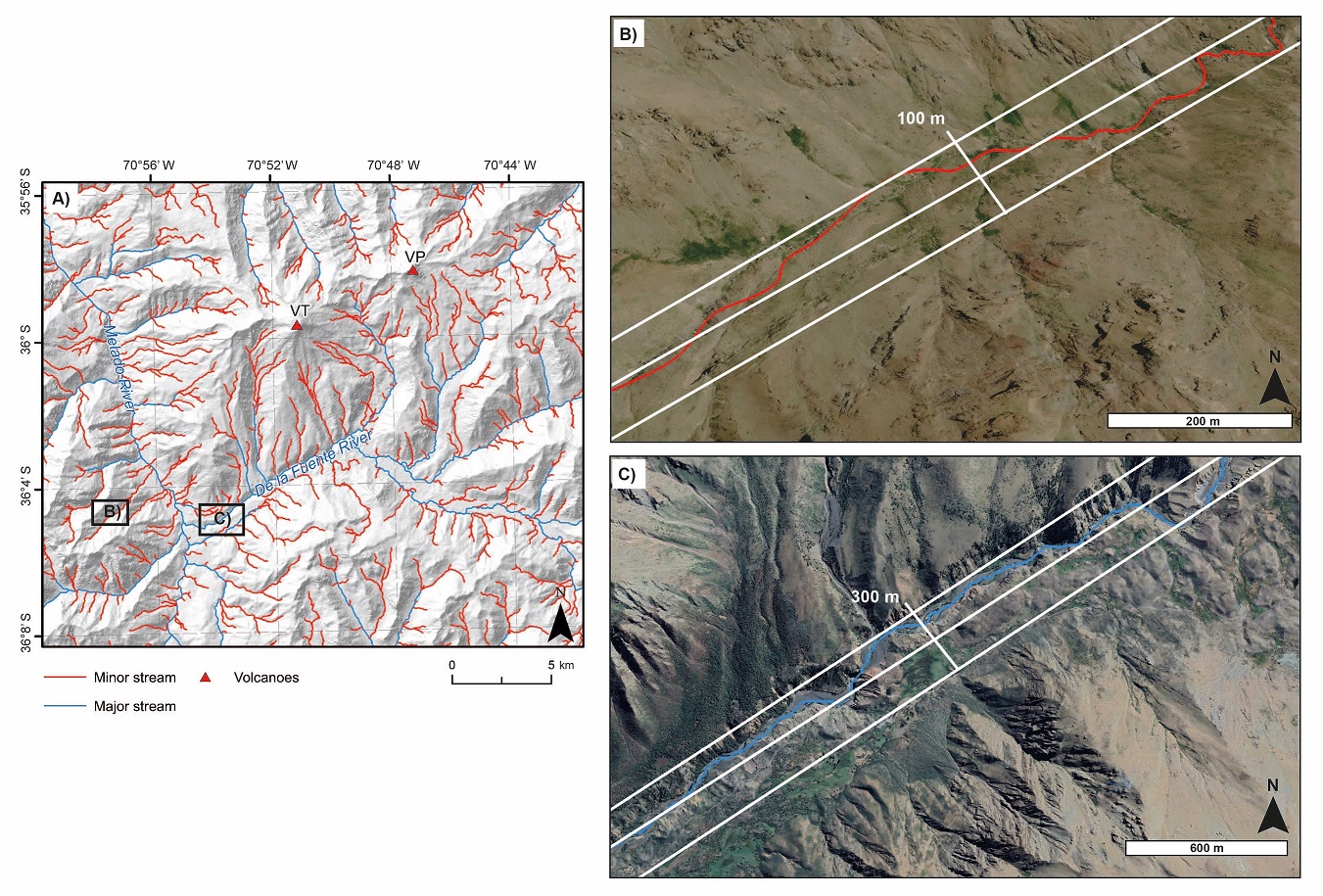

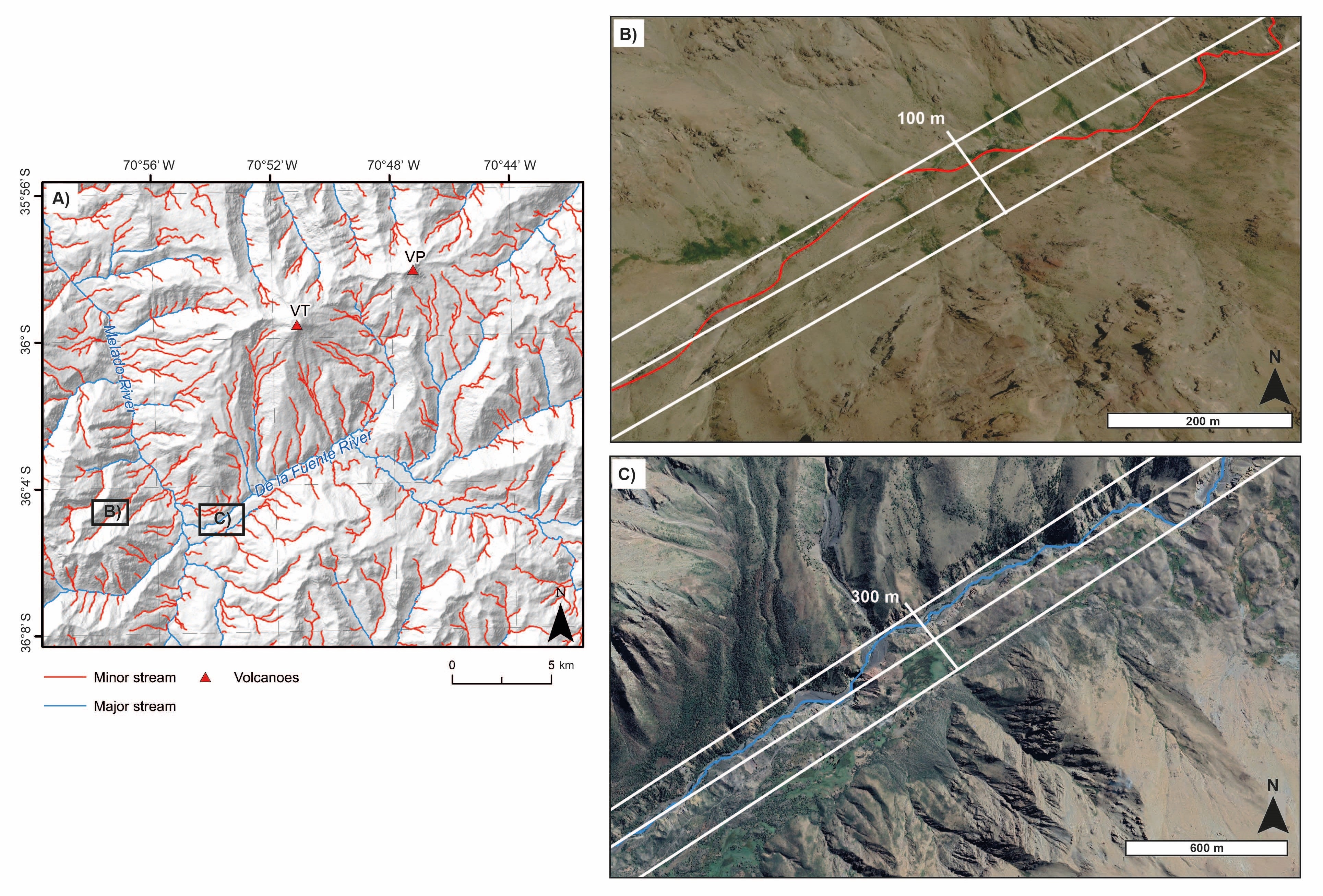

Fig. 3. A. Hillshaded map centered around the Tatara San Pedro Volcanic Complex (VT) and the Pellado Volcano (VP), west from Laguna del Maule (see Fig. 1 for locations). Drainage network depicts the main rivers (blue) and minor-order streams (red) according to their hierarchical ordering. B. Example of geometrization process for minor-order catchments, applying a tolerance threshold of 100 m. C. Example of geometrization process for major-order rivers, with a tolerance threshold of 300 m.

3.3. Azimuthal statistics

After segmenting the drainage network based on channel ordering and converting it into straight segments, we harnessed specialized GIS tools to extract statistical data regarding the direction and length of these straight channel segments. Two distinct sets of lineament statistics were obtained, corresponding to minor- and major-order channels respectively. Following this, we identified the azimuth associated with the shortest lineament and subtracted this value from all orientations. We made this adjustment because we regard the azimuth with the shortest length as a representation of 'background noise' or the outcome of random stream orientations unrelated to tectonic activity. Subsequently, we normalized the resulting length values to 100% to obtain length percentages for each direction and calculated the average of the normalized azimuthal statistics for minor and major streams within each analyzed area, regardless of their absolute length. All this process yielded a unified lineament statistics dataset. The newly derived percentages implicitly involved a weighting operation, where the weights assigned to minor- and major-order segments in the final average would be inversely proportional to their absolute lengths. For instance, in our case study the cumulative length of minor-order segments is nearly three times greater than that of higher-order segments. As a result, when we calculate the average of the normalized percentages for each direction, higher-order channels, despite their shorter total length, carry a more significant weight in the final azimuth statistics. In consequence, the dominant trends within the higher-order segments exert a considerable influence on the subsequent rosette diagram.

3.4. Density map of straight drainage segments

After obtaining the polylines of straight segments representing the original drainage network, we created length-weighted density maps of lineaments. These density maps highlight the longest straight segments, typically associated with geologic lineaments. The maps were derived from the Line Density algorithm in ArcGIS, by assigning a search radius of 0.5 km and the segment length as a weighting parameter. To better recognize and interpret the tectonic structures, we produced density maps of lineaments in two different azimuths: 0-90° and 90-180°. The tectonic interpretation of lineaments was achieved by integrating the length-weighted density maps of lineaments with the drainage network, in conjunction with the incorporation of structural data from previous studies.

4. Results

The azimuthal statistics of lineaments derived from the drainage network are presented in different rose plots (Fig. 4). The directionality of the drainage network, prior to any statistical treatment, shows very uniform roses, with almost no discernible dominant trends at the regional scale (first column in figure 4). The azimuthal statistics of minor-order segments also creates relatively uniform rose plots, displaying a subtle overall tendency in minor areas (second column in figure 4). On the other hand, major-order segments, which are aligned with the directions of the main valleys, exhibit clear preferential trends (third column in figure 4). Finally, the last plot (fourth column in figure 4) represents the combined azimuthal statistics of minor- and major-order segments, weighted according to their absolute lengths.

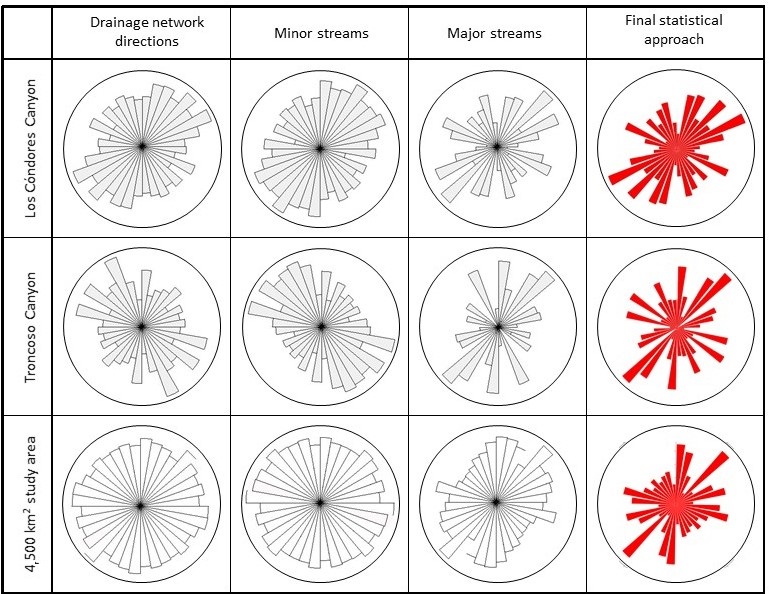

Fig. 4. Rose plots with 10° bins illustrating the orientations of lineaments derived from the drainage network for two designated testing areas (Los Cóndores and Troncoso; see figure 1B) and across the entire region. The first column depicts the trend of the drainage network (considering an accumulation threshold of 0.25 km2). The second and third columns showcase minor- and major-order channel orientations, respectively. The diagrams in the fourth column represent the length-weighted lineaments following the statistical methodology described in the text.

The processed azimuthal statistics of lineaments for the Los Cóndores Canyon, present five preferential azimuthal trends: 60-70°, 40-50°, 10-30°, 110-120°, and a spread of NW-NNW directions. The Troncoso Canyon also shows five main azimuthal trends: 30-50°, 0-10°, 100-110°, 120-130°, and 150-160°. Finally, the results for the whole 4,500 km² study area suggest the main trends 40-50°, 0-20°, 60-80°, 100-120°, and a less clear spread of  NW directions.

All drainage-derived lineaments are shown in a density map (Fig. 5A). In order to facilitate the representation of juxtaposed sets of structures, we present two separate density maps of lineaments: 0-90° and 90-180°, respectively, each highlighting a specific set of structures (Fig. 5B and C).

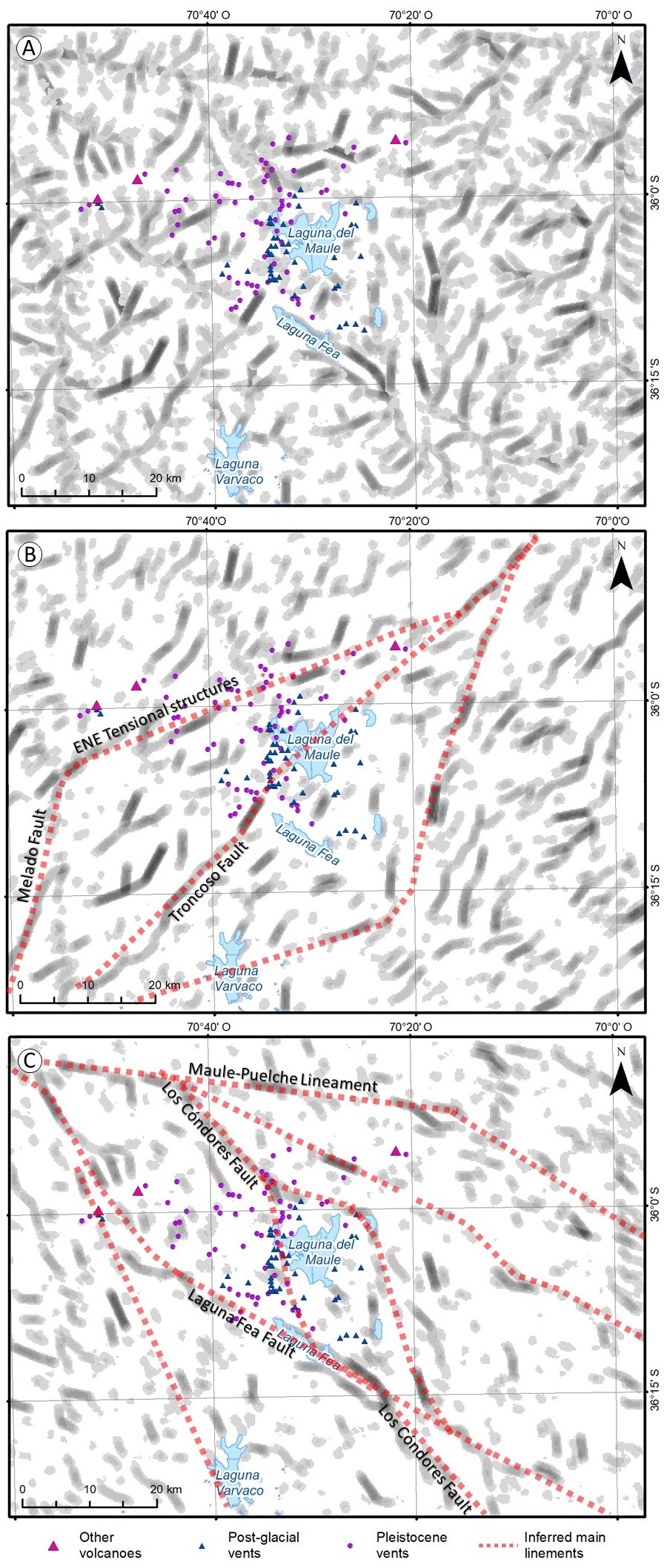

Fig. 5. A. Density maps of lineaments. B. Density maps of oriented lineaments trending 0-90°. C. Density maps of oriented lineaments trending 90-180°. All maps show the characteristic structural features.

5. Discussion

In this section, we discuss the advantages of the lineament extraction and quantification method used in this study. By integrating the lineament analysis with insights from previous tectonic studies, we also reinterpret the tectonic framework of the 35.5-36.5° S Andean intra-arc region.

5.1. Lineament extraction for multiscale analysis

This study used the drainage pattern shape (instead of other possible lineament sources) for the lineament extraction and subsequent analysis. The relationship between drainage network and tectonics is generally conditioned by the Strahler orders (e.g., Resmi et al., 2019; Saidi et al., 2020). The direction of the higher-order segments is usually related to main tectonic structures, whereas lower-order segments probably reflect other factors, like lithological contrasts (e.g., Gioia et al., 2018; Duvall et al., 2020) or the local relief (e.g., Ribolini and Spagnolo, 2008; Gioia et al., 2018). For this reason, the spatial distribution and frequency of lineaments in a given orientation can vary significantly according to the observation scale (e.g., Barth et al., 2012) and depends on the size of the studied area (e.g., Xu et al., 2020). Within this context, the azimuthal statistics of higher-order segments is probably enough to broadly characterize the major tectonic trends but could not be representative at more local scales. One the other hand, shorter lineaments related to minor-order segments are significant, particularly when conducting azimuthal analysis at the local scale, as relying solely on the main valleys may not adequately represent all relevant tectonic structures. For instance, structures following the NW to WNW direction are not represented by major streams within the Troncoso Canyon (third column in figure 4), but they are by lateral tributaries of lower Strahler orders (second column in figure 4).

The main advantage of deriving lineaments solely from the drainage network is the flexibility to use different tolerance thresholds during the line extraction process, depending on the prior categorization of river segments. The tolerance threshold determines how much a segment of the drainage network can deviate from a straight line to be simplified as such. In simple terms, a higher tolerance threshold allows for the creation of longer lineaments for higher-order segments, while a lower tolerance helps maintain the original direction for lower-order segments. The choice of the tolerance threshold was made here based on a geomorphological criterion, such as the average width of the valleys (Fig. 3B and C). For larger rivers, which typically flow through wider valleys and experience greater lateral channel mobility due to natural processes, we used larger tolerance thresholds. Conversely, for smaller tributaries and hillslope streams, we employed shorter tolerance thresholds to preserve their original directions. This way, both higher- and lower-order segments were considered by assigning different weights for different-order streams in the statistical counting of lineaments. Our statistical approach increased the importance of the larger but scarce lineaments (related to main rivers) with respect to the shorter, but more numerous, lineaments (related to minor-order streams), hence favoring a coherent representation of the structural framework.

5.2. Lineament analysis and its consistency with the Riedel Model

The azimuthal statistics obtained from lineaments in both local and regional domains reveal five main trends, broadly consistent with the angular patterns of a Riedel-type structural system (Figs. 5 and 6). The basic geometry of the Riedel structure (Riedel, 1929) consists of characteristic angular relationships and kinematics associated with the structures that develop over time under a fairly consistently oriented stress regime. The sequential development of shear surfaces in natural Riedel systems is still poorly understood, but there is general consensus in that as the shear zone evolves, the strain within the Riedel system is accommodated by synchronous movement on all fractures comprising the zone.

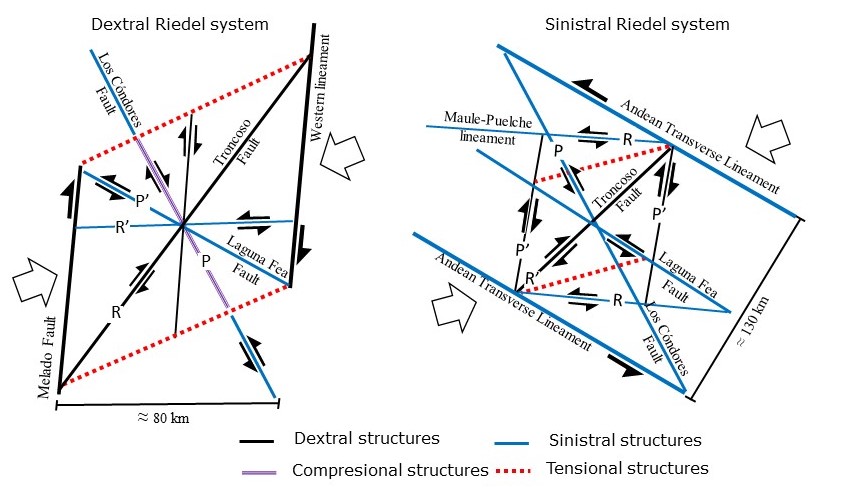

Fig. 6. Schematic representation of two Riedel models: a dextral Riedel system oriented NNE (left diagram) and a sinistral Riedel system oriented WNW (right diagram). The main tectonic structures defined in the study area and their theoretical positions in each of the models are also shown. Additionally, the type of structure (R, P, R’ and P’, according to the Riedel model) and its presumed sense of motion are specified.

The map depicting the 0-90°-oriented lineaments (Fig. 5B) suggests the occurrence of regional-scale ~N-S and ENE lineaments forming a rhomb-shaped domain of a dextral Riedel system. This feature has the dextral Melado Fault as a western master fault, and the Troncoso Fault as the R-type structure (Fig. 6). Within this framework, the ENE-oriented lineaments are expected to be extensional fractures related to the dextral sense of motion of the NNE-striking master faults, as reported elsewhere in the SVZ (e.g., Lavenu and Cembrano, 1999; Rosenau et al., 2006). Examples of such lineaments in the study area can be recognized along the Tatara Damage Zone, defined as an ENE-oriented transtensional feature bordered by the Troncoso, Laguna Fea, Melado, and Los Cóndores faults (Sielfeld et al., 2019b). The Tatara Damage Zone is characterized by a dense array of faults and fractures and by a generalized presence of ENE-striking normal and strike-slip faults, combined with 60-70° E oriented dyke swarms (Sielfeld et al., 2019b; Ruz et al., 2020). This ENE direction is also consistent with normal faults located in the northern margin of the Laguna del Maule (Bobadilla Canyon; Fig. 1B), previously defined as a series of collapse structures generated after large-magnitude eruptions (Hildreth et al., 2010). According to the lineament analysis, tensional features cross the Los Cóndores Fault and continue further to the east, extending into Argentina (Fig. 5B).

The map showing the 90-180°-oriented lineaments (Fig. 5C) highlights the presence of  NW and WNW lineaments, possibly related to the ATFs, broadly documented in the SVZ (e.g., Cembrano and Lara, 2009; Piquer et al., 2019; Pearce et al., 2020). We document clear WNW-trending lineaments crossing the study area, situated immediately north and south of the LdMVC (Fig. 5C). This is consistent with some sinistral NW-to-WNW strike-slip faults reported in the area (e.g., Laguna Fea Fault; Cardona et al., 2018; Garibaldi et al., 2020). We therefore postulate the Laguna Fea Fault as a master fault of a WNW sinistral Riedel system, capable of accommodating local transtensional stresses. In this context, the NW-striking Los Cóndores Fault would represent the P-type structure, characterized by sinistral motion, while the Troncoso Fault would be associated with the R’-type structure, with a dextral sense of motion (Fig. 6).

The ~E-W striking Maule-Puelche lineament stands out as a prominent geological feature that cut throughout the topography at the northern edge of the study area (Fig. 5C). This trend is coherent with the sinistral R'-type structure within the dextral Riedel system as well as with the sinistral R-type structure within the sinistral Riedel system (Fig. 6). Similarly, the NE-striking lineaments are dextral R type structures within the dextral Riedel system and dextral R’-type structures within the sinistral Riedel system. By contrast, the NW-oriented faults (e.g., Los Cóndores Fault) correspond to P-type structures in both regimes, exhibiting sinistral kinematics in a transtensional regime but dextral kinematics in a transpressional regime (Fig. 6).

5.3. New insights for an updated regional tectonic model

Recent studies proposed that transpression in the SVZ accommodates by distributed deformation (e.g., Sielfeld et al., 2019b; Eisermann et al., 2021). Building upon the interpretation of lineaments and a thorough review of structural characterizations from previous studies, we suggest a coexisting and interacting fault system in the LdMVC area. Specifically, we propose that the NNE-oriented Melado Fault, with dextral motion, and the WNW-oriented Laguna Fea Fault, exhibiting sinistral motion, are the main faults of a Riedel deformation model (Fig. 6).

Some tectonic models of the LdMVC area have suggested a local-scale, NE-oriented pull-apart basin, with the dextral Troncoso Fault as the western master fault (Miller et al., 2017; Cardona et al., 2018; Peterson et al., 2020). In the present study, we rather suggest a larger-scale, rhomb-shaped pull-apart basin (Fig. 5B). This regional structure would have the dextral Melado Fault as a western master fault, and the Troncoso Fault as the cross-basin fault zone, similar to what has been observed in analog models (e.g., Wu et al., 2009). In this framework, the ENE-oriented lineaments correspond to tensional structures, which are coherent with either a transpresional or transtensional regime (Fig. 6).

In the southern SVZ, the tectonic shift from transtensional to transpresional likely took place in the late Pliocene (Göllner et al., 2021). Further north, however, in the LdMVC area, a compressional regime was suggested based on NW- to N-S striking reverse faults affecting recent lacustrine sediments (Garibaldi et al., 2020). The NW-oriented Los Cóndores Fault was previously proposed as a long-lived, arc-oblique ATF, with a sinistral sense of motion (Sielfeld et al., 2019b), although the authors also acknowledged difficulties in determining the fault’s kinematics and recognized the presence of dextral NW-oriented structures at the confluence of the Los Cóndores Canyon and the Maule Valley. On the other hand, results from analogue experiments show that regularly spaced NW-striking faults, spontaneously localized as Riedel shears, are inherently related to dextral transpression (Eisermann et al., 2021). Therefore, according to the Riedel model, the Los Cóndores Fault would be a P-type structure capable of shifting its kinematics from sinistral to dextral depending on the prevalent tectonic regime (Fig. 6). The lineament analysis conducted here suggests that this structure branches to accommodate compressional deformation, potentially developing a duplex structure (Fig. 5C). The structure encompasses most of the post-glacial vents in the LdMVC area, suggesting that it could be reactivated in the future.

6. Conclusions

Our analysis, which integrates lineament analysis with insights from previous tectonic studies, suggests that the structural arrangement around the Laguna del Maule area can be modeled by conjugate Riedel shear bands. These shear bands represent regional-scale sets of structures that intersect each other at Laguna del Maule, forming a densely fractured zone. The prevailing transpressional regime in the region, where deformation is primarily accommodated by NNE-oriented faults (e.g., Melado Fault), may locally alternate with transtensional conditions, activating WNW-oriented faults (e.g., Laguna Fea Fault). Within this framework, the occurrence of dextral NE-striking structures (e.g., Troncoso Fault), and the development of tensional ENE-oriented structures, are consistent with both deformational regimes. Conversely, according to the Riedel model, the NW-oriented Los Cóndores Fault would be a P-type structure capable of shifting its kinematics from sinistral to dextral depending on the prevalent tectonic regime. The lineament analysis conducted here suggests that this structure branches in the Laguna del Maule area to accommodate compressional deformation, potentially developing a duplex structure. The ability of conjugate Riedel shear bands in accommodating both transtensional and transpressive deformation could explain the compositional magmatic variability at the LdMVC and influence magmatic residence times.
