1. Introduction

The Combia Volcanic Province (CVP) commonly known as Combia Formation (Grosse, 1926; Jaramillo, 1976; Duque-Caro, 1990; Sierra et al., 2005) is an Upper Miocene volcaniclastic sequence (~11-5 Ma; Restrepo et al., 1981; Tassinari et al., 2008; Jaramillo et al., 2019; Weber et al., 2020; Santacruz et al., 2021) consisting of lava flows, primary volcaniclastic deposits (fall and pyroclastic density currents) and secondary deposits (debris avalanches and lahars; Piedrahita et al., 2019), as well as subvolcanic bodies (Marriner and Millward, 1984; Ramírez et al., 2006; Tejada et al., 2007; Borrero and Toro-Toro, 2016; Bissig et al., 2017; Jaramillo et al., 2019; Santacruz et al., 2021). This volcanic province, which covers an area of ~1,300 km², is distributed in the Middle Cauca Belt (MCB), in the Amagá basin, between the Central and Western cordilleras in the Colombian Andes at 5-6° N latitude (López et al., 2006; Sierra and Marín-Cerón, 2011; Fig. 1A). It is considered as one of the first volcanic expression from the post-collisional magmatic arc generated by the re-established Nazca plate subduction under the South American plate after the Panamá arc-continent collision (Wagner et al., 2017; Jaramillo et al., 2019; Weber et al., 2020).

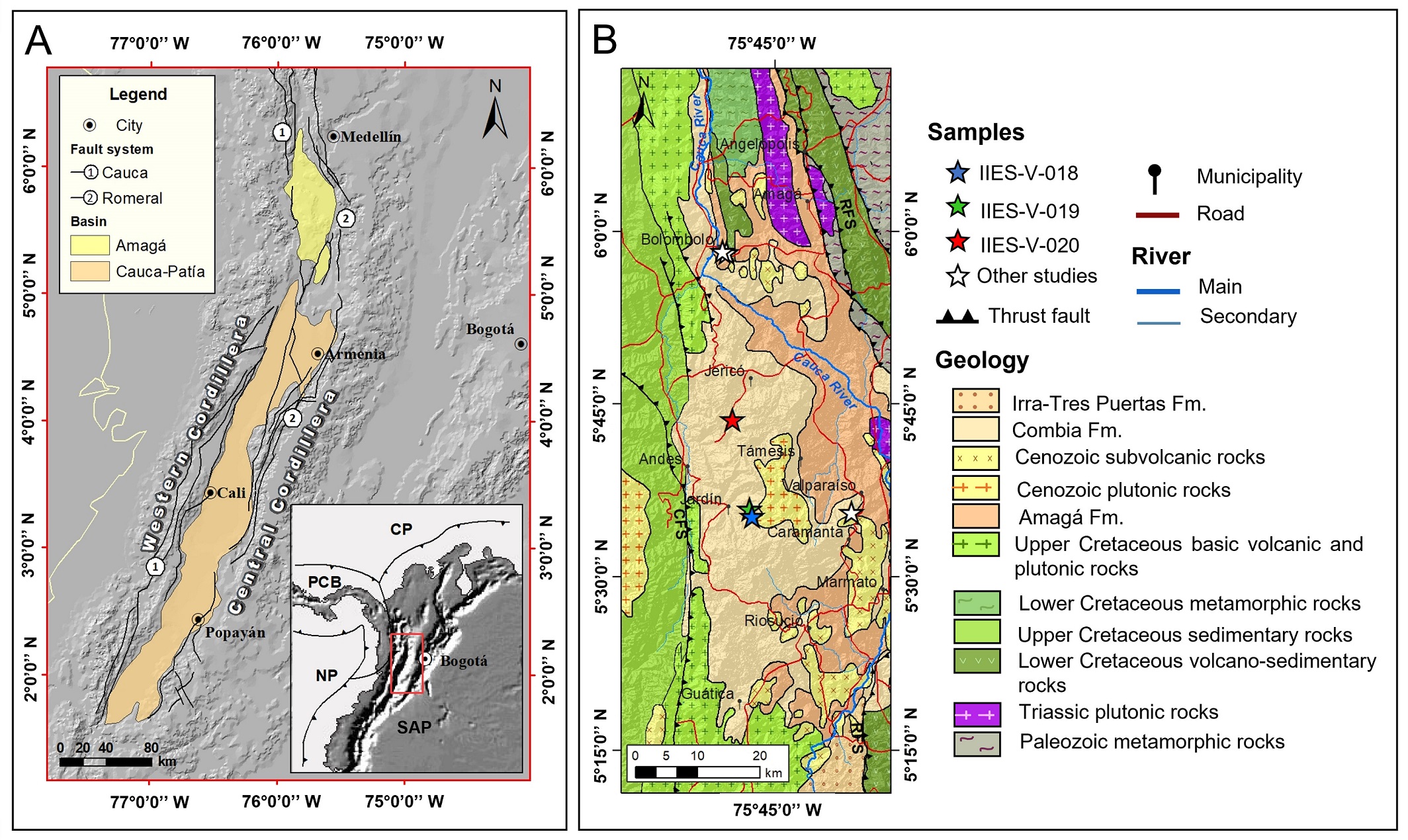

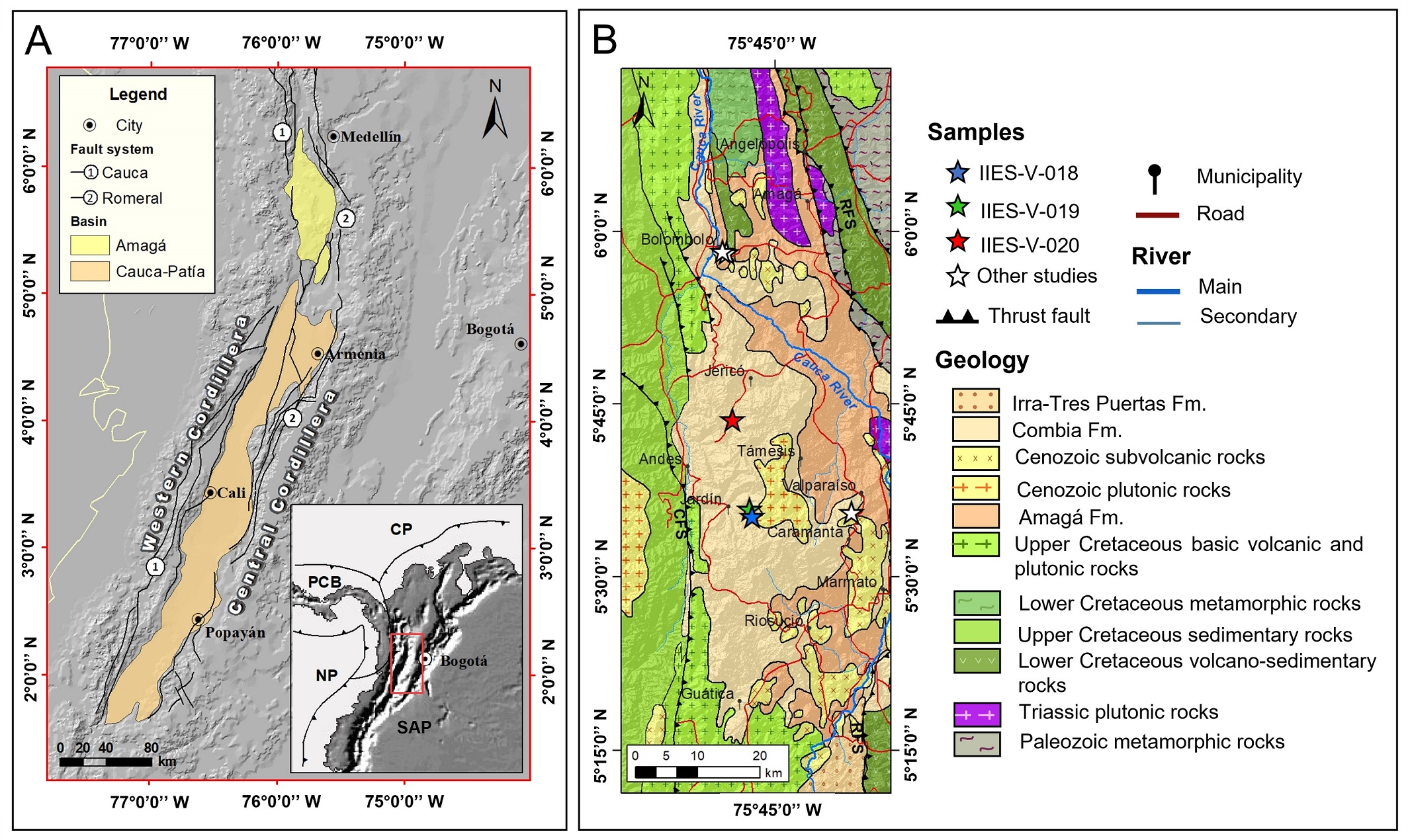

Fig. 1. A. Geographic location of the Amagá/Cauca-Patía basins; modified from Sierra and Marín-Cerón (2011). CP: Caribbean Plate, NP: Nazca Plate, PCB: Panamá-Chocó Block, SAP: South American Plate. B. Geologic map of the Amagá basin; modified from Sierra and Marín-Cerón (2011), RFS: Romeral Fault System, CFS: Cauca Fault System. White stars correspond to lava flows studied by Borrero and Toro-Toro (2016) and Jaramillo et al. (2019).

The CVP exhibits a bimodal composition of tholeiitic (ca. 11-9 Ma) and calc-alkaline rocks, some of the latter with adakite-like signature (ca. 9-5 Ma; Borrero and Toro-Toro, 2016; Jaramillo et al., 2019; Bernet et al., 2020; Weber et al., 2020). All products host plagioclase as a ubiquitous mineral, although they also host olivine, pyroxene, amphibole, biotite and/or garnet in different proportions (Jaramillo et al., 2019; Weber et al., 2020). Recent studies have recognized that the lava flows and only some volcaniclastic products of basaltic and basaltic andesitic composition are the tholeiites, while most of the volcaniclastic products and all subvolcanic bodies of andesitic and dacitic composition display calc-alkaline signature (Jaramillo et al., 2019; Weber et al., 2020; Santacruz et al., 2021). To explain this bimodal chemical signature, several geological scenarios have been proposed based on different compositional analyzes, which can be simplified as follow: 1) Local thinning in the crust that allowed diverse evolution of the tholeiitic magmas; this based on trace elements ratios (Sr/Y, La/Yb, and Ce/Y; Jaramillo et al., 2019); 2) Various magma origins that mixed during ascent plus the involvement of sediments and fluids from the subducting plate; this based on isotopic ratios (Nd, Pb, Sr; Bernet et al., 2020); and 3) Magma stagnation zones and mixing processes that allowed differential evolution and therefore different compositions; this based on trace elements ratios (e.g., La/Yb and La/Sm), mineral chemistry (garnet and amphibole), and geothermobarometry analyses (Bernet et al., 2020; Weber et al., 2020).

Despite the above, there is still a great interest in understanding the configuration of the magmatic feeding system in order to document the characteristics of the magmatic arc associated with the re-established subduction of the Nazca plate during the Late Miocene after the arc-continent collision of the Panamá block. This paper provides lacking information about the magmatic evolution and crystallization conditions for the initial tholeiitic magma that gave origin to the CVP, based on petrographic characterizations, mineral and whole-rock chemical analyses and the geothermobarometric estimates for the crystallization conditions of the main mineral phases recognized. This approach, integrated with existing information, constitutes a contribution to understand the evolution of the Andean magmatic arcs in post-collisional tectonic scenarios.

2. Geological Setting

The northwestern margin of South America has been subjected to collision of oceanic Plateaus and island arcs alternated with subduction episodes from the Late Cretaceous to Present-day associated with the interactions between the South American, Caribbean, Farallon/Nazca plates, and the Panamá-Chocó arc (e.g., Villagómez and Spikings, 2013; León et al., 2018; Montes et al., 2019; Zapata et al., 2020). These episodes seemingly provided first-order controls on the Cenozoic tectono-magmatic evolution of the continental arc in the Colombian Andes (e.g., Bayona et al., 2012; Echeverri et al., 2015; Wagner et al., 2017; Jaramillo et al., 2019). Towards the west of the Colombian Andes at 2-6° N latitude the history of this tectonic scenario and the tectono-magmatic evolution is recorded in hinterland basins controlled by strike-slip structures from the Eocene to Present-day, such as Amagá and Cauca/Patía basins (e.g., Sierra et al., 2005; Jaramillo et al., 2019; Bernet et al., 2020; Weber et al., 2020; Gallego-Ríos et al., 2020). These basins are located between the Central and Western cordilleras with structural boundaries defined by the Romeral Fault System (RFS) to the east and Cauca Fault System (CFS) to the west (Fig. 1A). The eastern limb of the Amagá basin, which is the object of this study, exposes an assemblage of Paleozoic, Triassic, and Cretaceous metamorphic, plutonic and volcano-sedimentary rocks from Central Cordillera basements (Fig. 1B). The western limb exposes mafic volcanic and plutonic rocks with sedimentary pelagic rocks interlayering related to Caribbean allochthonous terrains accreted during the Late Cretaceous to the South American margin (Fig. 1B; Villagómez and Spiking, 2013; Spikings et al., 2015; Zapata et al., 2020).

The stratigraphy of the Amagá basin is constituted by a lower siliciclastic unit composed of Oligocene quartz-rich continental sediments (alluvial and fluvial deposits with coal intervals) of the Amagá Formation deposited in a strike-slip basin associated with the high obliquity interaction between the Farallon and South-American plates (Silva-Tamayo et al., 2008; Lara et al., 2018). After the Farallon break-up into the Nazca and Cocos plates about ~23 Ma (e.g., Meschede and Barckhausen, 2000; Lonsdale, 2005), there was a change in the Farallon/Nazca kinematics from an oblique to more orthogonal subduction (e.g., Pardo-Casas and Molnar, 1987; Somoza and Ghidella, 2005). This kinematic change of Farallon/Nazca plates with the South American margin was the precursor of regional discontinuities and changes in the composition from quartz-rich to lithic sandstones of the upper member of the Amagá Formation. Subsequently, during the Early-Middle Miocene, the continental margin of northwestern South America was subjected to the Panamá-Chocó intra-oceanic arc-continent collision (Montes et al., 2015, 2019). The Panamá-Chocó arc formed during the Cretaceous-Eocene due to the north-northwestward subduction of the Farallon plate beneath the Caribbean Plateau (Cardona et al., 2018; León et al., 2018; Barbosa et al., 2019), which collided against northwestern South America as a consequence of the northeastward drift of the Caribbean plate (León et al., 2018; Montes et al., 2015, 2019). This collisional event triggered an orogenic pulse recorded in the cooling histories of exposed rocks along the suture zone, Western Cordillera, and by an unconformity (~13-11 Ma) associated with the tectonic inversion of the Amagá basin (e.g., Piedrahita et al., 2017; León et al., 2018; Lara et al., 2018). After this collisional episode, the subduction (re)initiation of the buoyant Nazca plate below the South American plate during the Middle-Late Miocene allowed the genesis of the magmatic arc along the suture zone (Rodríguez and Zapata, 2012). Subsequently, the magmatic arc migrated eastward at 5-6° latitude and was positioned in the Amagá basin during the Late Miocene (e.g., Jaramillo et al., 2019; Weber et al., 2020). In this strike-slip hinterland basin, the upper Amagá Formation was overlain and intruded by mafic/intermediate volcanic and subvolcanic bodies with volcaniclastic deposits associated with the Combia and Irra-Tres Puertas formations along the CVP (Fig. 1B). These units are limited by an angular unconformity with the underlying units (e.g., Barroso and Amagá formations) and represent the continental magmatic arc record related to the renewed oblique subduction of the Nazca plate below the South American margin between ~11 and 5 Ma. From Late Miocene to Present-day the Nazca plate geodynamic controls such as oblique subduction (re)initiation, collision/subduction of aseismic ridges (e.g., Sandra ridge), and slab flattening controlled the upper plate architecture and the tectono-magmatic evolution of the continental arc in the northwestern Colombian Andes (e.g., Wagner et al., 2017; Jaramillo et al., 2019; León et al., 2021).

3. Methods

All rocks were collected from three different lava flows that outcrop in the middle part of the Amagá basin (Fig. 1B) and represent the tholeiitic suite of the volcanic province.

3.1. Petrography

Thin sections of the samples were made in the TECLAB Gyp S.A. (Bogotá, Colombia). They were later analyzed with a Nikon eclipse 50i pol microscope in the petrography laboratory from the Universidad Industrial de Santander, Colombia, following a grid of 1x1 mm point counting, with 400 points total for each sample. The observed crystals were classified as phenocrysts (>0.5 mm), microphenocrysts (between 0.05 and 0.5 mm), and microcrysts (<0.05 mm), the latter as part of the groundmass, following González (2008). The mineral abbreviations were taken from Siivola and Schmid (2007).

3.2. Mineral chemistry

In situ mineral quantitative analyses (127 for plagioclase and 30 for pyroxene) were performed using a JXA-8530F Field Emission Electron Probe X-ray MicroAnalyzer (FE-EPMA) equipped with 5 wavelength dispersive spectrometers, at the Facility for Analysis, Characterization, Testing and Simulation (FACTS) in Nanyang Technological University (NTU), Singapore. Point analyses were acquired using a focused beam at a probe current of 20 nA and an accelerating voltage of 15 kV. Current was reduced to 10 nA and defocused beam diameters of 3 for analysis of plagioclase, to reduce beam dosage and resultant sodium signal decay. Results were quantified using well characterized natural and synthetic external calibration standards and a ZAF matrix correction procedure. Oxygen content was assumed from cation abundance, with all iron present as Fe²⁺. Error on repeat analysis of standard reference materials was <1% of measured values. Kα X ray lines were monitored for 20-60 s for each element, depending on expected concentrations except for Na Kα which was monitored for only 10 s. Background measurements were performed on either side of each peak position for combined counting times equaling the corresponding peak counting times. Measured peak and background positions were found to be free of interferences within the sample and standard matrices. For this work, it was only used analysis whose sum of the major element oxides was between 97 and 100 wt%. The data was processed for its graphical representation and cation per formula unit calculation, using the GCDkit 4.1 (Janouŝek et al., 2006), CFU and CFU-PINGU (Cortés, 2017) programs.

3.3. Whole rock chemistry

Whole-rock analyses (major and trace elements) were made with the ICP-OES (Inductively coupled plasma optical emission spectrometry) and ICP-MS (Inductively Coupled Plasma mass spectrometry) techniques, in the ActLabs laboratories (Colombia). Major oxides are reported in weight percentage (wt%) and trace elements in parts per million units (ppm). The loss of ignition (LoI) was calculated from the weight of the samples, and the iron was reported as Fe₂O₃ total. The results were plotted using the GCDkit 4.1 (Janouŝek et al., 2006) software.

4. Results

4.1. Petrography and mineral chemistry

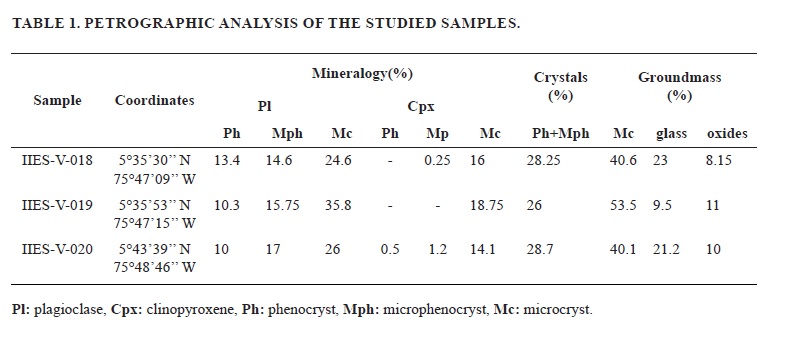

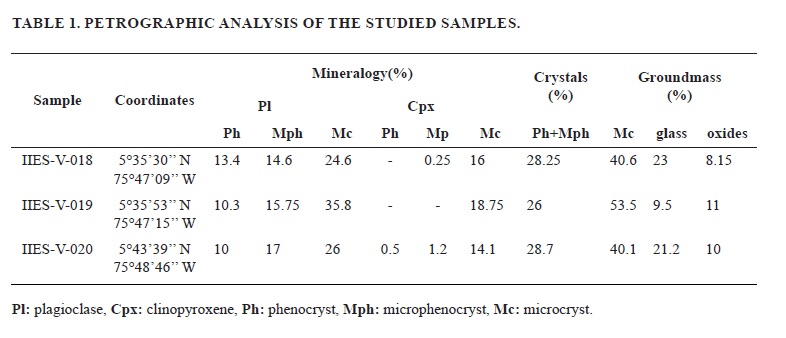

The studied rocks are hypocrystalline with porphyritic textures. They have pheno- and micro-phenocrysts (varying between 26.0 to 29.0 vol.%) of plagioclase and clinopyroxene embedded in a microcrystalline and glassy groundmass (61.0-63.0 vol.%) (Table 1; Fig. 2A). Clinopyroxene phenocrysts are absent in sample IIES-V-019 (Table 1). The glassy zones vary between 9.5 and 23.0 vol.%, and the microcrystalline groundmass hosts plagioclase (24.6-35.8 vol.%) and clinopyroxene microcrysts (14.1-18.7 vol.%) in all rocks. Plagioclase is the most abundant mineral phase in all samples, and it appears as subhedral to euhedral phenocrysts (10.0-13.4 vol.%) and microphenocrysts (14.6-17.0 vol.%) (Fig. 2B), occasionally displaying glomeroporphyritic texture (Fig. 2C, D). Some plagioclase crystals exhibit sieve texture (Fig. 2A, B, D, E), embayment and dissolution rim (Fig. 2A, D), as well as zoning (Fig. 2B, D) and albite and pericline twinning. Clinopyroxene phenocrysts (0.5 vol.%) are only found in the sample ​​IIES-V-020, while microphenocrysts are present in samples ​​IIES-V-018 and ​​IIES-V-020 (0.2-1.2 vol.%, respectively) (Table 1). Clinopyroxene also forms glomeroporphyritic texture with plagioclase and some phenocrysts show polysynthetic twinning (Fig. 2E) and coronitic texture (Fig. 2F). All rocks display fluidal textures, recognized by microcrysts oriented around phenocrysts (Fig. 2E) and also intersertal textures (Fig. 2F).

Fig. 2. A. Plagioclase pheno- and microphenocrysts and clinopyroxene microphenocrysts, in a microcrystalline groundmass with glassy zones (IIES-V-020 sample). B. Plagioclase phenocryst with albite twinning, zoning and sieve texture in its core, and euhedral plagioclase microphenocrysts (IIES-V-019 sample). C. Plagioclase glomerocrysts with sieve texture, albite and pericline twinning (IIES-V-018 sample). D. Plagioclase glomerocrysts with sieve texture, dissolution rims, albite twinning and zoning (IIES-V-019 sample). E. Plagioclase with sieve texture, clinopyroxene with polysynthetic twinning, and Fe-Ti oxide glomerocrysts in groundmass with fluidal texture (indicated by the dotted arrows) (IIES-V-020 sample). F. Clinopyroxene phenocrysts with coronitic texture, in groundmass with intersertal texture (IIES-V-020 sample). Pl: plagioclase, Cpx: clinopyroxene, Aug: augite, Pgt: pigeonite, Ox- Fe-Ti oxide. All photomicrographs were taken in crossed Nichols.

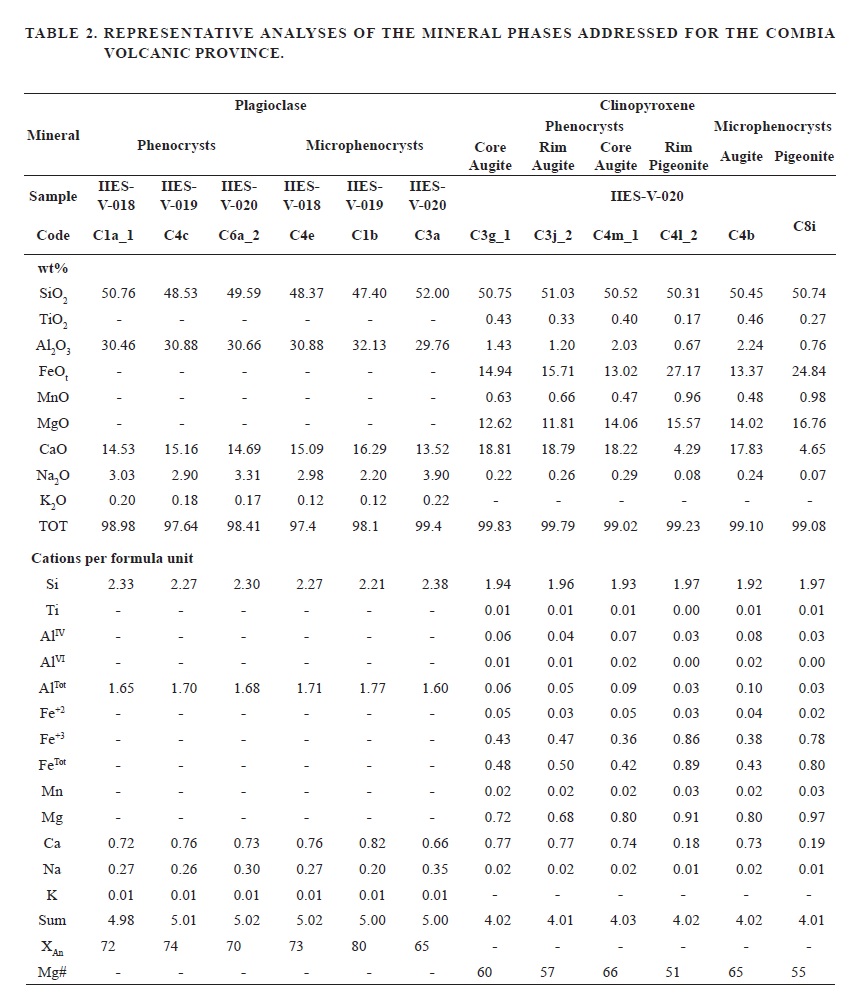

Compositionally (Table 2; Supplementary material 1), the plagioclase phenocrysts range from labradorite to anorthite (An₅₆-An₉₀; Fig. 3A). The sample IIES-V-018 shows a more discrete range of compositions (An₆₉-An₈₃), whereas the sample IIES-V-020 displays a wider range (An56-An90). The plagioclase microphenocrysts display a range between andesine and bytownite (An50-An84; Fig. 3B). Samples IIES-V-018 and IIES-V-019 show a nearly identical range of compositions (An₅₈-An₈₂), while sample IIES-V-020 shows microphenocryts of more intermediate composition (An₅₀-An₆₉), with exception of one crystal that falls within the bytownite field (An₈₄). The compositional analysis from core to rim in the minerals also evidence the previously identified inverse (Fig. 3C) and oscillatory zoning (Fig. 3D) in all samples. The pyroxene phenocrysts of sample IIES-V-020 (Table 1, Fig. 4A) are classified as augite (Wo_42-37, Ens_42-35, Fs_26-18; Fig. 4B), a few of which show pigeonite rims (Wo_10-9, Ens_49-46, Fs_45-41; Fig. 4C). Similar range of compositions are observed, augite (Wo_39-35, Ens_42-38, Fs_27-20) and pigeonite (Wo_13-9, Ens_49-44, Fs_43-41), for the microphenocrysts of sample IIES-V-020. Unfortunately, no microphenocrysts of sample IIES-V-018 yielded truthful results.

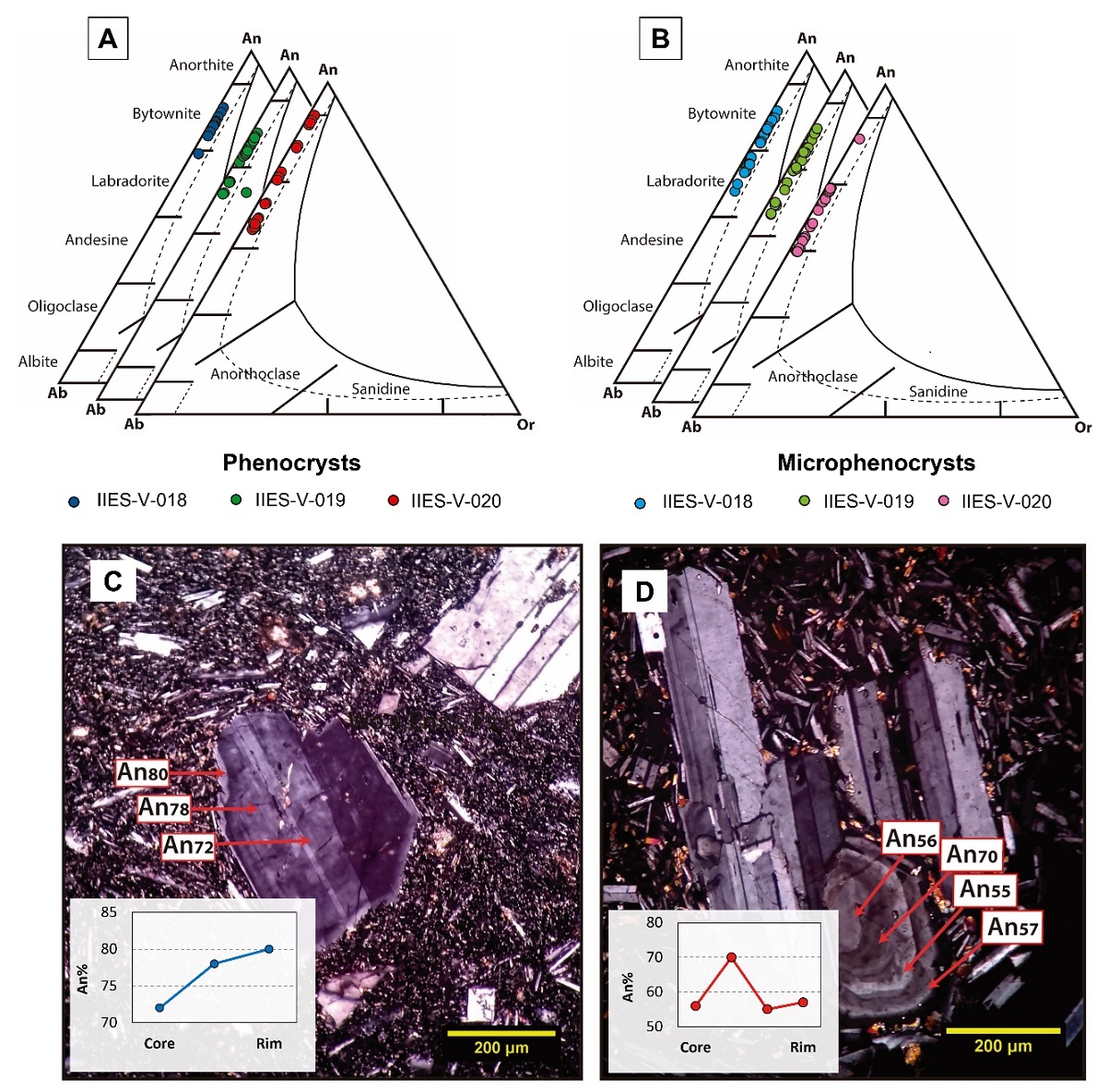

Fig. 3. Ternary classification diagram Ab-An-Or for feldspar (Deer et al., 1992). A. Plagioclase phenocrysts. B. Plagioclase microphenocrysts. C. Inverse zoning in sample IIES-V-018, crossed Nichols. D. Oscillatory zoning in sample IIES-V-020, crossed Nichols. An: anorthite, Ab: albite, Or: orthoclase.

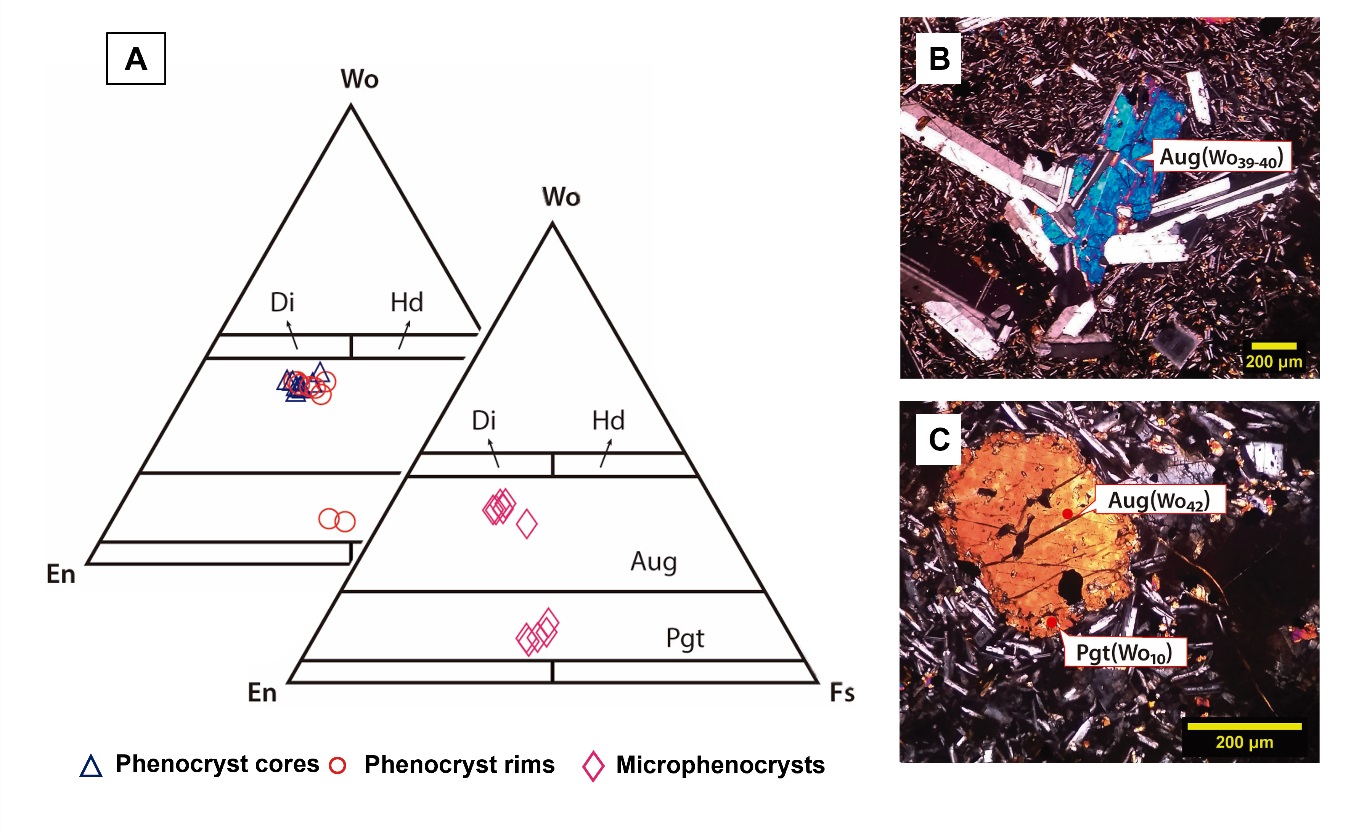

Fig. 4. A. Classification diagram of pyroxene composition (Morimoto, 1989) (IIES-V-020 sample). Note that phenocrysts were analyzed at cores and rims, while microphenocrysts only at a single spot. B. Homogeneous composition augite, crossed Nichols. C. Augite crystal with pigeonite rim, crossed Nichols. Wo: wollastonite, Di: diopside, Hd: hedenbergite, Aug: augite, Pgt: pigeonite, En: enstatite, Fs: ferrosilite.

4.2. Geochemistry

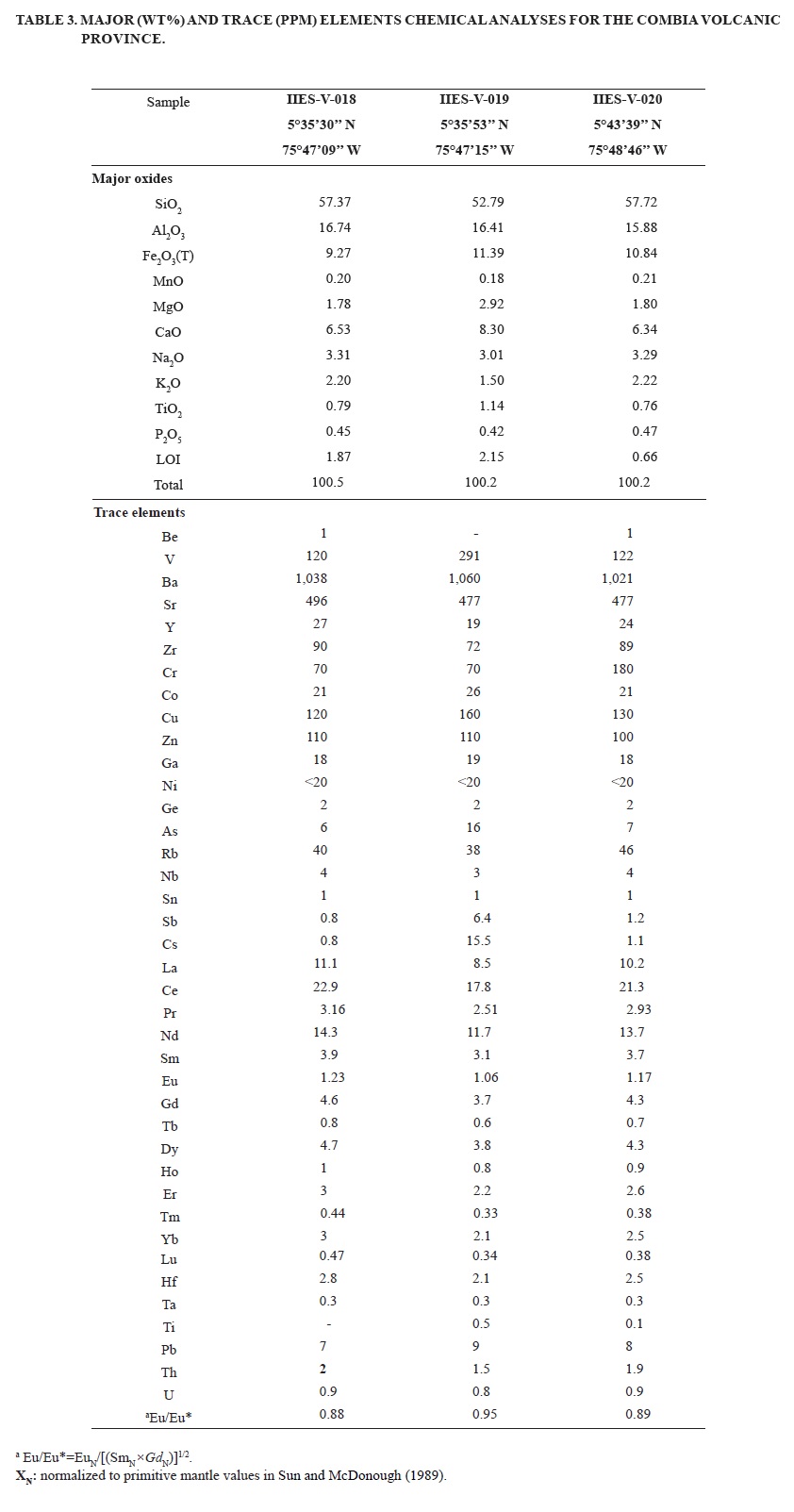

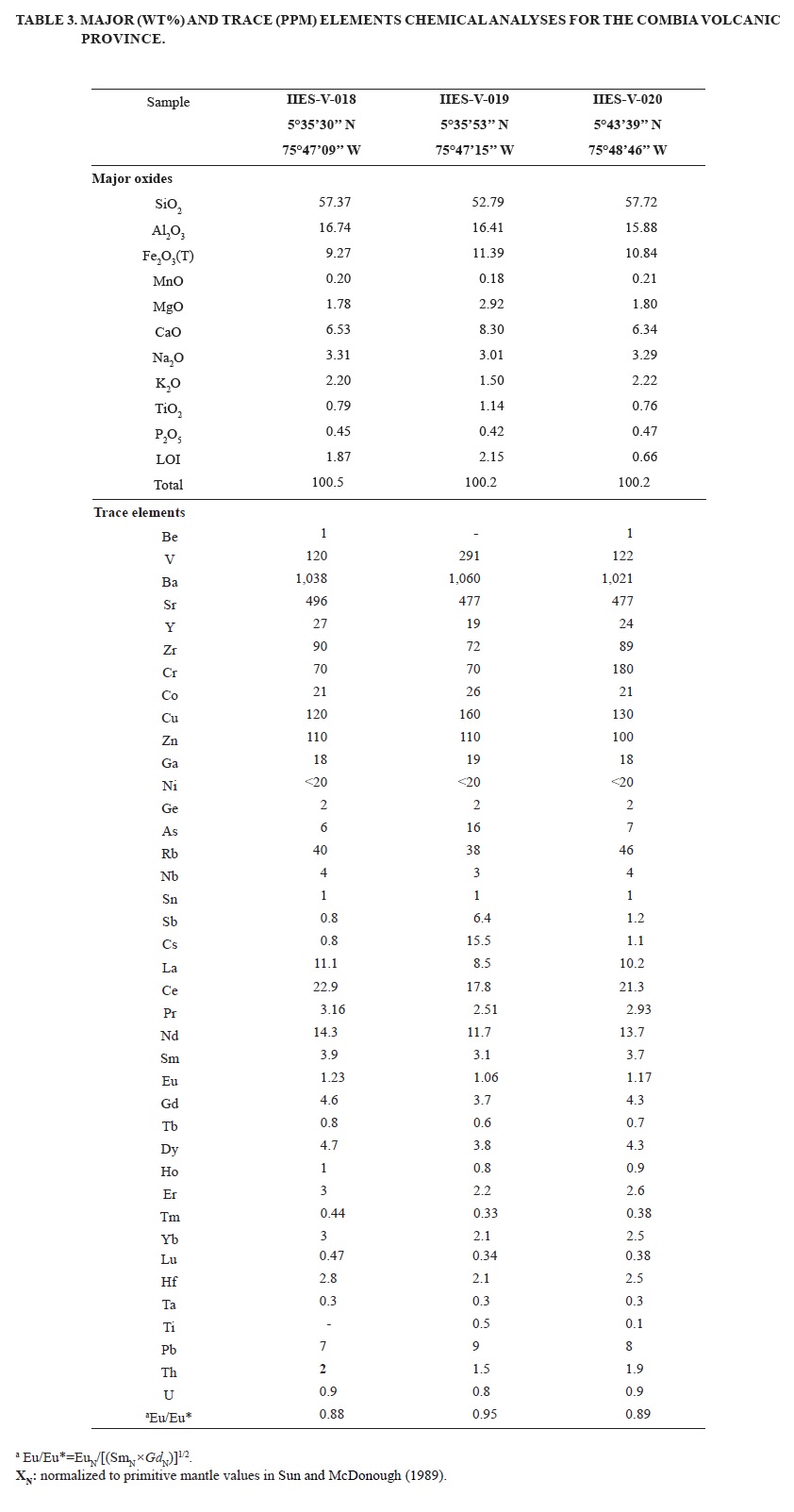

Compositionally (Table 3), the studied rocks range from basaltic andesite to andesite, with sample IIES-V-019 being the least evolved of the set (Fig. 5A). They have tholeiitic affinity (Fig. 5B) and present a K content (Fig. 5C) that range from medium (IIES-V-019) to high (IIES-V-018 and IIES-V-020). If compared with tholeiitic samples from previous studies (Marriner and Millward, 1984; Borrero and Toro-Toro, 2016; Jaramillo et al., 2019), samples IIES-V-018 and IIES-V-020 show the more evolved compositions and the highest K content (Fig. 5C). The sample IIES-V-019 falls within the range of compositions displayed by other studies. Variation diagrams of major and trace elements versus SiO₂ (Fig. 6), for the tholeiitic rocks of the CVP (this study and others: Marriner and Millward, 1984; Borrero and Toro-Toro, 2016; Jaramillo et al., 2019) shows negative correlations for CaO and MgO, and positive for Th and Nb, and crudely for Rb.

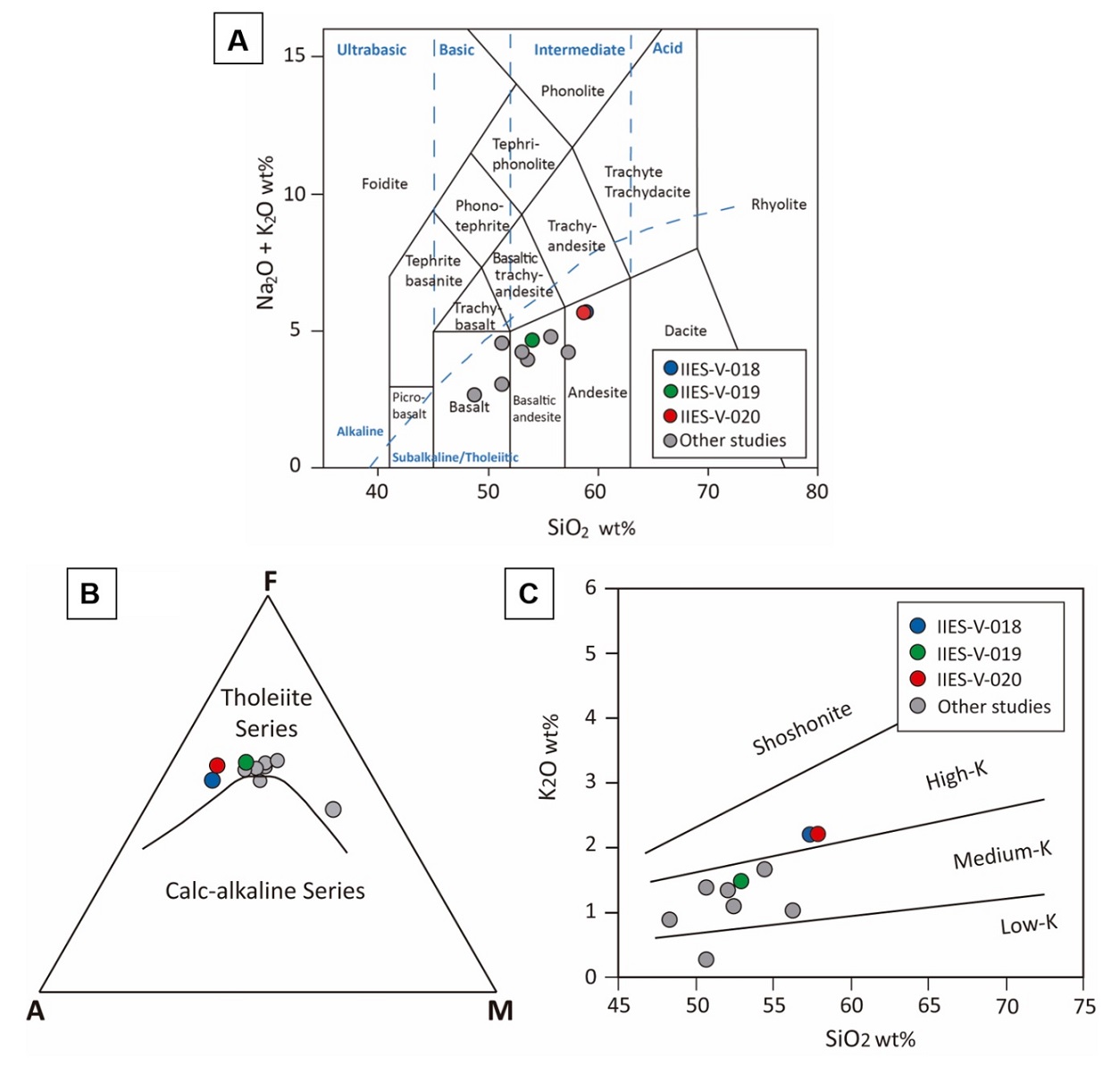

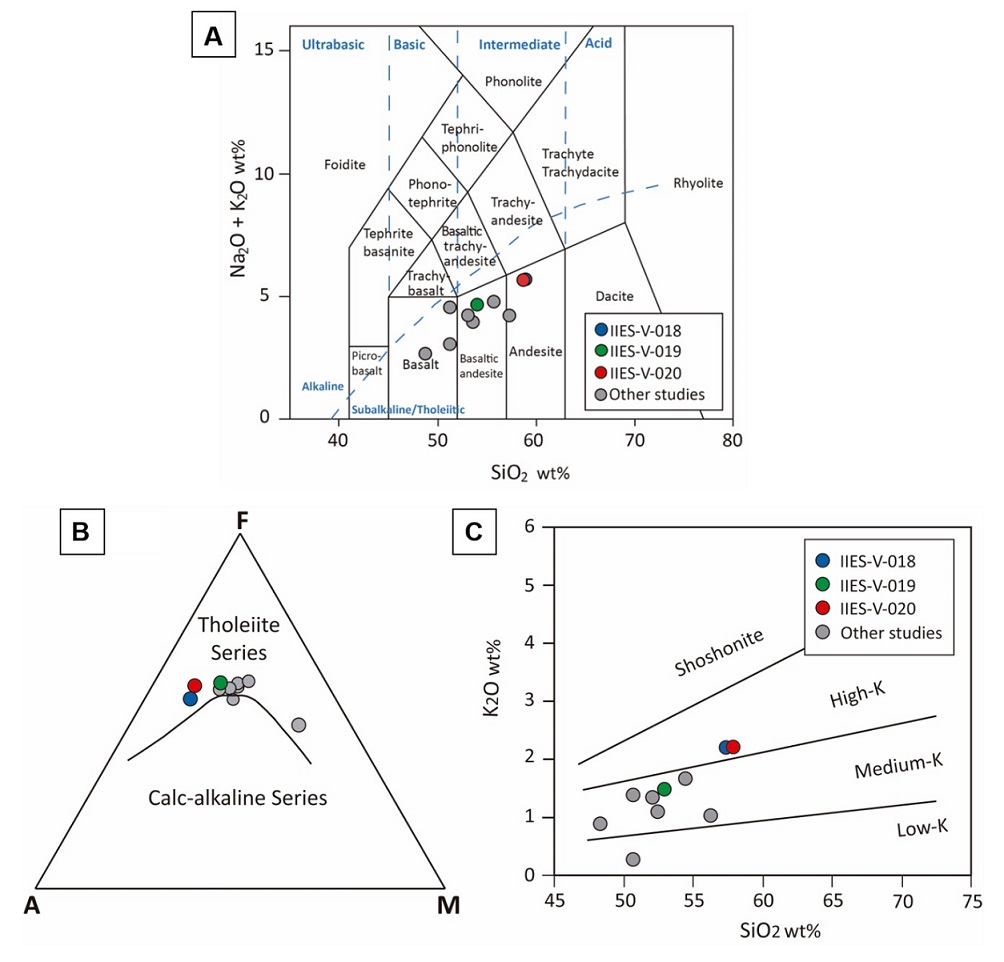

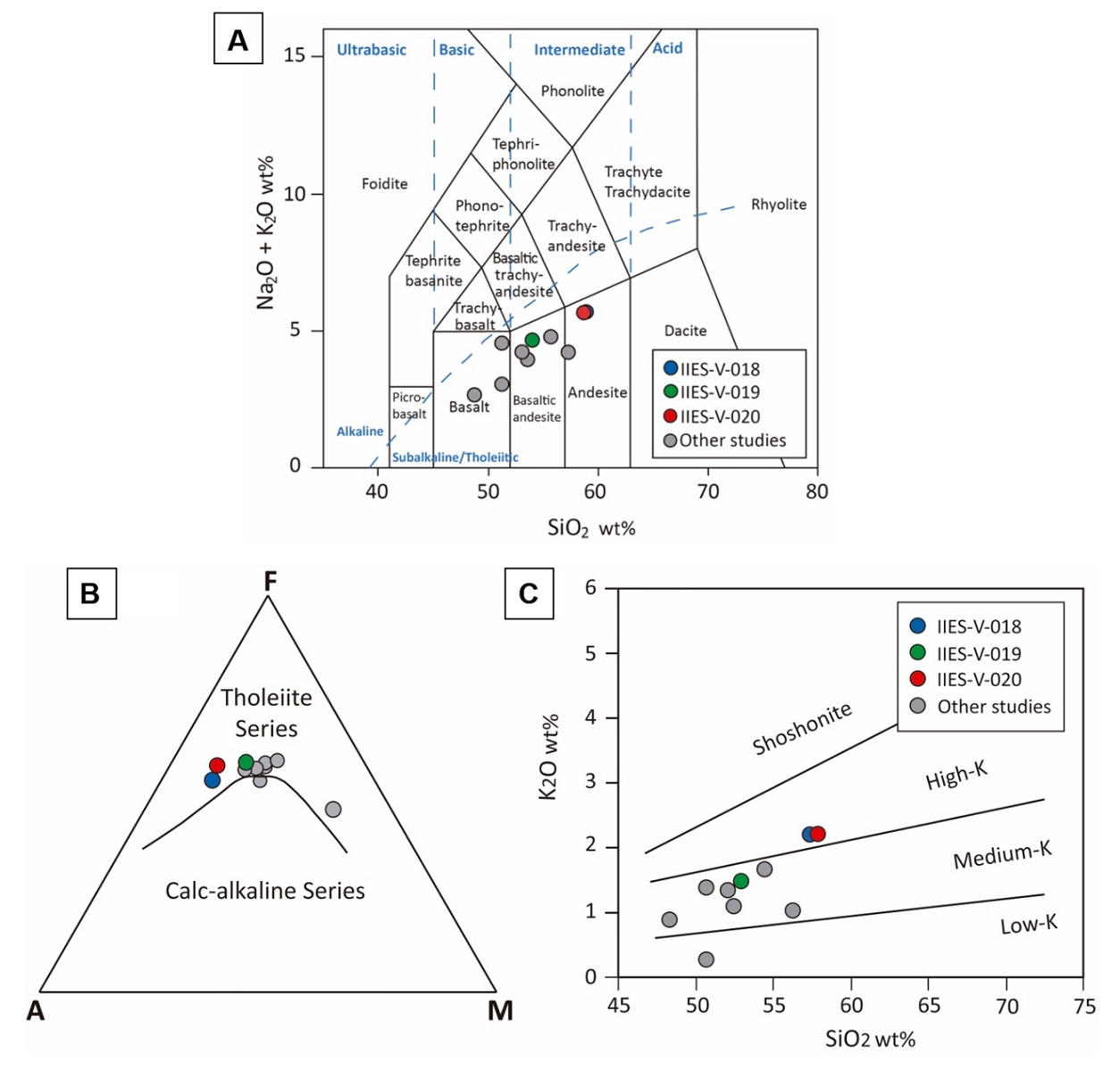

Fig. 5. A. Silica versus Alkali variation diagram (TAS- Le Bas et al., 1986). B. Alkali (Na2O+K2O)-FeO- MgO variation diagram (AFM- Irvine and Baragar, 1971). C. SiO2 versus K2O variation diagram (Gill, 1981). Gray points correspond to the tholeiitic lava flows studied by Marriner and Millward (1984), Borrero and Toro-Toro (2016) and Jaramillo et al. (2019).

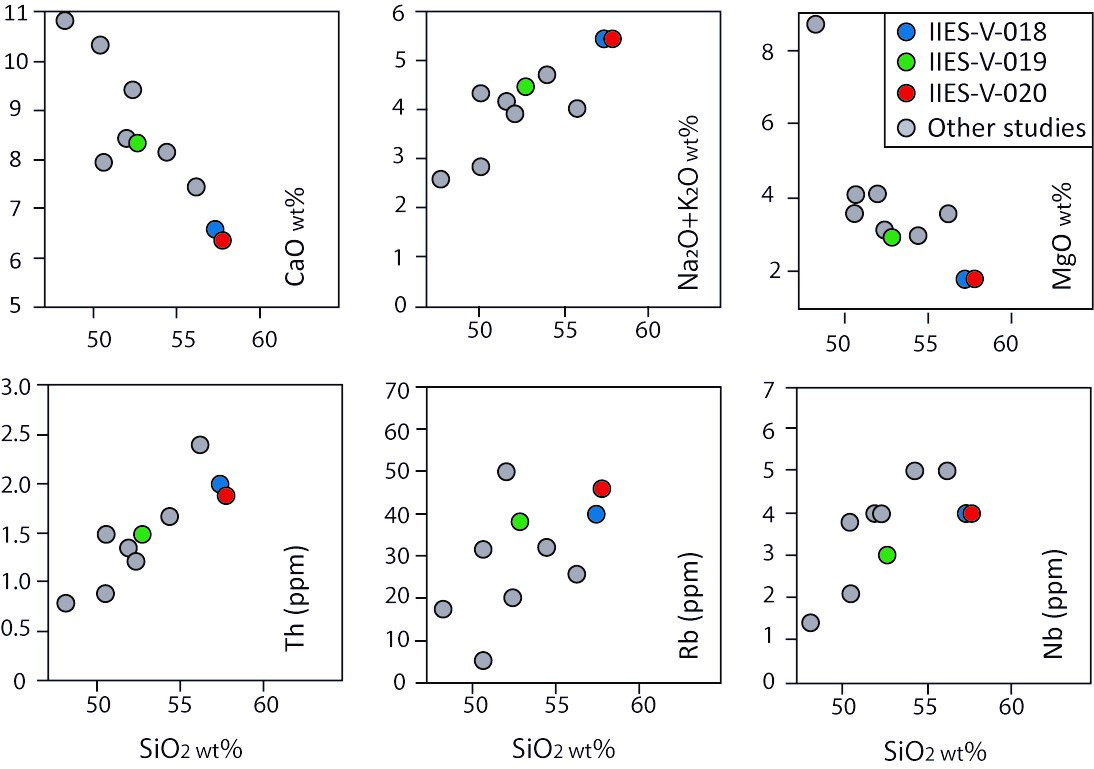

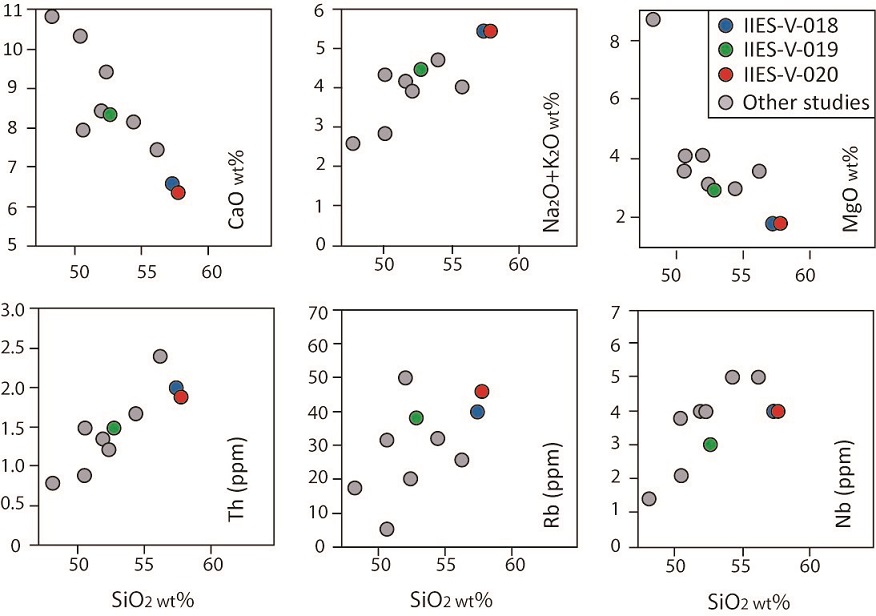

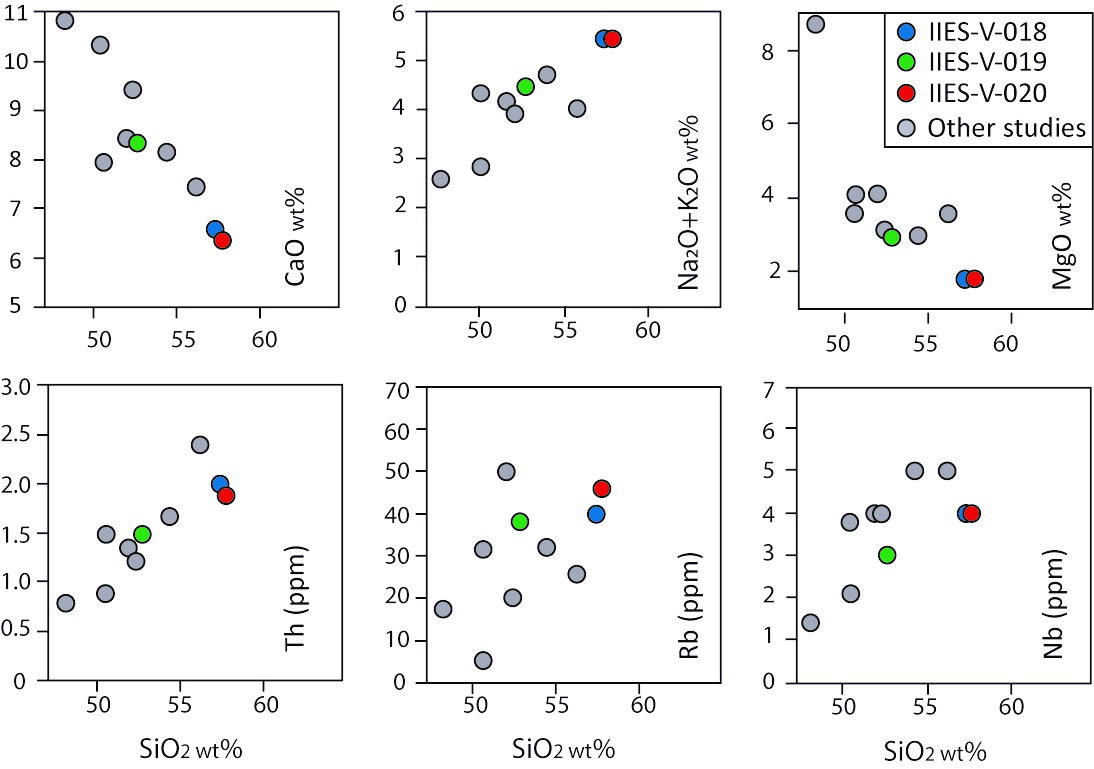

Fig. 6. Silica (SiO2) versus major and trace elements variation diagrams. Gray points correspond to the tholeiitic lava flows studied by Marriner and Millward (1984), Borrero and Toro-Toro (2016) and Jaramillo et al. (2019).

The behavior of trace elements normalized to primitive mantle (Fig. 7A) is similar for the three studied samples, with a relative enrichment in large ion lithophile elements (LILE) and negative anomalies of Th, Nb, Ta, Zr and Ti, and positive anomalies of Ba, K, Pb, Sr and P. Such behavior is also observed in other tholeiitic rocks of the province (Marriner and Millward, 1984; Borrero and Toro-Toro, 2016; Jaramillo et al., 2019). The rare earth elements diagram (REE; Fig. 7B) also shows a similar behavior between the studied samples, with a slight light REE enrichment (LREE) and a minor Eu negative anomaly (Eu/Eu*<1). Discrimination diagrams show how, if compared with previous studies (Marriner and Millward, 1984; Borrero and Toro-Toro, 2016; Jaramillo et al., 2019), these samples exhibit a slight enrichment, especially in the LREE. The discrimination diagram La/Yb versus Th/Nb (Fig. 7C) show that the samples plot within the continental arc field.

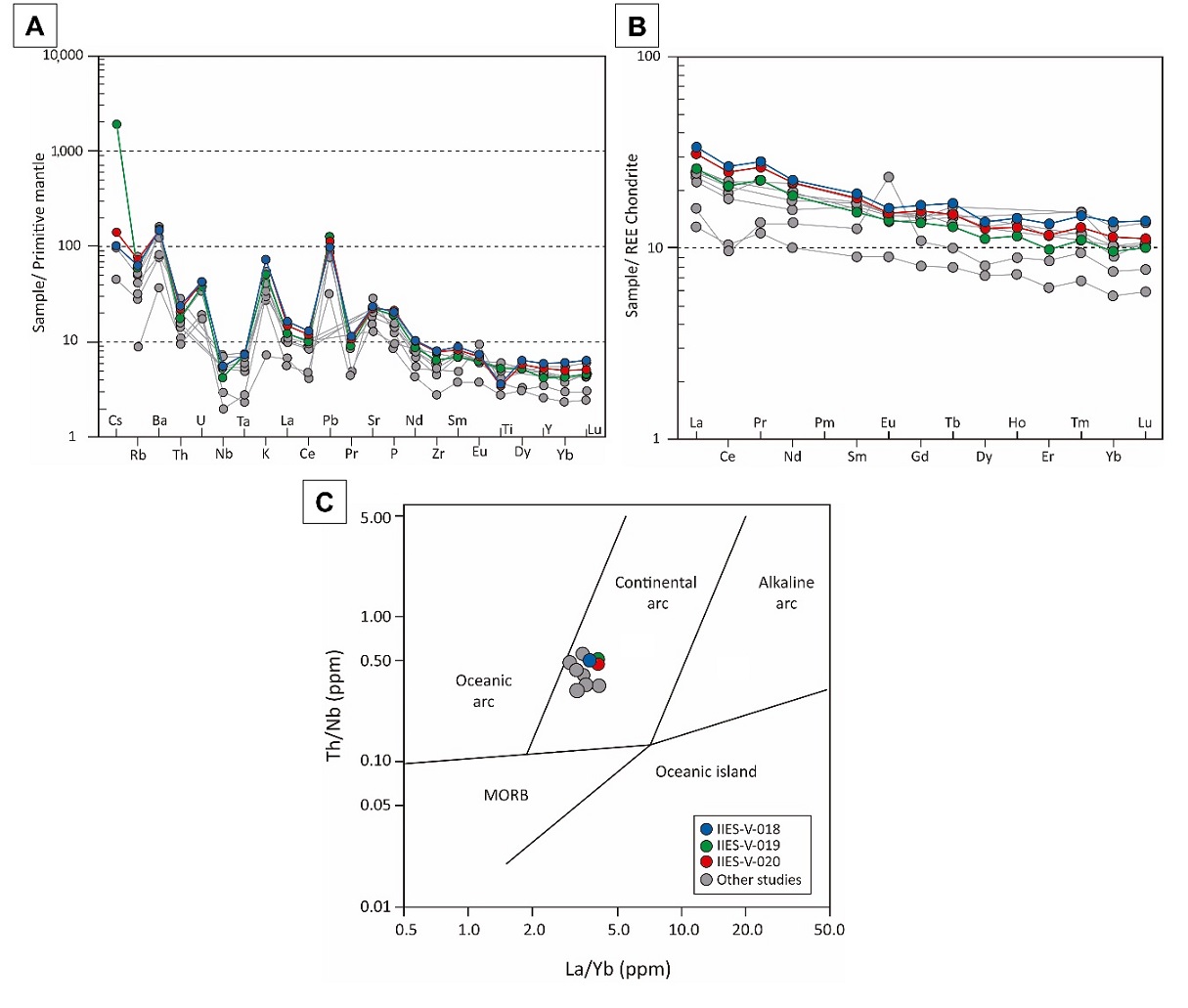

Fig. 7. A. Multielement diagram normalized to primitive mantle (Sun and McDonough, 1989). B. Rare earth elements diagram normalized to chondrite (Nakamura, 1974). C. La/Yb versus Th/Nb variation diagram (Hollocher et al., 2012). Gray points correspond to the tholeiitic lava flows studied by Marriner and Millward (1984), Borrero and Toro-Toro (2016) and Jaramillo et al. (2019).

5. Interpretation and discussion

5.1. Magmatic processes identified by rock textures

The textures and compositional variations observed in the minerals of the studied rocks (Fig. 8) have allowed us to propose four main processes that underwent by the magma during stagnation and ascent.

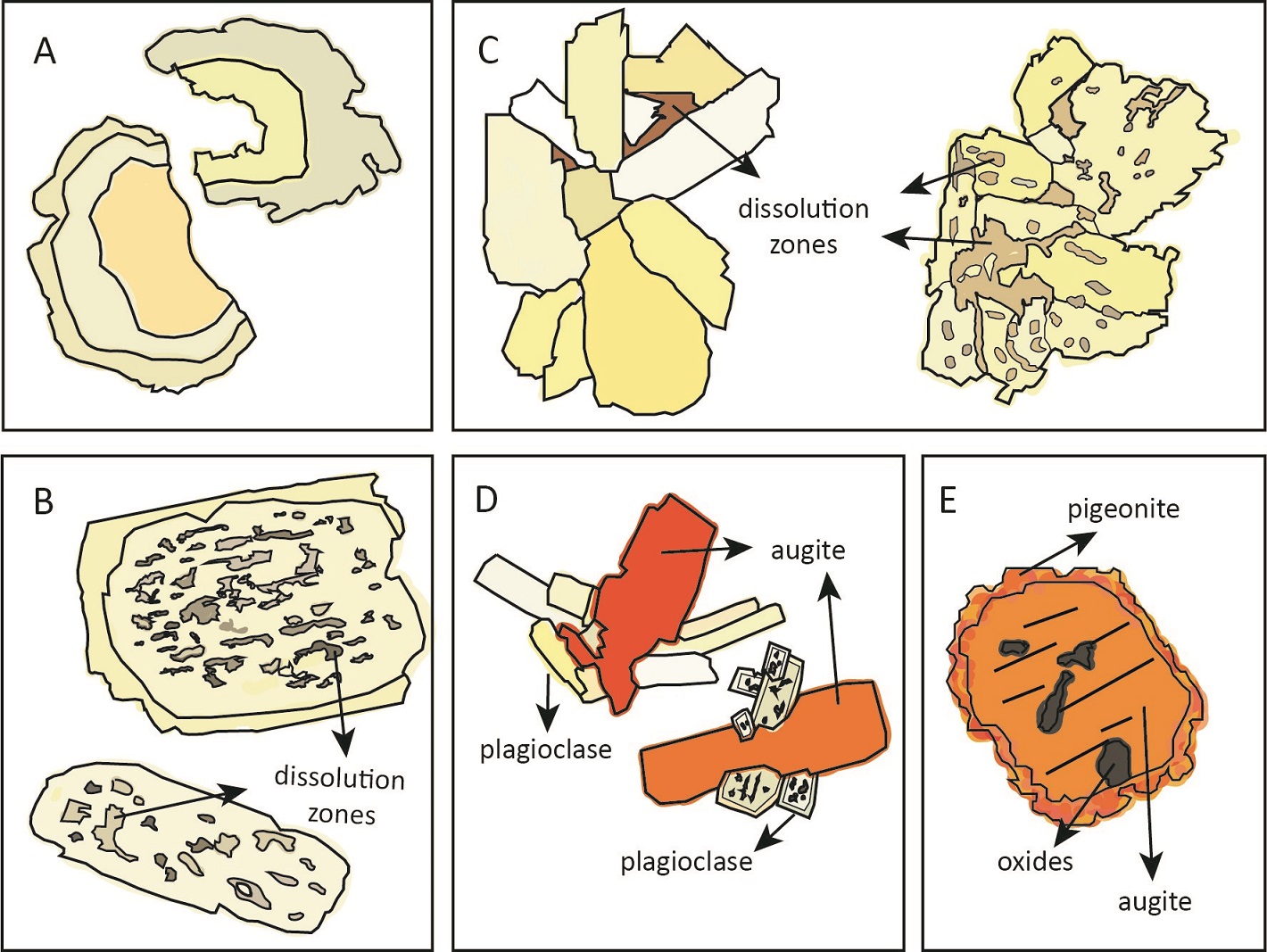

Fig. 8. Sketches used to illustrate the features that allowed us to propose the main processes that underwent the magma during stagnation and ascent. A. Anhedral plagioclase crystals with dissolution (embayment texture). Many crystals also exhibit oscillatory and inverse zoning. B. Euhedral to subhedral plagioclase crystals with sieve texture cores in addition to sane rims. C. Glomerocrysts formed by euhedral to subhedral plagioclase crystals, and by anhedral to subhedral plagioclase crystals with sieve texture and reaction rims. D. Glomerocrysts of euhedral augite crystals with euhedral plagioclase crystals, some of them with sieve texture. E. Subhedral augite crystals with pigeonite rims (i.e., coronitic texture).

Physical and chemical changes in the magmatic reservoir. This is evidenced by the embayment and sieve textures in plagioclase crystals linked to dissolution (Fig. 8A, B). Thermodynamic changes cause disequilibrium between crystals and melt, which triggers the dissolution inside the crystals and/or in their surfaces (Tsuchiyama, 1985; Nelson and Montana, 1992; Tepley et al., 1999; Couch et al., 2001; Monfaredi et al., 2009; Ustunisik et al., 2014).

Rapid decompression. It is evidenced by the presence of sieve texture cores in plagioclase, with rims lacking dissolution zones (Fig. 8B). In addition to physical and chemical changes previously mentioned, rapid decompression during magma ascent followed by new equilibrium conditions allows the subsequent formation of rims, which do not evidence internal dissolution (Nelson and Montana, 1992; Seaman, 2000; Monfaredi et al., 2009).

Convective movements. They are interpreted from oscillatory zoning in plagioclase crystals (Fig. 8A) and the development of glomeroporphyritic texture (Fig. 8C, D). Convective movements during magma ascent generate perturbation and turbulence that cause local variations in the melt conditions, leading to the development of zoning depending on the crystal location: higher An zones are developed in hotter melt parts, while lower An zones are developed in colder parts (Pearce and Kolisnik, 1990; Shcherbakov et al., 2011; Murcia and Németh, 2020). Furthermore, convective movement is a key factor to group together crystals with or without dissolution. Several crystal planes get chemically isolated from the system’s melt, leading the melt that got trapped between the crystals to eventually cool down and couple them (Vance, 1969; Hogan, 1993). The resulting glomerocrysts are usually located along the chilled margins and will finally get removed and incorporated into the ascending magma (Jeffery et al., 2013).

Mixing processes. Mixing produced by magmatic recharge is evidenced by Mg-rich (i.e., pigeonite; Fig. 8E) rims on augite crystals. The injection of a hotter magma causes disequilibrium and changes in temperature, pressure and H₂O content, leading to the development of new mineral phases (Couch et al., 2001; Shcherbakov et al., 2011).

5.2. Crystallization conditions

Geothermobarometry analyses presented here correspond to crystal-liquid chemical relations, where the whole-rock composition represents the melt in which the minerals crystallized. To reproduce the composition where the crystals formed based on partition coefficients, plagioclase phenocrysts were compared to the least evolved rock (SiO₂=52.79 wt%), while the microphenocrysts were compared to the most evolved rock (SiO₂=57.72 wt%); this assuming that microphenocrysts crystallized later, given the predominance of a less An content in their composition. Also, pyroxene phenocrysts cores (augite) were compared to the least evolved rock (SiO₂=52.79 wt%), while the phenocrysts rims (augite and occasionally pigeonite) were compared to the most evolved rock (SiO₂=52.79 wt%), assuming that rims should have crystallized later in a more evolved magma than cores. Based on the above, the exchange coefficient (K_D) between crystals, and melt (plagioclase: 0.27±0.11; clinopyroxene: 0.28±0.080; Putirka, 2008) allowed equilibrium determination to reproduce reliable crystallization conditions (Table 3; Supplementary material 2).

According to the equilibrium relation, 56 out of 127 plagioclase crystals, 14 out of 25 augite crystals and 7 out of 7 pigeonite crystals met the requirement for applying the geothermobarometers. Then, Eq. 24a and 25a of Putirka (2008) were applied for the plagioclase, and Eq. 32d and 32a of Putirka (2008) were applied for the pyroxene. Here it is important to mention that the clinopyroxene thermometer includes the liquid composition, but the barometer is based exclusively on the mineral composition. Errors estimated by Putirka (2008) for temperature and pressure equations mentioned are ±52 °C and ±0.1 GPa. The initial water content value (H₂O wt%) required to apply the plagioclase geothermobarometric equation was assumed as 1.5 wt%, considering that Zimmer et al. (2010) reports that water content in tholeiitic magmas is close but less than 2.0 wt%. Finally, depth was estimated from the pressure values calculated, assuming an average density of the continental crust of 2.7 g/cm³, which corresponds to a geobaric gradient of ~27 MPa/km (Best, 2003).

As a whole, results show that plagioclase crystallized at a temperature range between 1,095 and 1,153 °C, and pressures of 0.22 to 0.60 GPa, which corresponds to depths between 8 and 23 km (Fig. 9). Phenocrysts were formed between 13 and 23 km depths, while microphenocrysts crystallization took place between 8 and 19 km depths. Augite crystals were formed in a temperature range between 1,046 and 1,131 °C, and pressures of 0.09 to 0.21 GPa, which corresponds to depths between 3 and 8 km, being the microphenocrysts the ones that evidence the lowest temperature values. Pigeonite microphenocrysts were formed in a temperature range between 867 and 1,039 °C, and pressures of 0.40 to 0.60 GPa, which corresponds to depths between 6 and 23 km. Augite shows temperature and pressure decreasing from cores to rims, which indicates growth during the magma ascent. Pigeonite rims on augite crystals (i.e., coronitic texture), results show lower temperatures in rims (e.g., 1,039-963 °C), but surprisingly higher pressure and depth of crystallization (0.38 GPa and 14 km, respectively); this occurs due to the higher MgO content, which it is interpreted as as related to a heterogeneous melt instead of a deeper formation. Rather, these rims formation are associated with the magma ascent dynamics, but also with the magmatic recharge or mixing and its subsequent cooling. From petrographic analyses, these processes were evidenced and then related to compositional differences.

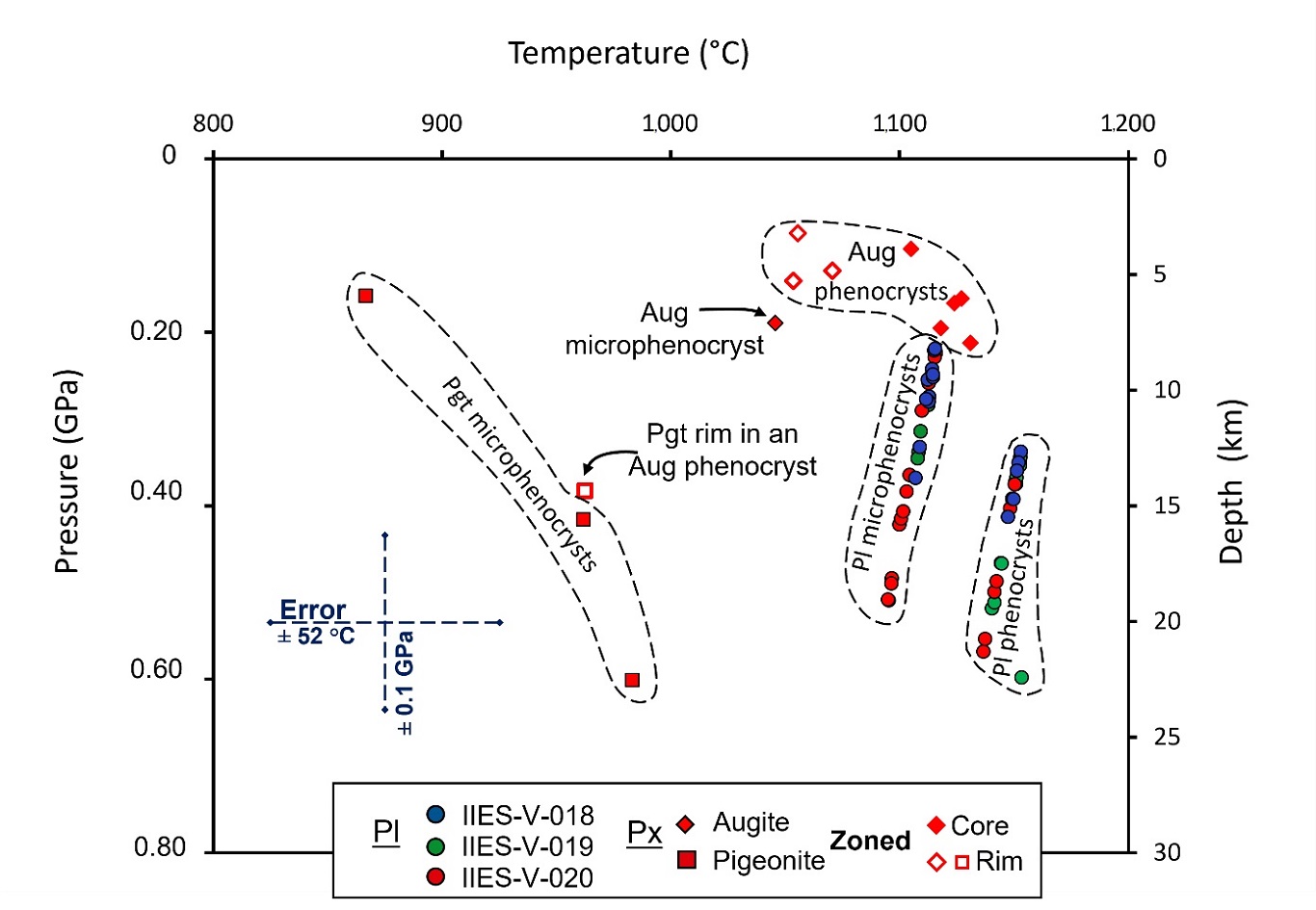

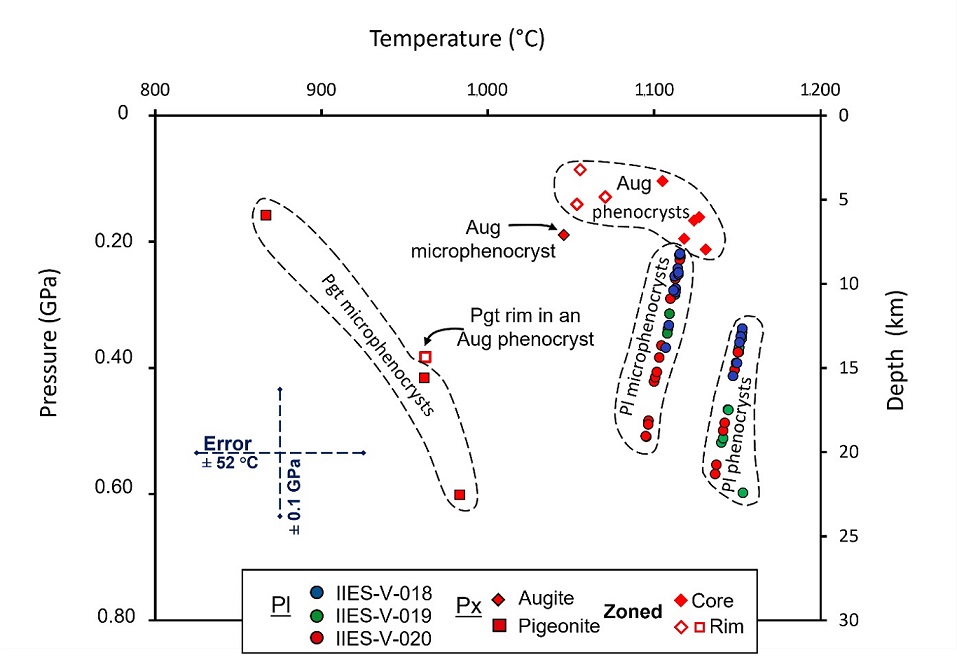

Fig. 9. Pressure (and depth) versus Temperature diagram, which illustrates crystallization conditions for the studied plagioclase and pyroxene pheno- and microphenocrysts. Pl: plagioclase, Px: pyroxene, Aug: augite, Pgt: pigeonite.

In summary, both the mineralogy and crystallization conditions found in the analyzed samples indicate that the mineral formation in the tholeiitic products took place at less than 23 km depth (plagioclase, augite and pigeonite), and continued their formation during ascent until they reached a depth of 3 km.

5.3. Geochemical processes

The tholeiitic lava flows analyzed in this study, together with the previously reported samples (Marriner and Millward, 1984; Tejada et al., 2007; Borrero and Toro-Toro, 2016; Jaramillo et al., 2019), evidence a basaltic and andesitic composition in the CVP. Negative trends in CaO, MgO, FeO and TiO₂ (these last two not shown) vs. SiO₂ (Fig. 8), indicate calcic pyroxene (augite) and plagioclase fractionation, as supported by the textural and geothermobarometric analyses. The slightly negative Eu (Eu/Eu*) anomaly is also evidence of the fractionation process.

LREE (Fig. 7B) enrichment and La/Yb vs. Th/Nb (Fig. 7C) relations presented by the products clearly show that rocks were formed in a continental subduction arc (Gorton and Schlandl, 2000). LILE incompatible elements enrichment compared to the HFSE (Fig. 7A) suggests possible crustal contamination processes occurred during the magma stagnation or ascent through the crust (e.g., Sosa-Ceballos et al., 2021). This assimilation has already been suggested in previous studies (e.g., Jaramillo et al., 2019; Weber et al., 2020; Santacruz et al., 2021).

5.4. Magmatic system and tectonic implications

The magmatic system associated with the tholeiitic lava flows from the CVP is part of a continental volcanic arc (Fig. 10), which is characterized for showing conditions of evolution related to magmatic differentiation by fractional crystallization, assimilation and magma mixing processes. However, the mafic composition suggests that the magmatic system, which allowed the releasing of tholeiitic products, was not constituted by long-term magma stagnation zones. Thus, magmatic evolution can be linked to a relative rapid ascent of melt associated with the kinematics related to the development of the strike-slip hinterland Amagá basin due to the Panamá-Chocó intra-oceanic arc-continent collision (Montes et al., 2015, 2019). Then, magma evolution was controlled by crystallization of plagioclase and clinopyroxene (augite and pigeonite) en route (Fig. 11).

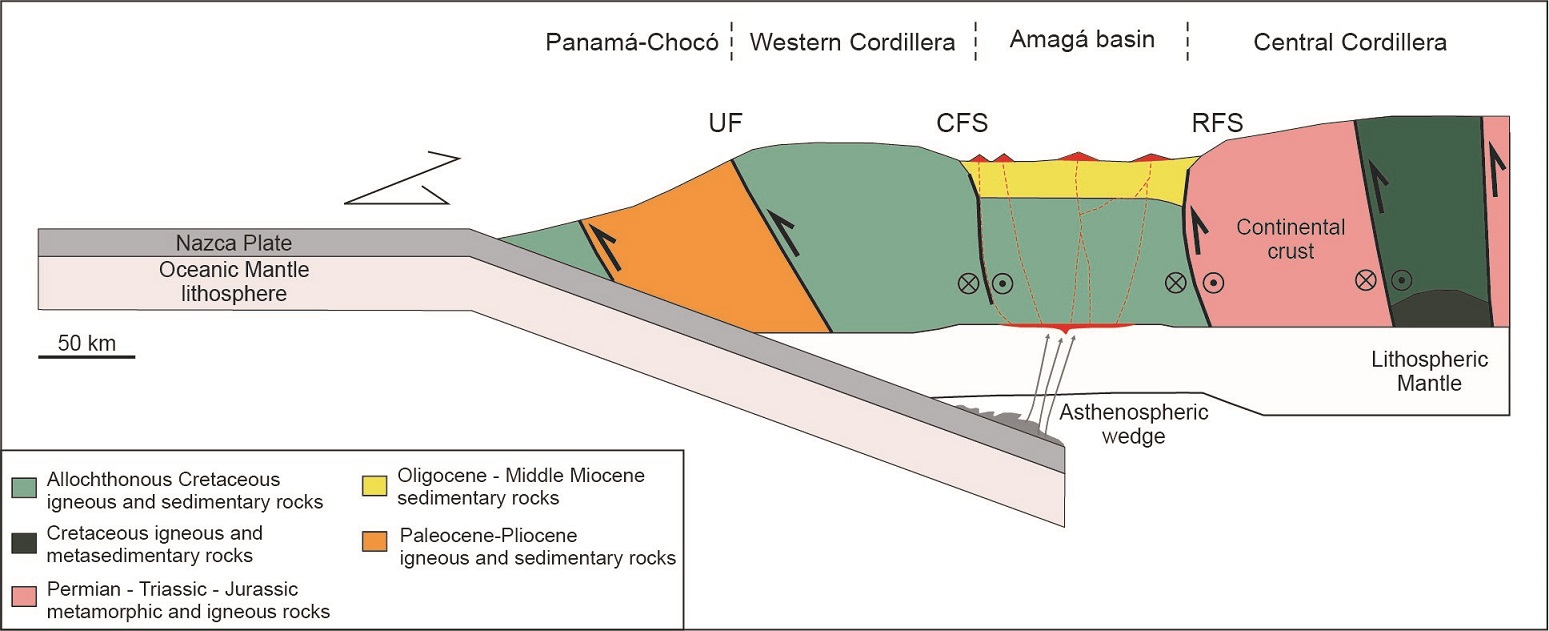

Fig. 10. Simplified geodynamic model of the Colombian Andes at 5° N during the Late Miocene (~11 - 9 Ma), and the Combia Volcanic Province location in the Amagá basin. UF: Uramita Fault, CFS: Cauca Fault System, RFS: Romeral Fault System.

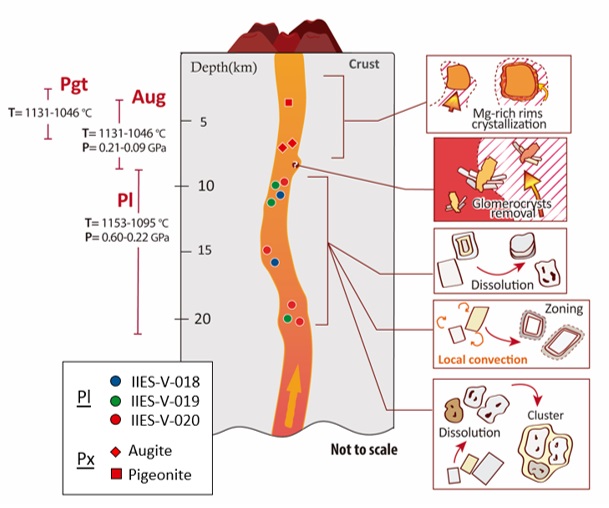

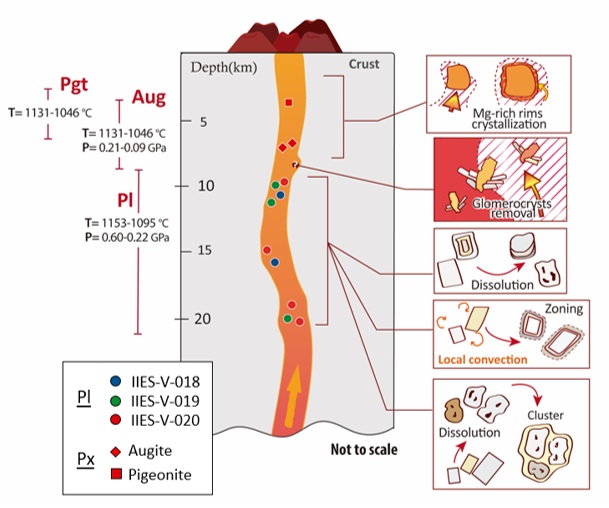

Fig. 11. Magmatic evolution model of the system in which tholeiitic rocks from the Combia Volcanic Province were formed. Pgt: pigeonite, Aug: augite, Pl: plagioclase.

Specifically, at 23 km deep, magma temperature was around 1,150 °C (melting occurred at approximately 1,200 °C; cf. Lee et al., 2009), however the magma reached the surface at ~860 °C. Pressure conditions extracted from the different mineral phases, in addition to the textural characteristics described and the magmas compositional evolution, allow us to propose the occurrence of some typical magmatic differentiation processes mentioned before, and local convective movements related to mineral thermodynamic disequilibrium and heterogeneities in the melt composition, such as oscillatory zoning and reaction rims. These local convective movements can also be related to relatively short stagnation zones, where crystals clustered together (glomeroporphyritic texture) that were later disturbed by the magma ascent itself or even by episodic magmatic recharges (Seaman, 2000).

These results add to the ideas proposed by Weber et al. (2020), who analyzed the calc-alkaline products from the amphibole and garnet crystals composition. Therefore, it is possible to suggest that the tholeiitic products were formed by a magma that suffered a relatively rapid ascent involving plagioclase and clinopyroxene fractional crystallization with only short-time stagnation zones. In contrast, the calc-alkaline products were the consequence of differentiation linked to crustal assimilation and crystallization of mostly amphibole, but also surely Fe and Ti oxides, from magmas (tholeiitic?) stagnated firstly at depths close to 20 km. Garnet formation allows the adakitic-like signature development (Weber et al., 2020). This scenario can be extrapolated to the entire magmatism and can be considered as an alternative one to the crust local variations (thinning) model (cf. Jaramillo et al., 2019) or a mixture of materials in the magma origins (cf. Bernet et al., 2020) to explain the typical compositional variation in the CVP.

6. Conclusions

The tholeiitic lava flows that gave origin to the CVP, consist mainly in plagioclase crystals of labradorite and bytownite composition, and clinopyroxene of augite and pigeonite composition. These minerals can be found in clusters, with zoning, sieve texture and/or reaction rims.

Chemical composition of tholeiitic lava flows indicates a variation between andesite and basaltic andesite. Trace elements distribution patterns, LILE and LREE enrichment, together with La/Yb versus Th/Nb content also indicate a magmatic system located in a continental arc, affected by crustal contamination processes.

The origin of the CVP is proposed as a relative simple magmatic system, with a relative rapid magma ascent and fractional crystallization dominated by plagioclase, augite and pigeonite; this process allowed the tholeiitic signature in the emitted magma. Subsequent calc-alkaline products are related to the fractional crystallization of other mineral phases (e.g., olivine, amphibole, Fe and Ti oxides, garnet), besides assimilation associated with magma stagnation in the upper crust.
