1. Introduction

Updated knowledge of Early Jurassic marine gastropods from the Chubut Basin has been provided by Ferrari (2009, 2011, 2012, 2013, 2014, 2015a, b). Those contributions supplied an accurate systematic database of the gastropod taxonomic composition in the region indicating that two major taxa of gastropods are well represented in southern Patagonia, and these are Vetigastropoda and Caenogastropoda. Representatives of Euthyneura, however, have not been reported in the region so far. The Subclass Heterobranchia is one of the most diverse taxa within Gastropoda. The taxonomic position of the major clades of Heterobranchia is controversial and different proposals are found in the recent available literature (Bouchet et al., 2017; Kano et al., 2016; Dinapoli and Klussmann-Kolb, 2010; Wägele et al., 2008). Bouchet et al. (2017) grouped within Heterobranchia the Infraclass Euthyneura (Cohort Acteonimorpha) including members of the families Cylindrobullinidae Wenz, 1938 and Tubiferidae Cossmann, 1895. The phylogenetic study of Kano et al. (2016) which combined fossil evidence with anatomical and molecular data, showed that the stem group of Euthyneura (or “shelled opisthobranchs”) first existed in the earliest Triassic (~250 Ma). This conclusion is supported by the phylogenetic analysis of Dinapoli and Klussmann-Kolb (2010), who indicated an occurrence of the Euthyneura stem line between the Middle Carboniferous and the Early Triassic and a first diversification of the clade between the Permian and the Triassic. The Early Mesozoic euthyneuran bubble snails in the extinct families Cylindrobullinidae and Tubiferidae are very similar in general shell morphology and ornamentation pattern to the extant Acteonidae and Ringiculoidea (see Kano et al., 2016; Ferrari and Hautmann, 2022). Thus, the common ancestor of Euthyneura might have had a thin, oval shell-shaped with a large body whorl, an elongated aperture and smooth surface with or without fine spiral cords, as is shown in early Mesozoic opisthobranchs (e.g., Cylindrobullina, Cossmannina, Conactaeon, Euconactaeon, Sinuarbullina). Ecologically, these characters typically occur in species with an infaunal or temporarily borrowing mode of life (Ferrari and Hautmann, 2022).

The Early Jurassic Euthyneura is mainly restricted to the western Tethyan region (Gründel, 2007, 2010; Gründel et al., 2011; Gründel and Nützel, 1998, 2012; Nützel and Gründel, 2015) and few species of this group also occur in northern Africa (Cox, 1965; Bourrouilh, 1966). The first report of Euthyneura in the Early Jurassic of the Neuquén Basin (Argentina) has been supplied by Behrendsen (1891, 1922), Möricke (1894), Jaworski (1926), Weaver (1931) and Ferrari (2017), and it has also been reported in coeval marine deposits of Chile (Pérez, 1982; Gründel, 2001). The present paper provides the first occurrence of Euthyneura in Early Jurassic (early Pliensbachian) marine deposits of the Chubut Province. The subclass is represented in Cerro Caquel locality by two new species, namely Cylindrobullina caquelensis nov. sp. and Cossmannina australis nov. sp. The new report extends the palaeobiogeographical distribution of Euthyneura into the southern Patagonian region during the earliest Pliensbachian, suggesting the existence of a shallow marine connection between the Neuquén and Chubut basins during the earliest Jurassic, as had been previously hypothesized by Ferrari (2015b). The occurrence of the species Eoamaltheus sp. (E. meridianus Hillebrandt Zone, upper part of Ibex Zone to Davoei Zone) confirms an early Pliensbachian age for the Euthyneura-bearing deposits.

2. Geological Setting

The Early Jurassic marine sediments in the Chubut Province are exposed along a north-west to south-southeast trend between 42º30’ and 44º30’ S, and 69º30’ and 71º W (Riccardi, 1983; Giacosa and Márquez, 2000). In the northwestern region of the Chubut Province, the Early Jurassic marine deposits crop out in the Sierra de Tecka and Tepuel regions (Fig. 1) and belong to the Lepá Formation (Rolleri, 1970; Spikermann, 1978; Turner, 1982; Gabaldón and Lizuaín, 1982; Pezzuchi and Takigawa, 1984; Vizán, 1989; Massaferro, 2001). The most important outcrops of this unit are located in the eastern slope of the Sierras de Tecka and Languiñeo, being more reduced in both margins of the Gualjaina river. In Sierra de Languiñeo and in the western slope of Sierra de Tecka, the Lepá Formation lays unconformably over late Palaeozoic rocks belonging to the Tepuel Group (Las Salinas and Moján de Hierro formations). This formation was assigned to an Early Jurassic age (Pliensbachian-Toarcian) based on Weyla sp., Oxynoticeras sp. and Cardinia sp. (Feruglio, 1949; Suero, 1952, in Turner, 1982; Ferrari, 2022). The new euthyneuran gastropod fauna here described comes from Cerro Caquel locality situated in the western slope of Sierra de Tecka and in the western side of the río Tecka valley (Fig. 1). The species Eoamaltheus sp. (CNP-PIIc 0449) was also found at Cerro Caquel locality in association with the gastropod fauna. Massaferro (2001) testified the occurrence of the species Eoamaltheus multicostatus Hillebrandt (originally assigned to Polymorphites sp.) in Cerro Cuche locality which is situated very close to Cerro Caquel (Fig. 1). According to the biostratigraphic scheme proposed by Riccardi et al. (2011), the presence of Eoamaltheus ammonite fauna indicates an early Pliensbachian age (E. meridianus Hillebrandt Zone, upper part of Ibex Zone to Davoei Zone) for the marine deposits at Cerro Caquel and Cerro Cuche, being the oldest record within the Early Jurassic for the Sierra de Tecka region so far.

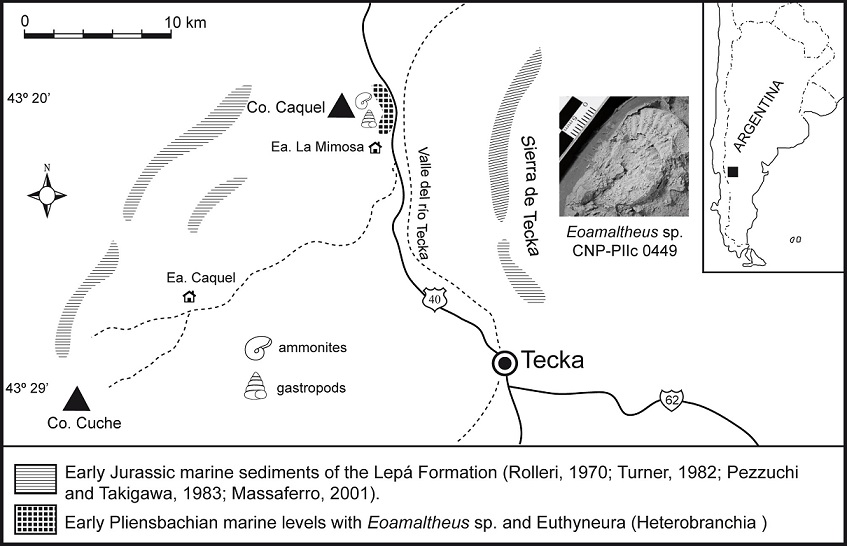

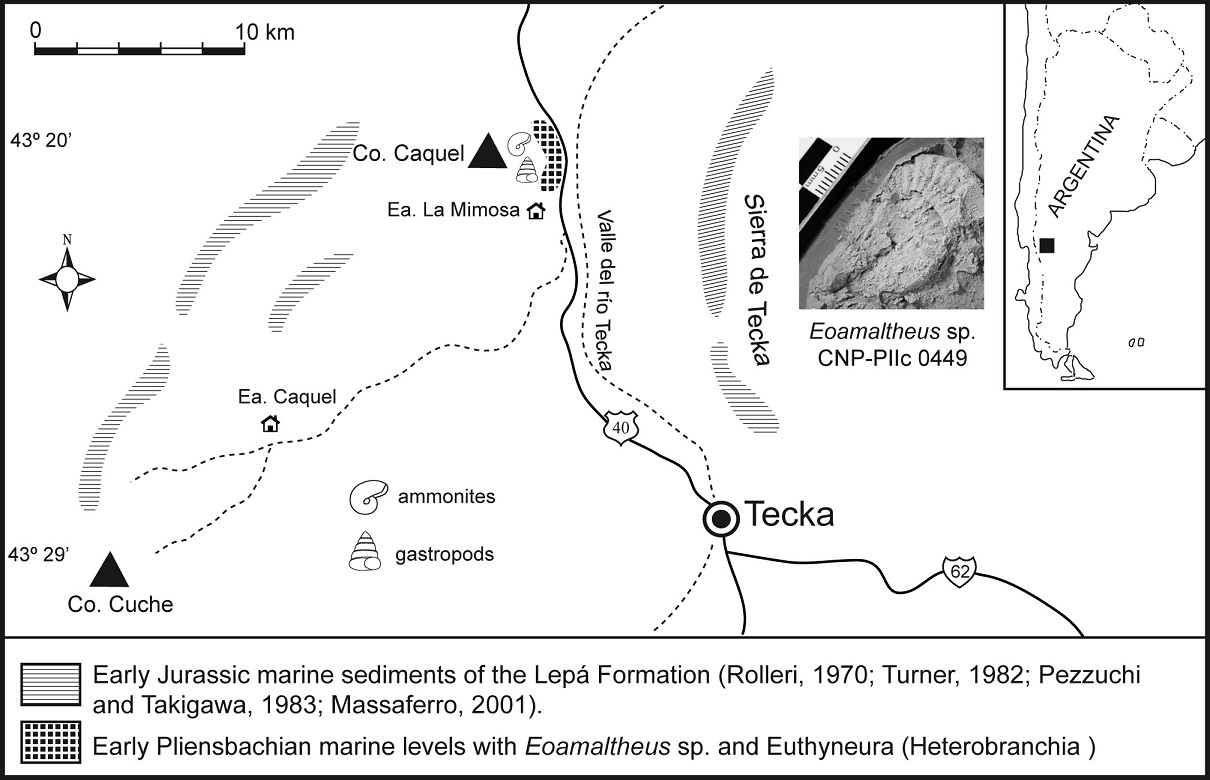

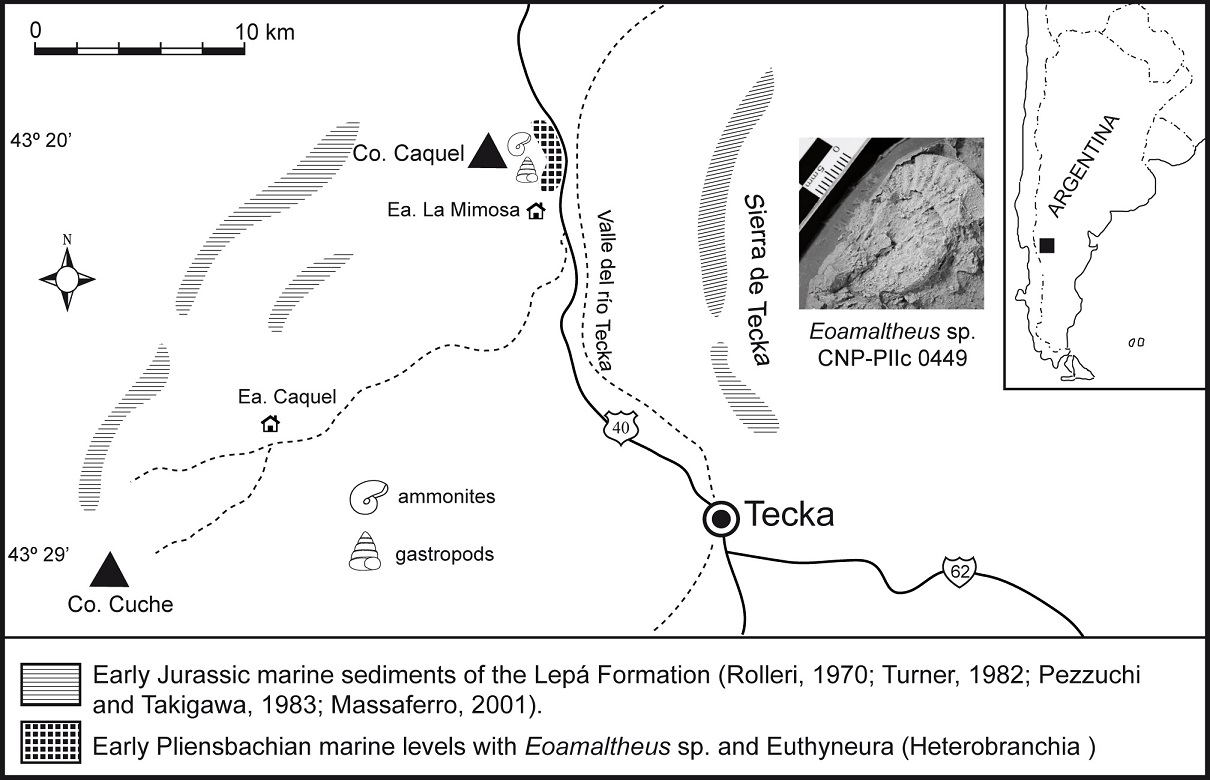

Fig. 1. Geographical map showing the northwestern region of the Chubut Province at southern Patagonia. The new Early Jurassic (earliest Pliensbachian) marine levels with Euthyneura and Eoamaltheus sp. are indicated in the Cerro Caquel locality (modified from Ferrari, 2022).

Pezzuchi and Takigawa (1984) reported an early Jurassic fossiliferous locality near Cerro Cuche and assigned these deposits to Arroyo Cajón Formation composed by pelitic levels with corals and associated bivalves of the genera Myophorella, Pecten and Cardinia. This unit was later included within Lago La Plata Group by Haller and Lapido (1980) and assigned to a Toarcian-Tithonian age (see Massaferro, 2001). Massaferro (2001) recognized the Pezzuchi and Takigawa’s (1984) association as the oldest Jurassic (lower Pliensbachian) deposits for the Chubut Province based on the occurrence of Eoamaltheus multicostatus Hillebrandt (see above), Myophorella (Myophorella) cf. araucana Leanza and Stylophyllopsis sp.

Vincent (2005) suggested the existence of a late early Pliensbachian-early Toarcian transgression in the Chubut Province and accepted a marine connection between Neuquén and Chubut basins during the Toarcian. Ferrari and Bessone (2015) hypothesized that the Paleo-Pacific marine embayment of the Chubut Basin seems to have initiated early in the Pliensbachian at the Cerro Cuche locality; this hypothesis is here supported by the updated record of Eoamaltheus multicostatus Hillebrandt in the Cerro Cuche and Eoamaltheus sp. in Cerro Caquel (Fig. 1). An accurate biostratigraphic scheme for the Early Jurassic marine sediments of the Chubut Province has not been proposed so far. However, based on the invertebrate faunal composition of ammonites and bivalves in different areas of the Chubut Basin (Piatnitzky, 1936, 1946; Feruglio, 1934; Wahnish, 1942; Musacchio and Riccardi, 1971; Blasco et al., 1979) the Early Jurassic marine sediments of this unit have been assigned to a late Early Jurassic age, from the early Pliensbachian to the early Toarcian, following the updated biostratigraphic zonation proposed by Riccardi et al. (2011) for the Neuquén Basin (Table 1).

3. Materials and Methods

The gastropod material described here was collected by Dr. Mariel Ferrari, Dr. Gabriela Massaferro and Tec. Santiago Bessone in 2016 during a fieldtrip to Sierra de Tecka in the north-western region of the Chubut Basin at southern Patagonia.

The gastropod material is stored in the IPGP (Instituto Patagónico de Geología y Paleontología, CONICET-CENPAT, Pto. Madryn) invertebrate collection (Colección Paleontología de Invertebrados e Icnología, CNP-PIIc) and was prepared by technical staff (Tec. Santiago Bessone) at IPGP laboratory. The gastropod specimens were subsequently coated with ammonium chloride to enhance sculpture details for photography. Photographs were taken using a digital camera at IPGP. The systematic classification of the gastropod taxa follows Bouchet et al., 2017.

Institutional abbreviations: IPGP: Instituto Patagónico de Geología y Paleontología, CCT CONICET-CENPAT: Centro Científico Tecnológico, Consejo Nacional de Investigaciones Científicas y Técnicas, Centro Nacional Patagónico.

4. Systematic Paleontology

Subclass Heterobranchia Burmeister, 1837
Infraclass Euthyneura
Cohort Acteonimorpha
Superfamily Acteonoidea d’Orbigny, 1843
Family Tubiferidae Cossmann, 1895
Genus Cossmannina Gründel and Nützel, 2012

Type species. Actaeonina (Ovactaeonina) abdominiformis Schröder, 1995; Pliensbachian; North Germany.

Occurrence. Early Jurassic (Pliensbachian)-Middle Jurassic (Callovian); Europe, South America.

Remarks. The genus was proposed by Gründel and Nützel (2012) to include "oval, stout to elongated slender shells. Teleoconch whorls convex and lacking a subsutural ramp. Suture are distinct and whorls embracing below the suture, commonly at about mid-whorl. Spire is distinctly elevated and the shell is entirely smooth without spiral furrows… the aperture is tear-drop shaped. Broad and rounded abapically and acute adapically…". Considering these characters, the material described below is assigned to the genus Cossmannina.

Cossmannina australis nov. sp.
(Fig. 2A-D, F-K)

2022 Cossmannina sp. Ferrari; p. 697, fig. 5a-i.

Derivation of name. Referred to the first occurrence of the genus in the austral region of South America (Southern Argentina).

Material. Holotype, CNP-PIIc 0452, one teleoconch preserved as negative mould; Paratype, CNP-PIIc 0453, one teleoconch preserved as negative mould.

Additional material. CNP-PIIc 0447, one teleoconch preserved as negative mould.

Diagnosis. Fusiform shell; teleoconch with five convex whorls; subsutural ramp missing; ornament with orthocline to slightly opisthocline collabral lines; base convex; aperture oval.

Description. Fusiform, elongated, moderately high-spired and medium-sized shell, with a median height of 18.33 mm and a median width of 11.82 mm. The protoconch is not preserved. The teleoconch consists of five convex whorls; last whorl markedly more elongated than the spire. The subsutural ramp is not developed and sutures are incised in a spiral furrow. The outer face of whorls is strongly convex. The ornament consists of weakly developed collabral lines visible on last whorl; spiral grooves or furrows are missing. The base is convex and the aperture is oval with the columellar lip concave.

Dimensions (mm). CNP-PIIc 0453: height, 20.98* mm; width, 13.56* mm. CNP-PIIC 0452: height, 13.57*; width, 8.72* mm. CNP-PIIC 0447: height, 20.43*; width, 13.19*. *=measurements taken from incomplete specimens.

Remarks. Based on Gründel and Nützel’s diagnosis (2012, p. 43), the material here described fits within Cossmannina. Cossmannina australis nov. sp. is comparable to Cossmannina sp. (in Ferrari et al., 2021; p. 900, fig. 4T-V), from the Early Jurassic   (late Toarcian) of northern England; the former species, however, has a more developed subsutural ramp, flattened and inclined 45º from sutures while the outer face become straight. Cossmannina? franconica (Kuhn, 1935) (in Gründel, 2007, p. 97,  pl. 8, fig. 3 as Ovactaeonina franconica), from the Early Jurassic (Pliensbachian) of southern Germany, is also similar to the new species from Patagonia, although C.? franconica has weak narrow and irregularly spaced spiral furrows on the shell surface and base. C. kalchreuthensis (Gründel and Nützel, 1998) (p. 81 pl. 7, figs. 5-8 and Gründel, 2007, p. 96, pl. 8, fig. 7 as Ovactaeonina kalchreuthensis; Nützel and Gründel 2015, p. 36, pl. 21, fig. I), from the Early Jurassic (Pliensbachian) of southern Germany, differs from Cossmannina australis nov. sp. in being much smaller with 4 teleoconch whorls and a height of 3.2 mm, and in having a more slender shell. The new species from Patagonia also is very similar to the type species C. abdominiformis (Schröder, 1995) (p. 68, pl. 12, figs 1-5, pl. 15, fig. 6 and Gründel, 2007, p. 97, pl. 8, fig. 8 as Ovactaeonina abdominiformis; Gründel and Nützel, 2012, p. 43, fig. 7b-c; Nützel and Gründel 2015, p. 35, pl. 21 G) (Fig. 2E), from the Early Jurassic (Pliensbachian) of northern Germany, but C. abdominiformis is much smaller and has a more bulbous shell, with the last whorl markedly more expanded than the spire. A similar species comparable to C. australis nov. sp. is Oonia acuta Ferrari, 2017 (p. 258, fig. 4.6-4.14) from the Early Jurassic (Hettangian-Pliensbachian) of Argentina and Chile; Oonia acuta, however, has a spiral ornament predominantly on juvenile whorls.

Occurrence. Early Jurassic (early Pliensbachian, Zone of E. meridianus Hillebrandt, upper part of Ibex Zone to Davoei Zone), Lepá Formation, Cerro Caquel locality, Chubut Province, Argentina.

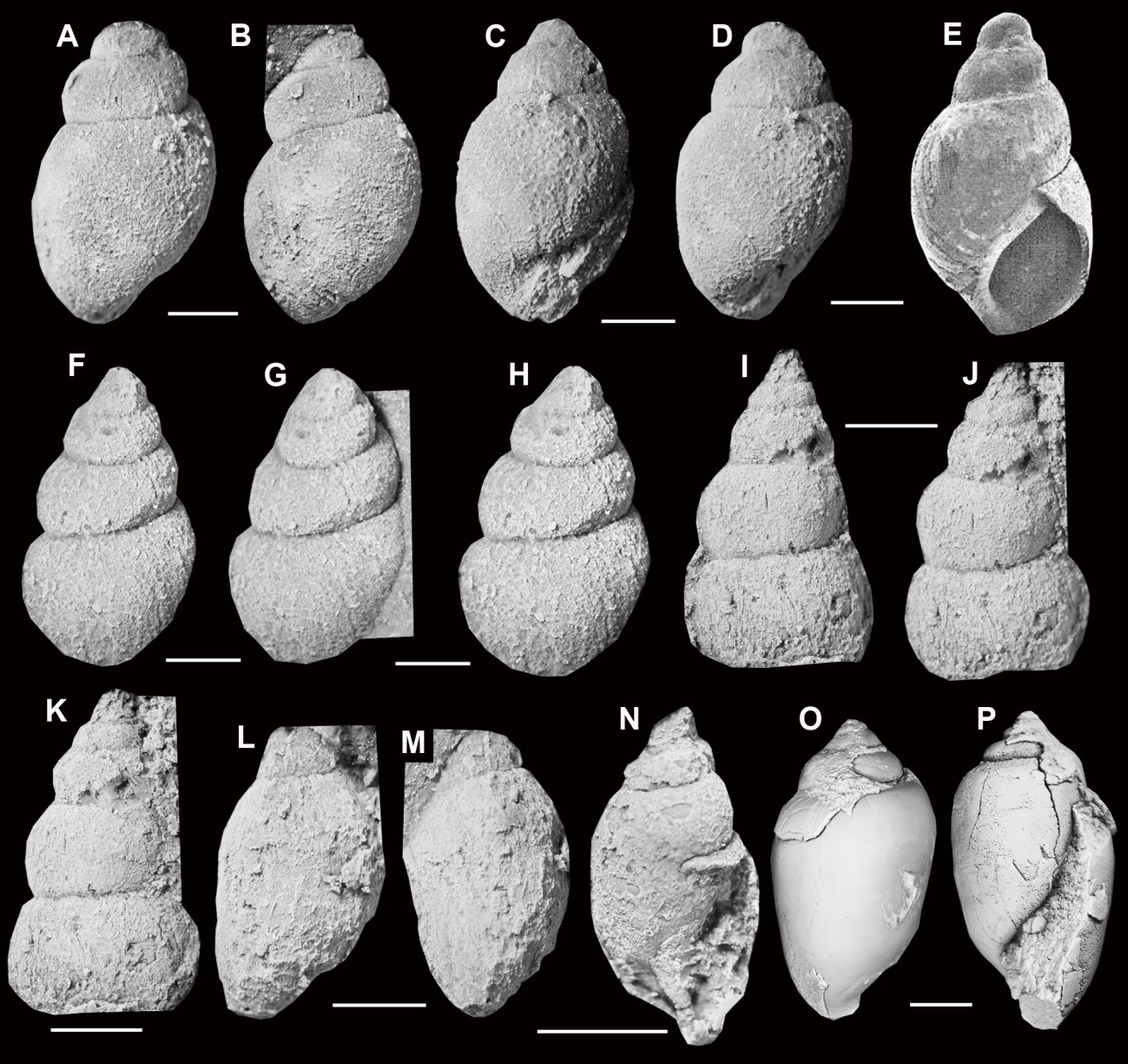

Fig. 2. A-D, F-K. Cossmannina australis sp. nov. A-D, holotype, CNP-PIIc 0452. A-B. lateral views. C-D. lateral and apertural views. E. Cossmannina abdominiformis (Schröder, 1995), lateral view (in Gründel and Nützel, 2012, p. 43, fig. 7c). F-H. paratype, CNP-PIIc 0453, lateral views. I-K. CNP-PIIc 0447, lateral views. L-N. Cylindrobullina caquelensis sp. nov. L-M. CNP-PIIc 0455, lateral views. N. holotype, CNP-PIIc 0451, lateral and apertural views. O-P. Cylindrobullina ovata (Behrendsen, 1891) MCF-PIPH 546, lateral and apertural views (in Ferrari, 2017, p. 261, fig. 4 22-23). Scale bar=5 mm.

Family Cylindrobullinidae Wenz, 1938
Genus Cylindrobullina von Ammon, 1878

Type species. Cylindrobullina fragilis (Dunker, 1846); Lower Jurassic (Hettangian) of Northern Germany.

Occurrence. Upper Triassic-Upper Jurassic; Europe, South America.

Remarks. Following Gründel (2010) and Gründel and Nützel (2012), representatives of Cylindrobullina have been characterized by having a cylindrical shell shape, the whorls embrace just below the subsutural ramp, the aperture is high and narrow, the spire is low and distinct, whorls are smooth or weakly ornamented with strengthened growth lines, spiral striae or spiral threads on base, growth lines on the flanks weakly prosocyrt and on the ramp directed backward and opisthocyrt, aperture very high, and the protoconch (although unknown from the type species) is heterostrophic. Gründel and Nützel (2012) and Ferrari (2017) stated out that Cylindrobullina shows close resemblance with Acteonina and that the former could be indeed the earliest member of the Cylindrobullina/Cylindrites group. These authors also suggested that Cylindrobullina could be considered as synonymous of Acteonina.

Cylindrobullina caquelensis nov. sp.
Fig. 2L-N

2022 Cylindrobullina sp. Ferrari; p. 699, fig. 5j-k.

Derivation of name. Referred to the Cerro Caquel locality where the material was found.

Material. Holotype, CNP-PIIc 0451; teleoconch preserved as negative mould.

Additional material. CNP-PIIc 0444; CNP-PIIC 0455; two teleoconchs preserved as negative moulds.

Diagnosis. Oval to cylindrical shell; teleoconch with up to four whorls; gradate and step-like spire; last whorl elongated; base convex; strongly oval aperture with a thickened columellar lip; acute abapical channel.

Description. Dextral, oval to cylindrical shape, elongated, low-spired and small to medium-sized shell. The protoconch is not preserved. The teleoconch comprises four convex whorls. Spire whorls step-like and slightly gradate in outline; last whorl higher than the spire. The subsutural ramp is weakly horizontal in the spire whorls to slightly convex on last whorl. Sutures are impressed in a weak spiral furrow. The shell is smooth and spiral and collabral elements are not visible. The base is convex and the aperture is elongated and strongly oval with a thickened columellar lip which forms an acute abapical channel with the outer lip.

Dimensions (mm). CNP-PIIc 0444: height, 8.99 mm; width, 7.54* mm. CNP-PIIc 0455: height, 14.29* mm; width, 9.40* mm. CNP-PIIc 0451/a: height, 5.11* mm; width, 5.40* mm. CNP-PIIc 0451, holotype: height, 12.87* mm; width, 7.35* mm. *=dimensions taken from incomplete specimens.

Remarks. Based on the characterization proposed by Gründel (2010) and Gründel and Nützel (2012) the new species herein described is assigned to Cylindrobullina. Typical representatives of the genus were described from other Early Jurassic marine localities of Argentina. Cylindrobullina ovata (Behrendsen, 1891) (in Ferrari, 2017; p. 261, fig. 4. 21-27) (see Fig. 2O-P), from the Pliensbachian of the Neuquén Basin, is comparable to Cylindrobullina caquelensis nov. sp.; however, C. ovata is larger and the base is ornamented by regularly spaced spiral cords or furrows. Cylindrobullina brevispira Ferrari, 2017 (p. 262, fig. 4.28-29), also from the Pliensbachian of the Neuquén Basin, differs from the new Patagonian species in being larger, having a markedly more expanded sutural ramp, the flanks of whorls strongly convex, and a much lower spire. The type species, Cylindrobullina fragilis (Dunker, 1846) lines (in Gründel and Nützel, 2012; p. 35, fig. 1b-c), from the Hettangian of Germany, differs from C. caquelensis nov. sp. in having a lower-spired shell, a more developed subsutural ramp with a rounded edge as transition to the flanks. Cylindrobullina ventricosa Gründel et al., 2011 (p. 502, fig. 16A-H), from the Upper Pliensbachian of England, differs from C. caquelensis nov. sp. in having a much more acute spire and a subsutural ramp almost horizontal, demarcated from whorl face by deep broad spiral furrow. Cylindrobullina dorsetensis Gründel et al., 2011 (p. 500, fig. 14A-E; as Striactaeonina dorsentensis in Gründel and Nützel, 2012, p. 41), also from the late Pliensbachian of England, has a more slender shell with a more acute spire, subsutural ramp demarcated by spiral furrows, and spiral furrows separated by interspaced which cover the shell surface and the base. Cylindrobullina (Cylindrobullina) avenoides (Haas, 1953; p. 261, pl. 17, figs. 35, 36, 39-42, 46, 49-51, 58, 59), from the Late Triassic (Norian/Rhaetian) of the Pucara Group (Central Peru), has a more step-like spire, a wider subsutural ramp and regularly spaced spiral grooves on the shell surface.

Occurrence. Early Jurassic (early Pliensbachian, Zone of E. meridianus Hillebrandt, upper part of Ibex Zone to Davoei Zone), Lepá Formation, Cerro Caquel locality, Chubut Province, Argentina.

5. Palaeobiogeography

Early Jurassic Euthyneura (Heterobranchia) has been reported in the western Tethyan region (Gründel, 2007, 2010; Gründel et al., 2011; Gründel and Nützel, 1998, 2012; Nützel and Gründel, 2015; Ferrari et al., 2021) and few species of this clade have been also described from northern Africa (Cox, 1965; Bourrouilh, 1966). The families Cylindrobullinidae and Tubiferidae are important components of the earliest radiation of Euthyneura which took place during the earliest Mesozoic (Dinapoli and Klussmann-Kolb, 2010). Cylindrobullina is the type genus of the Family Cylindrobullinidae and was abundant and diverse during the Late Triassic and Early Jurassic. According to Nützel (personal communication, 2004; Frýda et al., 2008, Chapter 10), the earliest unequivocal heterobranch fossil is Cylindrobullina (240 Mya), which is also considered a basal opisthobranch lineage. During the Hettangian, the genus was restricted to the western Tethyan region with the type species, Cylindrobullina fragilis, reported from France at that time (Gründel, 2010; Gründel and Nützel, 2012). In the Sinemurian, Cylindrobullina was common in the western Tethyan region (Gründel et al., 2011) and also occurred in northern Africa (Morocco) (Bourrouilh, 1966) (Fig. 3). Later in the Pliensbachian the genus widespread from the Tethyan region (Gründel et al., 2011; Gründel and Nützel, 1998, 2012) to southern South America (Behrendsen, 1891; Ferrari, 2017, 2022) (Fig. 3), although it had been previously reported in the Late Triassic of the Pucará Group (Central Peru) (Has, 1953). The Early Jurassic Cylindrobullina species recorded in the Neuquén and Chubut basins might represent survivors from the end- Triassic marine mass extinction event in South America, as was previously suggested by Ferrari (2015b). The author supported the idea that the ancient Paleo-Pacific seaway from Peru to Argentina was the most plausible explanation for biotic exchange of benthic gastropod faunas across the Late Triassic/Early Jurassic boundary (Ferrari, 2015b). The Late Triassic Cylindrobullina species from Peru showed the smallest size for the genus at that time, whereas the Pliensbachian Cylindrobullina of southern Patagonia showed the largest size. The Pliensbachian increased size of austral Cylindrobullina species was considered by Ferrari and Hautmann (2022) to be related to a Pliensbachian cooling event (Korte et al., 2015); thus, largest specimens of Cylindrobullina (up to 30 mm) stem from the Pliensbachian of high paleolatitudes (south Patagonia) with inferred cold palaeotemperatures. Ferrari and Hautmann (2022) also suggested that the post extinction size increase of Cylindrobullina might have resulted from ecological opportunities due to the increased extinction of large taxa that previously competed with Cylindrobullina.

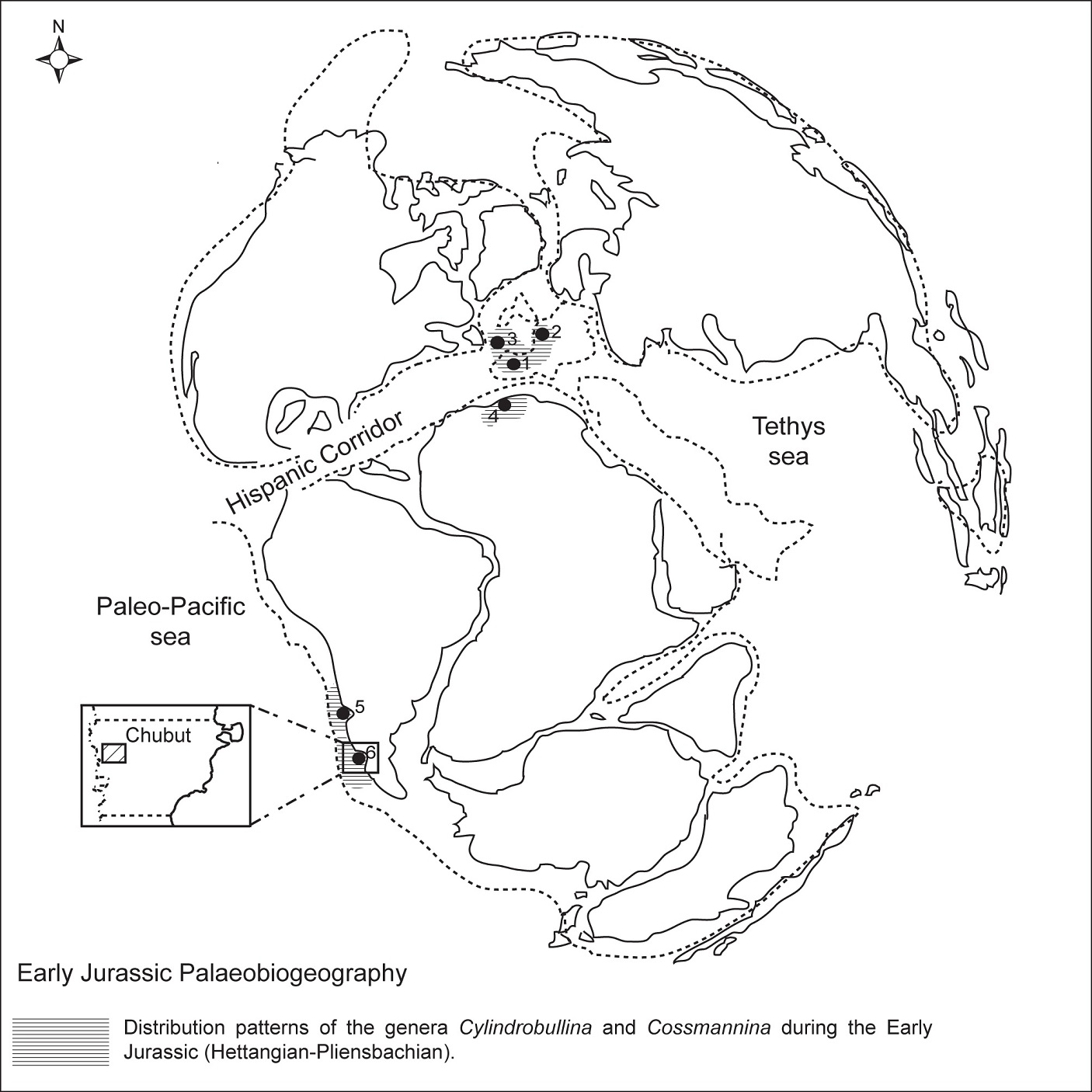

Fig. 3. Map showing the palaeogeographical distribution of Cylindrobullina and Cossmannina during the Early Jurassic. Note that the new species here described from the Early Jurassic (early Pliensbachian) of the Chubut Province extend the palaeobiogeographical distribution of Euthyneura to the Jurassic of Argentina and South America. 1. Hettangian of France (Gründel, 2010; Gründel and Nützel, 2012). 2. Hettangian-Pliensbachian of Germany (Gründel, 2003, 2010; Gründel and Nützel, 2012, 1998). 3. Sinemurian-Pliensbachian of England (Gründel et al., 2011; Gründel and Nützel, 2012). 4. Sinemurian of Morocco (Bourrouilh, 1966). 5. Pliensbachian of Neuquén Basin (Behrendsen, 1891; Ferrari, 2017). 6. Early Pliensbachian of Chubut Basin (Ferrari, 2022; Here) (modified from Ferrari, 2011).

The genus Cossmannina has been restricted during the Early Jurassic to the western Tehyan region. It occurred in the Hettangian of France (see Gründel and Nützel, 2012, p. 93) and in the Pliensbachian of Germany and England (Gründel and Nützel, 1998, 2012; Gründel, 2007; Nützel and Gründel, 2015; Ferrari et al., 2021) (Fig. 3). Here it is supplied the first occurrence of Cossmannina in the southern hemisphere, extending its palaeobiogeographical distribution from the western European epicontinental seas to the southern Patagonian region during the Early Jurassic (Fig. 3).

6. Concluding Remarks

The Euthyneura (Heterobranchia) is considered a stem group of ‘shelled ophistobranchs’ that diversified in the early Mesozoic and had a common ancestor with a thin, oval shell-shaped, large body whorl, an elongated aperture and smooth surface with or without fine spiral cords, as is shown in early Mesozoic opisthobranchs (e.g., Cylindrobullina, Cossmannina, Conactaeon, Euconactaeon, Sinuarbullina). The Early Jurassic Euthyneura is mainly restricted to the western Tethyan region and has been previously reported in the Neuquén Basin (Argentina). The present paper provides the first occurrence of Euthyneura in the Early Jurassic (early Pliensbachian) of the Chubut Province at Cerro Caquel locality with two new species, namely Cylindrobullina caquelensis nov. sp. and Cossmannina australis nov. sp. This new occurrence extends the palaeobiogeographical distribution of the Euthyneura into the southern Patagonian region during the earliest Pliensbachian, supporting the existence of a shallow marine connection between the Neuquén and Chubut basins during the earliest Jurassic, as was previously hypothesized by Ferrari (2015a, b).

Here it is reported the occurrence of Eoamaltheus multicostatus Hillebrandt in Cerro Cuche locality (originally assigned to Polymorphites sp. by Massaferro, 2001) and Eoamaltheus sp. in the Cerro Caquel locality. The presence of this ammonite fauna indicate an early Pliensbachian age (E. meridianus Hillebrandt Zone, upper part of Ibex Zone to Davoei Zone) for the marine deposits, being the oldest record within the Early Jurassic in the Sierra de Tecka region at the Chubut Province.

Acknowledgments
The present paper was financed in part by a Sepkoski Grants-2016 with the project entitled “Early Jurassic marine invertebrate faunas from southwestern Patagonia, Argentina: a bioestratigraphic framework”. I especially thank Dr. A. Riccardi (MLP) for his help in the identification of the ammonite fauna from Cerro Cuche and Cerro Caquel localities. I am also grateful to Dr. G. Massaferro (IPGP) and Tec. S. Bessone (IPGP) for helping in the fieldwork, and to S. Bessone for the preparation of the gastropod and ammonite specimens.

References

Ammon, L. Von. 1878. Die Gastropoden des Hauptdolomites und des Plattenkalkes der Alpen. Abhandlungen des zoologisch-mineralogischen Vereines in Regensburg 11: 1-72.

Behrendsen, O. 1891. Zur Geologie des Ostabhanges der argentinischen Cordillere. Teil I. Zeitschrift der Deutschen Geologischen Gesellschaft 43: 369-420.

Behrendsen, O. 1922. Contribución a la geología de la pendiente oriental de la Cordillera Argentina. Actas de la Academia Nacional de Ciencias 7: 161-227. Córdoba.

Blasco, G.; Levy, R.; Nullo, F. 1979. Los amonites de la Formación Osta Arena (Liásico) y su posición estratigráfica, Pampa de Agnia (Provincia del Chubut). In Congreso Geológico Argentino, No. 7, Actas 2: 407-429. Neuquén.

Bouchet, P.; Rocroi, J.P.; Hausdorf, B.; Kaim, A.; Kano, Y.; Nützel, A.; Parkhaev, P.; Schrödl, M.; Strong, E.E. 2017. Revised classification, nomenclator and typification of gastropod and monoplacophoran families. Malaocologia 61 (1-2): 1-495.

Bourrouilh, R. 1966. Gastéropodes du Lias inférieur et moyen du domaine atlasique marocain. Notes et Mémoires du Service Géologique du Maroc: 25-73.

Burmeister, H. 1837. Zoologie. Handbuch der Naturgeschichte 2: 369-858.

Cossmann, M. 1895. Essais de paléoconchologie comparée 1. Published by the author: 159 p. Paris.

Cox, L.R. 1965. Jurassic Bivalvia and Gastropoda from Tanganyika and Kenya. Bulletin of the British Museum (Natural History) Geology 1: 137-209. London.

Dinapoli, A.; Klussmann-Kolb, A. 2010. The long way to diversity-Phylogeny and evolution of the Heterobranchia (Mollusca: Gastropoda). Molecular Phylogenetics and Evolution 55: 60-76.

Dunker, W. 1846 Diagnosen einiger neuer Conchylien aus der norddeutschen Liasbildung. Zeitschrift für Malakozoologie 3: 168-171.

Ferrari, S.M. 2009. Cosmopolitan Early Jurassic marine gastropods from west-central Patagonia, Argentina. Acta Palaeontologica Polonica 54 (3): 449-461.

Ferrari, S.M. 2011. Early Jurassic Ataphridae (Mollusca: Gastropoda) from Chubut, Argentina: paleogeographic and paleoecologic implications. Ameghiniana 48 (1): 64-78.

Ferrari, S.M. 2012. The genera Cryptaulax and Procerithium (Procerithiidae, Caenogastropoda) in the Early Jurassic of Patagonia, Argentina. Alcheringa 36 (3): 323-336.

Ferrari, S.M. 2013. New Early Jurassic gastropods from west-central Patagonia, Argentina. Acta Palaeontologica Polonica 58 (3): 579-593.

Ferrari, S.M. 2014. Patellogastropod and Vetigastopoda (Mollusca, Gastropoda) from the marine Jurassic of Patagonia, Argentina. Historical Biology 26: 563-581.

Ferrari, S.M. 2015a. Early Jurassic marine gastropods from Argentina: a palaeobiogeographical analysis based on Vetigastropoda. Journal of Systematic Palaeontology 13: 919-941.

Ferrari, S.M. 2015b. Systematic revision of Late Triassic marine gastropods from Central Peru: considerations on the LateTriassic/Early Jurassic faunal turnover. Andean Geology 42 (1): 71-96. doi: http://dx.doi.org/10.5027/andgeoV42n1-a05

Ferrari, S.M. 2017. Early Jurassic Caenogastropoda and Architectibranchia from the Neuquén Basin, Argentina. Journal of Paleontology 91 (2): 245-264.

Ferrari, SM. 2022. Gastrópodos marinos de la cuenca jurásica de Chubut: Formaciones Lepá, Mulanguiñeu y Osta Arena. In Relatorio del Congreso Geológico Argentino, No. 21 (Giacosa, R.; editor), Geología y Recursos Naturales de la Provincia de Chubut: 689-708. Puerto Madryn.

Ferrari, S.M.; Bessone, S. 2015. A new Early Jurassic marine locality from southwestern Chubut Basin, Argentina. Andean Geology 42 (3): 349-363. doi: http://dx.doi.org/10.5027/andgeoV42n3-a04

Ferrari, M.; Hautmann, M. 2022. Gastropods underwent a major taxonomic turnover during the end-Triassic marine mass extinction event. PLoS ONE 17 (11): 22 p.

Ferrari, M.; Little, C.T.S.; Atkinson, J. 2021. Upper Toarcian (Lower Jurassic) marine gastropods from the Cleveland Basin, England: Systematics, Palaeobiogeography and contribution to biotic recovery from the Early Toarcian extinction event. Papers in Palaeontology 7 (2): 885-912.

Feruglio, E. 1934. Fossili Liassici della Valle del Rio Genua (Patagonia). Giornale di Geologia, Annali del Reale Museo Geologico di Bologna 2 (9): 1-64.

Feruglio, E. 1949. Descripción Geológica de la Patagonia, Tomos I y II. Dirección General de Yacimientos Petrolíferos Fiscales, Tomo I 334 p., Tomo II 349 p. Buenos Aires.

Frýda, J.; Nützel, A.; Wagner, P.J. 2008. Paleozoic gastropods. In Phylogeny and Evolution of the Mollusca (Ponder, W., Lindberg, D.L.; editors). University of California: 239-270. Berkeley.

Gabaldón, V.; Lizuaín, A. 1982. Estratigrafía y sedimentología del Liásico del noroeste del Chubut, Argentina. In Congreso Latinoamericano de Geología, No. 5, Actas 2: 509-526. Buenos Aires.

Giacosa, R.E.; Márquez, M.J. 2000. Jurásico y Cretácico de la Cordillera Patagónica septentrional y Precordillera Patagónica. In Geología Argentina (Caminos, R.; editor). Anales del Servicio Geológico Minero Argentino 29: 444-459. Buenos Aires

Gründel, J. 2001. Gastropoden aus dem Jura der südame-rikanischen Anden: Freiberger Forschungshefte. C492: 43-84.

Gründel, J. 2003. Gastropoden aus dem Unteren Lias (Ober-Hettangium bis Unter-Sinemurium) Südwestdeutschlands. Stuttgarter Breiträge zur Naturkunde B 340: 1-55.

Gründel, J. 2007. Gastropoden des Pliensbachiums (unterer Jura) aus der Usedom-Senke (Nordostdeutschland). Zitteliana A47: 69-103.

Gründel, J. 2010. Neubeschreibung der Gastropodenfauna aus dem Hettangium (unterster Jura) des Kanonen-berges bei Halberstadt (Deutschland). Beringeria 41: 3-24.

Gründel, J.; Nützel, A. 1998. Gastropoden aus dem oberen Pliensbachium (Lias ?2, Zone des Pleuroceras spinatum) von Kalchreuth östlich Erlangen (Mittelfranken): Mitteilungen der Bayerischen Staatssammlung für Paläontologie und Histor. Geologie 38: 63-96.

Gründel, J.; Nützel, A. 2012. On the early evolution (Late Triassic to Late Jurassic) of the Architectibranchia (Gastropoda: Heterobranchia), with a provisional classification. Neues Jahrbuch für Geologie und Paläontologie 264: 31-59.

Gründel, J.; Kaim, A.; Nützel, A.; Little CTS. 2011. Early Jurassic gastropods from England. Palaeontology 54: 481-510.

Haas, O. 1953. Mesozoic Invertebrate Faunas of Peru. Bulletin of the American Museum of Natural History: 321 p. New York.

Haller, M.J.; Lapido, O.R. 1980. EI Mesozoico de la Cordillera Patagónica Central. Revista de la Asociación Geológica Argentina 35 (2): 230-247.

Jaworski, E. 1926. La fauna del Lias y Dogger de la Cordillera Argentina en la parte meridional de la provincia de Mendoza. Actas de la Academia Nacional de Ciencias 9: 137-316. Córdoba.

Kano, Y.; Brenzinger, B.; Nützel, A.; Wilson, N.G.; Schrödl, M. 2016. Ringiculid bubble snails recovered as the sister group to sea slugs (Nudipleura). Scientific Reports: 1-10.

Korte, C.; Hesselbo, S.; Ullmann, C.V.; Dietl, G.; Ruhl, M.; Schweigert, G.; Thibault, N. 2015. Jurassic climate mode governed by ocean gateway. Nature Communications: 1-7.

Kuhn, O. 1935. Die Fauna des untersten Lias δ (Gibbosus- Zone) aus dem Sendelbach im Hauptsmoorwald ostlich Bamberg. Neues Jahrbuch für Mineralogie, Geologie und Paläontologie-Abhandlungen 73: 465-493.

Massaferro, G.A. 2001. Jurásico temprano del cerro Cuche (Cordillera Patagónica del Chubut): estratigrafía y fósiles. Revista de la Asociación Geológica Argentina 56 (2): 244-248.

Möricke, W. 1894. Versteinerungen des Lias und Unteroolith von Chile. Neues Jahrbuch für Mineralogie, Geologia und Paläontologie B.B. 9: 1-100. Stuttgart.

Musacchio, E.A.; Riccardi, A.C. 1971. Estratigrafía, principalmente del Jurásico en la Sierra de Agnia, Chubut, República Argentina. Revista de la Asociación Geológica Argentina 26 (2): 272-273.

Nützel, A.; Gründel, J. 2015. Early Jurassic (Pliensbachian) gastropods from Franconia, Southern Germany. Palaeontographica 305: 1-87.

Orbigny, A. de. 1842-1843. Paléontologie française, terrains Crétacés, Tome II. Gastéropodes: 456 p.

Pérez, d’A., E. 1982. Bioestratigrafía del Jurásico de Quebrada Asientos, Norte de Potrerillos, Región de Atacama. Boletín del Servicio Nacional de Geología y Minería de Chile 37: 1-149.

Pezzuchi, H.D.; Takigawa, A. 1984. Geología del sector del Cerro Cuche, Provincia del Chubut. Revista de la Asociación Geológica Argentina 38 (34): 490-493.

Piatnitzky, A. 1936. Estudio geológico de la región de los Ríos Chubut y Genua. Boletín de Informaciones Petroliferas 13: 83-118.

Piatnitzky, A. 1946. Relaciones estratigráficas de la región del Río Chubut. Boletín de Informaciones Petrolíferas 23: 173-178.

Riccardi, A.C. 1983. The Jurassic of Argentina and Chile. In The Phanerozoic Geology of the World II (Moullade, M.; Nairn, A.E.M.; editors). Elsevier: 201-263. Amsterdam.

Riccardi, A.; Damborenea, S.; Manceñido, M.; Leanza, H. 2011. Megainvertebrados del Jurásico y su importancia Geobiológica. In Geología y Recursos naturales de la provincia de Neuquén (Leanza, H.A.; Arregui, C.; Carbone, O.; Danieli, J.D.; Vallés, J.M.; editors). Relatorio del Congreso Geológico Argentino, No. 18: 441-464. Neuquén.

Rolleri, E. 1970. Discordancia en la base del Neopaleozoico al este de Esquel. In Jornadas Geológicas Argentinas, No. 4 (1969), Actas 2: 273-277. Buenos Aires.

Schröder, M. 1995. Frühontogenetische Schalen jurassischer und unterkretazischer Gastropoden aus Norddeutschland und Polen. Palaeontographica 238: 1-95.

Spikermann, J.P. 1978. Geología de los alrededores de la Estancia Arroyo Pescado, Chubut. Revista de la Asociación Geológica Argentina 32 (4): 265-276.

Suero, T. 1952. Las sucesiones sedimentarias suprapaleo-zoicas de la zona extraandina del Chubut (Patagonia austral-República Argentina). In International Geological Congress, No. 19, Actas: 373-384. España.

Turner, J.C.M. 1982. Descripción geológica de la Hoja 44c, Tecka, Provincia del Chubut. Boletín del Servicio Geológica Nacional 180: 1-92.

Van de Schootbrugge, B.; Bailey, T.R.; Rosenthal, Y.; Katz, M.E.; Wright, J.D.; Miller, K.G.; Falkowski, P.G. 2005. Early Jurassic climate change and the radiation of organic-walled phytoplankton in the Tethys Ocean. Paleobiology 31 (1): 73-97.

Vicente, J.C. 2005. Dynamic paleogeography of the Jurassic Andean Basin: pattern of transgression and localization of main straits through the magmatic arc. Revista de la Asociación Geológica Argentina 60 (1): 221-250.

Vizán, H. 1989. Estudios paleontológicos y paleomagnéticos preliminares de la Formación Lepá (río Gualjaina, Chubut). Revista de la Asociación Geológica Argentina 43 (3): 327-337.

Wahnish, E. 1942. Observaciones geológicas en el Oeste del Chubut. Estratigrafía y fauna del Liásico en los alrededores del río Genua. Boletín del Servicio Geológico Nacional 51: 1-73. Buenos Aires.

Wägele, H.; Klussmann-Kolb, A.; Vonnemann, V.; Medina, M. 2008. Heterobranchia I: The Opisthobranchia. In Phylogeny and Evolution of the Mollusca (Ponder, W.F.; Lindberg, D.R.; editors). University of California Press: 385-408. Berkeley.

Weaver, C. 1931. Paleontology of the Jurassic and Cretaceous of West Central Argentina (Unpublished). University of Washington 1: 1-469.

Wenz, W. 1938-1944. Teil 1. Allgemeiner Teil und Prosobranchia. In Handbuch der Paläozoologie, Band 6, Gastropoda (Schindewolf, O.H.; editor). 1639 p. Berlin.
