Andean Geology 49 (3): 423-444. September, 2022
Andean Geology
doi: 10.5027/andgeoV49n3-3399
Biostratigraphic and paleobiogeographic significance of the
Darriwilian microfossils from the top of San Juan Formation in the
Los Baños de Talacasto section, Central Precordillera (Argentina)
* Ana Mestre1, Mercedes Gallardo2, María José Salas3, Susana Heredia1

1 CONICET-IIM, Facultad de Ingeniería, Universidad Nacional de San Juan, Av. Libertador San Martín 1109, 5500, San Juan, Argentina.,

2 Departamento de Geología, Facultad de Ciencias Exactas, Físicas y Naturales, Universidad Nacional de San Juan, Av. José Ignacio de la Roza Oeste 590, 5402, San Juan, Argentina.

3 CONICET-Universidad Nacional de Córdoba, Centro de Investigaciones en Ciencias de la Tierra, (CICTERRA), Edificio CICTERRA, Av. Vélez Sársfield 1611, 1° Piso of. 19, X5016CGA, Ciudad Universitaria, Córdoba, Argentina.

* Corresponding author:

The microfossil hosted in the strata of the upper part of the San Juan Formation has been widely studied in several sections to the northward of the Argentinian Central Precordillera. In contrast, the coeval strata at the Los Baños de Talacasto section, in the southern part of the Central Precordillera, have scarce biostratigraphic and sedimentological data. In this work, a conodont association together with single ostracod species are documented for the first time in this section. The record of the Lenodus crassus and L. pseudoplanus zones confirms the Darriwilian age for these beds and accurately correlates them with equivalent strata of the San Juan Formation studied in several sections of the Central and Eastern Precordillera. The microfacies analysis verifies the presence of Nuia síbirica Maslov, 1954, peloids, intraclasts, cyanobacteria, calcareous algae, and a possible microbialite indicating a shallow warm-water subtidal environment, in equatorial to subequatorial climate. This suggests a low latitudes position for Precordillera during the early-middle Darriwilian. The conodont genus Aurilobodus Xiang and Zhang is recognized for the first time from the Precordillera, and the Aurilobodus leptosomatus An specimens are described and illustrated. This genus shows affinities to the warm water in shallow marine environments of North China, Central Asia, South Tibet, western Thailand, Australia, and Newfoundland, suggesting probable ties between Precordillera and these regions. The record of the ostracod Pilla nodospinosa Salas in the study section would agree with the correlation of the top of San Juan Formation with the lower levels of the Las Aguaditas Formation in the Central Precordillera, and also suggests paleobiogeographic links with Eastern Gondwana and Australia regions during the Darriwilian times.

Keywords: Conodont, Ostracod, Carbonate, Ordovician, San Juan Formation, Argentina.



1. Introduction

The Darriwilian conodont biostratigraphy from the Precordillera in western Argentina has experimented a substantial improvement in last years. Several extensive studies on conodonts recovered from different sections in Central and Eastern Precordillera (Heredia and Mestre, 2011, 2013; Feltes et al., 2016; Mestre and Heredia, 2013a, b, 2020a, b; Mestre, 2014; Heredia et al., 2017; Mango et al., 2019; Serra et al., 2017a)  suggest affinity to Baltoscandia and South China for this time interval. Recently, Heredia et al. (2017) and Mestre and Heredia (2020b) refined the Darriwilian conodont biostratigraphy for the Precordillera, recording the lower and upper boundaries of this stage and documented the following biozones (in ascending order): the Lenodus antivariabilis, Lenodus variabilis, Lenodus crassus, Lenodus pseudoplanus, Lenodus suecicus (Pygodus lunnensis and Pygodus anitae subzones), and Pygodus serra (with Eoplacognathus robustus and Eoplacognathus lindstroemi subzones).

Regarding the ostracods, this group remained scarcely documented from Precordillera until the last decades, in which a series of detailed systematic studies were carried out. Most of the known ostracods are from the Las Aguaditas Formation beds (Darriwilian-Sandbian), where species of the major groups (Palaeocopa, Binodicopa, Leiocopa, and Metacopa) have been described (Schallreuter, 1996; Salas, 2002a, b, 2003). Both the Floian and Katian faunas are still poorly known, with only isolated reports (Schallreuter, 1995a, b, c; Schallreuter and Hinz-Schallreuter, 1999; Salas, 2007). These studies, in the Ordovician rocks of the Argentine Precordillera, have shown a relatively high diversity of this fossil group in the area.

The study area (Fig. 1) is located in the Central Precordillera, which is considered as typical thin-skinned fold and thrust belt with a vergence to the east. All previous studied sections in the Central Precordillera (Mestre, 2012; Mestre and Heredia, 2013a, b; Heredia, 2012), where the top of the San Juan Formation outcrops, are located on the western margin of each thrust fault, by the contrary, there is no data of this formation from the eastern margin. The exploration of new areas and sections from the Central Precordillera is an imperative assignment for increasing the knowledge on the Darriwilian basin paleogeography, as well as the microfossil diversity and distribution.

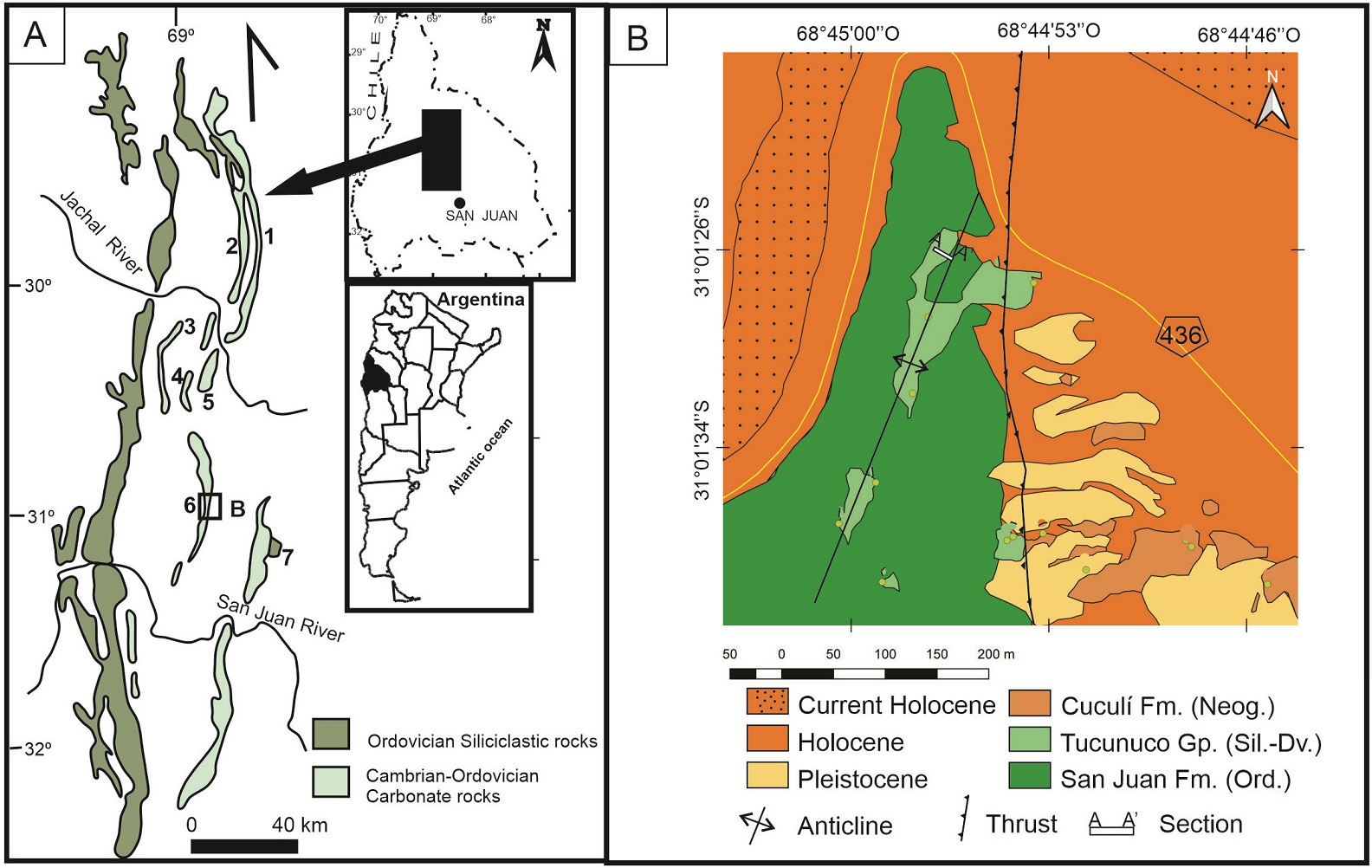

Fig. 1. A. Location of the study area (box B) and other localities mentionen in the text. 1: Del Aluvión Creek; 2: Los Amarillitos; 3: Las Aguaditas; 4: Las Chacritas river; 5: Cerro La Chilca; 6: Talacasto; 7: Villicum Range. B. Geology of the Los Baños the Talacasto area, AA’ shows the location of the studied section.


This work provides an integrated analysis of new data on conodont, ostracods, microfacies analysis, and sedimentary features of the uppermost beds of the San Juan Formation in the Los Baños de Talacasto section with the aim to discuss the biostratigraphic and basin correlation, as well as the paleoenvironmental and paleobiogeographic significance of this information.

2. Material and Methods

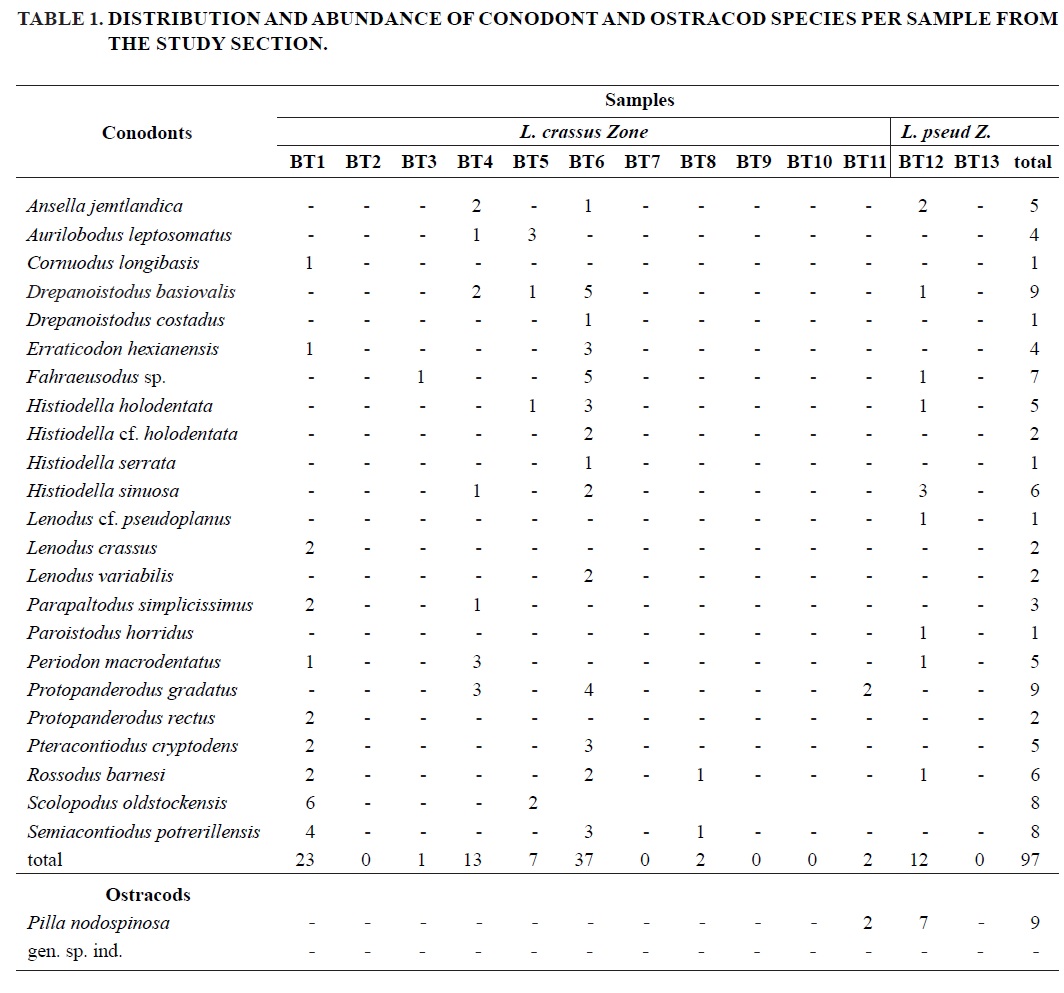

Conodonts and ostracods were collected from 13 samples from limestone beds at 0,5-2 m intervals from the upper part of the San Juan Formation at the Los Baños de Talacasto section (Figs. 1, 2). Initially, 1-2 kg of each sample was dissolved in dilute formic acid with additional material processed if needed, following Stone (1987). The insoluble fraction of each sample was hand-picked for conodonts and ostracods resulting in recovery of ca. 100 identifiable conodont elements and 7 ostracods (the specimens are internal molds with poor preservation) (Table 1). Conodonts and ostracods are housed in the collection of the Instituto de Geología “Emiliano Aparicio” (INGEO) at the Universidad Nacional de San Juan, under the code-MP. The ostracod specimens were photographed with a SEM microscope in the LAMARX (Laboratorio de Microspopía Electrónica y Análisis de Rayos X) laboratory at the Universidad Nacional de Córdoba, and conodonts with a SEM microscope in the Instituto de Investigaciones Mineras de la Universidad Nacional de San Juan (IIM-UNSJ), Argentina. Eighteen thin and polished sections were made to identify fossils and to analyze the distribution of carbonate components. A petrological investigation of the thin and polished sections was performed using Leica DM2700 microscopes and Lanset binocular microscopes.

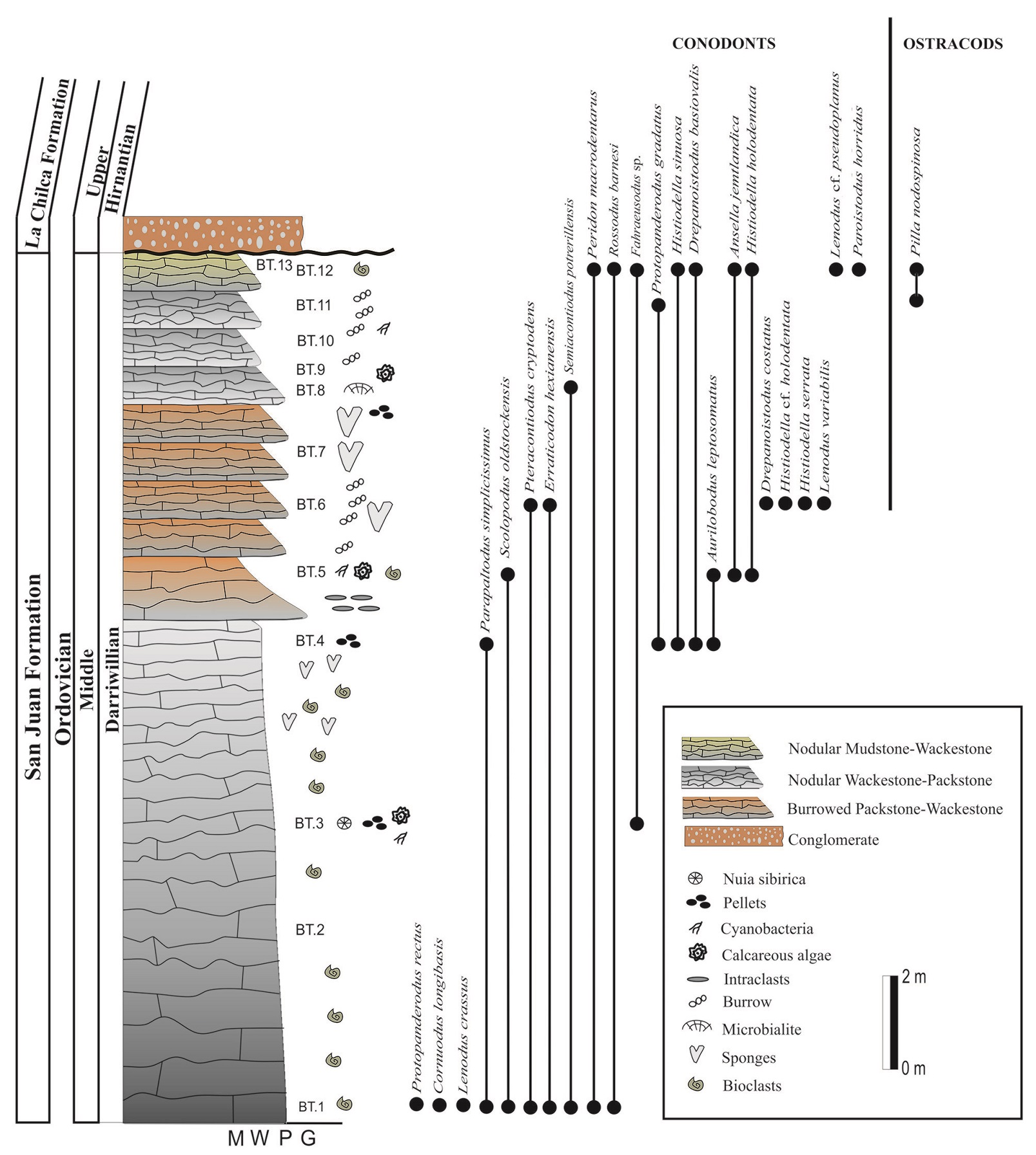

Fig. 2.  Stratigraphic column of the upper levels of the San Juan Formation at the Los Baños de Talacasto section, showing the sampled beds and vertical distribution of the conodonts and ostracods species recovered.


3.  Geological setting

The Precordillera is placed in the western central region of Argentina and extended in north-south direction through La Rioja, Mendoza, and San Juan provinces (28°-33° S). This morphostructural province was defined by Furque and Cuerda (1979), and then it was divided into three different belts: Western, Central, and Eastern (Ortiz and Zambrano, 1981; Baldis et al., 1982).

The San Juan Formation, mainly developed in Central and Eastern belts of the Precordillera, is composed of fossiliferous limestone, marly limestone and reef, representing a shallow subtidal environment (Keller et al., 1994; Cañas, 1999). The lower boundary is transitional to the La Silla Formation and is indicated by the first nodular wackestone and packstone containing the characteristic open-sea marine fauna (Keller et al., 1994). The San Juan Formation is diachronically overlain by black shales and laminar mudstones of the Los Azules and Las Aguaditas formations, north and south of the Talacasto range (Carrera and Astini, 1998; Mestre, 2010, 2014). In the Talacasto range, the San Juan Formation is unconformity overlain by the basal paraconglomerate of the La Chilca Formation. This unit is composed of siliciclastic deposits that represent part of the Ordovician-Silurian glacial event of Gondwana (Peralta, 1990; Astini and Piovano, 1992; Asurmendi et al., 2020).

The fossil contents, in the Los Baños de Talacasto section (Fig. 1), have been carefully studied over the years (Beresi, 1986; Sánchez et al., 1996; Carrera, 1997; Carrera and Ernst, 2010). However, several topics have not been explored in this section, such as conodont biostratigraphy and carbonate microfacies analysis except by Gallardo (2018).

Sánchez et al. (1996) conducted a paleoenvironmental and paleoecological analysis based on sponges and brachiopods of the Athiella brachiopod biozone, in the Cerro Viejo, Cerro La Chilca, Talacasto (Baños de Talacasto) and Villicum sections of the San Juan Formation (Fig. 1). These authors recognize a shallow subtidal environment with intermittent high energy conditions associated with a soft substrate in the Talacasto section. On other hands, based on sponge paleoecology studies, Carrera (1997) recognized three sponge biofacies for the San Juan Formation, they are Patellispongia  biofacies, recorded in Talacasto, Villicum and Cerro La Chilca section, which represents a middle ramp setting; biofacies of the elongated sponges, that includes several genera such as Archaeoscyphia, Hudsonosponja, and Calycocoelia, recorded in the Cerro Viejo region, developed in the proximal sector of the distal ramp and finally, the roots biofacies that includes roots of elongated sponges in the Las Aguaditas, Las Tunas and Las Chacritas sections (Fig. 1), representing distal ramp above the storm wave action. Based on the distribution of sponges biofacies Carrera (1997) proposed a shallow water environment for the central and southern region of the last meters of the San Juan Formation (Talacasto, Villicum and Cerro La Chilca) which deepening towards the north (Cerro Viejo) and the west (Las Aguaditas, Las Tunas and Las Chacritas) of the basin.

4. Facies description and environment interpretation

In this work, we logged and described the topmost 17.26 m of the upper part of the San Juan Formation in the Los Baños de Talacasto area. In the study section, the San Juan Formation is composed of fossiliferous nodular wackestone-packstone interbedded with intraclastic grainstone at the base, followed upward by burrowed packstone-wackestone to wackestone-mudstone with increasing fine-grained siliciclastic rocks with chert nodules to the top (Fig. 2). Fossil remains of sponges, brachiopods, bryozoans, pelmatozoan ossicles, and trilobites are abundant at the base of the section and decrease to the top. However, the sponge size increases in the same direction.

The microfacies analysis allows recognized four main facies along the section:

Bioclastic wackestone-packstone (BT1-BT4 samples): This microfacies is generally light to medium grey with diverse and abundant fossil fauna. The bioclastic and carbonate components consist of remains of brachiopods, pelmatozoan ossicles, gastropods, sponges, trilobites, ostracods, Nuia síbirica (Maslov, 1954) (Fig. 3A), algae, cyanobacteria (Fig. 3A), and pellets. The matrix is micritic, grey in color, locally which is recrystallized and cemented by sparite.


FIG. 3. Photomicrographs of the thin sections from the Los Baños de Talacasto section, the bar scale represents 100 µm. A. BT3 sample, bioclastic wackestone-packstone, Nuia sibírica (n), cyanobacteria (c). B-C. BT5 sample, calcareous algae (a). D. BT3 sample, calcareous algae (a) and trilobite (t). E. BT8 sample, microbialite undulatory dark and white laminae. F. BT9 sample, calcareous algae (a).


Intrabioclastic grainstone (BT5 sample): This microfacies is composed of poorly sorted grainstone light to medium grey in color. The bioclasts include remains of pelmatozoan ossicles, gastropods, bryozoans, trilobites, brachiopods (Fig. 4A), algae (Fig. 3B-D) and cyanobacteria (Fig. 4B). Some bioclasts show geopetal infilling and others have fine microbial cortex. The intraclasts are angular to subangular and show chaotic arrangement suggesting a short transport and reworking, they are cemented by blocky sparite (Fig. 4A).


Fig. 4. Photomicrographs of thin and polished sections from the Los Baños de Talacasto section, A-D the bar scale represents 100 µm and in E represents 2 cm. A. BT5 sample, Intrabioclastic grainstone microfacies. pelmatozoan ossicles (e), trilobites (t), gastropods (g), angular to subangular intraclasts (i), cemented by blocky sparite. B. BT5 sample, cyanobacteria (c). C. BT8 sample, bioclastic concentration, ostracods (o), brachiopods (b), intraclasts (i). D. BT10 sample, isolated and badly preserved Girvanella tubes. E. BT13 sample, wackestone-mudstone (w-m) interbedding with thin levels of greenish shale (s) and small nodule of chert (c).


Bioclastic packstone-wackestone (BT6-BT9 samples): This microfacies contains abundant large-sized sponges on the bedding surface and shell debris of echinoderm, brachiopods, ostracods, gastropods, scarce calcareous algae and intraclasts (Fig. 3F) that are either embedded in a micritic matrix or are nearby cemented by sparite (Fig. 4C). Locally, it is observed a possible microbialite represented by alternating types of micritic laminae, one with darker dense micritic, and another with lighter micritic and scattered intraclast, giving rise to an alternating simple lamination (Fig. 3E) (Monty, 1976). The bioturbation is intense along of this facies and there are several colored firmground/hardground on the beds surface.

Bioclastic wackestone-mudstone (BT10-BT13 samples): This microfacies displays a micritic matrix with flasery texture due to the incipient recrystallization of the micrite. There are few ostracod valves, trilobites, echinoderm fragments, and thin brachiopod shells which are embedded in the silty micrite. Locally is observed isolated and badly preserved Girvanella tubes (Fig. 4D). The bioclastic wackestone-mudstone are interbedding with thin levels of greenish shale of 2 to 5 cm of thickness, which increases the thickness to the top, exhibiting a style-nodular to wavy bedding.  In the stratigraphically youngest 50 cm of the section is rich in small chert nodules (Fig. 4E).

Based on the presence of fine-grained siliciclastic sediment, intense bioturbation, and the diverse faunal assemblage with robust fossil morphologies, which in some case, they are in live position (especially sponges and brachiopods), we interpret that this facies succession was deposited in a normal shallow subtidal environment below wave action with occasional high-energy episodes (Mamet et al., 1984; Holland, 1993; Mángano and Droser, 2004). The presence of Nuia síbirica, as well as cyanobacteria, calcareous algae, and possible microbialite characterizes a warm-water shallow subtidal environment in the photic zone (Riding and Fan, 2001; Liu et al.,2017; Yu et al., 2019) and supports inferences of an equatorial to a subequatorial climate in a low-latitude region (Vachard et al., 2017).

5. Conodont biostratigraphy and global correlation

The conodont biostratigraphy studies from the top of the San Juan Formation in the Talacasto range are limited. Lozano and Hünicken (1990) recognized the P. serra Zone for the uppermost beds of the San Juan Formation, but these authors did not offer details of the section sampled. Then, those conodont association was reinterpreting by Lehnert (1995), who proposed the E. suecicus Zone for these levels based on the presence of the conodont Histiodella kristinae Stouge. On the other hand, the L. variabilis Zone was mentioned for the top of San Juan Formation in the Ancha creek (Albanesi et al., 2006).

Despite the low number of conodonts recovered from the carbonate beds of the San Juan Formation at Los Baños de Talacasto section (Table 1), the presence of Darriwilian key conodonts let to identify the following conodont biozones.

5.1. Lenodus crassus Zone

The record of the L. crassus Zone in the Los Baños de Talacasto section is based on the occurrence of the eponymous species at the base of the study section of the San Juan Formation, and the upper limit of this biozone is indicated by the first occurrence of L. cf. pseudoplanus (Viira) at 17 m above the base of the section (Fig. 2; Table 1).

In this study, the L. crassus (Fig. 5a)is contemporaneous with the occurrences of L. variabilis (Sergeeva) (Fig. 5h), Erraticodon hexianenesis An and Ding, Histiodella sinuosa (Graves and Ellison) (Fig. 5b, j), H. serrata Harris (Fig. 5c), H. cf. holodentata (Fig. 5f), H. holodentata Ethington and Clark (Fig. 5g, i, k), and Aurilobodus leptosomatus An (Fig. 5d, e). The open nomenclature species H. cf. holodentata was proposed by Stouge (2012) as intermediate form between H. holodentata and H. kristinae (Stouge) and was defined as having a Pa element which cusp is high as the tallest anterior denticle (Jing et al., 2016).

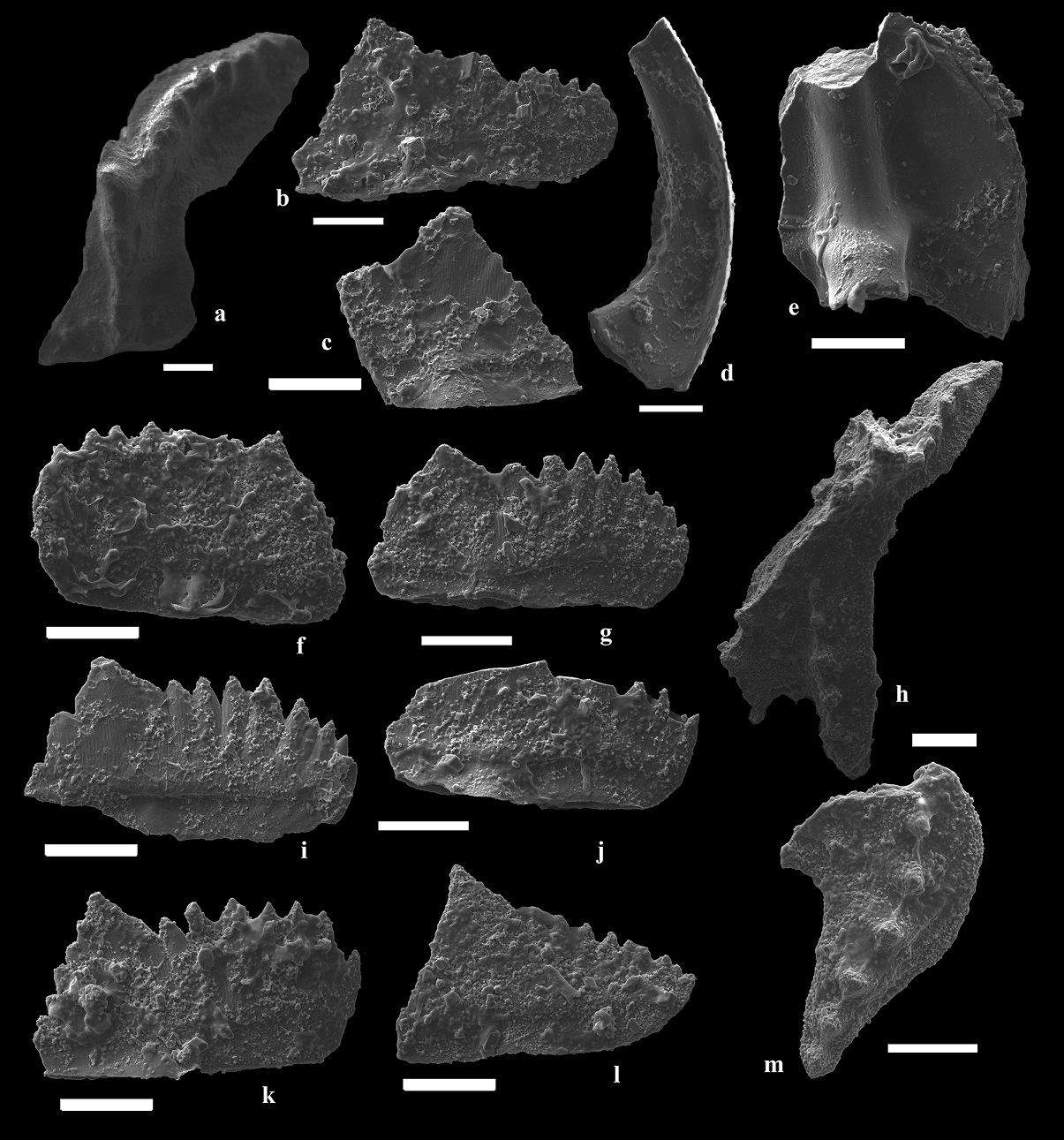

Fig. 5.  Microphotographs of scanning electron microscope of the conodont elements. The bar indicates 100 µm. (a-k) specimens from the L. crassus Zone and (l-m) specimens from the L. pseudoplanus Zone. (a) Lenodus crassus (Chen and Zhang), sinistral Pa element, BT1 sample, INGEO-MP-1992 (1); (b, j, l) Histiodella sinuosa (Harris), (b) Pa element, BT4 sample, INGEO-MP-2004 (1); (j) Pa element, BT6 sample, INGEO-MP-2020 (1); (l) Pa element, sample BT12, INGEO-MP-2028 (1); (c) Histiodella serrata Harris, Pa element, BT6 sample, INGEO-MP 2019 (1); (d-e) Aurilobous leptosomatus An, (d) Sb element, BT5 sample, INGEO-MP 2005 (1); (e) Sa element, BT5 sample, INGEO-MP 2005 (2); (f) Histiodella cf. holodentata, (f) Pa element, BT6 sample, INGEO-MP-2018 (1); (h) Lenodus variabilis (Sergeeva), sinistral Pa element, BT6 sample, INGEO-MP 2021 (1); (g, i, k) Histiodella holodentata (Etingthon and Clark), (g) Pa element, BT6 sample, INGEO-MP-2017 (4); (i) Pa element, BT6 sample, INGEO-MP 2017 (1); (k) Pa element, BT6 sample, INGEO-MP 2017 (2); (m) Lenodus cf. pseudoplanus (Viira), Pa element, BT12 sample, INGEO-MP 2034 (1).


The occurrence of L. crassus in this section is significant for regional and intercontinental correlation because it is used as an index species for the zonal schemes in China, Baltoscandia and Precordillera (Zhang, 1998a, b; Löfgren, 2003; Löfgren and Zhang, 2003; Heredia et al., 2017; Mestre, 2013, 2014; Mestre and Heredia, 2013a) (Fig. 6).

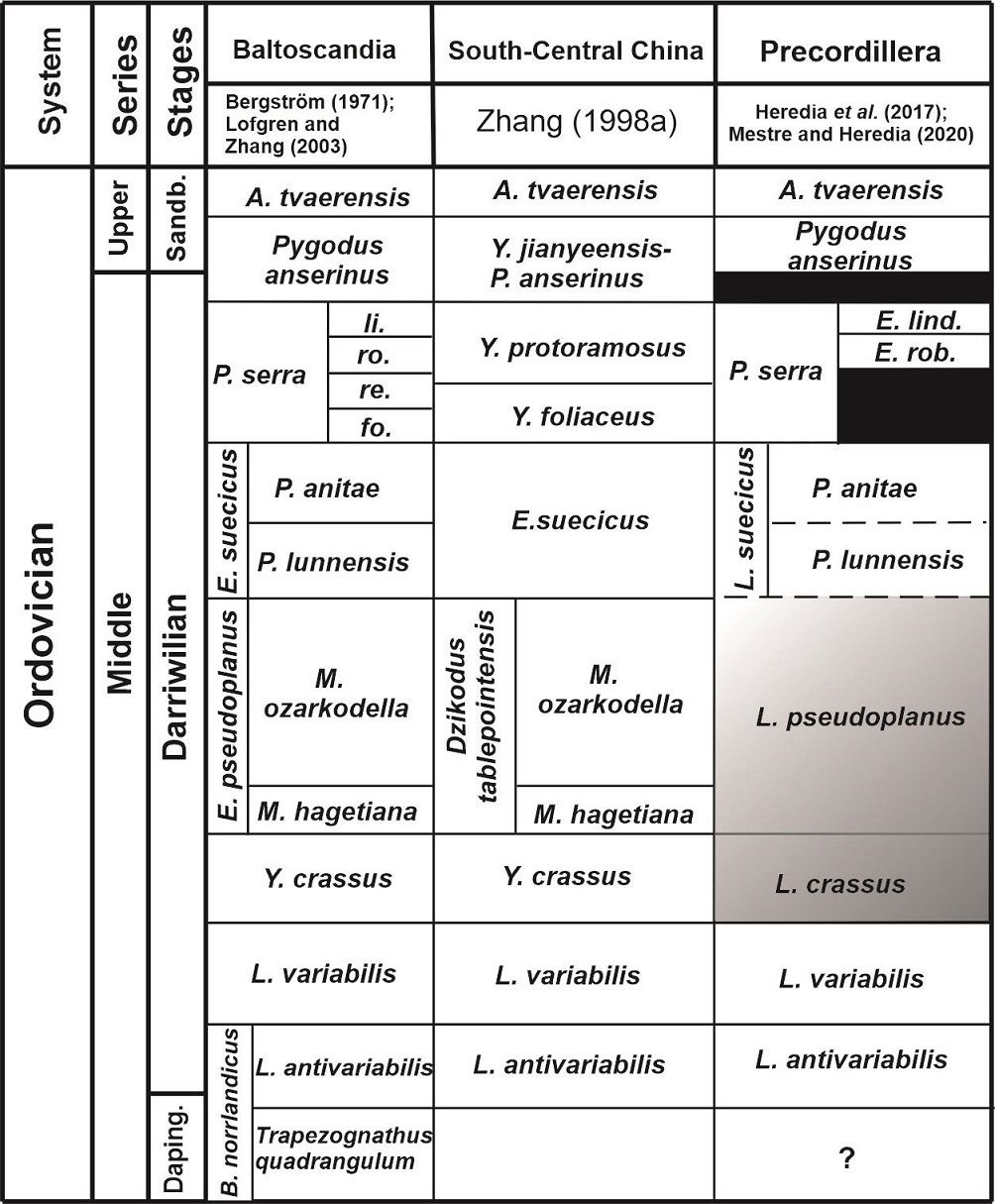

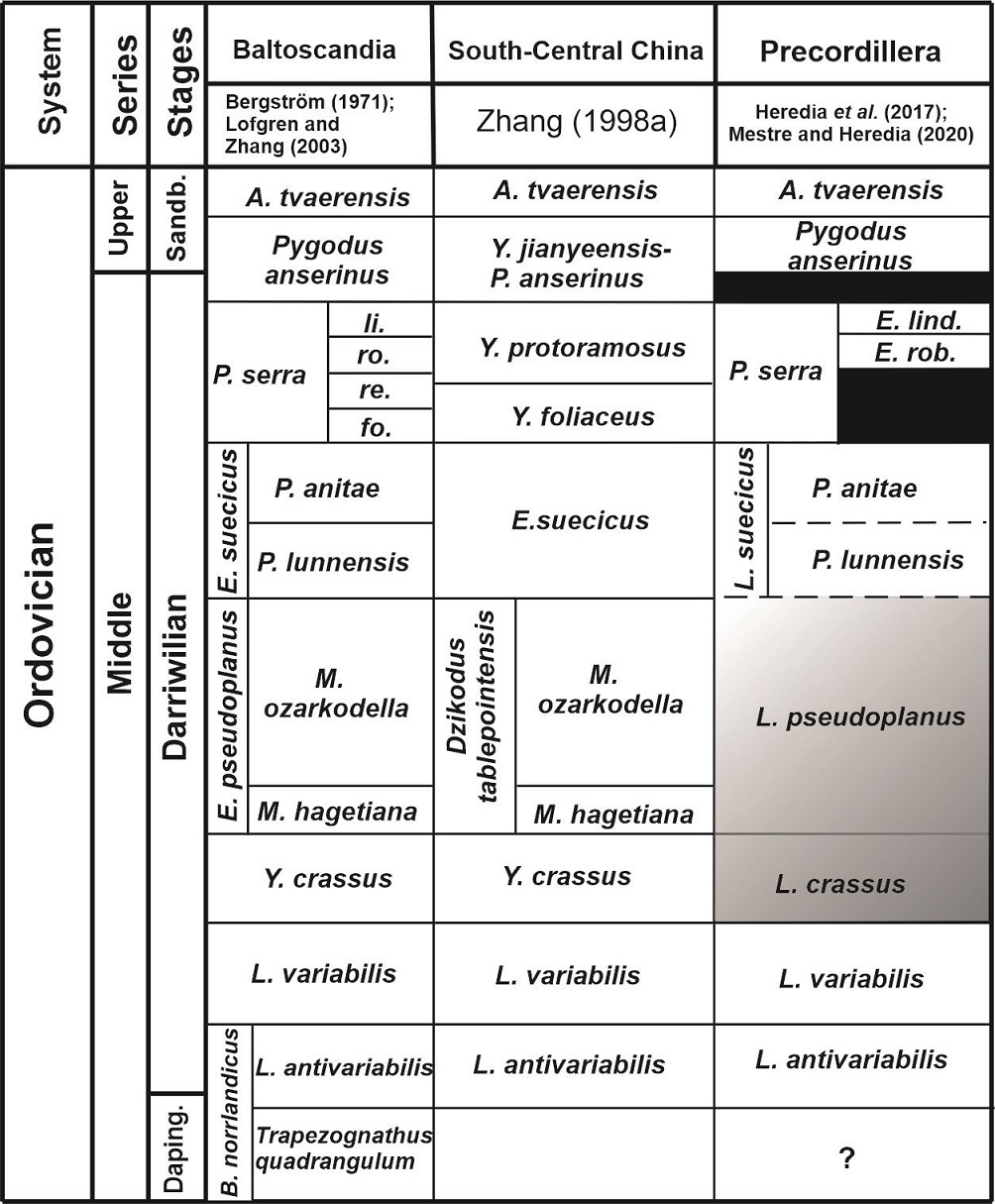

FIG. 6. Darriwilian conodont biostratigraphical chart from the Precordillera. The shadow area represents the conodont zones recorded in the study section.


The L. crassus Zoneassociated conodont fauna in the study section includes: Ansella jemtlandica (Löfgren), Aurilobodus leptosomatus, Cornuodus longibasis (Lindström), Drepanoistodus basiovalis (Sergeeva), Drepanodus arcuatus Pander, Erraticodon hexianensis, Fahraeusodus sp., Histiodella sinuosa, H. serrata, H. holodentata, H. cf. holodentata, L. crassus, L. variabilisParapaltodus simplicissimus Stouge, Periodon macrodentatus (Graves and Ellison), Protopanderodus gradatus Serpagli, P. rectus (Lindström), Rossodus barnesi Albanesi, Scolopodus oldstockensis Stouge and Semiacontiodus potrerillensis Albanesi (Fig. 2).

The co-occurrence of H. sinuosa, H. serrata, H. holodentata, H. cf. holodentata and A. leptosomatus in the same stratigraphic level represents an uncommon association of Darriwilian species of Histiodella. However, the limestone beds from the top of the San Juan Formation in the study section were deposited predominantly in a carbonate shallow water environment in similar conditions to the Midcontinent early Darriwilian carbonate platform, this setting could have promoted the extension of the biostratigraphic range of the early Darriwilian species of Histiodella into the middle Darriwilian in this area of the Precordillera.

The record of H. cf. holodentata and H. holodentata allow to correlate the top of San Juan Formation with the Darriwilian strata from Lévis Formation (Maletz, 2009; Stouge, 2012), the upper part of the Oil Creek Formation (Oklahoma) (Bauer, 2010), Thompson Creek (New Zealand) (Zhen et al., 2009), lower part of the Dawangou Formation from the Tarim Basin (Du et al., 2005; Zhen et al., 2011), North China Slope successions (Myrow et al., 2015; Jing et al., 2016, 2020) and Jiangnan Slope successions (Wang et al., 2019). A. leptosomatus in association with H. holodentata  allow a close correlation with the carbonate bed from the Thong Pha Phum section (Agematsu et al., 2008), the Beianzhuang Formation (North China Platform) (Wang et al., 2014), carbonate-mixed shallow water platform from the Kazakhstan in the western part of the Central Asian Fold Belt (Tolmacheva, 2014), the lower and middle part of the Goldwyer Formation (Caning basin) (Zhen et al., 2020; Zhen, 2020), the warm-water carbonates of the Alai Formation in southern Xizang (Tibet) (Yu et al., 2019) and the Lower Formation (Chiatsun Group) from the Nyalam region, southern Tibet (Stouge et al., 2021).

5.2.  Lenodus pseudoplanus Zone

The sample BT12 yielded a fragmented Pa element of L. cf. pseudoplanus (Fig. 5m), allowing the recognition of the eponymous biozone. This sample also includes the following species: A. jemtlandica, D. basiovalis, Fahraeusodus sp., Paroistodus horridus (Barnes and Poplawski), P. macrodentatus, H. sinuosa (Fig. 5l), and Rossodus barnesi (Fig. 2).

The record of L. pseudoplanus Zone in the Los Baños de Talacasto section represents the most southern record for this conodont biozone in the Central Precordillera. It is also significant for the intercontinental correlation since it is used as an index species for the zonal schemes in China, Baltoscandia, Australia and Precordillera (Zhang, 1998a, b; Löfgren, 2003; Löfgren and Zhang, 2003; Heredia et al., 2017; Mestre, 2012; Mestre and Heredia, 2012, 2013b; Zhen, 2020) (Fig. 6).

The extension of the H. sinuosa range up to the L. pseudoplanus Zone may be related to relative shallow water environment of these stratigraphic levels, owing to the H. sinuosa is characteristic of early Darriwilian carbonate shallow water settings from the Midcontinent (Bauer, 2010). Based on the absence of H. kristinae and the presence of H. sinuosa in the uppermost beds of San Juan Formation in the Los Baños de Talacasto section, we also interpret that in these levels could be registering the base of the L. pseudoplanus Zone.

The co-occurrence of the H. kristinae and H. holodentata was documented for the first time by the upper part of the L. pseudoplanus Zone in the Precordillera by Mestre and Heredia (2012). On the other hand, Feltes et al. (2016) and Serra et al. (2017a) recognize the co-occurrence of the H. sinuosa, H. serrata, and H. holodentata to the top of San Juan Formation and the overlapped range of the H. kristinae, H. cf. holodentata and H. holodentata in uppermost strata of the lower member of the Las Aguaditas Formation, correlative with the L. crassus and the upper part of the L. pseudoplanus zones, respectively.

6. Systematic Paleontology

Conodonts obtained from the studied samples were mainly described and illustrated in previous publications (Lehnert, 1995; Albanesi, 1998; Mestre and Heredia, 2013; Mestre, 2014). Hence, only one species is included in the following description in this report, since this represents the first mention for the Precordillera. A single species of ostracod was recovered from the study section, however, it represents the first ostracod record from the top of the San Juan Formation, for this reason, a brief description of it is also included.

Class Conodonta Pander, 1856
Genus Aurilobodus Xiang and Zhang in An et al. 1983
Type species Aurilobodus aurilobus (Lee, 1975).
Aurilobodus leptosomatus An et al. 1983

Fig. 5d-e

1983 Aurilobodus leptosomatus An in An et al. pp. 72-73, pl. 21, figs. 14-17, pl. 22, fig. 1, text-figs. 12.8-12.10.
1984 Juanognathus serpaglii Stouge, pp. 58-59, pl. 5, figs. 10-20.
1988 Juanognathus leptosomatus (A, p. 116, pl. 1, figs. 1-3, 6.
1995 Juanognathus leptosomatus (An). Lehnert, pp. 92-93, pl. 13, fig. 9.
1995 Juanognathus aff. leptosomatus (An). Lehnert, pl. 14, fig. 4.
1998 Juanognathus jaanussoni Sepagli. Albanesi, part pl.4, figs. 6-7.
2005 Aurilobodus leptosomatus An. Kuhn and Barnes, p. 319, figs. 2.1-2.2.
2008 Juanognathus serpaglii Stouge. Zhen and Pickett, pp. 72-73, fig. 9C-F.
2008 Aurilobodus leptosomatus An. Agematsu et al. p. 186, figs. 7.3-7.4.
2009 Aurilobodus leptosomatus An. Agematsu and Sashida, fig. 4.
2014 Aurilobodus leptosomatus An. Tolmacheva, pp. 132-133, pl. 16, figs. 1-5.
2016 Aurilobodus leptosomatus An. Jing et al. figs. 6.14-6.16.
2019 Aurilobodus leptosomatus An. Yu et al. fig. 4, C-D.
2020 Aurilobodus leptosomatus An. Zhen et al. fig. 7, F-I.
2020 Aurilobodus leptosomatus An. Zhen, fig. 4, B-H.
2020 Aurilobodus leptosomatus An. Jing et al. fig. 2, 9-10.

Description: In the Los Baños de Talacasto section were retrieved symmetrical Sa (Fig. 5e) and asymmetrical Sb (Fig. 5d) elements. The Sa shows a stronger carina on the anterior margin and a thicker prominent costa on the posterior margin of the cusp. Also, exhibit blade-like lateral edges on each side of the cusp. The Sb element shows a strongly extending downward lateral blade.

Material: Three elements, INGEO-MP 2006 (1-2); INGEO-MP 2009 (1).

Remarks: The present record represented the first mention of the genus Aurilobodus from Darriwilian strata of the Precordillera. Xiang and Zhang (in An et al., 1983) defined the genus Aurilobodus as having a bimembrate apparatus including symmetrical and asymmetrical elements. Nevertheless, An et al. (1983) described six species of Aurilobodus from the Darriwilian from North China, which are composed of four morphotypes: geniculate M, symmetrical Sa, asymmetrical Sb, and strongly asymmetrical Sc elements (Zhen et al., 2020). Lehnert (1995) proposed the genus Aurilobodus as a probably junior synonym of the genus Juanognathus, but the arguments to support this statement are not clear. However, Zhen et al. (2020) proposed both genera as valid, Juanognathus which typically dominated the Floian offshore faunas of the Open-Sea Realm, and Aurilobodus, which inhabited mainly from the Darriwilian shallow marine setting.

The species Juanognathus serpaglii Stouge, 1984, was reported from the Table Head Formation (Newfoundland) by Stouge (1984), in the present contribution is considered as a junior synonym of the species A. leptosomatus, following the proposal of Lehnert (1995) and Zhen et al. (2020).

Class Ostracoda Latreille, 1802
Subclass Podocopa Sars, 1866
Order Beyrichiocopida Pokorný, 1954
Suborder Binodicopina Schallreuter, 1972
Superfamily Drepanelloidea Ulrich and Bassler, 1923
Family Drepanellidae Ulrich and Bassler, 1923
Subfamily Pillinae Schallreuter, 1996
Genus Pilla Schallreuter and Siveter, 1988
Type species. Pilla piformis Schallreuter and Siveter, 1988

Pilla nodospinosa Salas, 2002a
Fig. 7
2001 Pilla nodospinosa n. sp. Salas; Salas, pp. 51-53, pl. III, figs. 5-10.
2002a Pilla nodospinosa sp. nov. Salas; Salas, pp. 50-51, pl. 6, figs. J-M, pl. 7, figs. A-B.
2003 Pilla nodospinosa Salas; Salas in: Benedetto, pp. 414, pl. 2, figs. 15-18.

Remarks: The recorded material bears two dorsal nodes, which protrude beyond the dorsal margin. The posterior one is spine-like and slightly smaller than the anterior one; nodes are separated by a wide sulcus. The valves show a well-developed and ridge-like pseudovelum extended from the anterior cardinal angle to the postero-ventral sector of valve. While the recorded material is scarce and constituted only by internal molds, this can be assigned without doubt to Pilla nodospinosa Salas, 2002a, species recorded until now from the Darriwilian levels of the Las Aguaditas and Las Chacritas formations (Salas, 2002a) in the Precordillera Argentina. The studied material has all the diagnostic features of P. nodospinosa, species, nodes separated from each other, both protruding beyond the dorsal margin, with the posterior one spine like. These features differentiate this species from the remaining species of the genus, where the nodes are rounded and the sulcus narrow. The more similar species is P. reedi (Wolfart, 2001a), from Darriwilian-early Sandbian western Thailand, by its broad sulcus and its smaller posterior node, however, in P. nodospinosa the posterior node is spine-like. Moreover, in this species the valves show a well-developed and ridge-like pseudovelum extended from the anterior cardinal angle to the postero-ventral sector of valve, while the remaining species show a rounded and wide pseudovelum. Some specimens of the recorded material show the anterior node developed like a spine, feature also observed in the juveniles of P. nodospinosa, this would agree with the maximum size observed in this exemplar (L=0,88mm) while the adults could reach 1,16 mm in length.

Material: Four internal molds of left valves and three internal molds of right valves, INGEO-MP-2038 (1); INGEO-MP-2039 (1-3).


FIG. 7. Microphotographs of scanning electron microscope of the ostracod specimens. The bar indicates 100 µm. (a-c) Pilla nodospinosa Salas, (a) right valve, lateral view of internal mold, BT12 sample, INGEO-MP-2039 (1); (b) right valve, lateral view of internal mold, BT12 sample, INGEO-MP-2039 (2); (c) left valve, ventral view of internal mold, BT12 sample, INGEO-MP-2039 (3).


7. Regional correlations

The presence of the index taxon L. crassus was first recorded in the Precordillera from the uppermost level of the San Juan Formation in Del Aluvión section (Fig. 1) (Mestre, 2010; Mestre and Heredia, 2013a) and subsequently, it was found at numerous localities from Central and Eastern Precordillera (Heredia and Mestre, 2011; 2013; Mestre and Heredia, 2013a, b, 2020a, b; Mestre, 2014; Heredia et al., 2017). This biozone is also recorded from the uppermost level of the San Juan Formation in the Los Amarillitos section, Las Aguaditas section and several sections in the Villicum range (Fig. 1), where the San Juan Formation is overlain by the Los Azules or Las Aguaditas formations (Mestre and Heredia, 2013a, 2020a, b; Mestre, 2014) (Fig. 8). Moreover, the L. crassus Zone is registered in the upper levels of the San Juan Formation at the Cerro La Chilca and Las Chacritas River sections, where the L. pseudoplanus Zone is recorded from the uppermost strata of the San Juan Formation and lower levels of the Los Azules and Las Aguaditas formations (Heredia, 2012; Mestre, 2012; Mestre and Heredia, 2013a, b, 2020b) (Fig. 8).

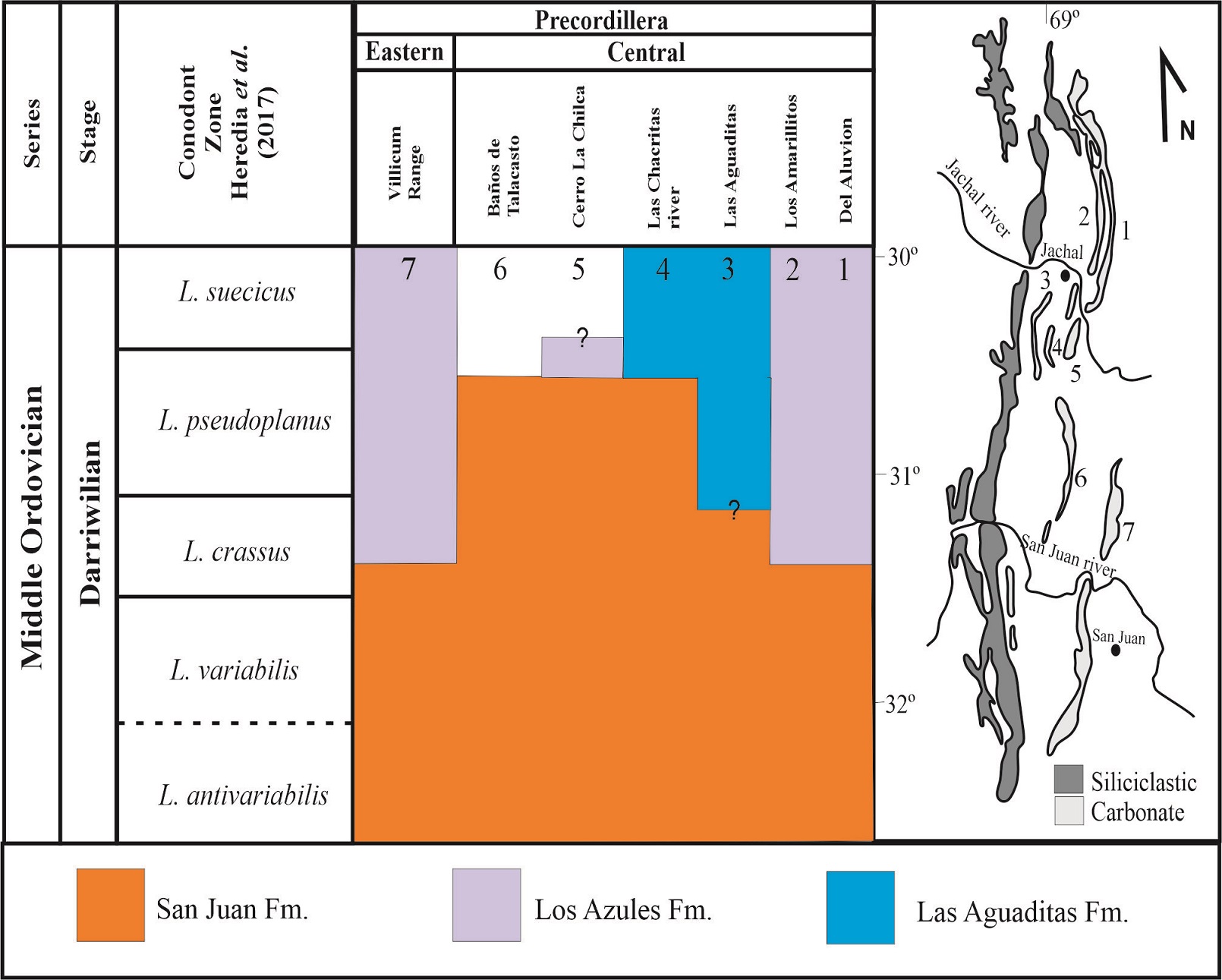

FIG. 8. Stratigraphic correlation scheme of the top of the San Juan formation between the Darriwilian sections from Eastern and Central Precordillera, showing the diachronic boundary between the San Juan Formation and the Los Azules/Las Aguaditas formations (modified from Mestre, 2014).


Regarding the presence of the ostracod P. nodospinosa in the Los Baños de Talacasto section, it represents the first record of the genus in the top of the San Juan Formation. The previous record of the species corresponds to the lower-middle levels of the Las Aguaditas Formation (sensu Heredia et al., 2011), assigned to the L. pseudoplanus and L. suecicus zones indicating a Darriwilian age (Heredia, 2012; Feltes et al., 2016; Mestre and Heredia, 2013b, 2020a, b). Although the ostracods are not good biostratigraphic markers, the presence of this species in Los Baños de Talacasto section would agree to the age and correlation documented by conodonts.

8. Paleoecological remarks of the conodont association

The Darriwilian conodont fauna from the Precordillera is characterized by high diversity and abundance perhaps as response to the GOBE (Gobal Ordovician Biodiversification Event) rise (Stigal et al., 2019). Regarding the paleoenvironmental preference of the Histiodella species, they show a wide distribution on all marine environments, from shallow to deep water and from carbonate to siliciclastic settings, having pelagic behavior (Ethington and Clark, 1981; Stouge, 1984; Zhang, 1998a; Löfgren, 2004; Tolmacheva, 2014; Jing et al., 2016).

P. horridus and P. macrodentatus are the most abundant species in the Darriwilian conodont fauna in the Precordillera, representing about the 50% of the population in the L. crassus and L. pseudoplanus zones, especially in western sections from the Central Precordillera, such as Las Chacritas river and Cerro La Chilca sections (Mestre, 2010; Serra et al., 2017b; Mestre and Heredia, 2020b). In other regions of the world, the genera Periodon and Paroistodus characterized deep and open-sea biotopes, occupying upper to lower slope environments (Stouge, 1984; Zhang, 1998a; Wu et al., 2014; among others). However, low number of specimens recovered of P. horridus and P. macrodentatus from the top of San Juan Formation in the Los Baños de Talacasto section and the presence of the A. leptosomatus, may be related to shallow environment recognized for those beds (Table 1). Nevertheless, the regional study for recognizing the distribution of these shallow water settings and its conodont faunas in the Central and Eastern Precordillera should be developed in the future for corroborating this hypothesis.

9.  Affinities of the recorded microfauna and its paleobiogeographic implications

The genus Aurilobodus has affinities to the warm water fauna of the North China Platform (An et al., 1983; Wang et al., 2014) and it inhabited the shallow waters on the shelf with normal temperatures and salinities of the Australasian Superprovince (Agematsu et al., 2006, 2008; Agematsu and Sashida, 2009; Zhen and Percival, 2017; Kuhn and Barnes, 2005; Yu et al., 2019). The A. leptosomatus occurrence in the Precordillera indicates a probable paleobiogeographic tie between North China, South Tibet, Central Asia, western Thailand, Australia, Newfoundland and the Precordillera during the early-middle Darriwilian (Fig. 9).

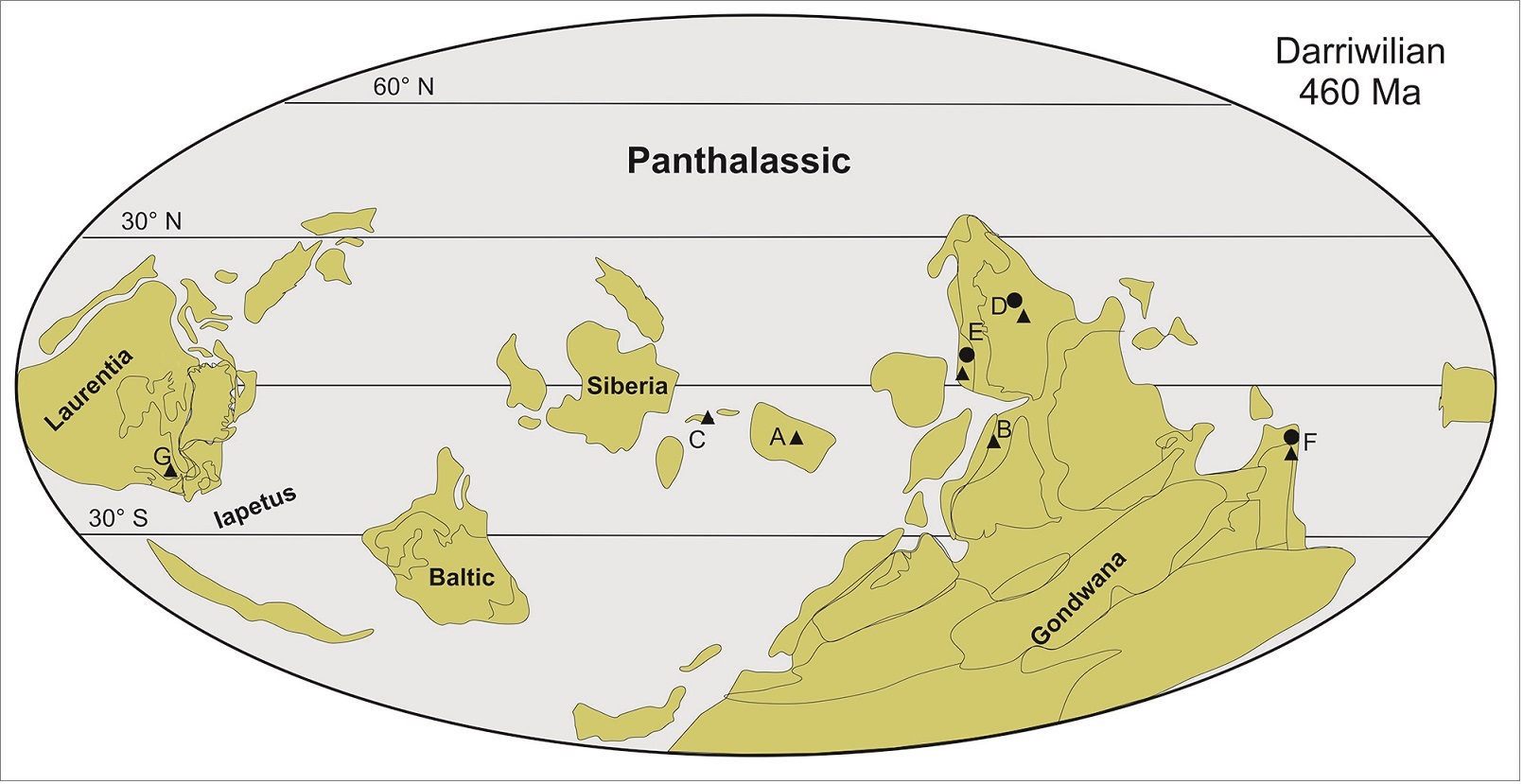

FIG. 9. Paleogeographical reconstruction for the Middle Ordovician (Torsvik and Cocks, 2013) showing geographical distribution of the Aurilobodus leptosomatus (triangle) and ostracod genus Pilla (circle). (A) North China, (B) South Tibet, (C) Central Asia, (D) Australia, (E) Thailand, (F) Precordillera and (G) Newfoundland.


The previous studies on Ordovician conodont paleobiogeography interpreted a temperate domain for the Ordovician from the Precordillera (Zhen and Percival, 2004) or suggested that the Precordillera was closer links to North America (Marathon basin, Newfoundland, and the Antelope Valley) (Albanesi and Bergström, 2010). On the other hand, the Darriwilian conodont biostratigraphy chart is based on Baltoscandian and South-Central China biostratigraphy schemes evidencing ties with those areas (Heredia and Mestre, 2011, 2013; Heredia et al., 2017) (Fig. 4).

The probable paleobiogeographic links between North China, South Tibet, Central Asia, western Thailand, Australia, Newfoundland, and the Precordillera during the Darriwilian, show the necessity to re-evaluate the significance of the spectrum of the conodont biofacies, from shallow to deep water, in the conodont provincialism or paleobiogeography affinities. As first noted by Sweet et al. (1959) and Sweet and Bergström (1962), the correlation of shallow- and deep-water facies is difficult by the conodont provincialism in the Ordovician. In several regions were defined different conodont biostratigraphic chart for the platform and the slope environment, e.g., North and South China (Wang et al., 2019; Jing et al., 2017) or British Columbia (Pyle and Barnes, 2002), showing the strong biofacial control on the provincialism.

Respect to the ostracods, the genus Pilla Schallreuter and Siveter, 1988 has so far six known species from Australia, western Thailand (Sibumasu), southwestern China and northern India, in addition to the two of Precordillera. The recorded species P. nodospinosa, was defined for material from other localities of the Precordillera Argentina, so their only previous record corresponds to the Darriwilian of the lower-middle levels of the Las Aguaditas Formation (sensu Heredia et al., 2011); meanwhile, P. austramericana Schallreuter, 1996 comes from the middle-upper levels of this formation (lower Sandbian). The oldest species of the genus is P. latolobata Jones and Schallreuter from Floian-Dapingian levels of the Amadeus Basin (Jones and Schallreuter, 1990). P. piformis Schallreuter and Siveter (type species of the genus), also from Australia, comes from Sandbian-Katian levels of New South Wales (Schallreuter and Siveter, 1988). Moreover, P. reedi (Wolfart, 2001a) from western Thailand in Sibumasu, is also recorded during the Darriwilian, in younger levels than of the Precordillera. The species is known from late Darriwilian to early Sandbian Thong Pha Phum Silt-Mudstone Formation (Wolfart, 2001a, b). Recently, P. reedi was also recorded in the late Darriwilian to early Sandbian Shihtzupu Formation of South China (Zhang, 2020). Finally, the youngest species of the genus, P. pinensis Schallreuter, occurs in the Pin Formation (late Katian), northern India, northwestern Himalaya (Schallreuter et al., 2008). The paleogeographical distribution of the genus was discussed by Zhang (2020) who suggest that the temporal and spatial distribution of Pilla might have originated in low-latitude areas and then migrated to peri-Gondwana terranes during the Middle Ordovician.

In this context, the presence of the genus Pilla suggests, at least since the Darriwilian, a paleobiogeographic relationship between the Precordillera Argentina with Eastern Gondwana and Peri-Gonwana terranes. This paleobiogeographic affinities are also suggested by other genera of ostracods like Eodominina Schallreuter and Velapezoides Mcgill recorded both in Precordillera (Salas, 2002a, b) and Australia (Schallreuter and Siveter, 1988); while with South China, in addition to Pilla, genera like Aechmina and Longiscula are also common (Salas, 2003, 2007; Yichi Zhang, 2020). This connection between the Precordillera and Australia begins during the Darriwilian with the record of the Pillinae (Salas, 2002a), even though the remaining fauna exhibit a high percentage of endemic genera, and a mixture of genera with several affinities, Baltic and peri-Gondwanan (Salas, 2007).

Other groups like trilobites show similar behaviour, with genera that suggest biogeographic relationships with several localities around Gondwana since the Darriwilian, such as North and South China, Australia, Tasmania, Himalaya, Turkey and Armorica (Edgecombe et al., 1999; Waisfeld et al., 2001). The same occurs with the rostroconch Tolmachovia, that also suggest affinities with Australia and Tasmania since Darriwilian (Sánchez, 1998).

Regarding rhynchonelliform brachiopods, they display a significant percentage of genera with Baltic and Celtic affinities (Benedetto, 2003). Nevertheless, during the Darriwilian the Precordillera is thought to have been situated relatively close to the Gondwana margin but not too far from Laurentia (Benedetto, 2004). Moreover, based on Darriwilian Baltic signature of a number of linguliform and rhynchonelliform brachiopods from the Precordillera, Lavié and Benedetto (2016) infer that it was located in low-temperate latitudes like to Baltica. On the other hand, the acrotretids and other lingulid microbrachiopods from the San Juan Formation in the La Chilca section and La Brecha creek section display major similarities with those inhabiting low-latitude paleocontinents (Holmer et al., 2016; Lavié et al., 2021). Accordingly, the paleobiogeographic affinities shown by the Darriwilian conodont assemblage in the Los Baños de Talacasto section are in agreement with those observed in ostracods and other fauna.

The discovery of the shallower water marine environment at the Baños de Talacasto section and the conodont association retrieved from these beds provided substantial information on the biofacial control on the paleobiogeography affinities in the Ordovician conodonts from the Precordillera and denoting the strong control of the biofacies on the provincialism. In a similar way the analysis of Ordovician ostracod palaeobiogeography has also shown that geography and environment appear to be an important control on the distribution of the fauna. Thus, the composition of ostracods, at least at an upper taxonomic group level (suborder and family), displays an important palaeobiogeographic component, which can be observed since the Middle to Late Ordovician (e.g., Vannier et al., 1989; Williams et al., 2003; Salas, 2011).

In the light of this new data, is evident the necessity of future studies for understanding the distribution of the shallow water carbonate environment and the microfossil faunas that inhabit these biotopes in the Precordillera basin, as well as the paleogeographic location of the Precordillera and surface currents configuration in the Iapetus during the Middle Ordovician.

10. Darriwilian Nuia record

The genus Nuia was recognized in the Early Ordovician carbonate beds of the San Juan Formation in several sections from Eastern and Central Precordillera (Beresi, 1986; Cañas, 1999; Keller, 1999) and the siliciclastic Volcancito Formation in Famatina (Astini, 2001). This microfossil was considering as algae, cyanobacteria, or microproblematic organism that was common and widespread in the Late Cambrian-Middle Ordovician shallow water deposits (Riding and Fan, 2001). Recently, Vachard et al. (2017) proposed that the Nuia is probable a rivulariacean cyanobacteria exclusively from the Early Ordovician, dismissing the Late Cambrian and Middle Ordovician records, also these authors defined the Nuia paleogeographic province that characterizes a tropical to subtropical low-latitude settings. This paleogeographic province would include the Laurentia, Siberia, Tarim, Kazakhstan, North China, South China, and Precordillera during the Early Ordovician.

The paleolatitudinal position of Precordillera was probably tropical to subtropical (low-latitude) until the latest Dapingian-earliest Darriwilian, due to the presence of the Zondarella-dominated reefs in the upper part of the San Juan Formation at the Eastern Precordillera (Lehnert and Keller, 1993; Mestre et al., 2020). However, the youngest strata over this reef facies most likely were deposited on a carbonate and mixed platform in middle latitude as result of the collision of the Precordillera (Cuyania terrane) against to the western margin of Gondwana (Astini et al., 1995; Thomas and Astini, 1996; Thomas et al., 2000).

The finding of Nuia in the studied strata would allow to place the Precordillera in a low-latitude position during the L. crassus Zone, extending up to this time interval the tropical to subtropical condition for the south-western margin of Gondwana, as is proposed by Torvisk and Cocks (2013, 2017) and Cocks and Torsvik (2020). On the other hand, we confirmed the record of Nuia up to the Middle Ordovician, as have already been verified by Guildbault et al. (1976), Riding and Fan (2001) and Shen and Neuweiler (2016) in Canada and Tarim basin (North China).

11. Conclusion

A new conodont and ostracod fauna, as well as carbonate component across the upper part of the San Juan Formation, have been analyzed based on material from the Los Baños the Talacasto stratigraphic section. The main conclusions are as follows:

  • Darriwilian conodont and ostracod association is documented for the first time from the top of San Juan Formation at Los Baños de Talacasto section.

  • The L. crassus and L. pseudoplanus zones are recorded, providing a substantial improvement in the knowledge on the distribution of these biozones in the Central Precordillera.

  • A shallow warm-water subtidal environment in equatorial to subequatorial climate in low latitudes was recognized in the last meters of the San Juan Formation in this section.

  • The A. leptosomatus occurrence in the Precordillera Darriwilian strata shows a probable paleobiogeographic link with equivalent beds from North China, South Tibet, Central Asia, western Thailand, Newfoundland, and ustralia during the Darriwilian.

  • The presence of P. nodospinosa is recorded for the first time in San Juan Formation, its record would be in agreement with the biostratigraphic and paleobiogeographic analysis based on conodont associations.

This contribution was supported by CONICET through the grant PIP 2014 0058CO. Authors wish to thank to Dr. G. Gianni and M. Lucero for the assistance in the field. We are grateful for detailed reviews provided by anonymous, Dr. X. Jing, Dr. M. Ghobadi Pour and Dra. J. Carlorosi. This is a contribution to the International Geoscience Program (IGCP) Project 653-The onset of the Great Ordovician Biodiversification Event. This study was based on the Graduate Thesis of License M. Gallardo, San Juan University, Argentina.
