1. Introduction

The Jurassic stratigraphy has been a long-debated subject in the Colombian geological literature. Lateral and vertical correlations between sedimentary and volcanic units of this age are some of the most challenging topics, although several authors have attempted to establish valid correlations, no satisfying consensus has been reached. One clear example of these issues is the unique nature of the type section of one of the most well-known Upper Jurassic sedimentary units: the Girón Formation. This type section is different in fundamental stratigraphic aspects (e.g., thickness, architecture and facies successions) from all the other similar aged successions, precluding valid regional correlations. However, these differences can also be seen as tools for reconstructing a plausible scenario in which all the data can be conciliated. This has been achieved for some Jurassic basins located in Colombia and Mexico. In the Guajira Peninsula of Colombia, the Jurassic sedimentary rocks of the Cosinas Group have been interpreted as the result of the infilling of one of multiple sub-basins created by Pangea’s break-up (Nova et al., 2019). Units with similar characteristics to those of the Girón Formation are reported in Mexico for the Middle Jurassic (e.g., Todos Santos Formation, Huizachal Formation). They are interpreted also as the infilling of extensional basins (Michalzik, 1991; Godínez-Urban et al., 2011) located adjacent to the limit between Laurentia and Gondwana during Pangea’s rupture, in the Middle-Late Jurassic (Martini and Ortega-Gutiérrez, 2016; Nova et al., 2019). Despite this, only the magmatic evolution of the basins is considered in most North-Andean Jurassic tectonic models (Spikings et al., 2015; Zuluaga et al., 2015; Bustamante et al., 2016; Rodríguez et al., 2018; Zuluaga and López, 2019); therefore, they lack a description of the sedimentary environments and their variations. Other studies try to conciliate all the geological data into different plausible tectonic models but lack a detailed scenario of each of the involved units (e.g., Martini and Ortega-Gutiérrez, 2016; Bayona et al., 2020).

We collected stratigraphic, sedimentologic and petrologic data, from two sections located along the same extensional structure, which was one of the multiple sub-basins developed during the Jurassic in the northern part of South America (i.e., Yariguíes Basin sensu Velandia, 2017), located in the current Yariguíes Range. This allows us to describe the basin characteristics and the possible along strike variations in structure and in the source area of the sedimentary rocks.

The geological mapping and measurement of joints and slickensides enable us to carry out an analysis of the structural geology to correlate stress tensors with the tectonic evolution since the initial inversion of the former basin. We also consider necessary to present the deformational frame along the Yariguíes Anticlinorium, as the regional structure that involves other subordinate folds as the Los Cobardes Anticline.

2. Geological Framework

2.1. Tectonics and regional geology

The Colombian Andes are tectonically controlled by the interaction between the oceanic Nazca and Caribbean Plates with the continental South American Plate (Cediel et al., 2003; Cortés et al., 2005), and additionally by the influence of the Chocó-Panamá Block on the western continental margin since the Miocene (Duque-Caro, 1990; Taboada et al., 2000; Montes et al., 2015). Different episodes of subduction and terrane accretion in this border have generated the three mountain chains that compose the Northern Andean Orogen, i.e., Western Cordillera, Central Cordillera and Eastern Cordillera (Toussaint, 1995; Cooper et al., 1995; Cediel et al., 2003; Cortés et al., 2005). The geometry and composition of the orogen have been controlled, at least since the end of the Cretaceous, by the obliquity between convergent plates and their relative velocity, the allocthony/authocthony of accreted terranes, the reactivation of pre-existent anisotropies and by the buttress effect from the South American Plate and the Amazonian Craton interaction (Boinet et al., 1985; Mora et al., 2013, 2015; Jiménez et al., 2014; Velandia, 2017).

The Eastern Cordillera is a divergent orogen whose flanks are tectonically transported to its surrounding basins (Magdalena Valley Basin to the west and Llanos Basin to the East, Fig. 1). The Eastern Cordillera consists of thick Mesozoic-Cenozoic sedimentary and volcano-sedimentary successions, deposited over Paleozoic sedimentary/metamorphic and/or Cambrian-Ordovician and Proterozoic metamorphic basement rocks that crop out in some localities associated with regional faults (Gómez-Tapias et al., 2015). Some igneous plutonic bodies of different ages (Paleozoic to Miocene) cut the metamorphic and sedimentary rocks (Mantilla et al., 2011; Leal-Mejía et al., 2019). The general trend of the Eastern Cordillera changes from SW-NE to SE-NW in an inflection area around the El Cocuy Range (Mora et al., 2015, Fig. 1). This inflection is attributed to the inherited structure from previous extensional tectonic phases (Jurassic-Cretaceous rift) and to the buttress effect exerted by the rigid South American Plate against the softer Eastern Cordillera orogen (Rossello et al., 2004; Tesón et al., 2013; Jiménez et al., 2014; Mora et al., 2015).

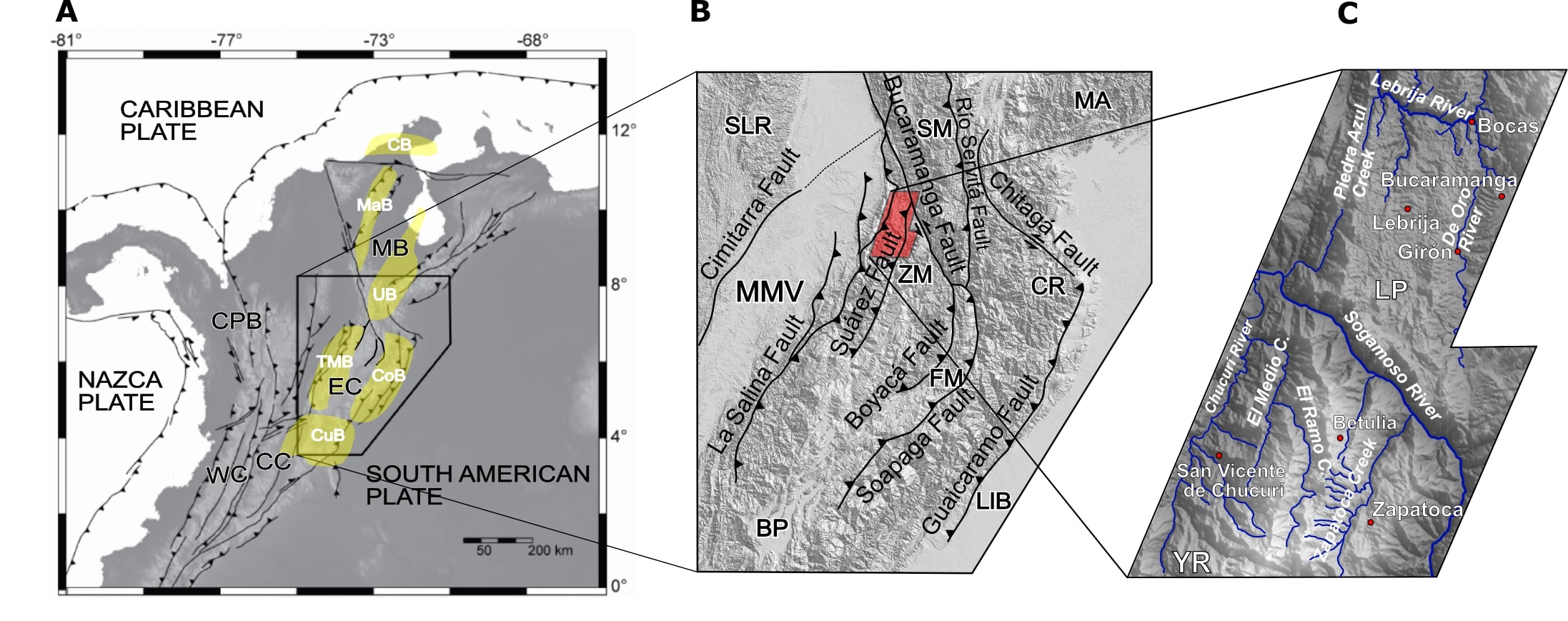

Fig. 1. A. Tectonic picture of Colombia, the main sedimentary basins are displayed in yellow. Modified from Mora et al. (2009); B. Regional fault systems and morphostructural units of central Colombia. Fault names after Gómez-Tapias et al. (2015). CPB: Chocó-Panamá Block; MB: Maracaibo Block; EC: Eastern Cordillera; CC: Central Cordillera; WC: Western Cordillera; CB: Cosinas Basin; MaB: Machiques Basin; UB: Uribante Basin; TMB: Tablazo-Magdalena Basin; CoB: Cocuy Basin; CuB: Cundinamarca Basin; SLR: San Lucas Range; SM: Santander Massif; MA: Merida Andes; MMV: Middle Magdalena Valley; FM: Floresta Massif; LlB: Llanos Basin; BP: Bogota Plateau; LP: Lebrija Platform; YR: Yariguíes Range; CR: El Cocuy Range; ZM: Zona de Mesas.

The origin of the Eastern Cordillera was conditioned by Mesozoic or older structures derived from an extensional tectonic regime, the Suárez, Bucaramanga, Boyacá, Río Servitá among other faults are some of these structures (Fig. 1). These faults, although highly debated, seem to have been originated or reactivated from a combined action of rifting and back-arc extension, since Pangea’s spreading was starting and the Farallon Plate was subducting beneath the western margin of the South and North American plates (Pindell and Dewey, 1982; Toussaint, 1995; Sarmiento-Rojas et al., 2006; Bayona et al., 2006; Martini and Ortega-Gutiérrez, 2016; Bayona et al., 2020). This extensional tectonism created several half-graben systems that were filled with thick volcanoclastic and clastic sequences of mostly continental affinity, some examples of theses basins are the Yariguíes Basin and Arcabuco-Norean Basin for the Jurassic, and Tablazo-Magdalena Basin, Cocuy Graben, and the Guatiquía and Pisba grabens for the Cretaceous (Fabre, 1983; Mojica and Kammer, 1995; Cooper et al., 1995; Sarmiento-Rojas et al., 2006; Clavijo et al., 2008; Mora et al., 2009; Tesón et al., 2013; Caballero et al., 2013; Velandia, 2017; Bayona et al., 2020). The Yariguíes Basin (Velandia, 2017) was one of the multiple depressions generated during the lithospheric stretching and extension, limited by former normal faults (the Suárez, Bucaramanga, San Vicente, and La Salina faults) which controlled the distribution of the sedimentary deposits. These faults were part of a rift-shoulder and juxtaposed uplifted basement highs with subsided sub-basins. Some of these rift-shoulder structures were connected with other major faults as the Boyacá, Río Servitá or Soapaga faults, which also controlled the distribution of the accommodation space therefore developing the basins (Kammer and Sánchez, 2006; Velandia, 2017). In posterior thermal subsidence conditions during the Cretaceous, marine sequences were deposited across the maximum extension of the basin (Fabre, 1983; Cooper et al., 1995; Sarmiento-Rojas et al., 2006).

The onset of compressional deformation in the Eastern Cordillera was related to Maastrichtian-Paleocene inversion of former normal faults (the Suárez, Boyacá, and Río Servitá faults), associated with the basin closure and to the Eastern Cordillera orogen generation. An eastern advance of the deformation, with the highest orogenic pulses in the Oligocene, Miocene and Pliocene-Pleistocene is detected with thermochronology (Ross et al., 2009; Caballero et al., 2010, 2013; Horton et al., 2010; Parra et al., 2012; Bayona et al., 2013; Mora et al., 2013, 2015). This deformation pattern is associated with an episodic accretion of terranes driven by subduction in the western continental border (e.g., Quebrada grande Arc, Arquía Complex, the basement of the Western Cordillera and the Chocó-Panama Block; Duque-Caro, 1990; Villagómez and Spikings, 2013).

The current structural configuration of the Eastern Cordillera was attained by the combination of different processes related to tectonic positive inversion (Colletta et al., 1990; Cooper et al., 1995; Rossello et al., 2004; Mora et al., 2013; Tesón et al., 2013; Kammer et al., 2020), interpreted as transpression result of oblique subduction-accretion (Kammer, 1999; Montes, 2001; Rossello et al., 2004; Acosta et al., 2004, 2007; Montes et al., 2005; Velandia, 2005; Bayona et al., 2013; Montes et al., 2019) or thick-and thin-skinned tectonics (Julivert, 1970; Dengo and Covey, 1993; Roeder and Chamberlain, 1995).

2.2. Geology of the study area

The Yariguíes Anticlinorium is a divergent folded and faulted structure constituted by Jurassic-Cretaceous sedimentary rocks, trending NNE-SSW and limited to the north by the sinistral Bucaramanga Fault, to the east by the reverse Suárez Fault and to the west by a complex reverse fault system (San Vicente, La Parroquia, Cútiga, El Medio and Río Chucurí faults; Figs. 2 and 3). All these structures separate the Yariguíes Anticlinorium from the Santander Massif, Zona de Mesas and Middle Magdalena Valley respectively (Julivert, 1958; Royero and Clavijo, 2001) (Fig. 1). The southern termination of the anticlinorium consists of a south-plunging symmetric fold named Los Cobardes Anticline, bounded by reverse faults (Pulido, 1979; Pulido et al., 1986). Besides Los Cobardes Anticline as the main and central structure, the anticlinorium is formed by several minor folds. Towards its western flank the folds are related to the reverse fault system with vergence to the west (Jiménez et al., 2016; Cetina et al., 2019); from this side to the axis of Los Cobardes Anticline other folds are shaped between the El Ramo and El Medio faults. To the eastern flank, the Zapatoca Syncline appears as a conspicuous fold in the hanging wall of the Suárez Fault, along which structural styles are related to thick-skinned tectonics, changing from higher or lower dip angles according to transversal compartmentalization (Flórez and Núñez, 2015). Recent tectonic activity was also reported for the Suárez Fault, mainly from geomorphological observations (Julivert, 1958; Díaz and Suárez, 1998; París et al., 2000; Diederix et al., 2008).

The core of the Yariguíes Anticlinorium is composed of a continental fluvial-alluvial sedimentary succession named Girón Group (sensu Cediel, 1968; Etayo-Serna, 1989) of Late Jurassic-Early Cretaceous age (Pons, 1982). The base of the Girón Group is the Girón Formation (Upper Jurassic) while the Los Santos Formation (Berriasian) constitutes the top (Cediel, 1968; Ward et al., 1973; Etayo-Serna and Rodríguez, 1985). The name Lebrija River Formation has been proposed by Etayo-Serna (1989) and Clavijo and Camacho (1993) in exchange for the name Girón Formation to avoid the homonymy between the two stratigraphic hierarchies involved (i.e., Girón Group and Girón Formation), and also considering the geographical location of the best preserved and most complete succession on the Lebrija River.

Towards the northeastern and central part of the study area, the Girón Formation is resting upon an angular unconformity over the volcano-sedimentary Jordán Formation of the Lower Jurassic (Zr U-Pb ages of 199.37±0.34 Ma and 198.49±0.33 Ma; Alarcón and Rodríguez, 2019). In the northern area, the Girón Formation makes an angular unconformity with both the Jordán Formation and the Upper Triassic-Lower Jurassic Bocas Formation (Ward et al., 1973; Royero and Clavijo, 2001) (Figs. 2 and 3), the angular unconformity with the Bocas Formation is faulted (Ward et al., 1973). The overlying Cretaceous marine succession of Valanginian to Maastrichtian age (Sarmiento et al., 2015) crops out in the flanks of the Yariguíes Anticlinorium, and in the core of some inner synclines (Figs. 2 and 3) (Ward et al., 1973; Guzmán, 1985; Cetina et al., 2019).

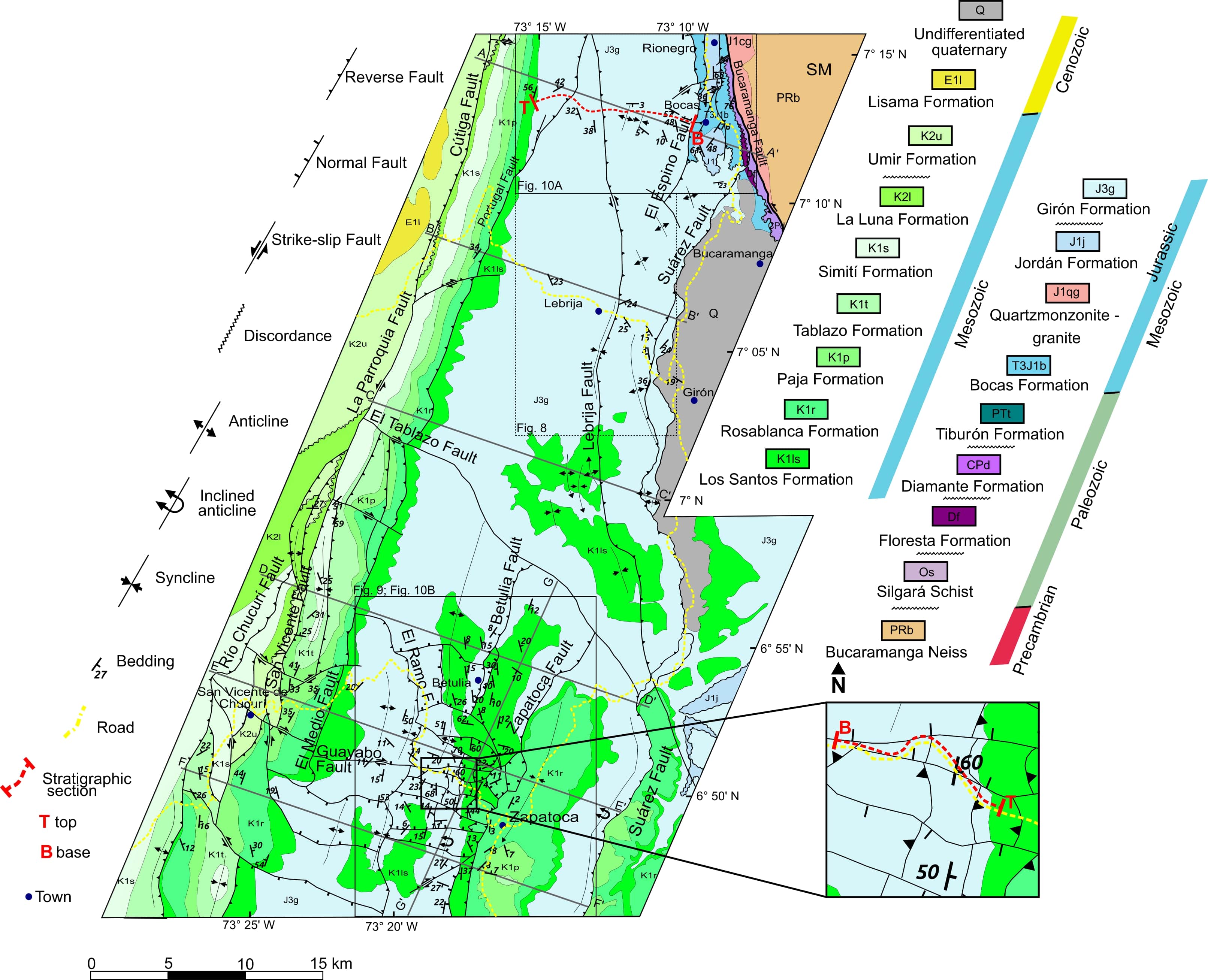

Fig. 2. Geologic map of study area. Cross sections are presented in figure 3. The legend shows the lithostatigraphic units located in geologic time.).

The Girón Formation shows variations in its thickness and lithofacies in different sections along the Eastern Cordillera, including the Santander Massif. In the north western flank of the massif, the Girón Formation is 135.5 m thick, and contrasting with other sections, lacks conglomerates (Ward et al., 1973). In the southern central part of the Santander Massif, close to the Río Servitá Fault (Fig. 1), thicknesses of 700 m had been reported (Ward et al., 1973). In the Zona de Mesas the Girón Formation has a maximum thickness of 50 m and pinches out in an eastward direction until it disappears under the Los Santos Formation (Pinto et al., 2008; Ayala-Calvo et al., 2005), whereas, south of the study area, an upward fining succession of 704 m was reported by Pulido (1979). Farther south, in the Floresta Massif (Fig. 1), the Girón Formation varies in thickness from a few meters to ca. 500 m and develop upward coarsening successions in the proximity of interpreted ancestral normal faults (e.g., Soapaga Fault; Kammer and Sánchez, 2006; Méndez-Espinosa, 2017). In all these outcrops the Girón Formation rests over different rock types, from Precambrian-Paleozoic metamorphic rocks, Triassic-Jurassic marine marginal siliclastic (Bocas Formation) to volcanoclastic and/or sedimentary rocks (Jordán Formation). After a future detailed stratigraphic study, the above exposed variations in thickness, lithofacies types and vertical profiles may support the usage of the Girón Group nomenclature to encompass the different sections.

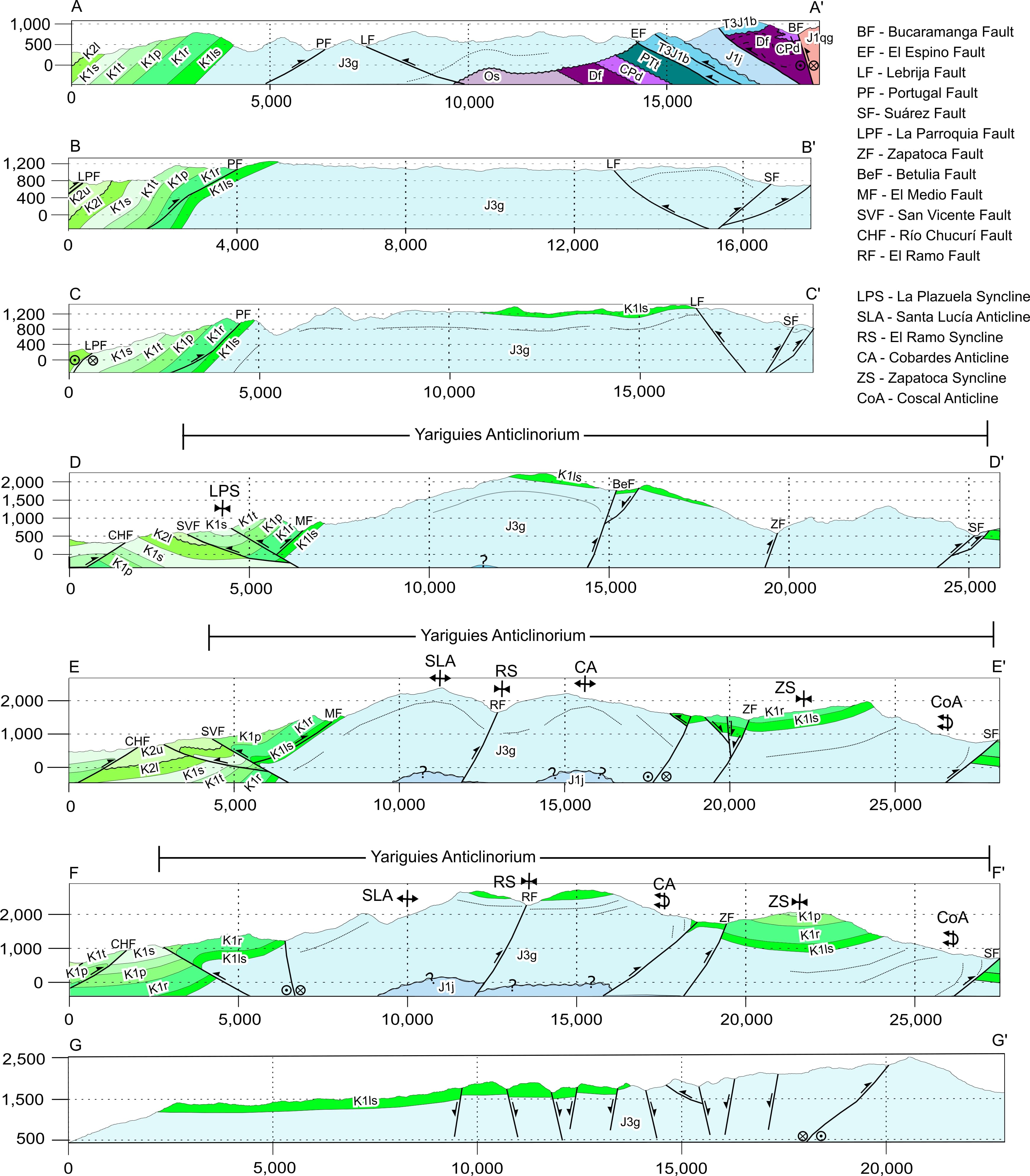

Fig. 3. A-A’ to G-G’ cross sections of the study area as indicated in figure 2. A thickness of 2,500 m is assumed for Girón Formation in sections D-D’, E-E’, F-F’. Legend as in the geologic map in figure 2. This figure illustrates the along strike variations in the structuration of the Yariguíes Anticlinorium.).

3. Methodology

We carried out a multidisciplinary approach based on geological mapping, stratigraphic, sedimentologic, petrologic and structural data compilation and analysis. For the cartographic phase, we conducted firstly an analysis of Landsat imagery (LC80080552015004LGN00, 2015) and aerial photography (Flights C-2642-218_225, C-2643-153_155; C-2588-10_19, 27_33, 85_93, from the Agustín Codazzi Geographic Institute) for the lineament and outcrop identification. Secondly, several field trips were made to verify and refine the map published by Ward et al. (1977); additional geological information in Julivert (1958), Cediel (1968), Ward et al. (1973), Chacón (1981), Clavijo (1985), Laverde and Clavijo (1985), Renzoni (1985) and Guzmán (1985) was analysed. The resulting map also took into account some data published in the maps of Royero and Vargas (1999), Diederix et al. (2008), Jiménez et al. (2016) and Cetina et al. (2019).

The stratigraphic analysis was focused on the Girón Formation, with its type locality in the gorge of the Lebrija River. We measured this section using a Jacob staff and considered the stratigraphic descriptions of Cediel (1968) to compare this succession with a stratigraphic section measured and described in the surroundings of Zapatoca (Fig. 2); we used sedimentological criteria by Campbell (1987) and Reineck and Singh (1973) and the facies associations and architectural analysis of Miall (2006).

Eleven sandstone samples were taken for petrographic analysis, five from the Zapatoca section and five from the Lebrija River section. One sample was obtained near Lebrija for comparison. A 400 point counting was made in each sample using the Gazzi-Dickinson methodology (Ingersoll et al., 1984), with the criteria given in (Tabla 1).

The inversion of stress tensors was derived from fault planes with slickensides measured in 14 sites, located along the Lebrija River, and around Lebrija and Zapatoca localities. Only one of these sites corresponds to outcrops of Cretaceous rocks (Los Santos Formation), while the other data are associated with the Girón Formation. At each site, fault slip data were collected under a standard procedure that mainly consisted of measurements of dip and dip direction of the fault plane and orientation of the slickenline (pitch and its azimuth). The sense of the movement was determined according to the kinematic indicators from Petit (1987) and Doblas (1998), especially Riedel and PT-type structures.

The Win-Tensor software (Delvaux and Sperner, 2003) was used for the inversion of stress tensors. It deals with the four parameters defined by Angelier (1994): the three principal stress axes (σ1, σ2 and σ3) and the stress ratio R (σ2-σ3/σ1-σ3). Additionally, R’ is also quantified (Delvaux et al., 1997) for consideration of the vertical stress axis: σ1 (extensional, R’=R), σ2 (strike-slip, R’=2-R) and σ3 (compressional, R’=2+R).

During processing, Win-Tensor allows the supervision of mechanical, kinematic and quality parameters. In this way, it was possible to separate low confidence data to better constrain the stress tensor. Every subset of data was first filtered until reaching improved counting values: α lower than 30° and the optimisation of function F5. For Delvaux and Sperner (2003) the quality factor for each tensor (QRt) depends mainly on the data amount (n), their level of confidence, and the percentage of used planes based on the total data per site, among others (Sperner and Zweigel, 2010), but in cases of few collected data, it is important to have different orientations of the planes.

Joints were analysed by grouping them according to the location of nearest measurement sites into the structural framework and by plotting data using Stereonet 9.2.3 software to obtain rose and pole diagrams.

4. Results

4.1. Geological mapping

The geology of the northern part of the Yariguíes Anticlinorium is presented in figure 2 (YR in Fig. 1) as bordered by the Suárez Fault to the east, and the thrust fault system led by the San Vicente Fault to the west (Fig. 3). It is important to note the effect of the Suárez Fault and other longitudinal faults within the Yariguíes Anticlinorium configuring the structural style of the area (Figs. 2 and 3). These faults control the development of almost all the folds. From the geological mapping, the Yariguíes Anticlinorium is recognized as the regional structure that involves other minor folds as the La Plazuela, El Ramo and Zapatoca synclines, and the Santa Lucía, Los Cobardes and Coscal anticlines (Fig. 3). The asymmetry of these latter two folds in cross section F-F’ (Fig. 3) marks a clear eastward vergence in the southern segment that is not evident in the northern segment of the study area (e.g., cross section C-C’ in Fig. 3). Other minor related folds are present in the western flank of the anticlinorium, related to the San Vicente Fault and/or other west-verging and east-verging faults.

As exceptions, the El Medio and Portugal faults do not develop related folds, in contrast they are considered as slip planes linked to flexural faults along syncline limbs (cross sections B-B’ to D-D’, Fig. 3). Along the Lebrija and El Espino faults, in the central and northern part of the area (Lebrija Platform, Fig. 1) the relief is less pronounced than in the south, and the internal folding and faulting is less developed (Figs. 2 and 4A). In addition, the topographic effect of longitudinal faults differs, being more evident along the Bucaramanga Fault with evidences of neotectonic activity (Jiménez et al., 2015; García-Delgado et al., 2019, 2020; Velandia et al., 2020) than along the Lebrija, El Espino and La Plata faults, whose recent activity is still uncertain (Fig. 3, sections A-A’, B-B’ and C-C’, and Fig. 4A). In the north, La Plata Fault is related to the outcropping oldest geological units (Bocas, Floresta and Diamante formations).

Several transverse faults border the termination of longitudinal faults and folds, as the El Tablazo Fault, which marks the abrupt northern end of the San Vicente, Betulia and Zapatoca faults (Figs. 2 and 3 section G-G’ and 4E and F). El Tablazo Fault is responsible for the actual orientation of the Sogamoso River which cuts the Yariguíes Range in a NW-SE direction (Fig. 1). Other minor transverse faults (e.g., La Zarza Fault, Quebraditas Fault, Fig. 2) separate beds with different attitude or juxtapose different geological units along the trend of the major folds, and in some cases, these transverse faults seem to control the change in sedimentological attributes of the Girón Formation, as described below.

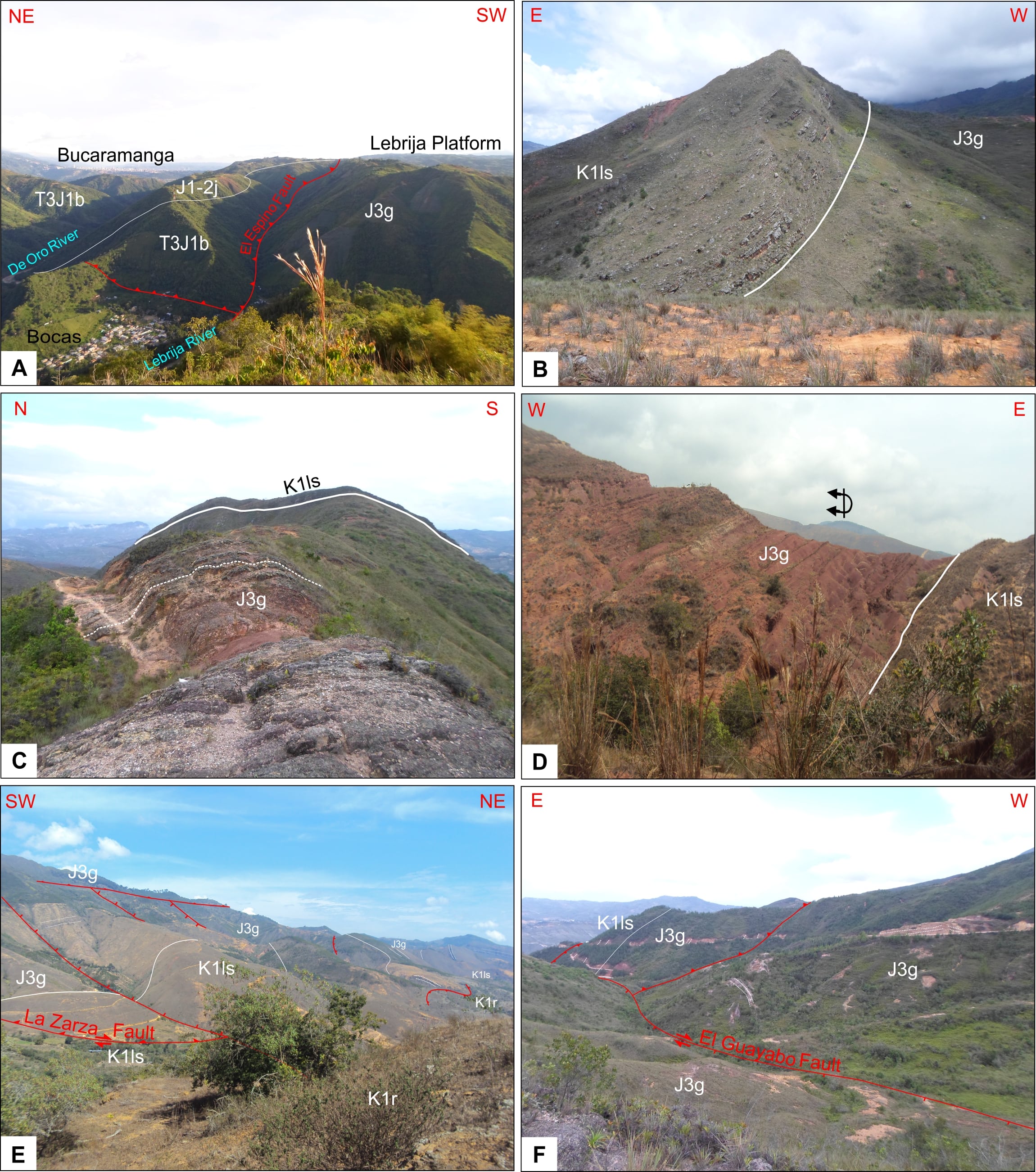

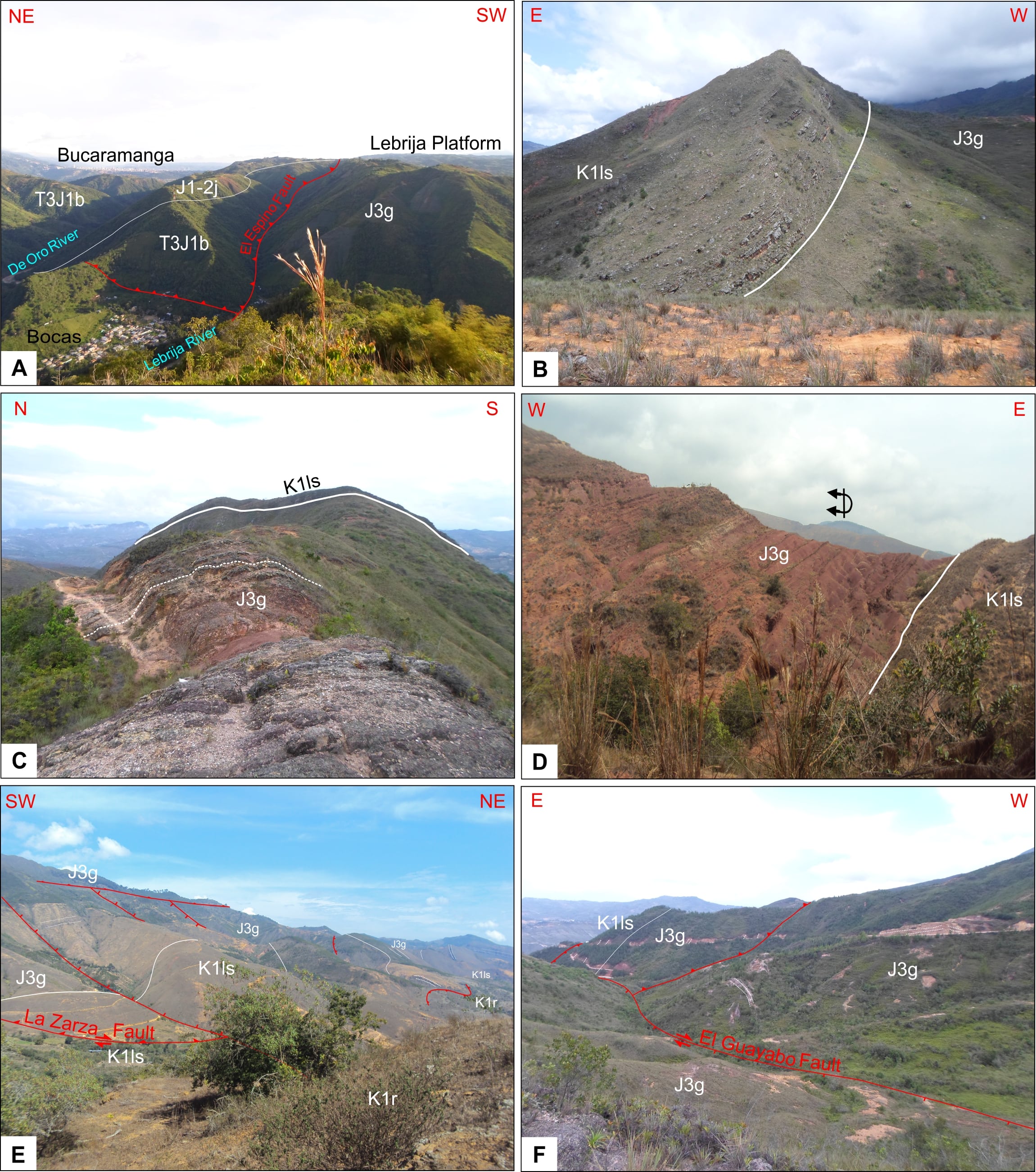

Fig. 4. Field photos of study area. A. the closest area from the Bucaramanga Fault and its splay faults. B. and C. show the transitional contact between the top of the Girón Formation and bottom of the Los Santos Formation. Notice the inverted succession in D., E. and F. show some of the transverse faults that affect the eastern flank of the Cobardes Anticline. Labels as in the geologic map (Fig. 3).

4.2. Stratigraphy of the Girón Formation

4.2.1. Lebrija Type section

The following description is based on the work of Cediel (1968). The succession of the Girón Formation in the Lebrija River type section has been divided in seven segments (A-G) according to their lithology and facies (Cediel, 1968) (Fig. 5). The base of the succession (Segment A) makes an angular unconformity with the underlying Bocas Formation. Segments A and C are similar and consist of very thick (>100 cm) lenticular beds of medium-coarse to conglomeratic sandstones with cross stratification and scarce interbeds of conglomerates and mudstones. In the conglomerates the largest clast diameter is 4 cm.

Segments B, D and F are similar and are characterized by the presence of reddish to purple mudstones (red-beds, representing 30%-60% of the total), interbedded with thick (30 cm-100 cm) lenticular beds of medium-coarse grained sandstones with trough-cross stratification. There are scarce conglomeratic beds; less than in the sandy segments (i.e., segments A, B). The contacts between sandstones and mudstones are erosive. Segment B has sporadic coal lenses.

Segment E is different from the rest of the succession and is composed of fine grained sandstones and grey mudstones in beds no thicker than 70 cm, the sandstone beds have cross-stratification. There are more coal lenses than in the segment B, also there are assymetric ripples, dissecation cracks and root fossils that could indicate the presence of paleosoils (Cediel, 1968). The conglomeratic beds are less frequent than in the other segments.

Segment G represents the top of the succession and is composed of fine-medium grained sandstones, with abscence of interbedded mudstones. The bed thickness decreases up-section from very thick beds (>1 m) at the base to medium-thick beds (10-40 cm) at the top, this segment also shows a fining upward succession. The presence of conglomeratic beds is similar to that in segments A and C, but in this segment they increase up-section. The main structures present are cross-stratification, tool marks at the base of the sandstones, and asymmetric ripples and desiccation cracks at the top of the succession. Above this segment, there is continuity in the facies development between the Girón and Los Santos formations(Fig. 4B, C and D) (Cediel, 1968; Clavijo, 1985).

The measurement of the thickness in the type section of the Girón Formation gave as result a total thickness of 3,350 m, similar to the thickness measured by Langenheim (1959) (i.e., 3,500 m) (Fig. 5). The stratigraphic scheme of Cediel (1968) allowed us to make a correct upward advance during the measurement of the succession, avoiding the repetition or missing of stratigraphic intervals. The methodology used to measure the section allows a direct observation and correction of the minor displacements along faults in the succession, thus giving an accurate calculation of the stratigraphic thickness. Although two regional reverse and reverse-sinistral strike-slip faults cross the succession at the western side of the section (Portugal and Lebrija faults; Figs. 2, 3 and 5), their outcrop expression is along narrow damage zones, including some joint families, and meso-scale dip-slip components, which were easily controlled to follow bedding continuity.

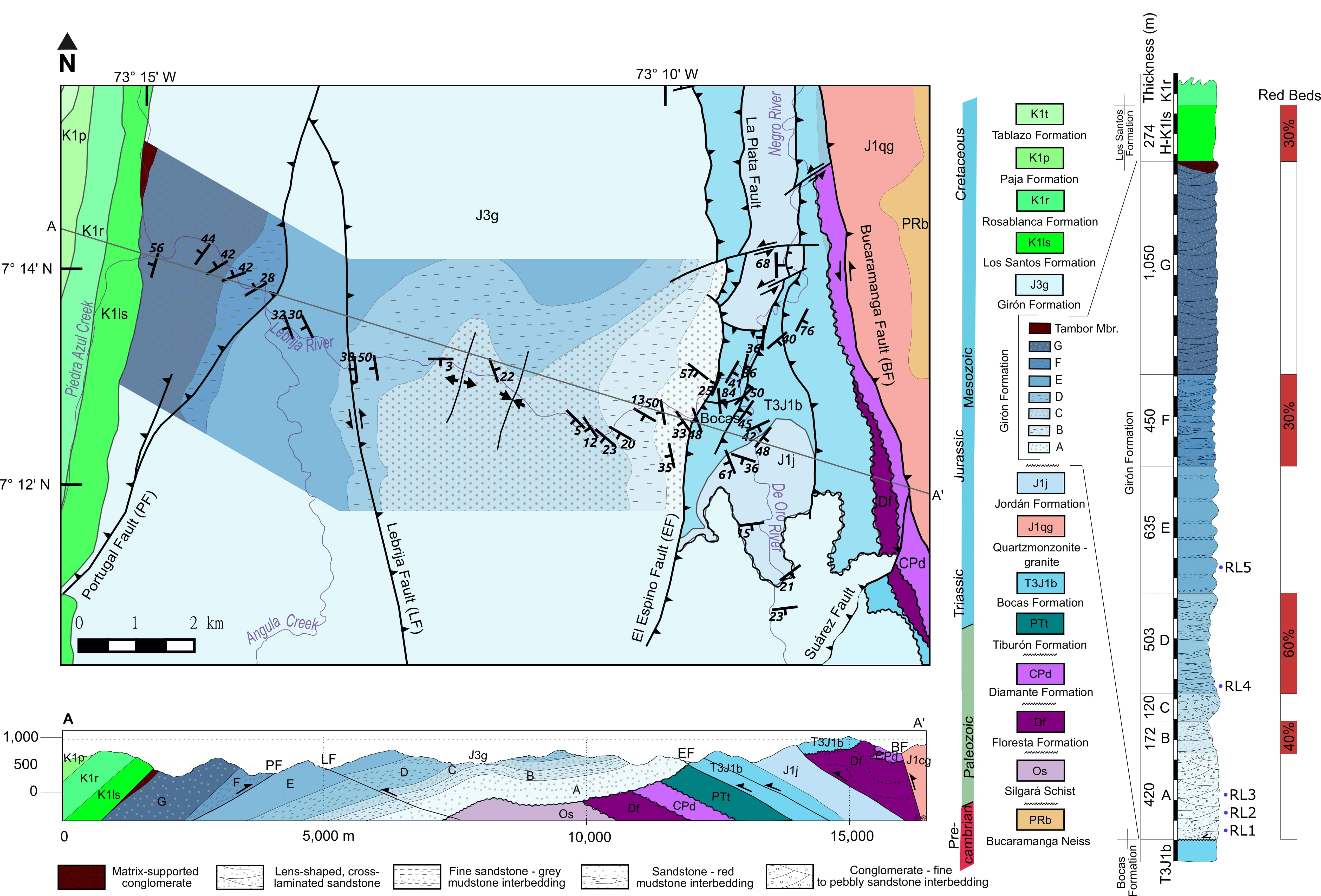

Fig. 5. Geological map of the Lebrija River zone. To the right, stratigraphic section of the Girón Formation, subdivisions according to Cediel (1968), thickness measured in this work. Notice that the red beds are not ubiquitous through the whole succession. Dots labelled RL (1-5) represent petrographic samples. The Bucaramanga and Lebrija faults are marked as transpressional structures with left lateral slip. PF: Portugal Fault; LF: Lebrija Fault; EF: El Espino Fault.

4.2.2. Zapatoca Section

The 525 m thick succession of sedimentary rocks described in Zapatoca (Fig. 6) is incomplete because the base of the Girón Formation does not crop out. We infer a thickness of ca. 2 km considering a mean between a reported thickness of 1.2 km in the southern tip of the anticlinorium (Pulido et al., 1986; although the base does not crop out there either) and 3.35 km reported here for the northern part of the structure (see cross sections E-E’, F-F’ in Fig. 3). The lower 350 m are predominantly sandy and consist of lenticular-bedded pebbly sandstones, interbedded with medium-to fine-grained sandstones (Fig. 6F). Fining-upward successions start with erosive bases, where a pebbly sandstone bed rests over a mudstone package; to the top, sandstone bodies of systematic upward decreasing grain size grade to purple mudstones, which are again cut by conglomeratic sandstones (Fig. 6C and D). Below the base of this 350 m succession, the rocks contain coarser clasts, reaching cobble sizes. Concave-upward cross stratification, trough-cross bedding and normal gradation are the most common structures in the sandstones (Fig. 6E), whereas the mudstones have parallel lamination.

The upper 175 m are muddy dominated, with local lenticular sandstones (Fig. 6A and B). Towards the top, the sandstone beds are finer grained and thinner, and become scarce. Concave-upward stratification is still common in the sandstones. Some isolated sandstone beds include climbing ripples. Green horizons and spots are common in the upper part of the succession, interbedded and affecting the mudstones. The whole succession shows a big fining-upward cycle with subordinated fining-upward successions (Fig. 6).

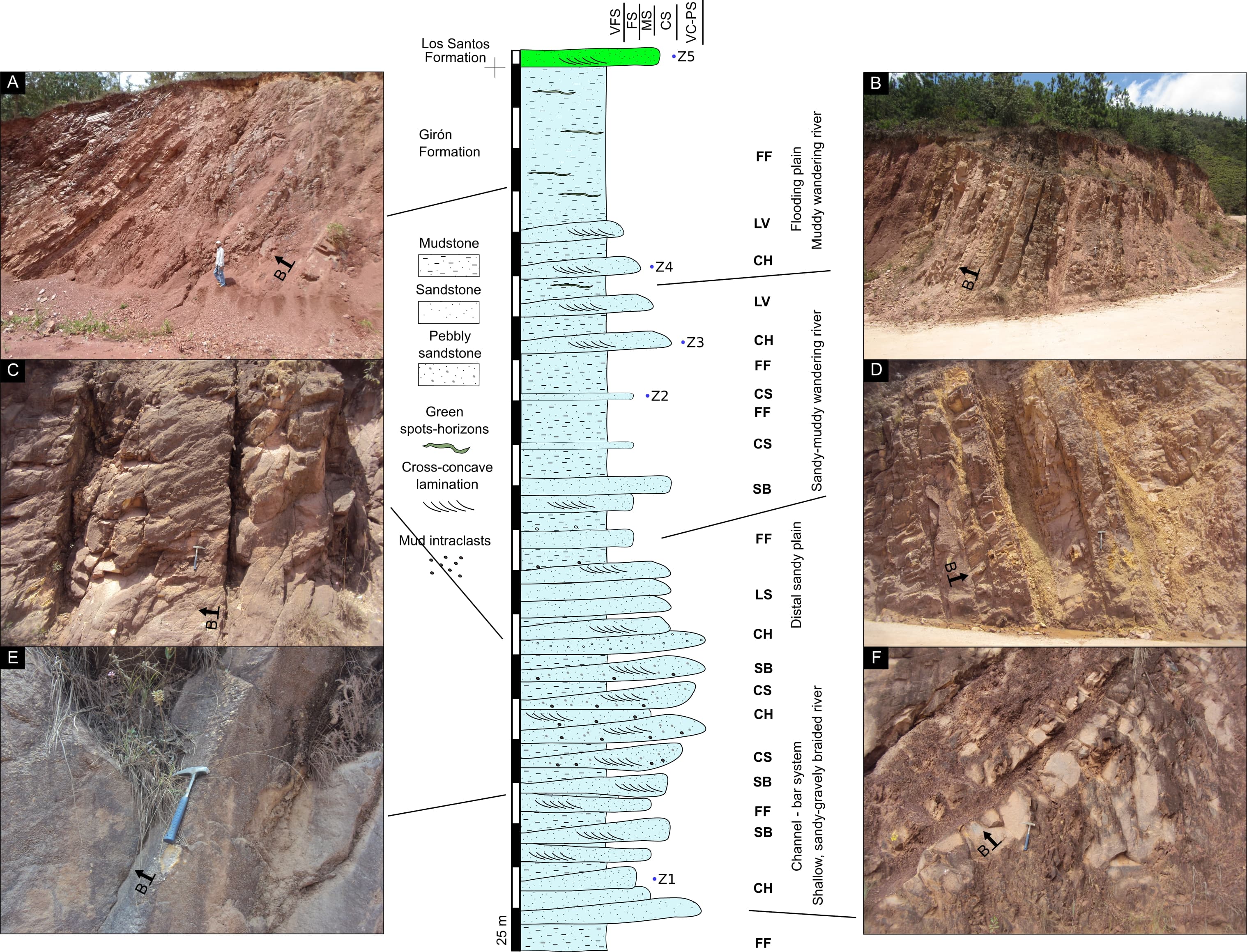

Fig. 6. Stratigraphic section measured and described in Zapatoca. A to F field photos of the sedimentary rocks, the black arrow shows the stratigraphic way-up direction of the strata. Architectural names from Miall (2006). Arquitectural elements formed within channels: CH: Channels; LS: Laminated sand sheets; SB: Sandy bedforms. Arquitectural elements of the overbank environment: LV: Levee deposits; CS: Crevasse splay deposits; FF: Floodplain fines. Dots labeled Z (1-5) represent petrographic samples.

4.3. Petrology

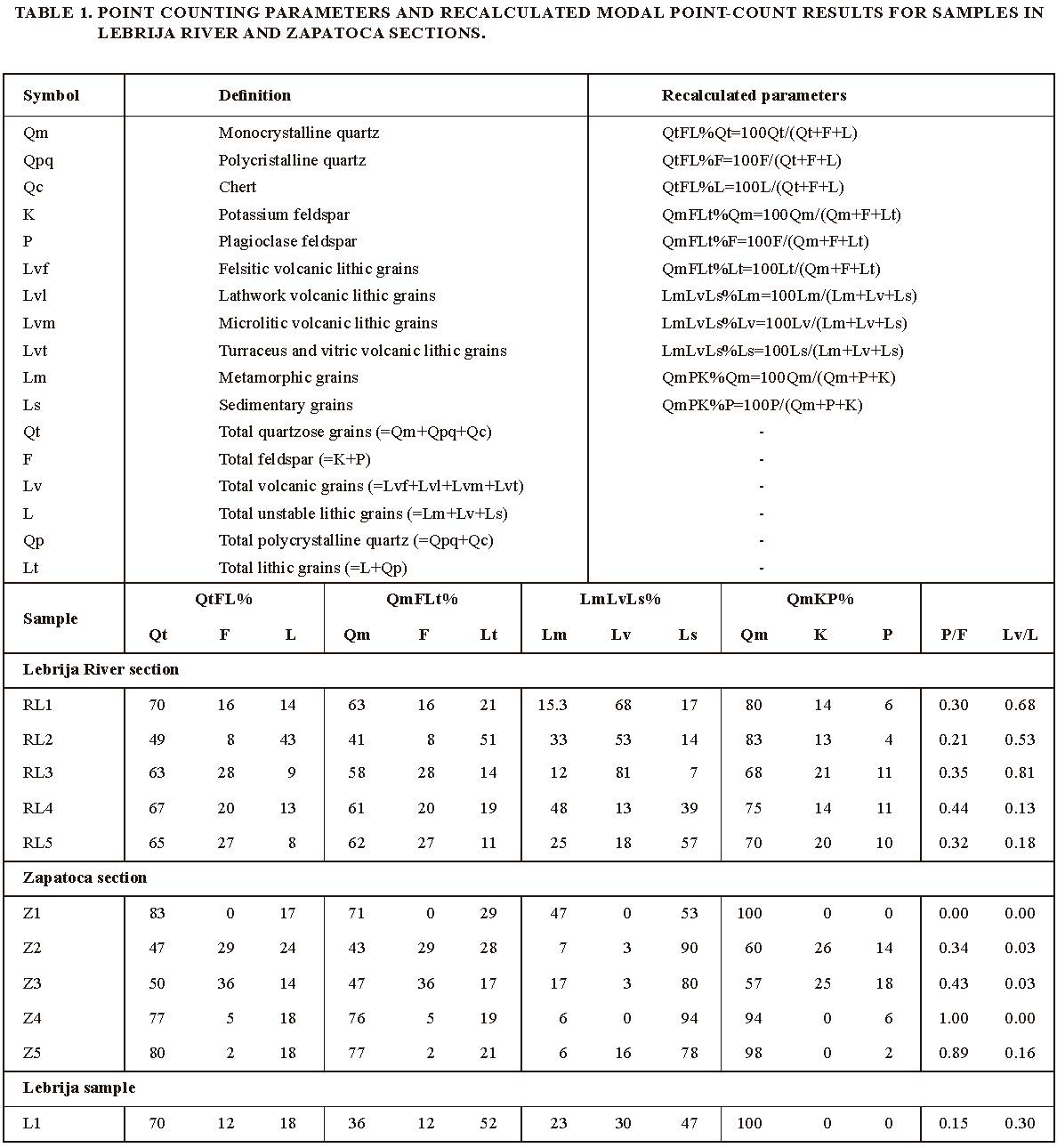

The results of petrographic analysis are listed in (Tabla 1). Five samples were taken from segments A, D and E in the type section of the Girón Formation (Fig. 5), one sample was collected near Lebrija locality that may likely corresponds to segment G, and four samples were collected, distributed along the whole succession of Zapatoca section (Fig. 6), which corresponds to the upper segment of the Girón Formation. The analysed samples of the Zapatoca section plot in the sublitharenite and arkose lithic fields, and the Lebrija River samples are arkose lithic and litharenites, whereas the Lebrija sample plots in the feldspathic litharenite field of the QFR diagram (Folk, 1968) (Fig. 7A). This classification remarks the importance of feldspar-lithic-rich sources. In the provenance QtFL triangle (Dickinson, 1985), one provenance field (recycled orogen) is obtained for the whole set (Fig. 7B). In the QmFLt discrimination diagram (Dickinson, 1985), three fields (continental transitional, mixed and recycled quartzose) are common for both Zapatoca and Lebrija River samples (Fig. 7C). One Zapatoca sample plots in the dissected arc field and the Lebrija and one Lebrija River sample plot in the recycled transitional field (Fig. 7C). Althought with dispersion, the LmLvLs diagram (Marsaglia and Ingersoll, 1992) separates some Lebrija River and Zapatoca samples, putting the Lebrija River samples closer to the Lv corner and relating them to a volcanic source, whereas Zapatoca samples plot closer the Ls corner (Fig. 7D). In the QmKP diagram (Dickinson, 1985) almost all the samples are grouped in the field related to the highest compositional maturity with sources in continental blocks (Fig. 7E).

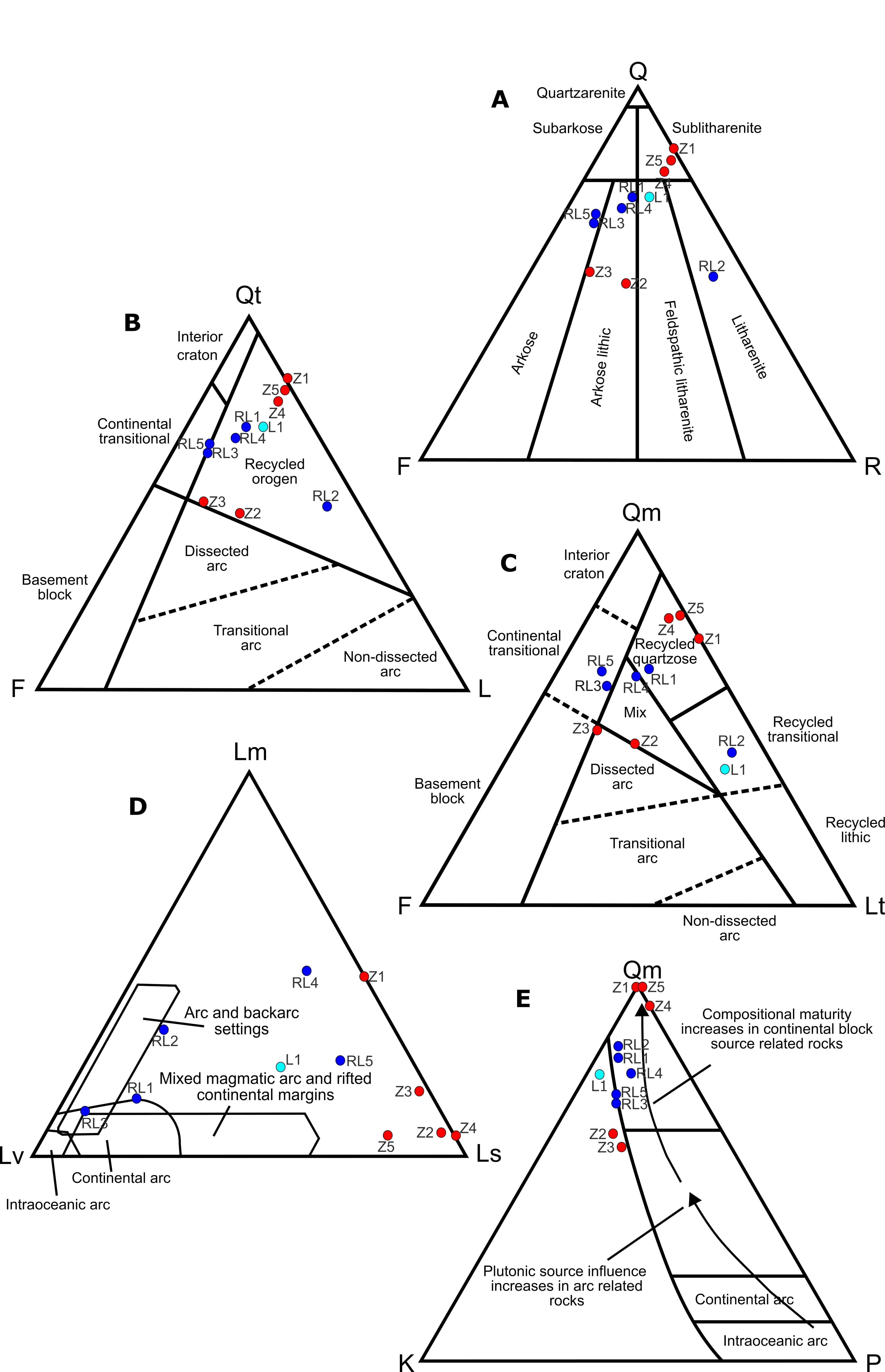

Fig. 7. Classification and provenance diagrams for sedimentary rocks used in this work. Modified from A. Folk, 1968; B., C., E. Dickinson, 1985; D. Marsaglia and Ingersoll, 1992.

4.4. Structural geology

4.4.1. Stress tensor analysis and interpretation

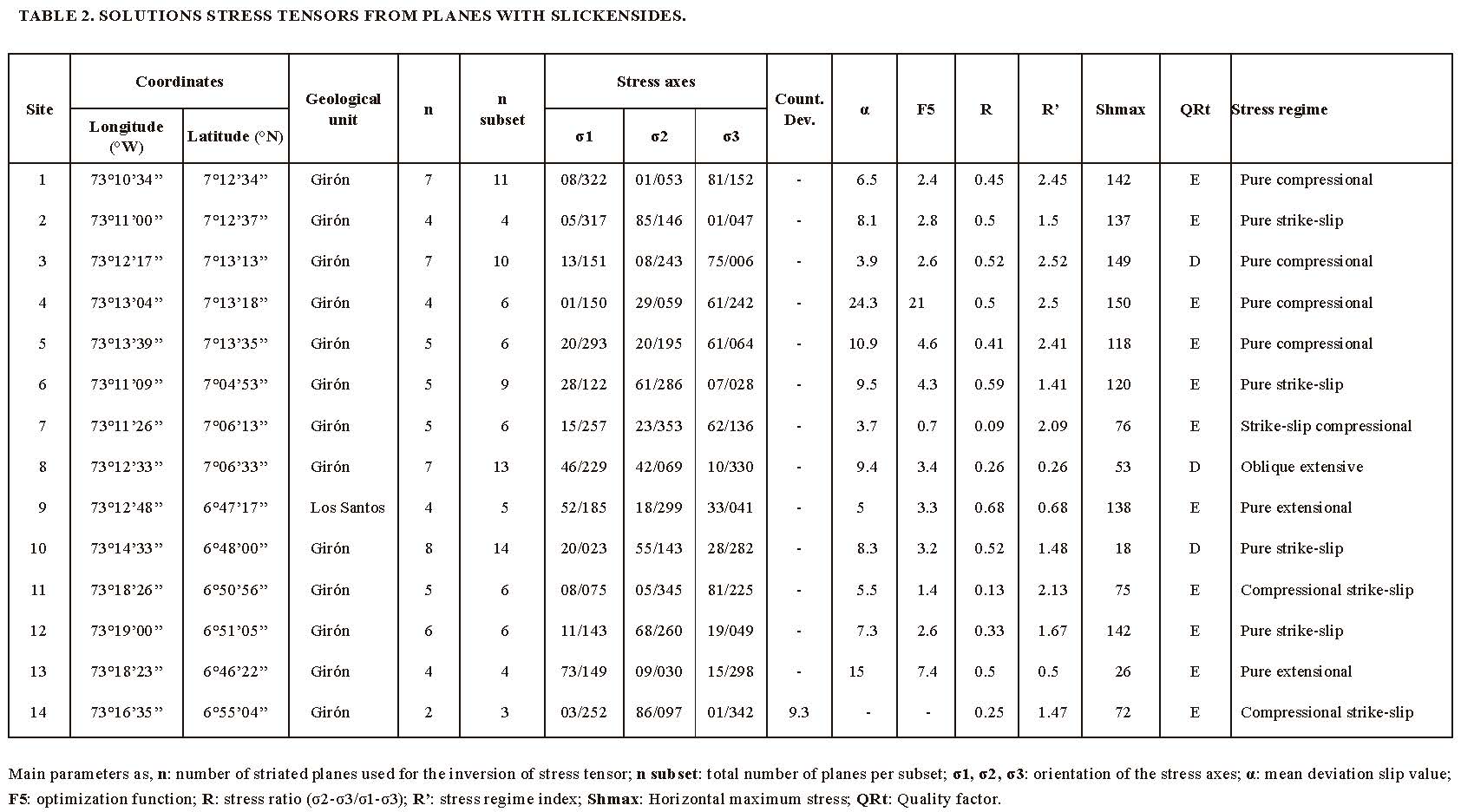

One stress tensor was obtained per each one of the 14 sites considered in this study (Figs. 8 and 9); only 73 of the total 103 measured fault planes were taken into account for the inversion method (71% of the data). The results are summarised in (Tabla 2) and shown in the geological maps of the Lebrija River, Lebrija and Zapatoca sectors (Figs. 8 and 9).

The obtained stress tensors for the Lebrija River (Fig. 8) show a dominant compressional stress regime, as evidenced by the reverse faults and local folds. Transverse faults with a NW strike and reverse kinematics are especially related to the stress tensor (sites 1, 3-5, and 7 in Fig. 8), as well as other W-E trending faults with dextral movement as shear planes of the same stress orientation (site 2 in Fig. 8). The systematic NW-SE orientation of the horizontal compressive axes (or horizontal maximum stress: Shmax) seems to be related to the current stress tensor imposed by the sinistral kinematics of the Bucaramanga Fault.

Stress tensors located near Lebrija (site 8 in Fig. 8) show horizontal compressional axes oriented NNE-SSW, under an extensional or strike-slip regime. The NWW-SEE stress tensor near the Suárez Fault was obtained from oblique minor faults with the same trend of the tensor and with a strike-slip regime (site 6 in Fig. 8). These minor transverse faults may correspond to the local accommodation of the Suárez Fault. This NWW-SEE tensor is also related to the regional stress tensor of the sinistral strike-slip Bucaramanga Fault (Velandia and Bermúdez, 2018; Velandia et al., 2020).

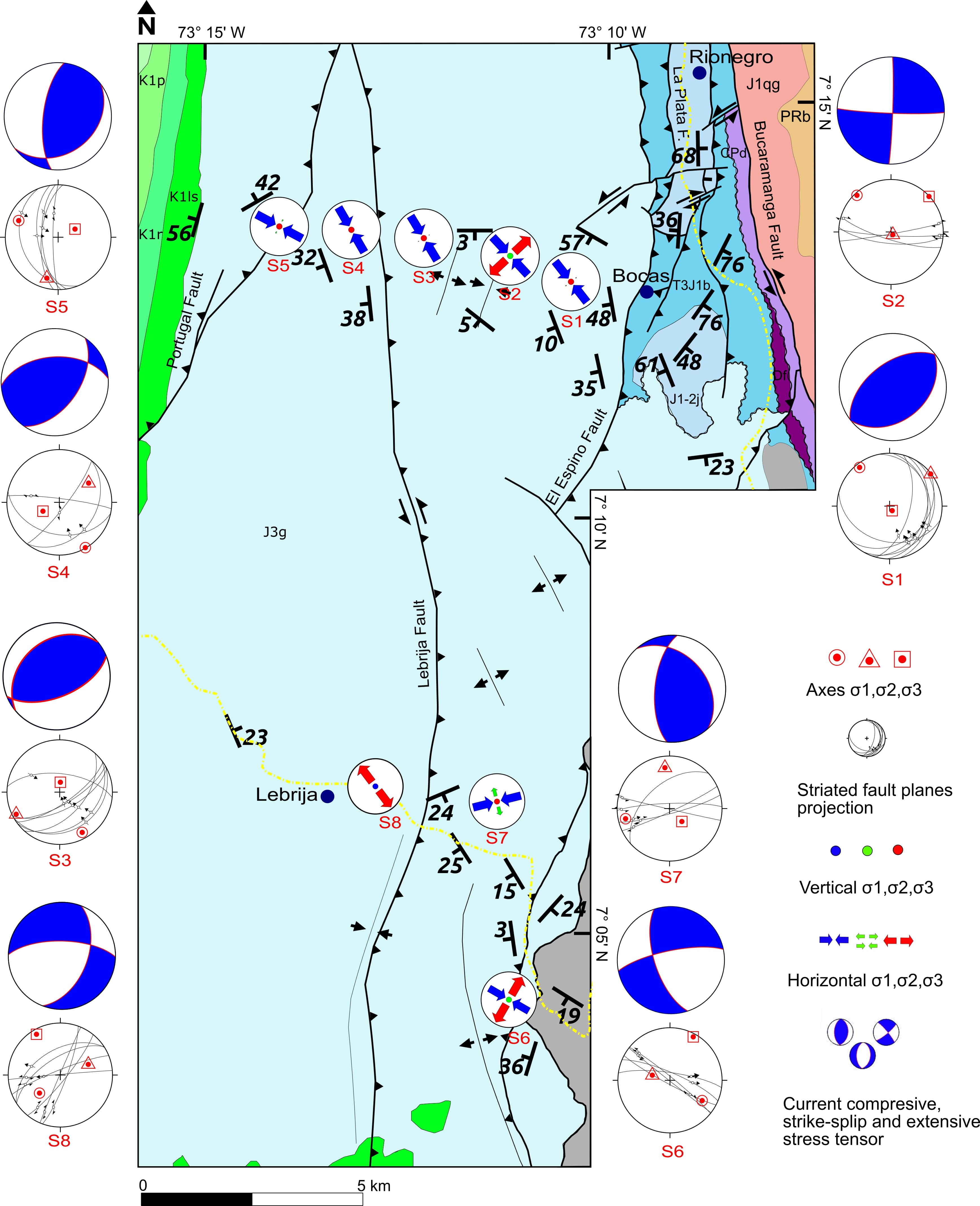

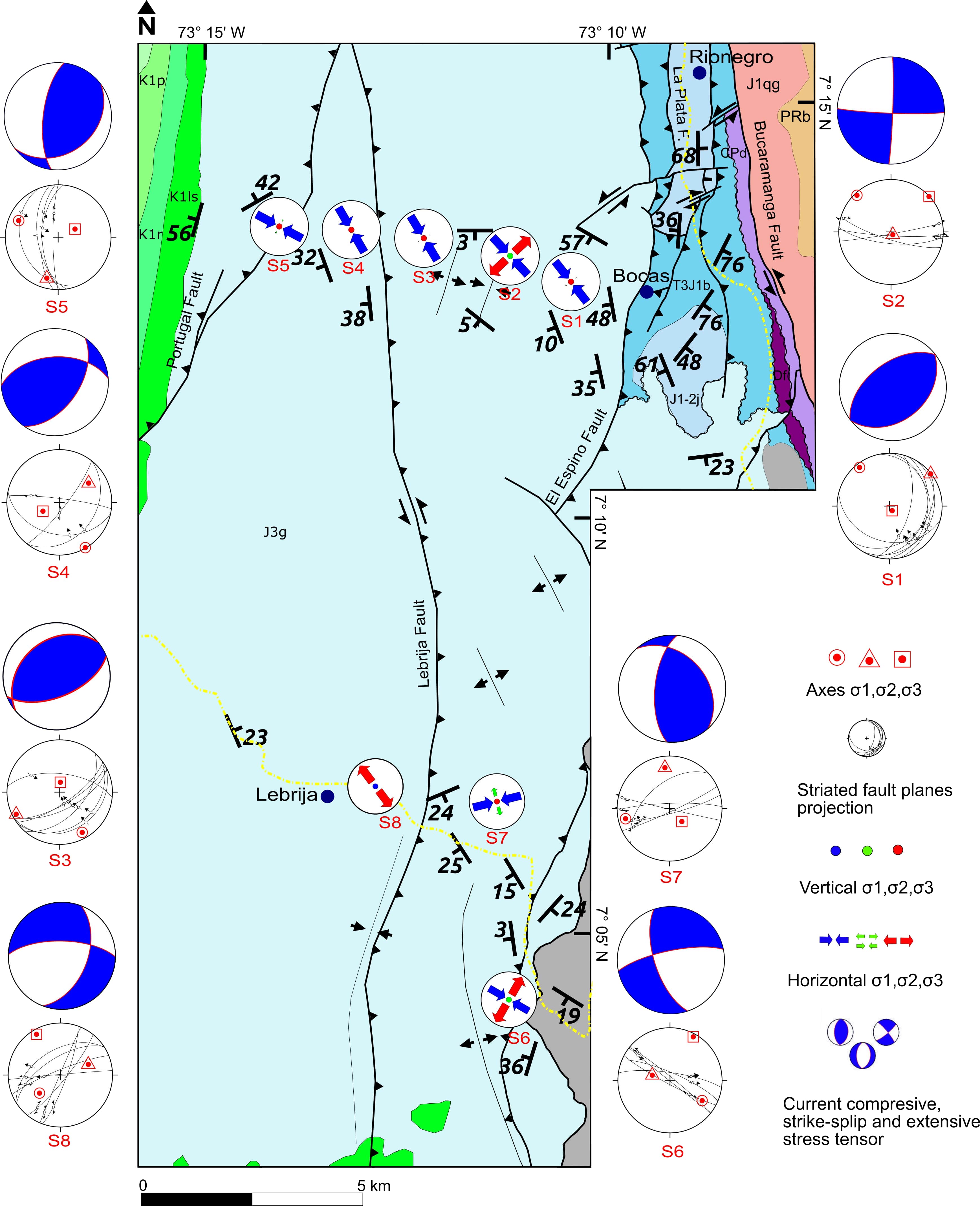

Fig. 8. Tensor and beachball distribution in the Lebrija River area. Angelier (1994) graphics are also plotted for a better fault visualisation. Square, triangle and circle represent σ1, σ2 and σ3, respectively. Legend and conventions as in the geologic map.

In the Zapatoca sector, several orientations of the stress tensors were obtained, implying that even local differences of the fault planes orientations can be related to changes in the stress field affecting the area (Fig. 9, (Tabla 2). The interpreted latest stress field is related to the kinematics of the Bucaramanga Fault, since the drag of the western block induced a NW-SE tensor, as in sites 9 and 12 (Fig. 9) under extensional and strike-slip regimes, respectively. Most of the folds and longitudinal reverse faults confirm a NWW-SEE stress tensor, as well as the transverse normal faults trending almost parallel to this tensor (Fig. 9). Nevertheless, other normal faults trending near S-N are also observed. Such orientation can be associated to interpreted previous NE-SW stress tensors obtained for the other four sites (sites 10, 11, 13 and 14 in Fig. 9), whose stress regimes in strike-slip and extension explain transtensional and/or normal faults. The transverse normal faults are related to strike-slip faults as revealed by the planes projected to the lower hemisphere and stress tensors in beach balls, and even have been reactivated with such components under the NW-SE stress tensor (sites 12 and 9 in Fig. 9, (Tabla 2). Differences in the horizontal compressional axes (or Shmax) of this previous stress tensor indicate some clockwise rotation from NE-SW to NEE-SWW, perhaps in accordance with the local kinematics of the structures.

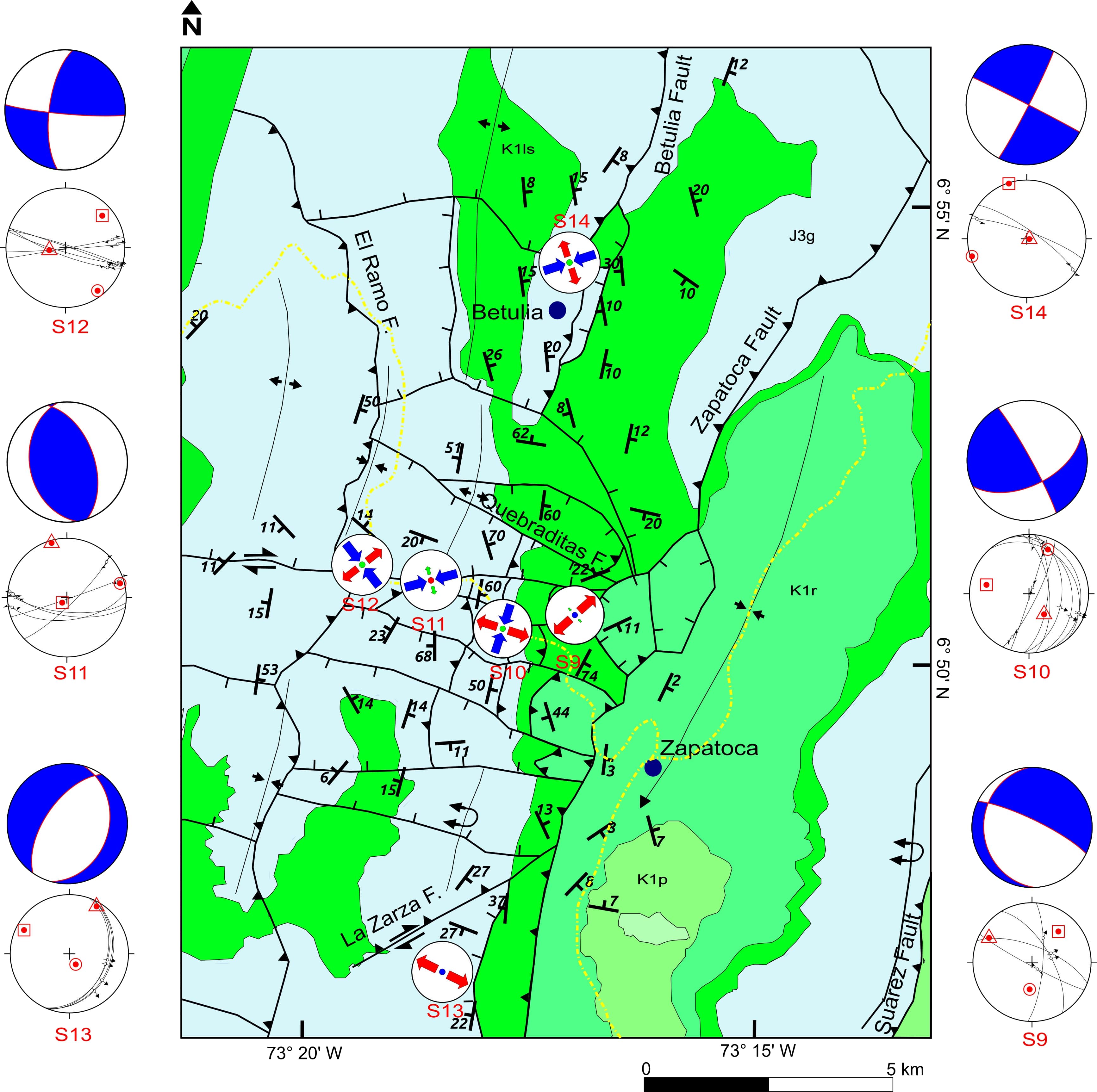

Fig. 9. Tensor and beachball distribution in the Zapatoca area. Angelier (1994) graphics are also plotted for a better fault visualisation. Square, triangle and circle represent σ1, σ2 and σ3, respectively. Legend and conventions as in the geologic map.

4.4.2. Joints

Considering the structural framework of the area and the location of sites with measured joints, it was possible to group data around the Lebrija River and Zapatoca areas. For the first sector, we analysed the data distributed into four areas bounded by faults (Fig. 10A). Joints between the Bucaramanga and El Espino faults show a main NNW trend parallel to the Bucaramanga Fault, the main strike-slip structure of this part of the Eastern Cordillera. The second order joints of this group consist of conjugate fractures to the Bucaramanga Fault, and together configure a simple shear pattern that confirms the sinistral kinematics of the fault. Joint data located between the El Espino and Lebrija faults show the same pattern, but with a prevalence of the NW trend (conjugate to Bucaramanga Fault). Meanwhile, data located between the Lebrija and Portugal faults maintain the previous trends of shear but show a W-E orientation as the main set. These transverse joints are also observed westward of the Portugal Fault, but in a tensile pattern with a NNE trend, which is almost parallel to this longitudinal fault.

For the Zapatoca area, we have clustered the data into three areas: (i) between the Zapatoca and Suárez faults, (ii) Betulia and (iii) NW Zapatoca, between the El Ramo and Zapatoca faults (Fig. 10B). The first group shows the N trending longitudinal joints, but with high angles, which are consistent with tensile fractures parallel to the axial plane of the Coscal Anticline, interpreted as a drag fold of the Suárez Fault. This assumption rises since most of the measured joints of the group correspond to the closest site to the fault, whereas the data of the second set (Betulia) show a random distribution, but for the same reason can be representative of the whole fracture frame of the area. In contrast, the third group which includes the highest data population exhibits in a clear way the W-E trend that matches well with the abundant normal faults of the sector, disposed transverse to the reverse longitudinal faults.

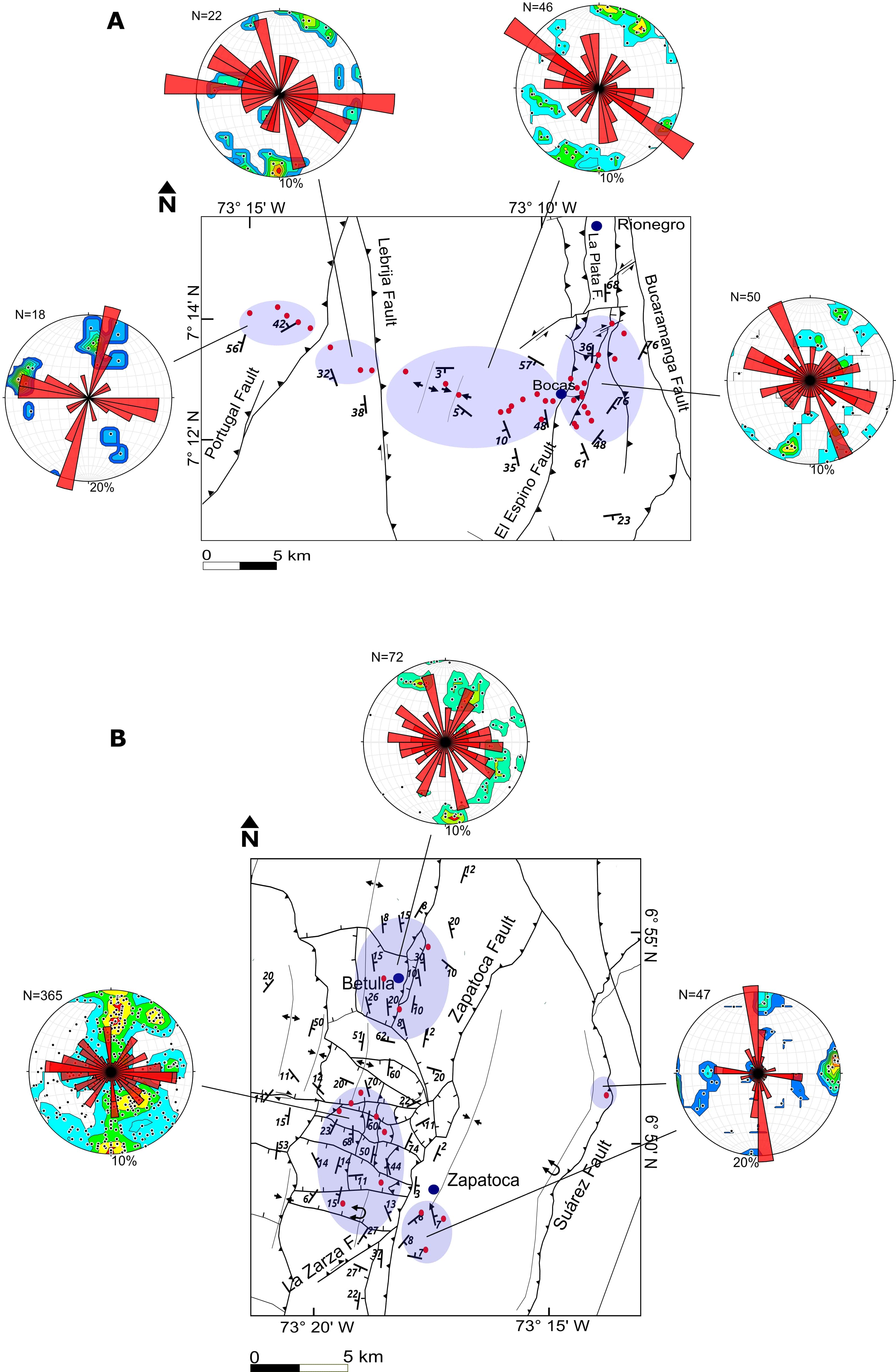

Fig. 10. Distribution of joints measured in the two studied areas. A. Lebrija River and B. Zapatoca. Red dots represent measurement stations. Graphics present both cumulative directional data and pole density.

5. Discussion

5.1. Sedimentology and stratigraphy of the Girón Formation

The Girón Formation in the Lebrija River type section shows cyclicity in the facies evolution. The first six segments (A-F) show various cycles of deposition in a braided river system (segments A and C) and its floodplain (segments B, D and F); generating different depositional forms as sandy-gravelly bars, channel fill profiles, and levees and crevasse splays in the floodplain. Segment E represents a less energetic environment in which soils developed, probably a swamp as revealed by the presence of fossil roots (Cediel, 1968).

It is worth noting that the contact between the Girón Formation and the overlying Los Santos Formation is controversial. It has been pointed out as discordant by Ward et al. (1973), but detailed studies by Cediel (1968), Clavijo (1985) and Laverde and Clavijo (1985) have recognised this contact as a transitional one. Although the transition extends to almost 20 m, the lithological composition of both units is contrasting which allows the detection of a change from a unit with rocks composed primarily of feldspar and rock fragments (Girón Formation) to another whose quartz content is higher to almost unique (Los Santos Formation). Using this contact as an indicator of the top, a section of the Girón Formation was measured and described along the Zapatoca-Betulia-San Vicente de Chucurí road, in the Alto Tú y Yo (Figs. 2 and 6).

The thickness of 525 m described in the Zapatoca section right under the contact with Los Santos Formation, can be compared with the upper 1,050 m of the Girón Formation in the Lebrija River section (segment G by Cediel (1968) in Fig. 5) (Fig. 11). This part of the Lebrija River section exhibits a sandy homogeneous succession with scarce mudstone inter-bedding; its facies architecture has been attributed to the action of braided rivers close to a mountain front (Cediel, 1968). Right on the top of this succession, a thick matrix-supported conglomerate, named previously as the Tambor Formation (Morales et al., 1958 in Ward et al., 1973) and better defined as the Tambor Member by Etayo-Serna (1989), is interpreted as a debris flow deposit related to an alluvial fan (Clavijo, 1985). None of these characteristics were observed in the Zapatoca section. There, based on the facies associations (Fig. 6) characterized by the presence of fining upward facies sequences with architectural elements such as levees, crevasse splays and channel fill cycles, the succession was interpreted as generated by gravelly-sandy braided rivers in the lower part, which evolve to more sinuous and stable wandering streams up-section. The upward fining sequence in Zapatoca is the result of a progressive retreat of the clastic sources and widening of the valley, as shown by Gawthorpe and Leeder (2000) for extensional basins; in this sort of basins, well defined by bordering faults, high amounts of subsidence contributes to the establishment of axial drainage systems near the fault traces (Blair, 1988; Prosser, 1993) (Fig. 12). In contrast, The Girón Formation in the Lebrija River section reveals different stacking patterns, from retrogradational in the segments from A to E, to progradational and/or aggradational in the segments F to G (Figs. 5 and 11).

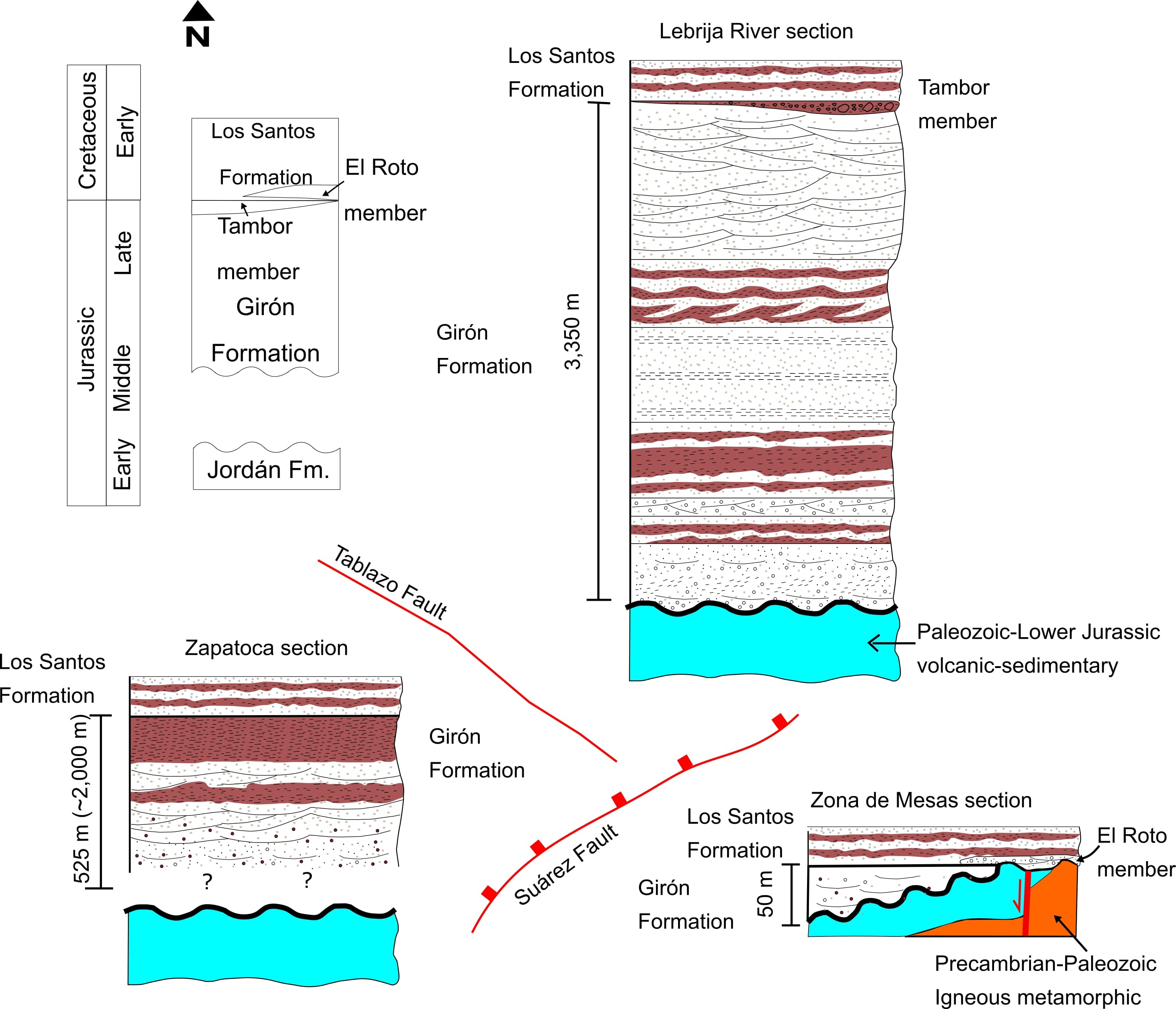

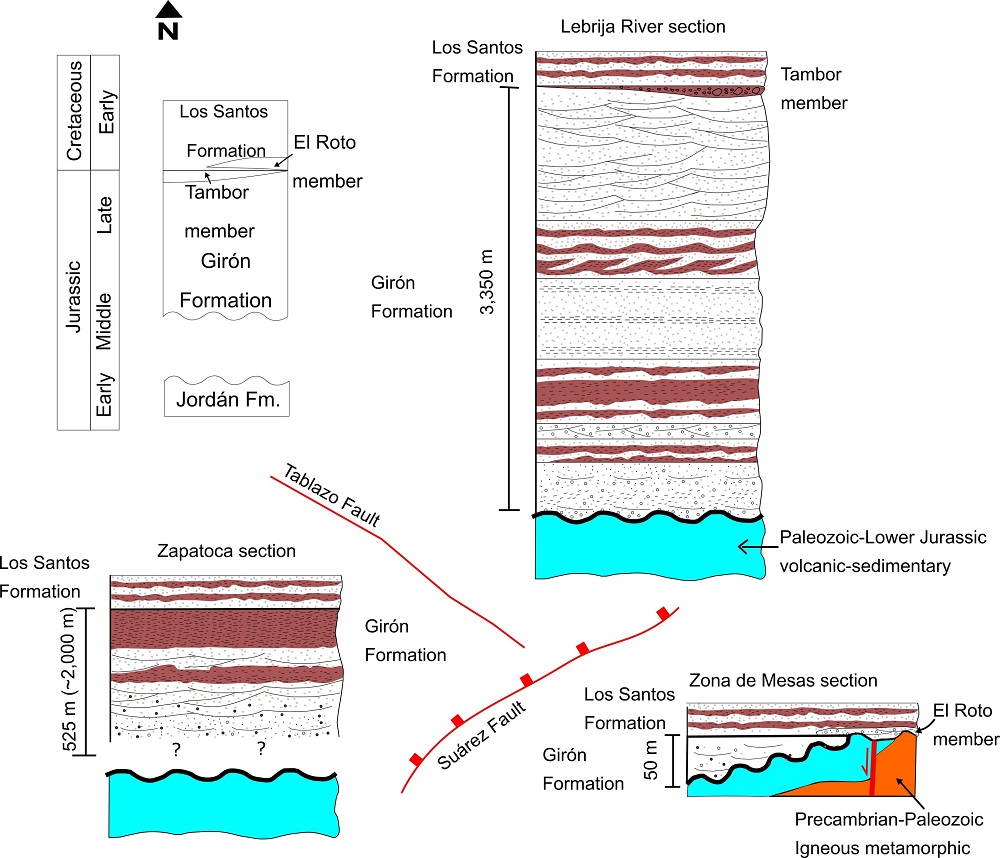

Fig. 11. Correlation between differents sections of the Girón Formation in the reconstructed Yariguíes Basin. Notice the variations in thickness, facies and in the lower contact at each side of the Suárez and Tablazo faults.

The observed variations in the facies sequences in the two sections can be interpreted in two ways: (i) a normal fluvial spatial evolution caused by a southward decrease of the gradient or (ii) a spatial variation in environmental characteristics due to geographical barriers. The short distance between the two sections (~50 km) inhibits the first alternative as the more plausible. As a consequence, the presence of geographical barriers such as mountain ranges and/or depressions, which changed the characteristics of the sedimentary conditions along the strike of the basin is proposed as the principal factor controlling the depositional of sediments (e.g., Athmer and Luthi, 2011) (Fig. 12). In this sense, we propose a close proximity of the Lebrija River segment of the basin to the ancestral Bucaramanga Fault, and consider this structure as a dextral strike-slip fault (transtensional) as proposed by Kammer and Sánchez (2006), Velandia (2017), and Kammer et al. (2020). The presence of releasing and restraining bends along the fault will promote the development of both the accommodation space and the source for a constant flow of clastic material (Fig. 12).

Barriers along the course of extensional basins have been observed both on analogue modelling (McClay et al., 2002) and on natural examples (Gawthorpe and Leeder, 2000; Athmer and Luthi, 2011), and are related to accommodation zones, relay ramps and/or transfer fault zones. The presence of along-strike variations in the sedimentary basin conditions could contribute to the heterogeneous character of the Girón Formation; that varies in thickness, composition and facies sequences, depending on the amount of subsidence and the rock type of the source area for each sub-basin, and also on the climate as a clue factor (Cediel, 1968; Ramos et al., 1986; Gawthorpe and Leeder, 2000). Transverse faulting and folding relative to the main regional longitudinal structures is the current expression of those ancient barriers. Transverse structures presented here (e.g., Quebraditas Fault, El Guayabo Fault, La Zarza Fault, Tablazo Fault, among other unnamed faults), and in previous research (e.g., Infantas High, Gómez et al., 2005; Río Negro Syncline, Kammer and Sánchez, 2006; Río Sogamoso Lineament, Ujueta, 2014) constitute some of the testimony of the ancient barriers.

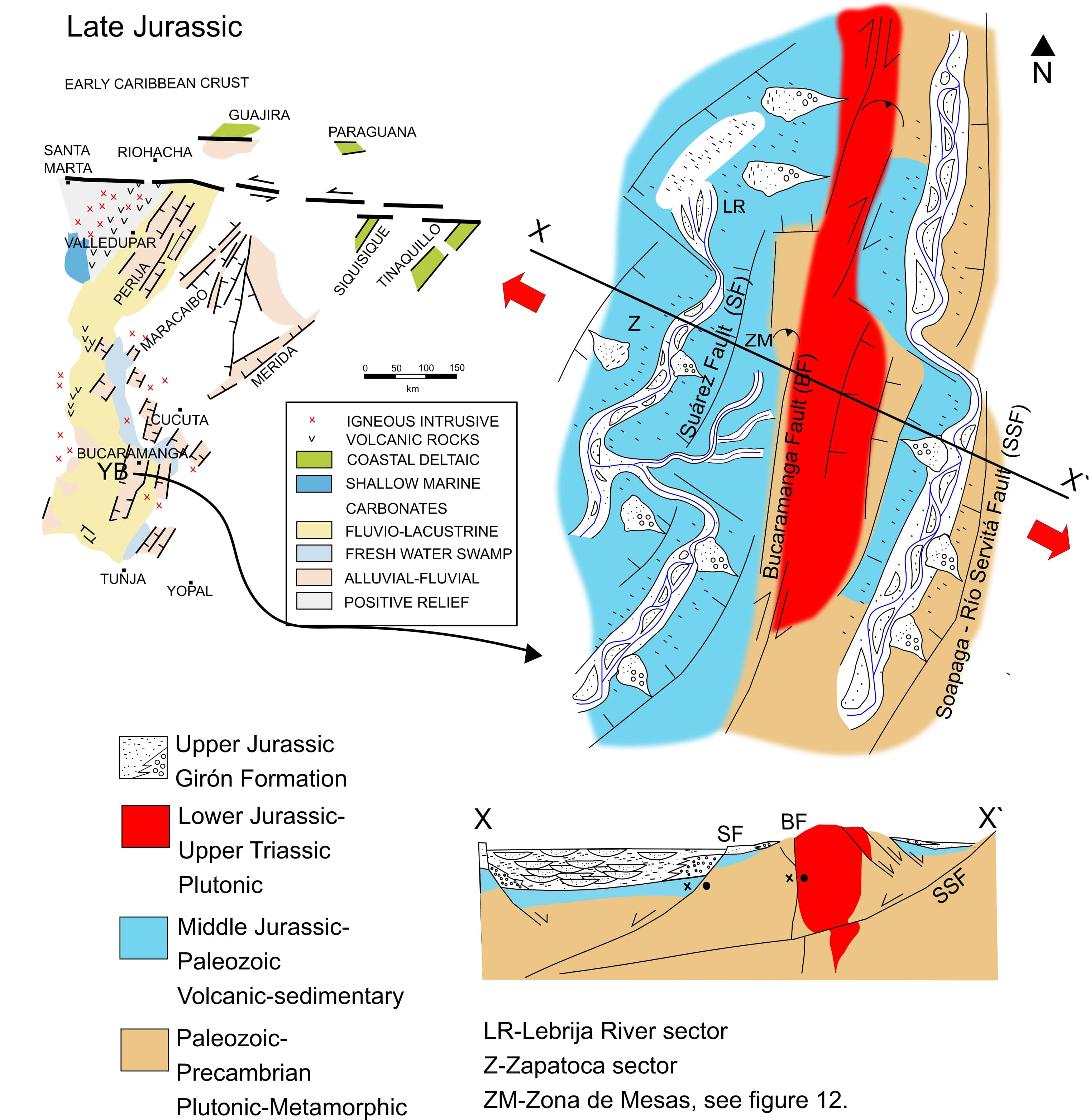

Fig. 12. Sketch of depositional conditions for Girón Formation during Late Jurassic. Inset (Tectonic map of the Late Jurassic) from Cediel (2019). Legend as in the geologic map in figure 2. YB: Yariguíes Basin.

The local nature of every Jurassic succession that crops out in the area, and along the Eastern Cordillera and the Santander Massif, is evident after having recognised the compartmentalised nature of the basin, generating facies and thickness changes along and across its strike (Julivert, 1958; Cediel, 1968; Pulido, 1979; Ward et al., 1973; Pinto et al., 2008) (Figs. 11 and 12). In this sense, the proposal of a type section is not definite because this section does not describe the characteristics of the whole basin, but only the local features of the succession where analysed (Fig. 11).

The Girón Formation is constituted by stratigraphically dissimilar units cropping out along and across the Eastern Cordillera; lateral facies and thickness changes between them would preclude any direct correlation, although characteristics as provenance, age, fossil content and paleosol horizons can be correlated. The described clastic succession near Zapatoca first known as “Girón layers” (Hettner, 1892 in Julivert, 1968) is considered as a part of the Girón Formation. The different sedimentary facies present in the Zapatoca section are similar to those observed in some parts of the type section at Lebrija River, but not necessarily are synchronic deposits.

5.2. Petrology, provenance and basin tectonics

The sedimentary rocks of the Girón Formation display compositions varying from lithic dominant to quartz-feldspar rich, with different provenance (Fig. 7). These variations can be the result of the unroofing of basement blocks, composed by a volcanic-sedimentary carapace covering a metamorphic succession with some igneous intrusions (Garzanti, 2016). The erosion of these unroofing basement blocks could be responsible of the facies changes observed in the Giron Formación rocks.

The lithologic LmLvLs diagram shows a distinction between the Lebrija River and Zapatoca samples of the Girón Formation. There is a closer relationship between Lebrija River and a volcanic source, whereas the source area for Zapatoca sandstones included mainly a sedimentary source. Some basalts of the Jordán Formation are currently cropping out near the Lebrija River (Cediel, 1968; Ward et al., 1973; Ayala-Calvo et al., 2005; Alarcón and Rodríguez, 2019), and were probably exposed to erosion when the Girón Formation was deposited.

Although a vertical evolution was not detected in our samples, the previous scenario is the most plausible due to the presence of several recycled components coming from different sources. Cediel (1968) and Chacón (1981) in the Yariguíes Range and Méndez-Espinosa (2017) in the Floresta Massif (Fig. 1) report petrographic data of sedimentary rocks from the Girón Formation; showing similar compositional groups, mainly characterized by considerable amounts of plagioclase and potassium feldspar, metamorphic, volcanic and sedimentary lithic components. Farther to the north, Jurassic sedimentary rocks in Guajira Peninsula and Perijá Range plot in the same portions of the tectonic discrimination diagrams as rocks of the Girón Formation (Nova et al., 2019); therefore, suggesting similar sources, at least lithologically, and a similar basin configuration in which segmented blocks and basins were exposed to local erosion and deposition regimes (Fig. 12).

Detrital U-Pb zircon data presented by Horton et al. (2010, 2015) from samples of the Girón Formation in the study area and in the Magdalena Valley show peaks in the Mesoproterozoic-Neoproterozoic (Greenvillian), Cambrian-Ordovician, Permian, and in the Early-Middle Jurassic. This data shows a maximum depositional age of 166 Ma (Horton et al., 2015); nevertheless, this age probably reflects the reworking of Early-Middle Jurassic volcanic and plutonic rocks of the Santander Massif and the San Lucas proto-Range (Van der Lelij et al., 2016a; Alarcón and Rodríguez, 2019; Correa-Martínez et al., 2019; Leal-Mejía et al., 2019). The older peaks correspond to ages of rocks found in both the Santander Massif and the San Lucas Range (Ward et al., 1973; Van der Lelij et al., 2016a; Leal-Mejía et al., 2019) (Fig. 1). In this scenario, these blocks could have been exhumed for the time of deposition of the Girón Formation, or previously, providing the major part of the sediment (Cediel, 1968).

Sources in southern latitudes (Floresta Massif) could have provided grains, as have been proposed for Jurassic basins at those latitudes (Kammer and Sánchez, 2006; Méndez-Espinosa, 2017). Part of the older grains could have travelled from farther eastern sources in the Amazonian Craton (Guyana Shield in Horton et al., 2010). Nevertheless, a detailed study regarding paleocurrent directions would be necessary to test these hypotheses in the study area, together with a paleomagnetic survey defining the vertical axis rotations and correcting paleocurrent with those rotations.

5.3. Structural geology

The regional structural geology of the Yariguíes Range shows the complexity of an anticlinorium as part of the fold and thrust belt, which is crossed not only by longitudinal faults, but transverse minor structures. This makes the area interesting for getting new structural data to refine crustal models, since considering the range as a single fold (Los Cobardes Anticline) for regional cross sections (e.g., Tesón et al., 2013) does not allow to describe the changes in dip angles of the faults, neither the other minor related folds that could define in detail the structural style of the region (Machuca et al., 2021). The Yariguíes Anticlinorium as presented here offers a chance to redefine the inner and lateral structuration of the Cretaceous?-Cenozoic tectonic inversion of the Jurassic basin.

For discussion of the tectonic implications of the stress tensor results it is necessary to consider that with the exception of one locality, all the collected data in Zapatoca and Lebrija River areas were measured in rocks of the Girón Formation. Limitations of the results can be related to low amount of measured data in some sites, and some stress tensors are probably more associated with local kinematics.

The Shmax oriented NE-SW, can be related to the onset of compressional deformation in the Eastern Cordillera driven by the accretion of the Western Cordillera to the western continental border 75-70 Ma ago (Bayona et al., 2013; Villagómez and Spikings, 2013; Mora et al., 2015). Although it is considered the oldest stress tensor among the obtained ones in the area (Cortés et al., 2005; Cetina et al., 2019), some works propose the existence of previous deformational phases in the Eastern Cordillera during the Early and Late Cretaceous, and relate these compressive events to an east directed flat slab subduction (e.g., Guerrero, 2019). The few tensors in the zone show this event in local extensional (S8 in Fig. 8 and S13 in Fig. 9) and transtensional (S10 in Fig. 9)regimes. The orientation of these stress tensors, as well as the transverse faults in the area, can be related to the reactivation of the transverse barriers of the former Jurassic-Cretaceous basin; since the associated transverse structures settle control as zones of anisotropy. Jiménez et al. (2016) explain lateral variation is the structural styles for a sector of the Middle Magdalena Valley Basin in this same sense.

The stress field seems to have rotated to a W-E orientation, which may have reactivated the former normal longitudinal faults (e.g., Suárez, Zapatoca, and Betulia faults) as reverse and transpressional (S5, S7 in Fig. 8, S11 and S14 in Fig. 9). This orientation of the stress tensors can be correlated to the post Early Eocene deformational events driven by the accretion of terranes to the western continental border and by the flattening of the subducted plate (e.g., Gómez et al., 2005; Parra et al., 2012; Bayona et al., 2013; Mora et al., 2015; Guerrero, 2019). Finally, the NW-SE tensor is related to the drag that imposes the transpressional and sinistral kinematics of the Bucaramanga and Lebrija faults (S1, S2, S3, S4 and S6 in Fig. 8), as regionally is explained by Velandia et al., (2020), which locally generates compression across the faults oriented perpendicular to this latest tensor. The NW-SE tensor is described in the western flank of the Yariguíes Anticlinorium (Cetina et al., 2019) and toward the south of the Bucaramanga Fault (Velandia and Bermúdez, 2018), and can be associated with the Oligocene-Pliocene deformational and exhumational events that had been reported with thermochronology (van der Lelij et al., 2016b; Amaya et al., 2017; Velandia, 2017).

Along the Lebrija River, we observe the mechanical correlation of the stress tensors located between the Lebrija and Bucaramanga faults with the joints, which confirm simple shear of both type of kinematic indicators (slickensides and joints) (Figs. 8, 9 and 10). It is evident that west of the Lebrija Fault, there is a marked influence of the W-E compression that explains the longitudinal reverse faults (related to tectonic inversion) and the transverse fractures as joints of high angles and normal faults. For the Zapatoca area, it is also possible to conclude the same correlation, although some data show local structural conditions.

5.4. Geological evolution

The data presented and discussed here allow us to hypothesise about the geological evolution of the region, from the Late Jurassic, the time when the sequence was deposited (Ward et al., 1973; Clavijo, 1985; Laverde and Clavijo, 1985), until the Miocene-Pliocene, the time when the last and major orogenic pulses occurred (Bayona et al., 2013; Mora et al., 2015).

During the Late Jurassic, the deposition of the Girón Formation occurred in extensional or transtensional basins with half-graben geometry (Yariguíes Basin as we hypothesize here). This geometry is assumed by a comparison with the adjacent Middle Magdalena Valley Basin (i.e., Tablazo-Magdalena Basin during the Cretaceous; Fabre, 1983) as revealed by the thickness variations and by seismic profiles (Rolón, 2004; Guerrero, 2019). The eastern and northeastern bounding faults separated the basin from the Santander Massif, one of the sediment sources. Inside the basin, normal faults had formed parallel and transverse to the basin, creating inner horst blocks that could generate local sediment sources and configured the sedimentary agents (e.g., changing river direction and creating local depocenters) (Fig. 12). The Suárez, Zapatoca, El Ramo (N-S faults) and Tablazo, El Guayabo, among other faults (WNW to ESE transverse) correspond to this type of structures. Paleomagnetic data support basin compartmentalization, as different amounts of rotation have been reported for Jurassic rocks in blocks separated by faults (Ayala-Calvo et al., 2005). Farther north of the study area a regional graben structure may have developed, surrounded by the Santander Massif to the east and the San Lucas proto-Range to the west (Clavijo et al., 2008); this geometry is supported by reported U-Pb ages in zircons of the Girón Formation close the the San Lucas Range (Horton et al., 2015), which reveal provenance ages of 190-170 Ma age, also found in Jurassic plutonic rocks of the San Lucas Range (188.9-155.6 Ma; Leal-Mejía et al., 2019; Bayona et al., 2020).

We recognise the Yariguíes Basin (Fig. 12) as part of one of the multiple regional extensional and/or transtensional basins located in the western equatorial part of Pangea (Machiques, Uribante or Cosinas basins, e.g., Sarmiento-Rojas et al., 2006; Nova et al., 2019), and originated by rift-related extension (Maze, 1984; Martini and Ortega-Gutiérrez, 2016; Nova et al., 2019; Bayona et al., 2020). The ancient location and orientation of these basins is uncertain due to probable block translation and rotation (Maze, 1984; Bayona et al., 2006).

After Cretaceous predominantly marine accumulation, some of the normal faults bounding and/or inside the basin, started an inversion process of the former basin during the Paleocene (Julivert, 1958, 1970; Mora et al., 2009; Parra et al., 2012; Bayona et al., 2013; Restrepo-Moreno et al., 2019) or since latest Cretaceous (Parra et al., 2012; Caballero et al., 2013; Bayona, 2018), with major pulses at the Eocene, Oligocene-Miocene and finally in the Pliocene-Pleistocene (Mora et al., 2015). These orogenic pulses were the consequence of stress fields generated at the western continental border, as different terrains were being accreted and probably the subducting plate was shallowing (Kennan and Pindell, 2009; Guerrero, 2019), which produced an asynchronic and systematic block uplifting from W to E in the nascent Eastern Cordillera. Similar frames have been proposed for other orogenic chains (e.g., Eastern Sierra Madre, Mexico).

The origin and/or reactivation of the deformational structures, is related in the case of the EC, to the clockwise evolving stress tensors (Cortés et al., 2005; Cetina et al., 2019). Finally, the Bucaramanga Fault, a structure that can be as old as Triassic-Jurassic (Mojica et al., 2001; Kammer and Sánchez, 2006; Clavijo et al., 2008; Kammer et al., 2020), but proven as young as Pliocene (Diederix et al., 2008, 2009; Jiménez et al., 2015; Amaya et al., 2017; Velandia, 2017; García-Delgado et al., 2019, 2020; Velandia et al., 2020) marked the deformational conditions of the region.

6. Conclusions

The Yariguíes Anticlinorium is a regional structure between the Eastern Cordillera and the Middle Magdalena Valley Basin in Colombia, and it is flanked by the Suárez Fault to the east and a complex reverse fault system to the west led by the San Vicente Fault and involves a series of minor anticlines and synclines.

The Girón Formation encompass all the fluvial-alluvial units deposited during the Late Jurassic in basins shaped as half-grabens, segmented and separated by accommodation zones, relay ramps and/or transfer faults, whose presence was the cause of the lateral variations in thickness, provenance and sedimentary facies between the synchronic units deposited in these basins.

The source rock for the sediment accumulated in the Yariguíes Basin were continental exhumed blocks, composed by a sedimentary-volcanic sequence covering metamorphic units intruded by plutonic rocks, these rock types crop out in different sectors surrounding the basin. These blocks (the Santander and Floresta massifs and the San Lucas Range) and probably others as the Amazonian Craton provided grains with U-Pb ages as Mesoproterozoic-Neoproterozoic, Paleozoic, Triassic and Jurassic.

Along the Yariguíes Anticlinorium, the longitudinal reverse faults, transverse normal or transtensional faults, and most of the minor folds are related to near W-E compressional stress regimes. Nevertheless, during the tectonic inversion of the former basins, a clockwise rotation of the stress field can be detected, from NE-SW to NW-SE, the latest one more associated to current transpressional regimes of the Bucaramanga and Lebrija faults.
