Architecture of intereruptive and syneruptive facies in an
Andean Quaternary palaeovalley: the Huarenchenque Formation, western Argentina
Luis A. Spalletti1, Ferrán Colombo Piñol22

1 Centro de Investigaciones Geológicas, Calle 1 N° 644, B1900TAC La Plata, Argentina.;

2 Facultat de Geologia, Universitat de Barcelona, C/Martí i Franqués, s/n, 08028 Barcelona, España.

* Corresponding autor:;

The Huarenchenque Formation is a volcano sedimentary unit deposited to the east of the Plio-Quaternary Andean Magmatic Arc. In order to define depositional settings, two lithofacies associations (fluvial and pyroclastic) were defined. The fluvial facies association is composed of polymictic conglomerates with the predominance of basalt- dominated clasts, coarse- medium-grained conglomeratic sandstones and medium- to coarse-grained sandstones. These deposits occur as stacked or single bodies, display both sheet and channelized geometries, and contain a range of internal sedimentary structures, such as planar, low angle stratification and cross-bedding. This facies association is interpreted as the deposit of a multichannel fluvial system characterized by high bed load, steep gradient and non-cohesive bank materials. Facies and architecture of the fluvial deposits are the result of high bank full discharge related to rapid deglaciation of the Andean Last Glacial Maximum. The pyroclastic facies association is characterized by lapilli and ash tuffs deposited from air fall, pyroclastic density current, and density stratified surge mechanisms. In the Huarenchenque Formation the fluvial and the pyroclastic facies associations show a clear physical separation, suggesting that sedimentation occurred in two distinct (intereruptive and syneruptive) phases. During the long-lived intereruptive phases the sedimentary record corresponds mainly to the deposits of the gravelly braided fluvial system, whereas during syneruptive phases the fluvial valley was almost entirely occupied by primary pyroclastic deposits related to high-explosive episodes of the neighbor Andean strato-volcanoes. Although most of the cross-bedded sandstones and conglomerate sandstones are rich in basaltic fragments, some strata are composed almost entirely of pumiceous fragments, while in others there is a marked alternation between “basalt” and “pumiceous” foresets. These attributes reflect the preservation of intrabasinal pyroclastic fragments and allow suggest that: i. explosive volcanic events could be more frequent than reflected by the pyroclastic deposits themselves; ii. syneruptive pyroclastic materials could be eroded (even eliminated) by the fluvial system; iii. contributions of primary pyroclastic material persisted during intereruptive (fluvial-dominated) phases.

Keywords: Bed load fluvial systems, Pyroclastic processes, Intereruptive, Syneruptive, Quaternary, Argentina.



1. Introduction

The episodic nature of volcanic eruptions may profoundly impinge on sedimentary environments, and the influence of volcanism on the sedimentary record has been addressed in several classic studies (Smith, 1987, 1991; Waresback and Turbeville, 1990). Specially, volcanic activity always has a large impact on fluvial systems, and a growing number of studies document the influence of volcanism in modifying the sedimentation pattern of these settings (Cole and Ridgway, 1993; Palmer, 1997; Palmer and Shawkey, 1997; Segschneider et al., 2002; Kataoka et al., 2009; Manville et al., 2009; Sohn et al., 2013). Several authors have pointed out that sedimentary processes operating within an active volcanic terrain are different compared with those of non-volcanic settings and cannot be adequately explained by the existing or ‘‘background’’ alluvial facies models (Smith, 1987; Khalaf, 2012). Comprehensive models of volcanism and fluvial sedimentation are, however, still beyond the reach because of the difficulty of placing independent constraints on all possible controlling variables from the stratigraphic record.

The lithofacies around a subaerial volcanic edifice can be classified as syneruptive and intereruptive lithofacies based on the differences in constituent sediments and depositional features (Smith, 1991). Based on the concept of syneruptive and intereruptive lithofacies, numerous investigations have been conducted in order to reveal how volcanic eruptions affect depositional environments and how volcanic impacts change with time (Kuenzi et al., 1979; Palmer et al., 1993; Bahk and Chough, 1996; Major et al., 1996; Pierson et al., 1996; Valentine et al., 1998; Kataoka et al., 2009; Németh et al., 2009; Pierson et al., 2011). During explosive eruptions, a volcanic edifice and surrounding areas are mantled by unconsolidated and fine-grained volcaniclastic sediments deposited by pyroclastic density currents and fallout from eruption columns (Gihm and Hwang, 2014). In contrast, during an intereruptive period, normal fluvial processes are dominant due to gradual decrease in available coeval volcaniclastic contribution, and intereruptive lithofacies are commonly confined in and around the channels, accompanied with incision of the syneruptive lithofacies (Gihm and Hwang, 2014).

Along the Andean Cordillera active volcanoes occur when the angle of subduction is relatively steep. Between 37° 30´S and 38° 30´S, the Caviahue caldera in the Copahue volcano complex (CAC, Melnick et al., 2006) represents the Plio-Quaternary subduction-related arc  volcanism, characterized by polymodal emissions dominated by andesitic-dacitic lavas (Hildreth and Moorbath, 1988). The CAC is limited to the east by the Loncopué trough (Ramos, 1978), a Quaternary tectonic depression filled with backarc monogenetic alkaline basalts (Muñoz and Stern, 1988; Kay et al., 2006). The uplift of the Andes since the Miocene and the construction of Neogene volcanic edifices played a role in the reorganization of drainage patterns. The eastern slopes of the Andean Cordillera were drained by fluvial systems, and one of these systems is represented by the Pleistocene Huarenchenque Formation, which was accumulated towards the eastern sector of the Loncopué trough (Fig. 1). The present work seeks to examine the sedimentology and stratigraphic architecture of the Huarenchenque Formation. Specific objectives are (i) to present the results of the sedimentary facies analysis and the bidimensional architecture of the deposits, (ii) to delineate the main patterns of clastic and pyroclastic deposition, (iii) to investigate the distribution and proportion of syneruptive and intereruptive products and processes, and (iv) to evaluate in what extent coeval explosive volcanism impacts on fluvial sedimentation.

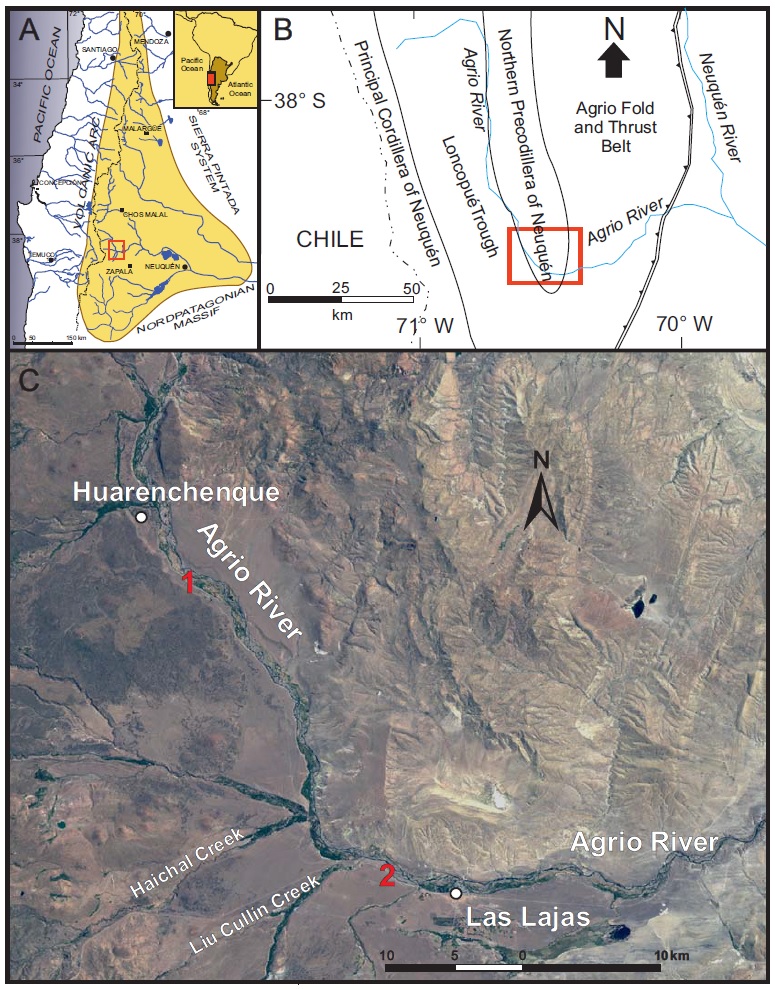

Fig. 1. A. Location of the study area in the Neuquén Basin. B. Sketch of the main structural units of the region (Principal Cordillera of Neuquén, Northern Precordillera of Neuquén and Loncopué Trough), and location of the study area along the Agrio River. C. Satellite image of the Huarenchenque place and the Agrio River. The study areas are outlined with red boxes.


2. Geological setting and general features

The site under study (Fig. 1) is located in the province of Neuquén (near the Argentine-Chilean border) in an area known as Alto del Copahue-Pino Hachado. Geologically, it straddles the border between the Loncopué trough (Ramos, 1978) and the Northern Precordillera of Neuquén (Ramos et al., 2011). The Loncopué trough is a Plio-Quaternary basin mainly filled with large effusive basaltic flows from monogenetic volcanic vents. The subsurface morphology is constituted by different depocenters consisting of thick Mesozoic successions (Ramos et al., 2011). The Northern Precordillera of Neuquén, which was produced by a tectonic inversion of Triassic-Jurassic halfgrabens, displays thick Jurassic and Cretaceous deposits crossed by Cretaceous to Palaeogene volcanic and subvolcanic intrusive bodies (Ramos et al., 2011).

The Huarenchenque Formation is a volcano sedimentary unit composed of polymictic conglomerates with the predominance of basalt- dominated clasts, coarse-medium-grained conglomeratic sandstones and medium- to coarse-grained sandstones in lenticular or tabular lithosomes, displaying profuse cross bedding. Ignimbrite deposits as well as primary and reworked tuff levels are present locally. This unit was firstly described in the western sector of the Neuquén Province (Argentina) by Zanettini (1979). Its main outcrops are located along the western and southern banks of the Agrio River between latitude 38° and 38°30᾽ S and longitude 70°20᾽ and 70°30᾽ W. It also crops out in the westernmost area of Haichal and Liu Cullín creeks towards the Pino Hachado region (Fig. 1). According to Leanza et al. (2001) the Huarenchenque Formation was accumulated along the Pleistocene; it overlies Pleistocene basaltic lavas (Zanettini, 1979) dated at 1.44±0.08 Ma (Kay et al., 2006) and 1.31±0.07 Ma (Galland et al., 2007); therefore, these data provide a maximum age for the accumulation of the studied deposits.

Figure 2 shows the Neogene-Quaternary stratigraphy of the Neuquén Andes between 38º SL and 39º SL (compiled from García Morabito and Folguera, 2005), and the Huarenchenque Formation lies with and indefinite contact on volcanic rocks of the Cola de Zorro Formation and the Romero Basalt. The most complete characterization of the Haurenchenque Formation was made by Stura and Mazzoni (1994). These authors described to main facies associations, one dominated by coarse-grained fluvial deposits and the other characterized by pyroclastic deposits. According to Stura and Mazzoni (1994) and García Morabito and Folguera (2005), the Huarenchenque Formation developed in a braided fluvial environment that was affected by coeval volcanic activity.

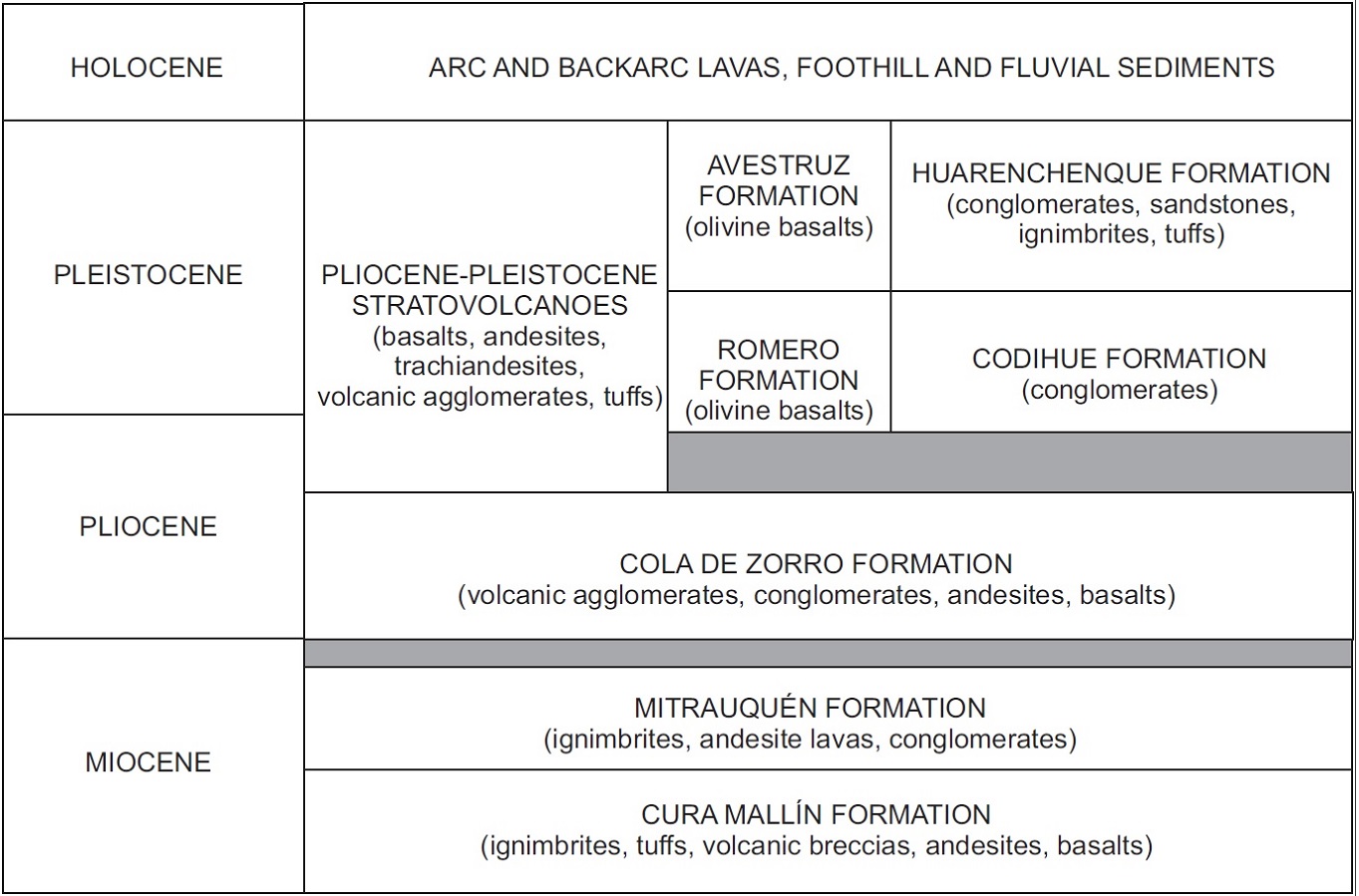

Fig. 2. Neogene stratigraphy of the Neuquén Andes between 38º and 39º S (compiled from García Morabito and Folguera, 2005).


3. Methods

Along the study area (Fig. 1), four sections were described in detail. The dataset was acquired by bed logging and line drawing of lithofacies architecture in the field and on panoramic photomosaics of outcrop exposures. At each site, detailed stratigraphic logs were measured and cross- sections depicting the distribution of lithofaces were constructed over a distance of 100 to 300 m. The goal of bidimensional architectural analysis was to describe the geometry of lithological units, discriminate their lower and upper boundaries, the internal lithological subdivisions and discontinuity surfaces as well as their lateral and vertical facies changes.

4. Facies analysis

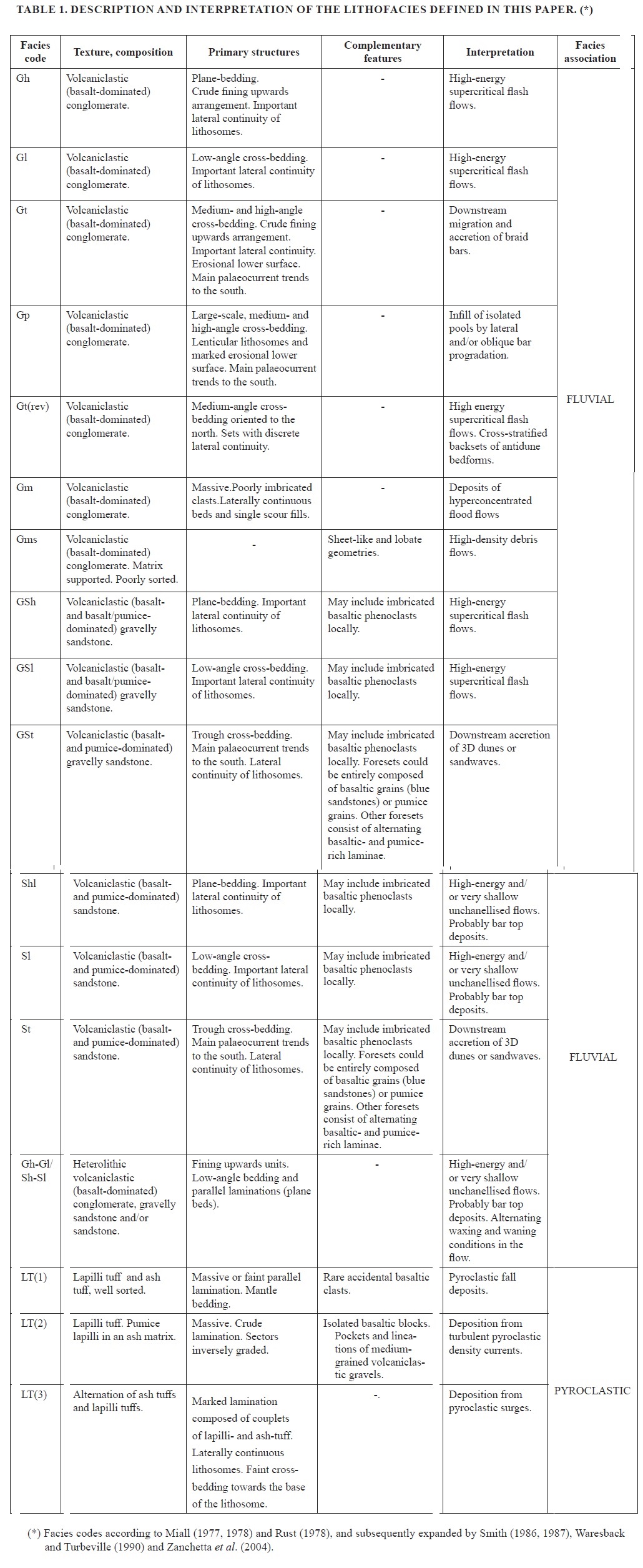

We have described and classified twelve sedimentary lithofacies types in the Huarenchenque Formation Table 1). The lithofacies classification used in this study follows the system introduced by Miall (1977, 1978) and Rust (1978), and subsequently expanded by several authors for fluvial and alluvial-related deposits in volcanic settings (Smith, 1986, 1987; Waresback and Turbeville, 1990; Zanchetta et al., 2004). Three new codes have been introduced for describing primary pyroclastic deposits (Table 1). In order to define depositional settings, lithofacies are grouped into two facies associations: fluvial and pyroclastic (Table 1).

4.1. Fluvial facies association

4.1.1. Description

Two facies types composed of volcaniclastic pebbly and sandy deposits are intimately associated in the fluvial facies association (Table 1). Typically, the conglomerates are moderately sorted and clast-supported. The clasts are subangular to rounded, and their size varies between granule and cobble with a dominance of medium to coarse pebbles. Outsized clasts (up to 50 cm) are common in some beds. The matrix can be described as moderately sorted with a range of grain size from fine- to coarse-grained volcaniclastic sand. Pebble composition is dominated by country rocks (basalt, andesite, rhyolite and granite clasts, Fig. 3A), accompanied by well rounded pumice fragments supplied by coeval volcanic eruptions, and less common muddy intraclasts derived from the reworking of the fluvial flood plain and/or bar tops.




Fig. 2. Neogene stratigraphy of the Neuquén Andes between 38º and 39º S (compiled from García Morabito and Folguera, 2005).


Conglomerate beds occur as stacked or single bodies and display both sheet and channelized geometries. Bottom contacts usually show signs of erosion. These deposits contain a range of internal sedimentary structures, such as planar (Gh) and low angle (Gl) stratification and cross-bedding (Gt, Gp). In this area cross-bedded conglomerates occur as laterally continuous medium-scale deposits (Gt) and as the infill of isolated scours or pools (Gp); these deposits are characterised by large-scale planar foresets, by a progressive lowering in the dip of foresets in accretion direction and by a marked concave upwards basal surface (Fig. 3B). Internally, some conglomerate beds display normal grading. Larger clasts (>10 cm) are usually imbricated with their longest axis perpendicular to the flow direction; however, in some instances, the absence of elongated clasts prevents a reliable assessment of clast imbrication. In places, elongate clasts are oriented subhorizontally.

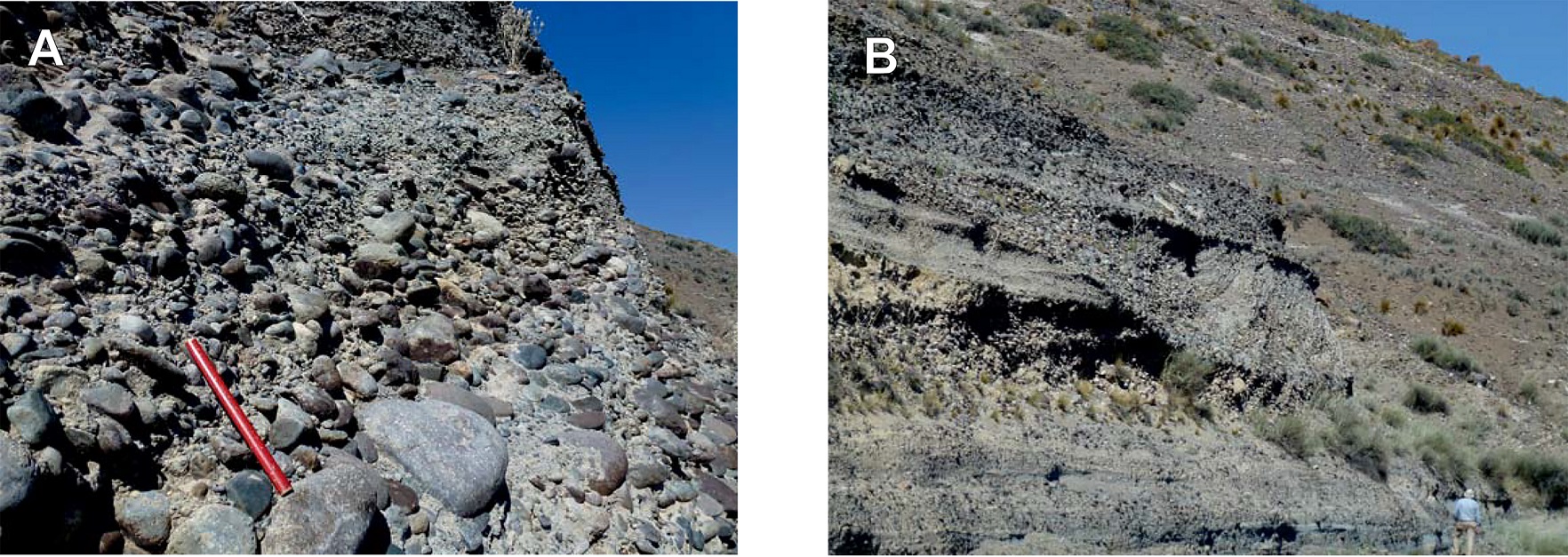

Fig. 3. Fluvial facies association (location 2 in Fig. 1). A. Clast-supported and moderately sorted volcaniclastic conglomerate composed of rounded pebbles and cobbles. The red pencil is 30 cm long. B. Isolated scour pool with a marked concave upwards basal surface filled with a clast-supported conglomerate deposit (person for scale).


Some conglomerate beds consist of moderately to poorly sorted, massive or crudely bedded, poorly imbricated, clast-supported gravels with an abundant matrix rich in coarse sand and granules (Lithofacies Gm); these deposits are 0.3 to 0.5 m thick and are very variable in terms of geometry, ranging from laterally continuous beds to single scour fills.

Massive, matrix supported and poorly sorted conglomerates essentially composed of volcanic rock fragments are less common (Gms facies). These deposits occur as thick (more than 1.5 m) single bodies towards the southern sector of the study area and display both sheet and lobe (convex up top) geometries.

Sandstones and gravelly sandstones of the Huarenchenque Formation show a continuum range based on gravel content. The lithofacies types are characterised by different modes of stratification (parallel laminations, low-angle and high-angle cross-stratification, Table 1). Bed thickness varies between 0.10 and 1.50 m, but on average the beds are around 0.50 m.

Commonly, these beds are laterally continuous layers, whereas scour and fill structures are uncommon. The sand population is moderately sorted and is composed of subrounded to rounded basaltic and/or pumice grains (Fig. 4A). The pebbles of the gravelly sandstones as well as those of thin gravel lineations are essentially rounded basaltic rock fragments. The composition of sandstone beds is not uniform. Some beds are composed of basaltic grains (blue sandstones) while others are rich in pumice clasts. It is also common an alternation of basaltic-rich and pumice-rich laminae in the foresets of cross-bedded sandstones (Fig. 4B).

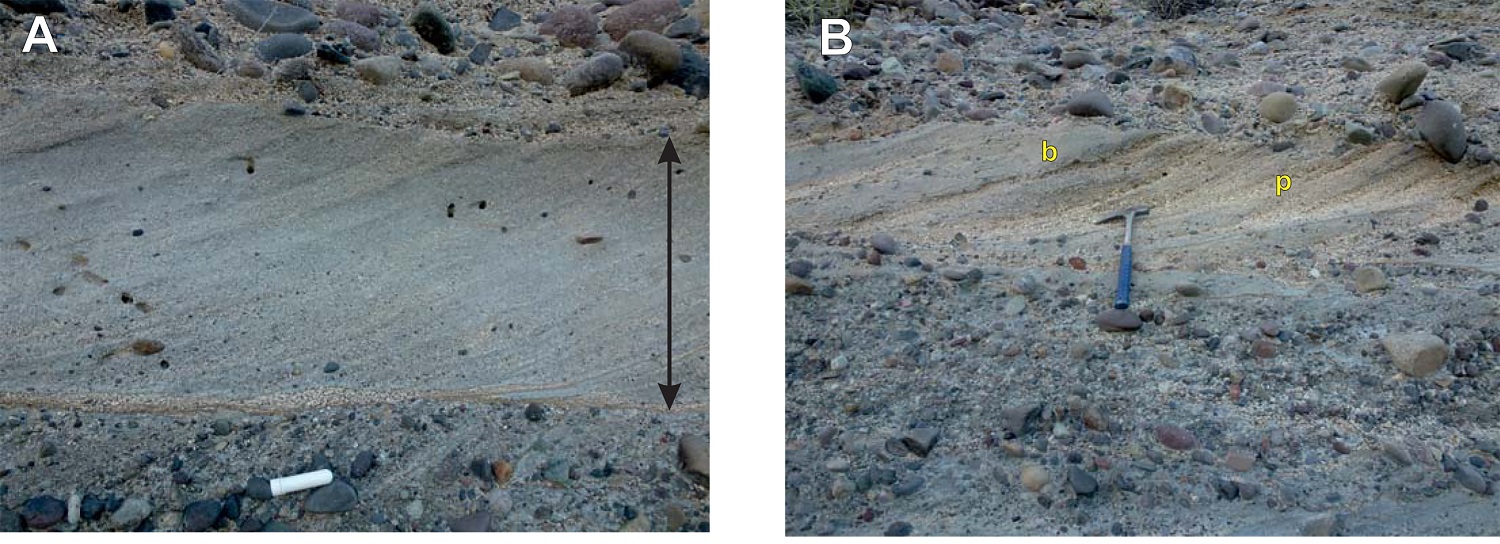

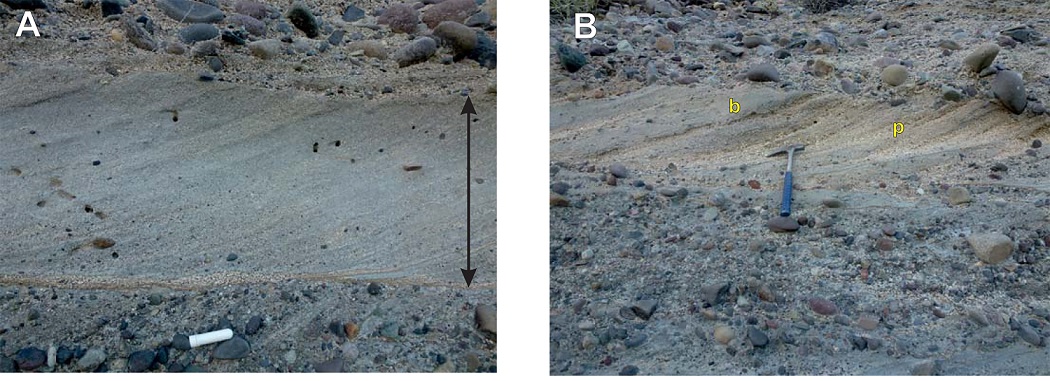

Fig. 4. Fluvial facies association (location 2 in Fig. 1). A. Close view of a cross-stratified set (double arrow) characterized by tangential foresets composed of gravelly sandstones and coarse-grained sandstones. This deposit is associated with cross-stratified and imbricated conglomerate beds (the white pen cover is 7 cm long). B. Cross-stratified bed with alternating basalt-dominated (b) and pumice-dominated (p) tangential foresets (hammer is 30 cm long).


4.1.2. Interpretation

Fluvial lithofacies are characteristic of stream flow deposits. They are interpreted as the result of rapid accumulation under fast-moving, heavily sediment-laden turbulent flows in a gravelly braided stream with laterally unstable channels, as suggested by the scoured basal contacts, imbricated clasts, clast-supported texture, and the lack of intervening fine-grained deposits (Miall, 1977, 1978; Rust, 1978). Conglomerates, gravelly sandstones and sandstones are considered to be bedload deposits. Horizontally laminated and low-angle inclined beds as well as reverse-oriented cross-stratified sets indicate high energy supercritical flash flows. Trough and laterally continuous bedsets of conglomerates probably represent frontal accretion of longitudinal bars and/or the migration of 3D gravel dunes (Allen, 1982; Lang et al., 2012). In turn, sandstone trough cross-bedded sets would have been deposited by waning flows as the result of downstream migration of 3D dunes developed on bar tops and margins, or in secondary channels of the braided fluvial system. Gp cross-bedded lenticular conglomerate lithosomes with a conspicuous downstream decrease in the dip of foresets are interpreted as the infill of isolated pools by bar progradation (Khadkikar, 1999). The crudely stratificated conglomerates (Gm) are interpreted to have been deposited by rapid suspension fallout with some traction on the bed by turbulent hyperconcentrated flood flows (Smith, 1986; Sohn et al., 1999). On the other hand, lithofacies Gms is assigned to high density debris flows, based on poorly sorting, matrix-supported texture and lack of primary sedimentary structures (Miall, 1978, 1985).

4.2. Pyroclastic facies association

4.2.1. Description

Pyroclastic deposits are characterized by a whitish to pale pink colour. They essentially consist of lapilli tuff beds in a vitric ash matrix.

Lithofacies LT(1) mainly consists of well sorted angular to subrounded pumice lapilli and vitric ash (Table 1). The deposits are massive (sometimes with faint lamination) and range in thickness from 0.10 m to 0.40 m, and are commonly intercalated in the volcaniclastic-rich fluvial succession.

Lithofacies LT(2) is composed of subangular to subrounded, matrix to clast supported, pumice lapilli with scarce basaltic blocks in a vitric ash matrix. (Table 1, Fig. 5A) The main deposit of this lithofacies is 400 m long with a thickness of about 10 m and overall unwelded. Its basal section is composed of a dark grey, massive, very poorly sorted volcaniclastic pebbly sandstone including upsized and very angular basaltic boulders incorporated from the cliffs and screes bounding the palaeo-valley where the flow was channelized (LT(2)a in Figs. 5B, C). The middle section consists of a light coloured massive pumice lapilli with isolated angular volcanic blocks; towards the base it includes “pockets” and “lineations” of subrounded and rounded basaltic pebbles incorporated into the flow from previously deposited fluvial gravels (LT(2)b in Fig. 5D). The lower surface of this unit is sharp and irregular due to scour and loading (Figs. 5C, D). The upper section lies on a marked non-erosional surface and is composed of a pink pumice lapilli with crude lamination and showing a reverse grading of pumice fragments from its middle part up to the top (LT(2)c in Fig. 6), where the facies is suddenly replaced by fluvial deposits.

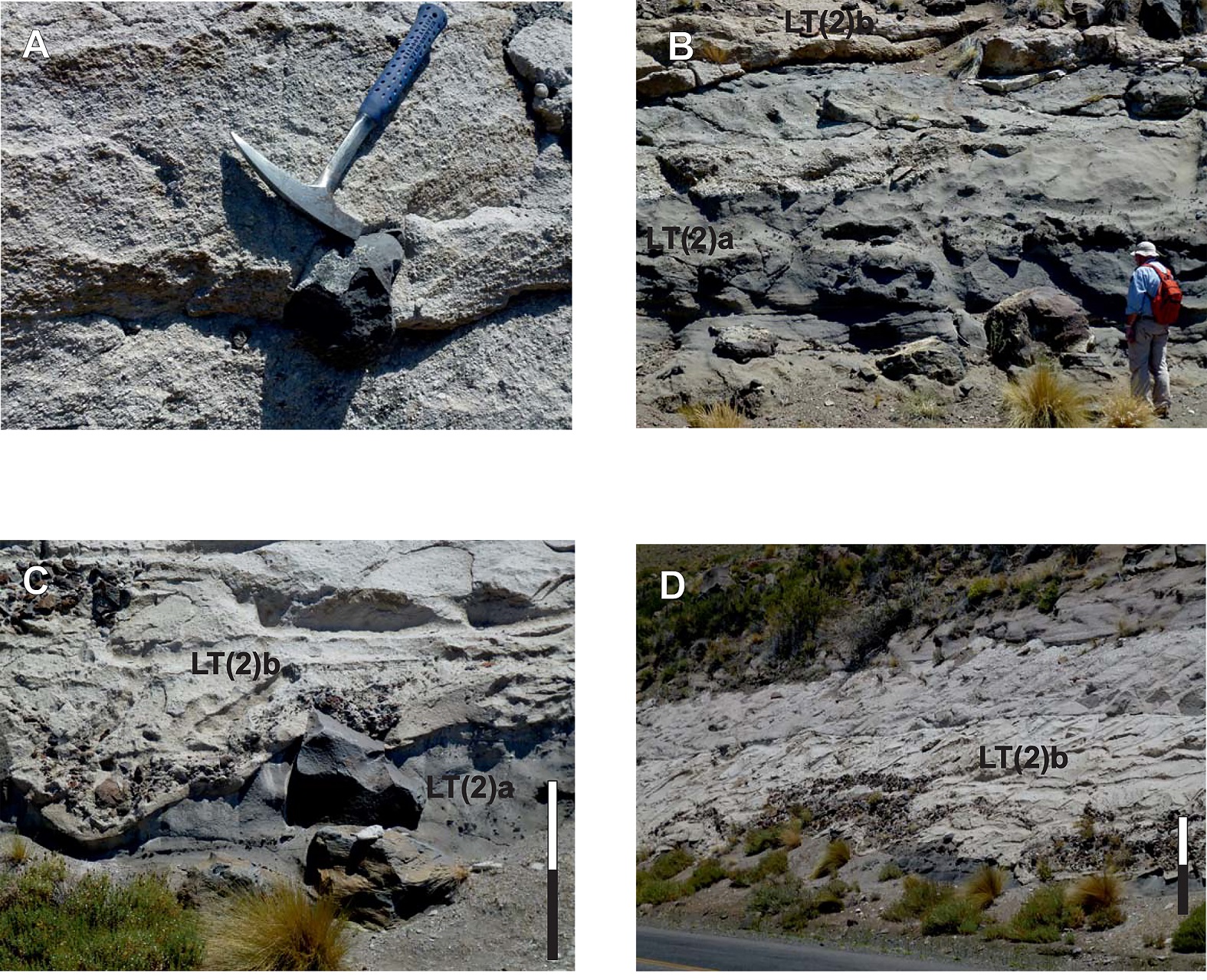

Fig. 5. Pyroclastic facies association (location 1 in Fig. 1). A. Lithofacies LT(2): pumice lapilli including an upsized basaltic block. B. Dark grey, massive, very poorly sorted volcaniclastic pebbly sandstone (LT2(a)) including upsized and very angular basaltic boulders. C. and D. Close and general views of  light coloured massive pumice lapilli (LT2(b)) with isolated angular volcanic blocks. The lower surface of this unit is sharp and irregular due to scour and loading. Towards the base, note the concentration of basaltic pebbles incorporated into the flow from previously deposited fluvial gravels (LT2(a)). Reference bars are 1 m long.

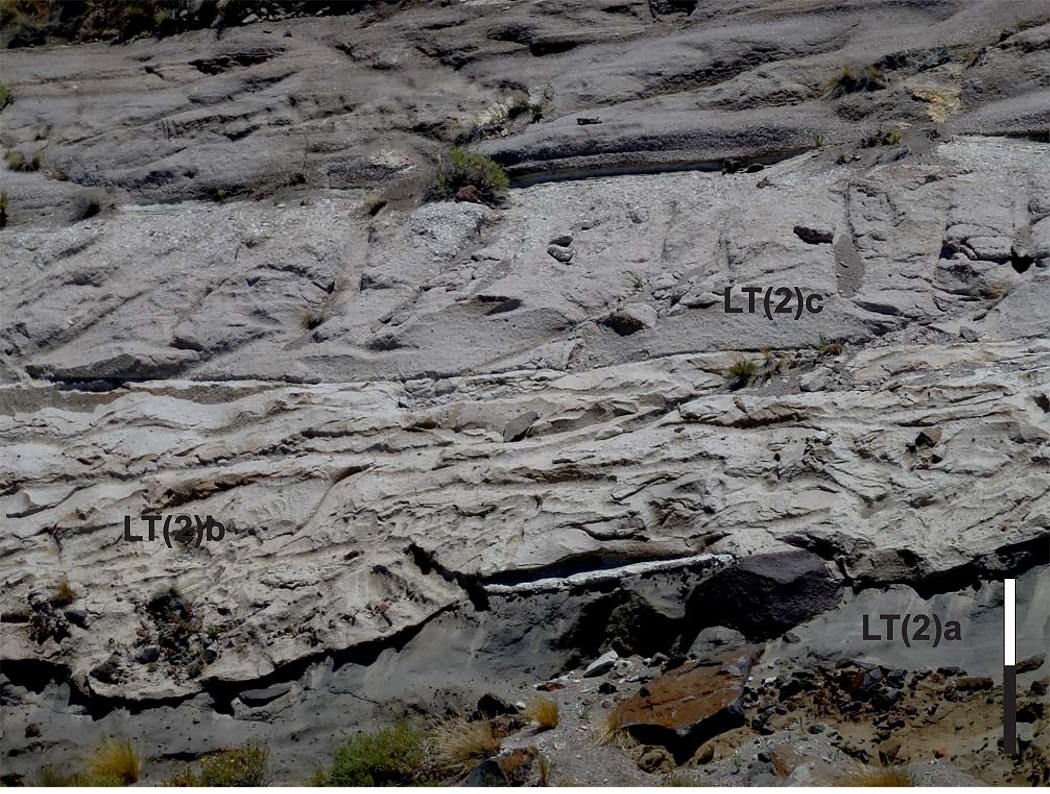

Fig. 6. Pyroclastic facies association (location 1 in Fig. 1). Deposit of a pyroclastic density current composed of three clearly defined units: LT2(a) massive and very poorly sorted volcaniclastic pebbly sandstone including upsized and angular basaltic boulders; LT2(b) light coloured massive pumice lapilli showing pockets of subrounded and rounded basaltic pebbles; LT2(c) crudely laminated pumice lapilli with clearly developed  reverse grading of pumice fragments towards the top. Reference bar is 1 m long.


Lithofacies LT(3) consists of single 0.8 to 1 m thick lithosome characterised by a bipartite alternation of light grey ash tuffs and lapilli tuffs almost entirely composed of juvenile components (Table 1, Fig. 7A). The deposits are parallel-laminated and laterally continuous. Individual laminae are on the order of millimeters to a few centimetres. Towards its basal part, this unit shows a faded cross-bedding development (Fig. 7B).




Fig. 7. Pyroclastic facies association (location 1 in Fig. 1). A. General view of two different pyroclastic lithofacies. The unit located at the base of the cliff is composed of vitric light grey ash tuffs and lapilli tuffs assigned to lithofacies LT(3) and interpreted as a single density stratified surge deposit. The upper unit intercalated between two dark deposits of the fluvial facies association consists of well sorted pumice lapilli and coarse vitric ash assigned to lithofacies LT(1) and interpreted as a typical air fall pyroclastic deposit (reference bar is 1 m long). B. Close up of lithofacies LT(3) with a lapilli tuff at the base and a faint-laminated ash tuff on top (the hammer is 30 cm long).


4.2.2. Interpretation

The good sorting and stratification of the LT(1) lithofacies indicated that it represents air fall pyroclastic deposits (Teruggi et al., 1978; Mathisen and Vondra, 1983; Mazzoni, 1986) . However, mantle bedding, considered a diagnostic character of these deposits (Sparks and Walker, 1973; Teruggi et al., 1978) was not observed due to limited extension of outcrops and beds.

The deposits of lithofacies LT(2) are interpreted to have been deposited rapidly from pyroclastic density currents without tractional grain segregation (Branney and Kokelaar, 2002). Variable grading patterns of lapilli clasts are interpreted to indicate progressive aggradation from turbulent pyroclastic density currents in association with either waxing or waning of volcanic eruptions (Sohn et al., 2013).

The pyroclastic couplets of lithofacies LT(3) are interpreted as the result of the passage of single density stratified surges, such as those recorded in modern eruptions (Fisher, 1990; Edmonds and Heard, 2005; Vázquez and Ort, 2006). In such a context, the ash and lapilli tuff cross-stratified set represents the downstream migration of surge-induced “progressive” sand waves or dunes (cf. Cole, 1991; Schmincke et al., 1973; Gençalioğlu-Kuşcu et al., 2007).

5. Architecture of the fluvial deposits

Based on the geometry and orientation of cross-beds, most of the exposures of the Huarenchenque Formation roughly coincide with palaeo-flow directions. The architectural analysis of these deposits shows that it is quite difficult to define fluvial strata-sets of larger hierarchy (the so-called channel belt deposits of Bridge and Lunt, 2005). Several stratigraphic surfaces have been traced; however it is also difficult to rank their respective hierarchy (cf. Ielpi et al., 2014).

As shown in figures 8, 9, 10 and 11 the deposits of the Huarenchenque Formation are characterized by i. common laterally continuous beds of conglomerates and subordinated sandstones, ii. high proportion of massive, crudely bedded and imbricate conglomerates, associated with plane bedded and/or low-angle conglomerate layers, and iii. very discrete amalgamation of cross-bedded conglomerates, gravelly sandstones and sandstones. These features depart from the classical model for gravelly braided rivers (Lunt et al., 2004; Bridge and Lunt, 2005), since they are dominated by median-scale cross-bedded deposits, associated with planar and small-scale cross-strata.

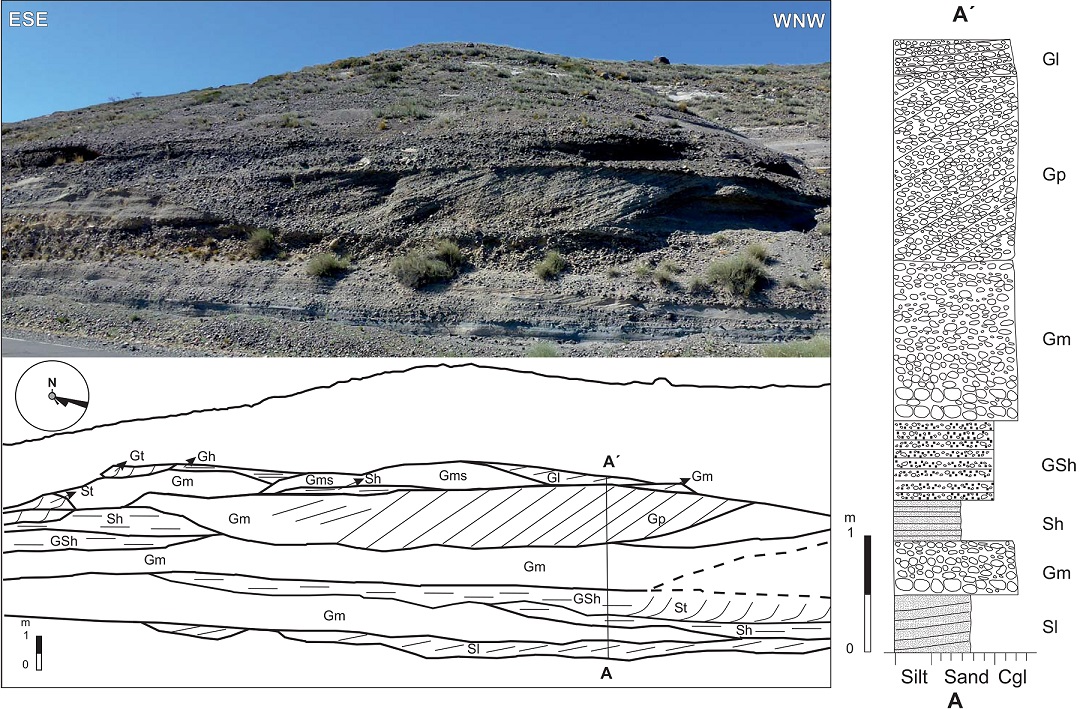

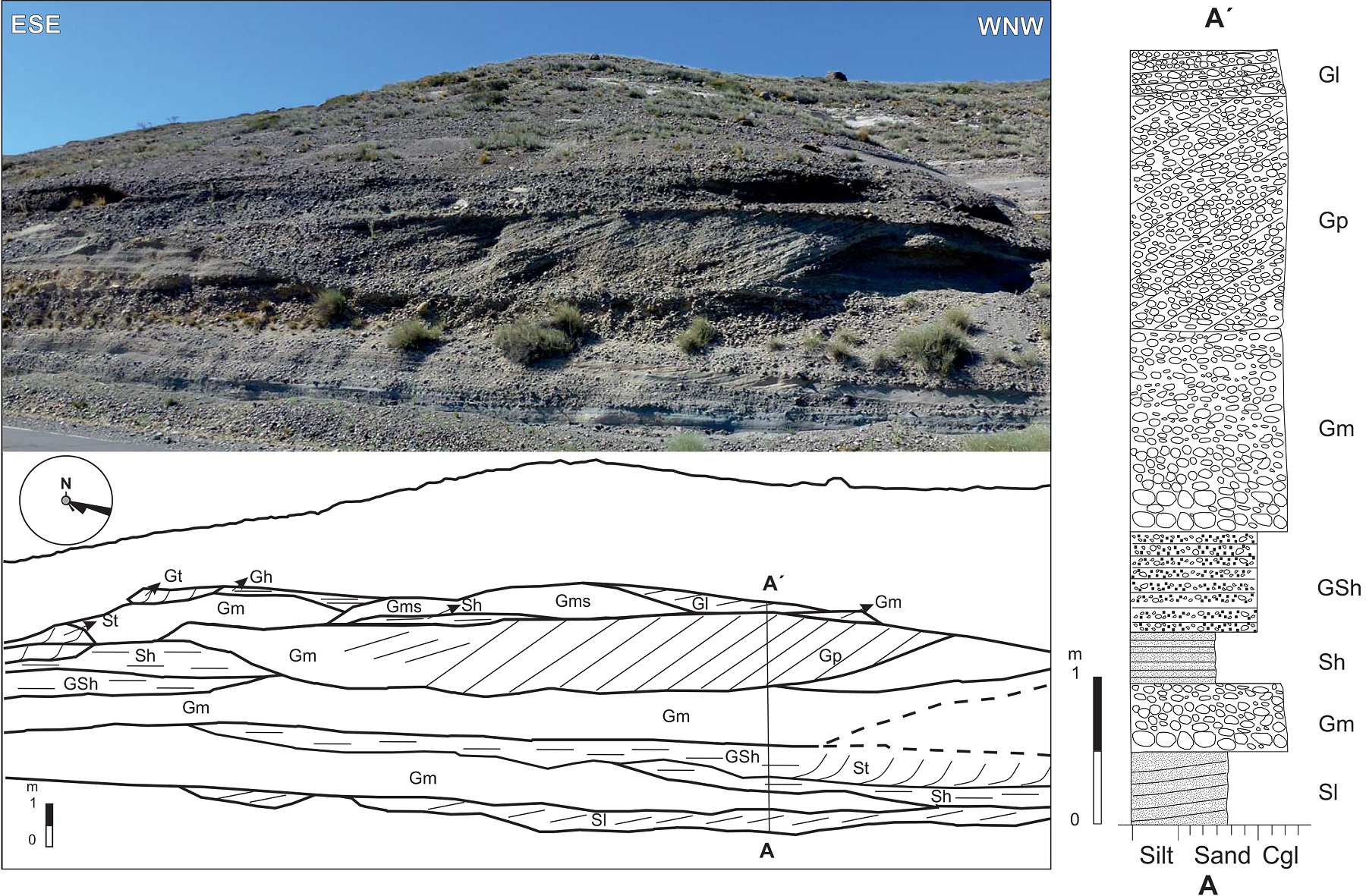

Fig. 8. Photomosaic, bedding architecture, facies organization and palaeocurrents (measured on the foreset dip direction) of the cliff face at the southern sector of location 1 (see Fig. 1). Facies code in table 1.

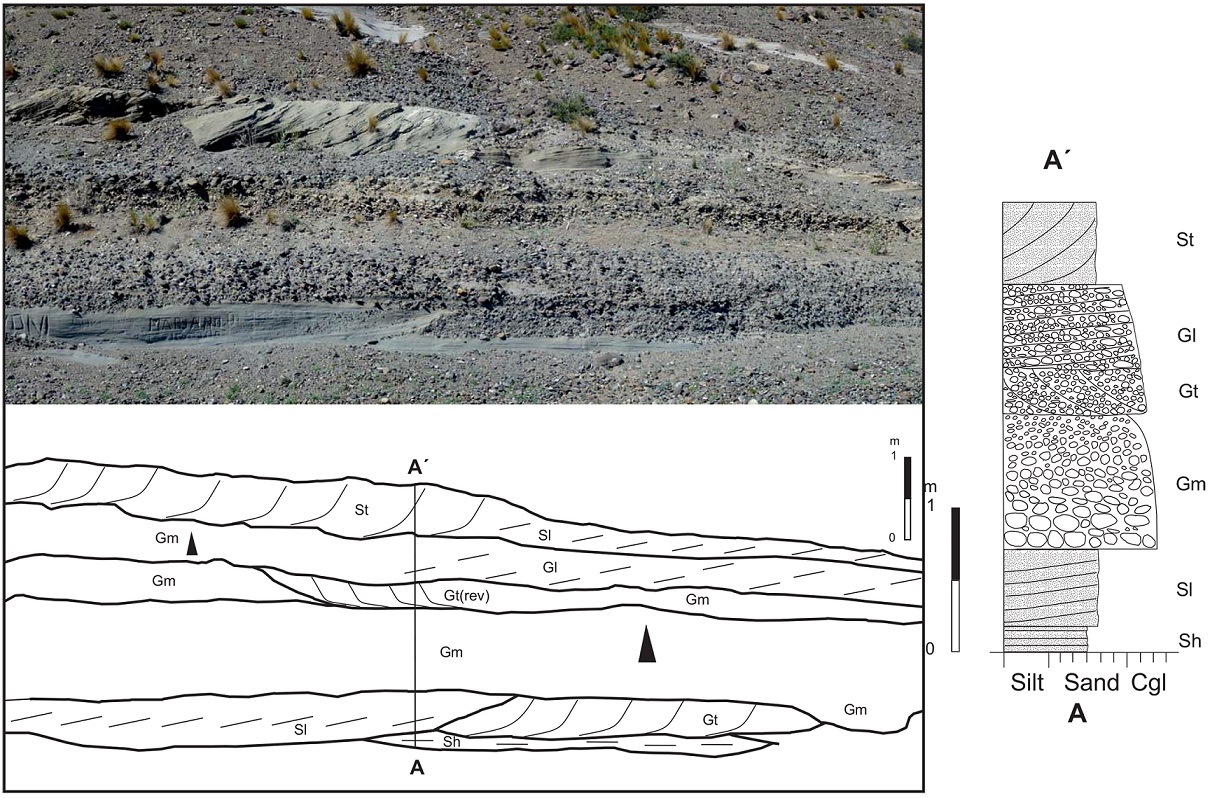

Fig. 9. Example of bedding architecture and facies organization in the fluvial facies association, traced from a photo mosaic at the western sector of location 2 (see Fig. 1). Facies code in table 1.

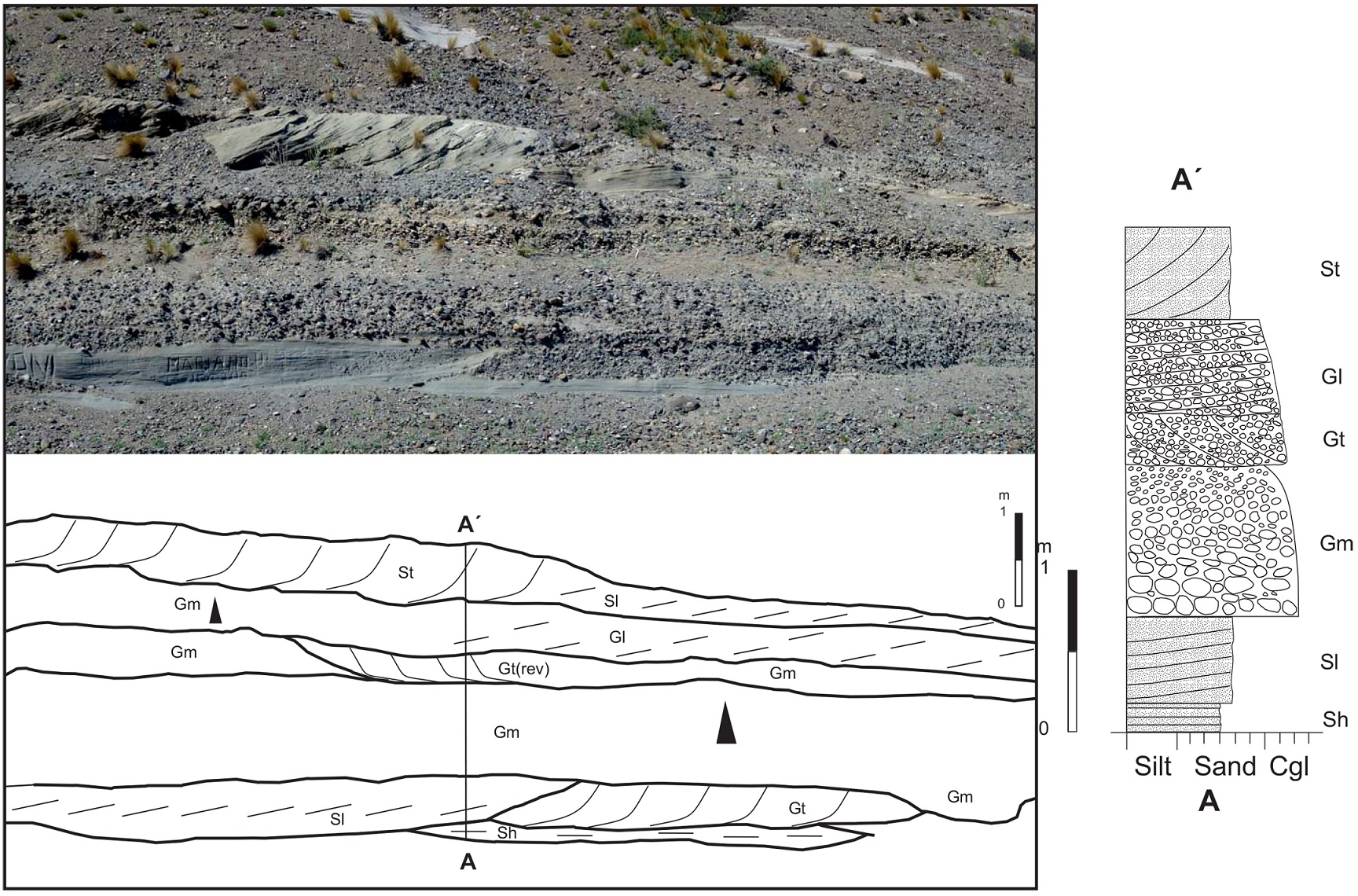

Fig. 10. Example of bedding architecture and facies organization in the fluvial facies association, traced from a photo mosaic at location 2 (see Fig. 1). Facies code in table 1.





Fig. 11. Fluvial facies association. Photomosaic, bedding architecture, facies organization and palaeocurrents (measured on the foreset dip direction) of cliff face at location 2 (see Fig. 1). Facies code in table 1.



Laterally extensive beds of facies Gm, Gh-Gl, Gt, GSh-GSl (Figs. 8, 9) are the result of coarse-grained high bed-load flows, and represent the deposits of longitudinal bars and stream floods within rapidly evolving shallow braided channels. Only in a few cases the cross-bedded sandstones and conglomerates are grouped to form cosets that can be interpreted as deposits of unit bars (Fig. 8) (Bridge and Lunt, 2005; Sambrook Smith et al., 2006). More commonly the cross-bedded sets are solitary and show a progressive thickness increase downstream, having the bed marked wedge geometry (Fig. 9). These deposits are the result of the migration of subcritical sand dunes along secondary channels and/or on the bar top of the braided system. The cross-stratified conglomerates appear as the infill of lens-shaped solitary lithosomes with a high-relief concave upwards basal surface (Figs. 10, 11). They are formed by large-scale planar foresets showing a marked decrease in dip in the accretion direction (Fig. 11). These deposits are interpreted as the rapid lateral and/or oblique accretion of cross-bars into deep and narrow channels.

The deposits of the Huarenchenque Formation, dominated by laterally extensive coarse-grained facies (Figs. 8, 9) resemble those of sandur plains, since individual channels are often shallow during “normal” flow conditions (Maizels, 1993; Stokes et al., 2012) and prone to sheet flooding during periods of high discharge. The isolated cross-bedded conglomerates with large-scale foresets were deposited within deeper channels during sustained high-magnitude flow conditions. Flows of this magnitude commonly occur in periglacial fluvial systems during periods of abnormally high discharge (Stokes et al., 2012).

6. Discussion

6.1. Palaeogeography, relationship to volcanic activity and controls on fluvial system development

In the study area, the Huarenchenque Formation is the result of sedimentary accumulation in the palaeo-Agrio river valley and its (paleo) tributaries, which drained the eastern slopes of the Andean Cordillera. The main paleo-valley is located at the place where the Agrio river is running today. Thus, the studied exposures along the western and southern sides of the Agrio valley are the result of the fluvial incision of older (Huarenchenque) deposits. These characteristics suggest that the fluvial Agrio system was active at roughly the same location at least since de Upper Pleistocene.

In the Huarenchenque Formation the two facies associations defined in the present study show a clear physical separation (Figs. 7A and 8). Thus, the sedimentation occurred in two distinct phases: one short-lived syneruptive phase (represented at least by two pyroclastic intercalations) and another long-lived intereruptive phase (Smith 1987, 1991). These fluctuations occur at a much higher frequency than tectonically or climatically induced modifications (Smith, 1991; Khalaf, 2012).

During syneruptive phases, the paleo-Agrio river valley was almost entirely occupied by deposits related to explosive volcanism, in particular those due to pyroclastic flows (facies LT(2) and LT(3)). Though precise ages of these deposits are still lacking, according to geomorphological relationships it is assumed that these episodes were generated by the Andean arc volcanism of the Southern Volcanic Zone (Stern, 2004) and especially during high-explosive phases of the Copahue-Pino Hachado volcanic complex. The primary origin of these materials would be related to the Rahue and Butahuo volcanoes which record the latest eruptions (García-Morabito and Folguera, 2005; Tunstall and Folguera, 2005) and are located only 30 km to the west of the paleo-Agrio river.

Moreover, during the interuptive phases, the sedimentary record corresponds to the gravelly braided fluvial system of the palaeo-Agrio river. Although some authors consider that these phases represent periods of incision when streams adjust to re-establish their former graded profile (Smith, 1987, 1991; Khalaf, 2012), the preserved depositional morphology of the fluvial facies association is the result of a short- term moderate rate of aggradation, high cannel migration (Bridge and Leeder, 1979; Bristow and Best, 1993) and frequent sheet flooding, combined with a longer-term aggradation rate of the whole fluvial system.

The sheet-like and lobate deposits of the facies Gms, located towards the south of study area were also accumulated during intraeruptive phases. These deposits occur where the Huarenchenque Formation expands to the west in parallel with the main tributaries of the Agrio River (Fig. 1). This suggests that steepland debris flows descending directly from the Andean foothills deposited facies Gms en masse when reaching the lower gradient paleo-Agrio fluvial valley (cf. Lancaster and Casebeer, 2007).

Last but not least, the peculiar model of braided fluvial sedimentation of the Huarenchenque Formation, resembling that of sandur plains, strongly suggests that high discharges of the palaeo-Agrio river and palaeo-tributaries were provided by meltwater due to the rapid Andean Last Glacial Maximum deglaciation (McCulloch et al., 2000; Hulton et al., 2002).

6.2. Clast composition, provenance and palaeo-hydraulic considerations

The main components of the intereruptive conglomerates are subrounded to rounded basalt fragments with subordinated proportion of granite and other volcanic lithoclasts, representing an extrabasinal input. Intrabasinal clasts (rounded fragments of pumice and hardened mud) provided by erosion of syneruptive deposits and overbanks are scarce due to their weak mechanical resistance under high-regime flows. Clast composition allows to deduce that most of fluvial materials derived from the Andean volcanic arc and from widespread Plio-Pleistocene alkali olivine basalts erupted across the Andean backarc (Kay et al., 2006).

In contrast, the cross-bedded sandstone sets are commonly basaltic-rich litharenites, although some beds are almost entirely composed of pumice grains. In this last case, transport conditions for fluvial sandstones (dune migration) allowed preservation of intrabasinal components sourced by syneruptive pyroclastic deposits.

Further interpretations arise from the analysis of cross‐bedded sandstone sets characterized by the alternations between basaltic‐rich and pumice‐rich foresets. In a previous work (Colombo et al., 2018), we demonstrated that the low density of pumice clasts was substantially modified when the pyroclastic flows at very high temperatures were placed in a mass of shallow water and steam displaces the air in their pores. Therefore steam condensation and water absorption causes pumice clasts to sink. Under these conditions, water saturated pumice clasts tend to behave as “normal” (high-density) clasts, although they still preserve some differences of settling velocity (hydraulic equivalence) with respect to that of the basalt sand grains (Fig. 4B).

A remaining question is why the alternance of basalt-rich and pumice-rich intervals were produced in the foresets of cross-bedded strata. The response could be that frontal accretion of basalt-rich foresets represents the normal condition for fluvial transportation-deposition of extrabasinal materials derived from the denudation of volcanic terranes. Meanwhile, the pumice-rich foresets result from the rework of intrabasinal syneruptive pyroclastic deposits. Thus, the presence of these intervals suggests that: i. the syneruptive events that occupied the paleo-Agrio river valley were more frequent than those displayed in the sedimentary record; ii. these pyroclastic materials were strongly eroded by the fluvial system; and iii. the pumice clasts were probably supplied from coeval pyroclastic activity.

7. Conclusions

The main conclusions drawn from this study are as follows:

The Huarenchenque Formation represent the preserved product of two lithofacies associations (fluvial and pyroclastic).

Sedimentation occurred in two distinct phases: intereruptive (dominated by fluvial deposits) and syneruptive (essentially composed of pyroclastic deposits).

The fluvial facies association is composed of polymictic conglomerates with the predominance of basalt-dominated clasts, coarse- medium-grained conglomeratic sandstones and medium- to coarse-grained sandstones.

Intereruptive fluvial deposits were accumulated in a multichannel fluvial system characterized by high bed load, steep gradient and non-cohesive bank materials. High bank full discharge seems to be related to rapid deglaciation of the Andean Last Glacial Maximum.

The syneruptive pyroclastic facies association is characterized by lapilli and ash tuffs deposited from air fall, pyroclastic density current, and density stratified surge mechanisms. High-explosive episodes of the neighbor Andean strato-volcanoes are considered the trigger mechanisms for these primary pyroclastic deposits.

Most of the fluvial deposits are rich in basaltic fragments sourced from the Andean arc volcanics and from widespread Plio-Pleistocene backarc olivine basalts. However, several cross-bedded gravelly sandstones and sandstones are composed almost entirely of pumiceous fragments, while others display a marked alternation between “basalt” and “pumiceous” foresets. The participation of these pyroclastic components in typical intereruptive fluvial deposits allows suggest that explosive volcanic events and primary pyroclastic supply could be more frequent than reflected by the pyroclastic (syneruptive) deposits themselves. In addition, the eventual erosion (and even total elimination) of syneruptive pyroclastic deposits by the braided fluvial system should not be ruled out.
