Andean Geology 45 (3): 399-409, September, 2018
Andean Geology
doi: 10.5027/andgeoV45n3-3095
Tips on the SW-Gondwana margin: Ordovician conodont-graptolite
biostratigraphy of allochthonous blocks in the Rinconada mélange,
Argentine Precordillera
*Gustavo G. Voldman1, Juan L. Alonso2, Luis P. Fernández2, Gladys Ortega3,
Guillermo L. Albanesi
1, 3, Aldo L. Banchig4, Raúl Cardó4, 5

1 Consejo Nacional de Investigaciones Científicas y Técnicas, Centro de Investigaciones en Ciencias de la Tierra, Universidad Nacional de Córdoba, CIGEA, Av. Vélez Sarsfield 1611, X5016GCA, Córdoba, Argentina.;

2 Departamento de Geología, Universidad de Oviedo, Arias de Velasco s/n, 33005, Oviedo, Spain.;

3 Consejo Nacional de Investigaciones Científicas y Técnicas, CIGEA and Museo de Paleontología, Universidad Nacional de Córdoba, Av. Vélez Sarsfield 249, X5000JJC, Córdoba, Argentina.

4 Departamento de Geología, Universidad Nacional de San Juan, Ignacio de La Rosa y Meglioli s/n, 5400, San Juan, Argentina.;

5 Servicio Geológico y Minero Argentino, Sargento Cabral 685 (oeste), 5400, San Juan, Argentina.

* Corresponding author:

The Rinconada Formation is a mélange that crops out in the eastern margin of the Argentine Precordillera, an exotic terrane accreted to Gondwana in Ordovician times. Its gravity-driven deposits have been studied by means of conodont and graptolite biostratigraphy, and complemented with stratigraphic analyses. 46 rock samples (85 kg total weight) were obtained from blocks of limestones and of carbonate-cemented quartz-arenites, and from limestone clasts included in conglomerate blocks and debrites. 16 of these samples were productive after standard laboratory acid procedures, yielding 561 conodont elements. The specimens occur in variable number per sample and are frequently fragmented, but they reveal the occurrence of phantom stratigraphic units in the Darriwilian of the Precordillera. Lithological and fossil evidence from the Rinconada Formation provide new constraints on the biostratigraphy, palaebiogeography and tectonostratigraphic history of the southwestern margin of Gondwana during the Ordovician to Lower Devonian times.

Keywords: Conodont, Graptolite, Biostratigraphy, Rinconada Formation, Mélange, Argentine Precordillera, Ordovician, Silurian, Lower Devonian.



1. Introduction


Sedimentary mélanges are mappable units displaying a chaotic internal structure and containing exotic blocks. They occur in different tectonic settings and derive from a broad range of sedimentary and deformational, gravitationally driven processes (see a review in Festa et al., 2016). Their formation involves dismembering of a variably lithified sedimentary cover, potentially accompanied by parts of its substrate, and their gravitational transport and accumulation in slope to base-of-slope and oceanic basin settings. As a result, the original stratigraphy of the parent successions becomes variably destroyed, following a continuum from broken formations that retain the internal stratigraphy up to debris flows that may incorporate exotic fragments (e.g., Cowan, 1985).

Mélanges may constitute the unique vestige of their parent successions when the latter are completely cannibalised, and thus missing from their original locations (phantom stratigraphic units of Hsü and Ohrbom, 1969). Thereby, the fossils and rocks included in a mélange may reveal important aspects on the biostratigraphy, palaebiogeography and the tectonostratigraphic history of a basin. This is the case of the Rinconada Formation, a thick, mainly siliciclastic mélange containing large limestone blocks that overlies the lower Palaeozoic carbonates of the Argentine Precordillera (Heim, 1948), an allochthonous terrane accreted to Gondwana during the Ordovician (Astini et al., 1995). In this contribution, we analyse new Ordovician conodont and graptolite records from the Rinconada Formation They provide high-resolution biostratigraphic constraints on the mobilised blocks that compose the mélange, and reveal the occurrence of Ordovician phantom units in the Rinconada Formation, currently unknown in other sectors of the Precordillera, and have important palaeogeographic implications.

2. Geological setting

The Rinconada Formation is exposed in the eastern margin of the Eastern Precordillera, close to the boundary with crystalline basement uplifts of the Sierras Pampeanas to the east (Fig. 1). It crops out in three main areas in the Villicum (Mogotes Negros), Rinconada (Chica de Zonda) and Pedernal ranges. There, it unconformably overlies Ordovician strata and is in turn overlain by Carboniferous (Jejenes Formation) or Neogene deposits through an angular unconformity. The Rinconada Formation consists of a ca. 3,750 m-thick stacking of “broken formations”, comprising shales, subordinate sandstone-shale alternations, rare conglomerates and sandstones, and huge, up to 2.5 km-long, limestone blocks (Fig. 2). They exhibit extensional faults, boudinaged intervals and slump folds that attest for soft-sediment deformation during submarine sliding. The conglomerate blocks contain extrabasinal clasts, derived from igneous-metamorphic sources to the east. The upper part of the Rinconada Formation comprises debris-flow deposits with quartzite and limestone lithoclasts and shale and sandstone intraclasts.

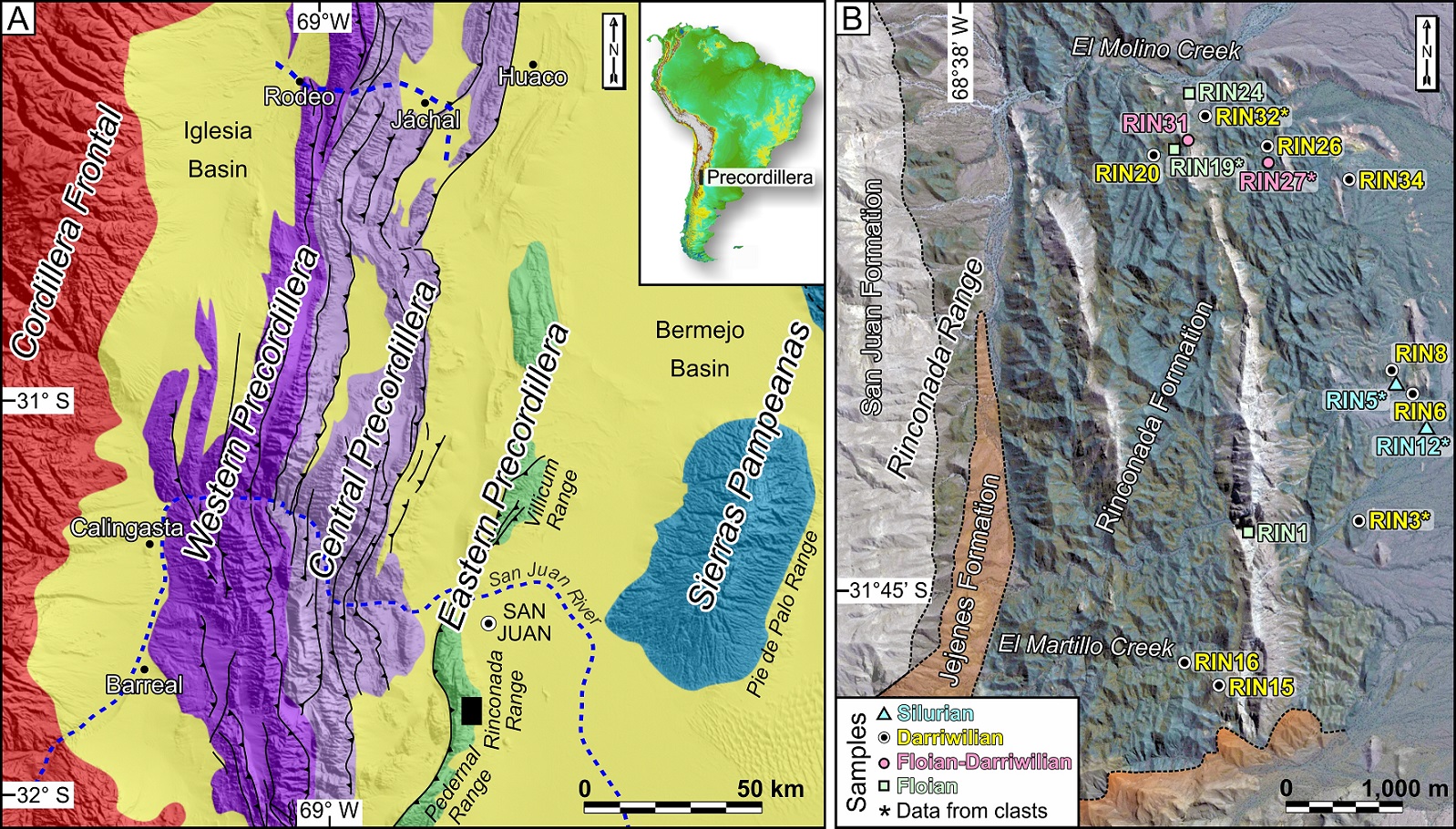

FIG. 1. A. Location map of the study area (black square), Eastern Precordillera, San Juan Province, Argentina; B. Simplified geological map of the Rinconada area showing position of the fossiliferous samples discussed in the text.

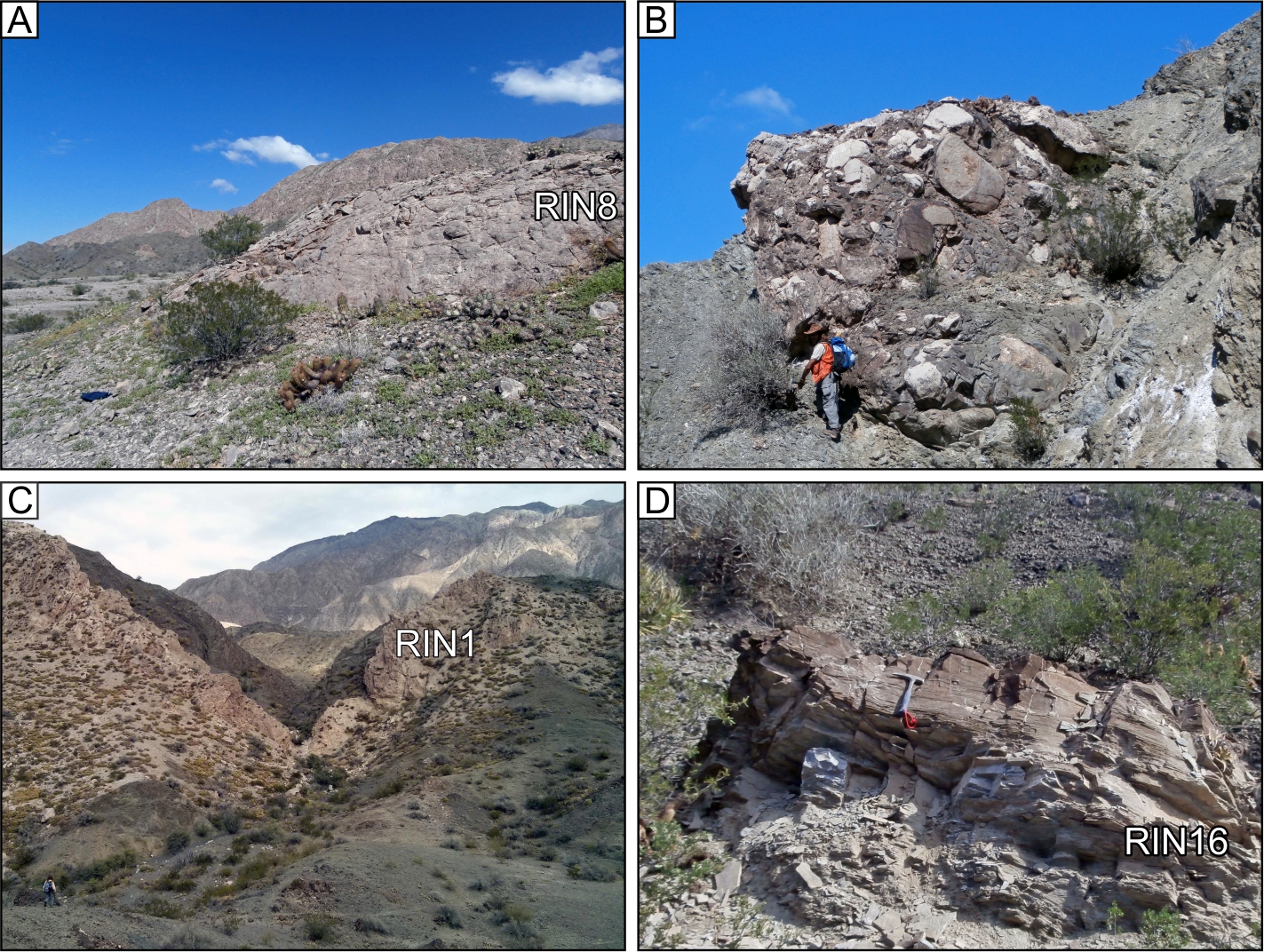

FIG. 2. Outcrops of the Rinconada mélange in the study area, with examples of the sampled lithologies. A. Limestone block (sample RIN8); B. Conglomerate block containing rounded clasts of limestones, sandstones and of crystalline rocks; C. km-scale limestone slab of the San Juan Formation (sample RIN1) enclosed in a greenish fine-grained sandy matrix; D. dm-scale block of graptolitic quartz-arenite with calcareous cement (sample RIN16).


The lithological monotony of the shale-dominated succession makes it difficult to unravel the size and shape of the fragments that compose the Rinconada mélange, except for the blocks of sandstone or limestone. The former are made of quartz-arenites, calcareous in some cases, and reach up to some tens of metres in size. Carbonate blocks greatly vary in size and shape and range from metre-scale bodies to slabs up to 2.5 km in length and ca. 100 m in thickness (Figs. 1A, 2C). The larger carbonate blocks are found in the Rinconada area, whereas in Villicum they rarely reach 100 metres in size. Carbonate blocks tend to be concentrated in certain intervals, suggesting a possibly multiepisodic deposit (Gosen et al., 1995) or a stacking of “broken formations” sensu Raymond (1984), linked to submarine mass transport processes.

3. Age constraints on the deposition of the Rinconada mélange

The age of the Rinconada Formation is difficult to establish due to the inherent reworked nature of the mélange and the scarcity of its fossil content. Regionally, it overlies through an erosional hiatus the passive-margin limestones of the San Juan Formation (Lower to Middle Ordovician). The lacuna is narrower in the Villicum and Pedernal sections where the mélange rests over late Middle-Late Ordovician siliciclastic foreland deposits (Gualcamayo, La Pola and La Cantera formations), or the glacial-related Hirnantian-Llandovery Don Braulio Formation (Peralta, 1993; Astini, 2001; Mestre and Heredia, 2014). Considering that the base of the formation is synchronous, a maximum age is given by the latter stratigraphic unit, which contains Rhuddanian fossils (Volkheimer et al., 1980; Peralta, 1986).

In the Rinconada Range, Sarmiento et al. (1988) obtained a conodont fauna composed of Cordylodus horridus, Periodon aculeatus, Staufferella? sp., Histiodella sp. and Amorphognathus? sp. from the top of the San Juan Formation and the basal part of the Rinconada Formation, which they referred to the lower Llanvirn. The conodont fauna is fragmentary but the occurrence of Paroistodus horridus points out to a middle Darriwilian age. Peralta and Uliarte (1986) obtained graptolites of the Paraglossograptus tentaculatus Zone from the same interval, and interpreted the contact between the San Juan and the Rinconada formations as transitional. However, their figured stratigraphic section shows that their samples proceed from a limestone slab. In the same area, Lehnert (1995) recovered a conodont association of the Histiodella sinuosa Zone from the top of the San Juan Formation, and two fragmentary conodont associations from limestone blocks of the Rinconada Formation that he referred to the Amorphognathus variabilis Zoneand the uppermost Arenig. Limestone pebbles included in polymictic conglomerate blocks provided him elements of the Lenodus variabilis and the Eoplacognathus suecicus zones.

The upper part of the Rinconada Formation yielded a graptolite association composed of Climacograptus cf. minutus, Diplograptus sp. and Monograptus sp., which indicates a Llandovery age (Cuerda, 1981), whereas the record of the articulate brachiopod Leangella (Leangella) sp. suggests a Wenlock age (Benedetto and Franciosi, 1998). The record of Dapsilodus obliquicostatus, Decoriconus fragilis, Oulodus sp., Pseudooneotodus beckmanni, P. b. bicornis, Wurmiella excavata along with “Ozarkodina” aff. snajdri in calcareous sandstone clasts from the debrites of the upper part of the formation, suggests a late Homerian-early Gorstian (late Wenlock-early Ludlow) maximum age for these deposits in the Rinconada Range (Voldman et al., 2017a). In the Bola Range, Amos and Fernández (1977) obtained the Lower Devonian brachiopod Leptocoelia nunezi, verifying the diachronous character of the preserved top of the Rinconada Formation due to truncation by younger stratigraphic units.

4. Methods and results

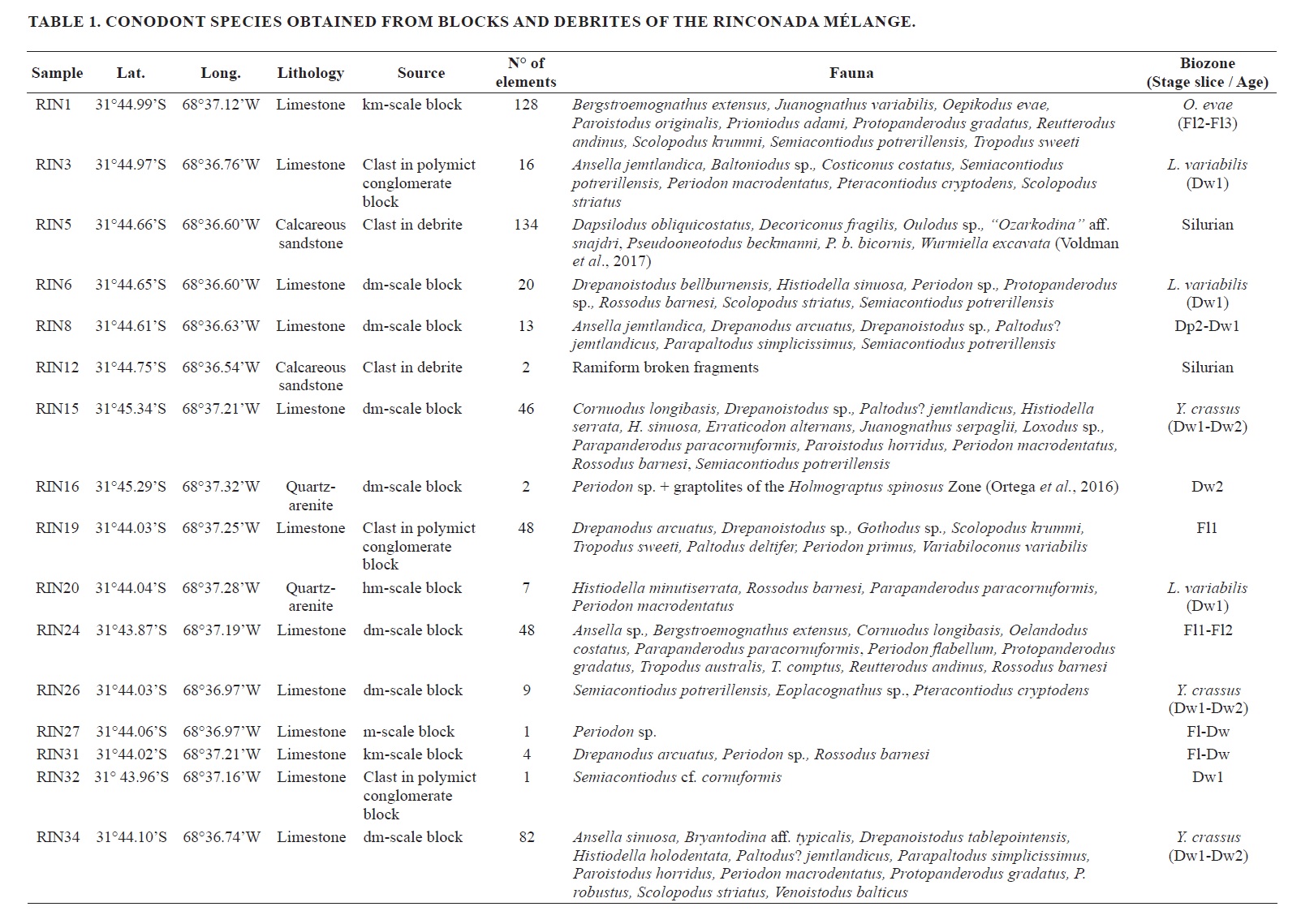

Conodont analysis involved 46 rock samples (85 kg total weight) obtained from blocks of limestone, blocks of carbonate-cemented quartz-arenites, and from limestones clasts in conglomerate blocks and debrites (Figs. 1B, 2). These were digested following the standard laboratory procedures (Stone, 1987), resulting in 16 productive samples and 561 conodont elements (Fig. 3). The specimens have a moderate preservation with a CAI 3. They are housed in the Museo de Paleontología (Universidad Nacional de Córdoba, repository code CORD-MP 56001 up to 56562). For the conodont zonation of the Rinconada Formation, we have followed the regional biostratigraphic schemes of Albanesi and Ortega (2016) and Feltes et al. (2016). Ordovician stage slices are based on Bergström et al. (2009) and Cooper et al. (2012). Data from this work (summarised in Table 1) are complementary to those of Voldman et al. (2015), including additional samples and the reprocessing of previously collected material that allowed to enhance the biostratigraphic resolution. The low number of conodont elements and the high degree of fragmentation challenged the biozone determination in some cases. The conodont taxonomy has already been described extensively in the literature (e.g., Serpagli, 1974; Löfgren, 1978; Ethington and Clark, 1981; Repetski, 1982; Dzik, 1994; Lehnert, 1995; Albanesi, 1998; Stouge, 2012) and no further comments are required herein. We follow here the morphotype designations of Sweet (in Clark et al., 1981) that include P, M, and S elements and their subdivisions.




FIG. 3. Selected conodonts from the Rinconada Formation Scale bar 0,1 mm. A. Tropodus sweeti (Serpagli), M element, RIN1, CORD-MP 56001; B. Bergstroemognathus extensus (Graves and Ellison), M element, RIN1, CORD-MP 56002; C. Juanognathus variabilis Serpagli, Sa element, RIN1, CORD-MP 56003; D. Reutterodus andinus Serpagli, M element, RIN1, CORD-MP 56004; E. Oepikodus evae (Lindström), P element, RIN1, CORD-MP 56005; F. Scolopodus striatus Pander, P? element, RIN3, CORD-MP 56006; G. Juanognathus variabilis Serpagli, Sa element, RIN1, CORD-MP 56007; H. Paroistodus originalis (Sergeeva), Sb element, RIN1, CORD-MP 56008; I. Tropodus sweeti (Serpagli), Sb element, RIN1, CORD-MP 56009; J. Periodon macrodentatus (Graves and Ellison), Sb element, RIN3, CORD-MP 56010; K.Rossodus barnesi Albanesi, Sb element, RIN6, CORD-MP 56011; L. Drepanoistodus bellburnensis Stouge, M element, RIN6, CORD-MP 56012; M. Costiconus costatus (Dzik), S element, RIN3, CORD-MP 56013; N. Protopanderodus gradatus Serpagli, S element, RIN24, CORD-MP 56014; O. Pteracontiodus cryptodens (Mound), Sa element, RIN3, CORD-MP 56015; P. Parapanderodus paracornuformis (Ethington and Clark), S element, RIN15, CORD-MP 56016; Q.Paroistodus h. horridus (Barnes and Poplawski), S element, RIN15, CORD-MP 56017; R. Erraticodon sp., Pb? element, RIN15, CORD-MP 56018; S.Gothodus sp., Pa element, RIN19, CORD-MP 56019; T. Ansella jemtlandica (Löfgren), Sa element, RIN8, CORD-MP 56020; U. Paltodus deltifer deltifer (Lindström), M element, RIN19, CORD-MP 56021; V. Rossodus barnesi Albanesi, M element, RIN15, CORD-MP 56022; W. Periodon macrodentatus (Graves and Ellison), Sb element, RIN20, CORD-MP 56023; X. Semiacontiodus potrerillensis Albanesi, S element, RIN6, CORD-MP 56024; Y. Cornuodus longibasis (Lindström), Sa element, RIN24, CORD-MP 56025; Z. Histiodella serrata Harris, Pa, RIN15, CORD-MP 56026; AA. Histiodella sinuosa Graves and Ellison, Pa element, RIN15, CORD-MP 56027; AB. Histiodella minutiserrata Mound, Pa element, RIN20, CORD-MP 56028; AC. Tropodus sweeti (Serpagli), P element, RIN19, CORD-MP 56029.



The conodont records reveal the presence of species typical from the Floian Oepikodus evae Zone [e.g., Tropodus sweeti (Serpagli), Bergstroemognathus extensus (Graves and Ellison), Juanognathus variabilis Serpagli, Reutterodus andinus Serpagli, Oepikodus evae (Lindström), Paroistodus originalis (Sergeeva)], the lower Darriwilian Lenodus variabilis Zone (in particular, represented by the illustrated species of Histiodella), and the middle Darriwilian Yangtzeplacognathus crassus Zone [indicated by the presence of Paroistodus h. horridus (Barnes and Poplawski)].

In addition, current field studies in the Rinconada Range yielded the graptolites Holmograptus spinosus Ruedemann, undetermined sinograptid stipes, Pseudophyllograptus sp., Bergstroemograptus crawfordi Harris, Cryptograptus schaeferi Lapworth, Glossograptus sp., Xiphograptus? sp. and Archiclimacograptus spp. (preliminary reported in Ortega et al., 2016; Fig. 4). The fauna comes from blocks of carbonate-cemented quartz-arenites (Figs. 1B, 2D), being indicative of the middle Darriwilian H. spinosus Zone of North America, Australasia, and equivalent levels from the Scandinavia and China (Maletz, 2009).

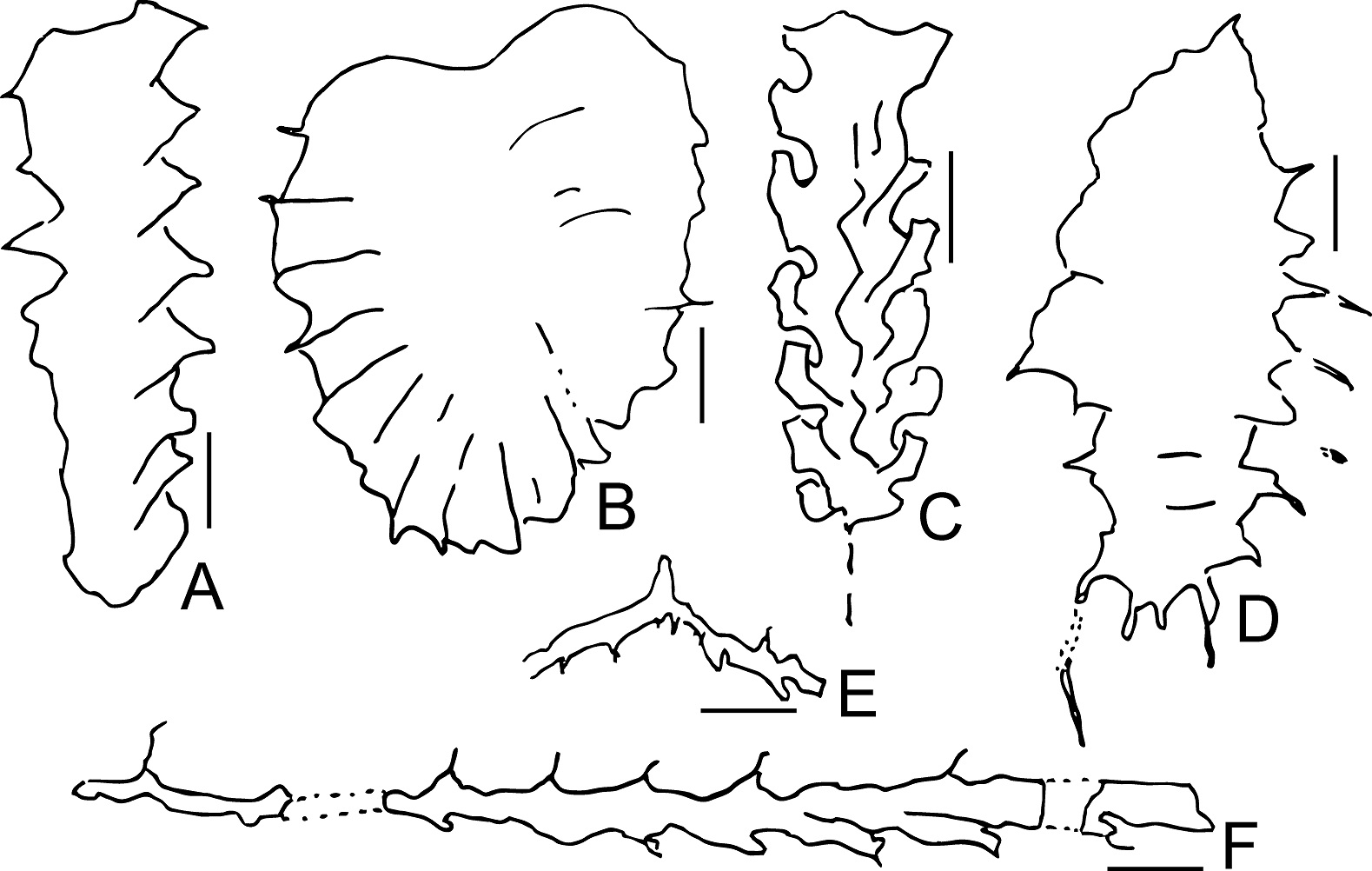

FIG. 4. Sampled graptolites from the Rinconada Formation Scale bar 0,1 mm. A. Cryptograptus schaeferi (Lapworth), CORD-MP 25805; B. Bergstroemograptus crawfordi (Harris), CORD-MP 25895A; C. Archiclimacograptus sp., CORD-MP 25895A; D. Glossograptus sp., CORD-MP 25885; E. Holmograptus spinosus (Ruedemann), CORD-MP 25827; F. Holmograptus spinosus (Ruedemann), CORD-MP 25827.



5. Discussion

The Ordovician conodont fauna obtained from reworked blocks and clasts of the Rinconada Formation include typical assemblages from the platform (e.g., Semiacontiodus and Cornuodus) and slope (e.g., Periodon and Paroistodus) settings of the Precordillera. The fauna consists of endemic and cosmopolitan species of Laurentian and Baltic affinity, representing the major Midcontinent and Atlantic Realms (e.g., Albanesi and Bergström, 2010). The record of Gothodus sp. (Fig. 3S) in limestone clasts may suggest a link with the perigondwanan cold-water assemblages of the Central Andean Basin, as similar priniodontiforms with poorly developed denticulation have been recognized in the Floian Acoite Formation (Voldman et al., 2017b). The presence of Erraticodon patu in the Precordillera, the Famatinian Range and the Central Andean Basin supports this palaeobiogeographic link as well (Albanesi and Bergström, 2010; Heredia et al., 2013).

Gosen et al. (1995) considered an inverse stratigraphy for the limestone blocks included in the Rinconada Formation in response to the progressive denudation of the adjacent Zonda Range to the west. Nevertheless, current biostratigraphic data indicate that, overall, the sets of blocks included in the Rinconada Formation actually maintain the stratigraphic order of the source area, i.e., with older blocks below and younger blocks above, as it frequently occurs in broken formations (Raymond, 1984).

In a more plausible explanation, we envisage that the large carbonate blocks along with their sedimentary cover slid from an eastern orogenic front into the basin floor (Fig. 5). Accordingly, the middle Darriwilian quartz-arenite blocks of the Rinconada mélange would represent part of the synorogenic clastic wedge that was generated during the accretion of the Precordillera to Gondwana (Astini et al., 1995; Thomas et al., 2015). In addition, the Holmograptus spinosus Zone (sample RIN16) has been recorded in calcareous nodules from the top of the Gualcamayo Formation in the Villicum Range (Kaufmann and Ortega, 2016), but is absent in the Central Precordillera due to a hiatus (Ortega et al., 2007). Instead, the synorogenic sedimentation is partially represented in the Villicum Range by the La Cantera Formation (late Darriwilian), which includes at its base clasts with fragments of Sacabambaspis janvieri. This early agnathan fish inhabited the shallow water continental margins of Gondwana, thus strengthening the palaeobiogeographic connection of the Precordillera with Gondwana by the late Darriwilian times (Albanesi et al., 1995).

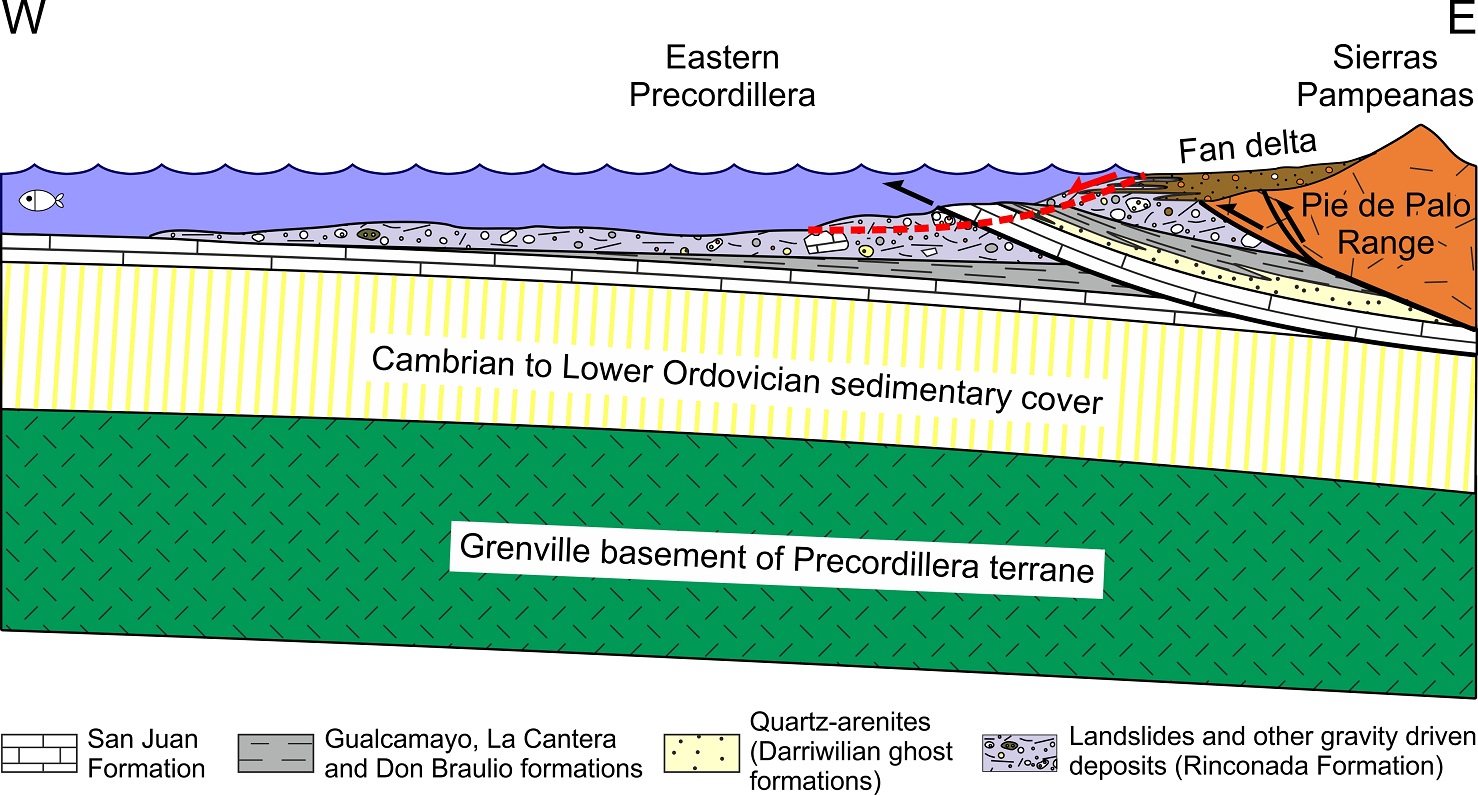

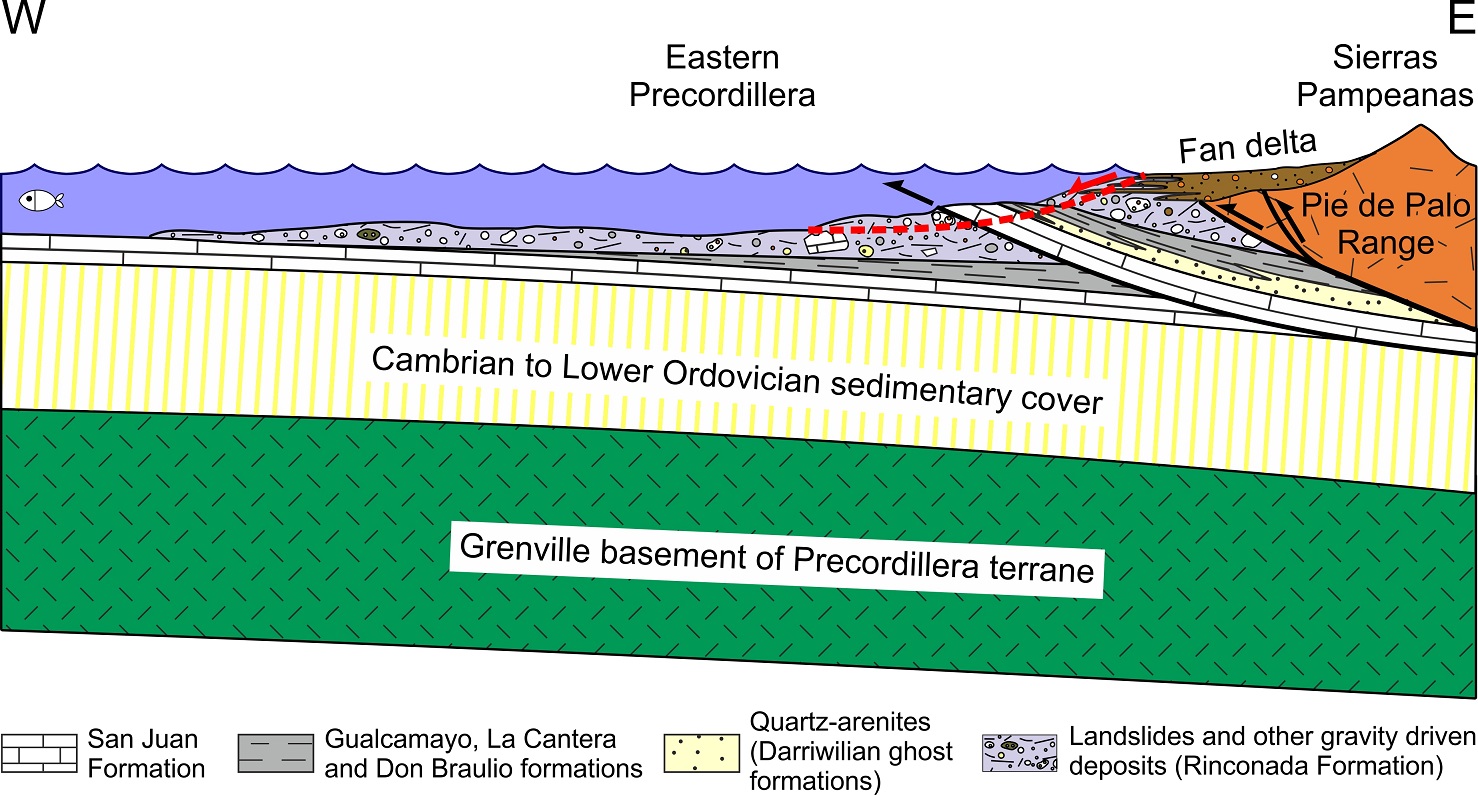

FIG. 5. Schematic cross section showing the gravity driven deposits of the Rinconada Fm being sourced by listric normal faults (red arrow) developed in the Silurian-Early Devonian eastern orogenic front (black arrows).



The repeated occurrence of km-scale blocks of the San Juan limestones in the Rinconada Formation records at least two major sliding events or, alternatively, the sliding of a Middle-Late Ordovician nappe stacking during Silurian-Early Devonian times. An Ordovician west-vergent thrust system has been described in the northern Precordillera (Guandacol area), where it is related to proximal deposits with olistoliths of the San Juan and Gualcamayo formations and extrabasinal clasts (Thomas and Astini, 2007). The Rinconada Formation may record the continuation of the Ordovician compressional deformation into the Silurian and early Devonian. An analogous compressional setting is found in the Iberian Variscan foreland basin, where submarine sliding with extensional deformation is related to denudation of an advancing thrust system (Alonso et al., 2006). This deformation is probably represented in the Central Precordillera forebulge as a hiatus between the La Chilca and the Los Espejos formations (Peralta, 1993; Astini and Maretto, 1996; García Muro and Rubinstein, 2015), whereas in the Sierras Pampeanas it is represented by ductile shear zones that have been associated with thrusting during the later stages of accretion of the Precordillera terrane to the southwestern Gondwana margin (e.g., Castro de Machuca et al., 2008).

6. Conclusions

Deciphering the geology of the boundary zone between the Precordillera and the Sierras Pampeanas is essential to understand the geodynamic evolution of the proto-Andean margin of Gondwana. In the present contribution, a systematic conodont and graptolite sampling of different lithologies in the Rinconada Formation at the eastern margin of the Precordillera allows suggesting that the mélange mirrors the stratigraphic succession of an eastern orogenic source area, with predominant younger ages to the east. The record of middle Darriwilian graptolites (H. spinosus Zone) and conodonts (L. variabilis-Y. crassus zones) in large blocks of quartz-arenites (phantom stratigraphic units) is consistent with cannibalization of the Ordovician synorogenic clastic wedge that was generated during the accretion of the Precordillera terrane to Gondwana (e.g., Thomas et al., 2015). Moreover, the repeated occurrence of km-scale blocks of the San Juan Formation in the Rinconada mélange may represent either a series of major sliding events or the sliding of an Ordovician nappe stacking during the Silurian - Early Devonian, subsequent to the accretion of the Precordillera terrane to SW Gondwana.

This study was funded by CONICET, Argentina (Resolución 3646/14 and PIP 112 201301 00447 CO) and the Ministerio de Economía y Competitividad of Spain (project CGL2012-34475). We appreciate critical comments of John Repetski (USGS) on an early draft. The manuscript was improved after the corrections of Ana Mestre (CONICET), an anonymous reviewer and the editor, W. Vivallo. This paper is a contribution to the IGCP Project 653: The Onset of the Great Ordovician Biodiversification Event. .


Albanesi, G.L. 1998. Taxonomía de conodontes de las secuencias ordovícicas del Cerro Potrerillo, Precordillera Central de San Juan, R. Argentina. Actas Academia Nacional de Ciencias 12: 101-253. Córdoba.

Albanesi, G.L.; Bergström, S.M. 2010. Early-Middle Ordovician conodont paleobiogeography with special regard to the geographic origin of the Argentine Precordillera: A multivariate data analysis. In The Ordovician Earth System (Finney, S.C.; Berry, W.B.N.; editors). Geological Society of America, Special Paper 466: 119-139.

Albanesi, G.L.; Ortega, G. 2016. Conodont and Graptolite Biostratigraphy of the Ordovician System of Argentina. Stratigraphy & Timescales 1: 61-121.

Albanesi, G.L.; Benedetto, J.L.; Gagnier, P.-Y. 1995. Sacabambaspis janvieri (Vertebrata) y conodontes del Llandeiliano temprano en la Formacion La Cantera, Precordillera de San Juan, Argentina. Boletín Academia Nacional de Ciencias 60 (3-4): 519-544. Córdoba.

Amos, A.J.; Fernández, J. 1977. Estructura del Cerro Bola al NE de la quebrada de la Flecha, San Juan. Revista de la Asociación Geológica Argentina 32: 241-247.

Alonso, J.L.; Marcos, A.; Suárez, A. 2006. Structure and organization of the Porma Mélange: progressive denudation of a submarine nappe toe by gravitational collapse. American Journal of Science 306 (1): 32-65.

Astini, R.A. 2001. La Formación La Pola (Ordovícico Superior): relicto erosivo de la glaciación hirnantiana en la Precordillera Argentina. Revista de la Asociación Geológica Argentina 56 (4): 425-442.

Astini, R.A.; Maretto, H.M. 1996. Análisis estratigráfico del Silúrico de la Precordillera Central de San Juan y consideraciones sobre la evolución de la cuenca. In Congreso Geológico Argentino, No. 13, Actas 1: 351-368. Buenos Aires.

Astini, R.A.; Benedetto, J.L.; Vaccari, N.E. 1995. The early Paleozoic evolution of the Argentine Precordillera as a Laurentian rifted, drifted and collided terrane: A geodynamic model. Geological Society of America, Bulletin 107 (3): 253-273.

Benedetto, J.L.; Franciosi, M. 1998. Braquiópodos silúricos de las Formaciones Tambolar y Rinconada en la Precordillera de San Juan, Argentina. Ameghiniana 35 (2): 115-132.

Bergström, S.M.; Chen, X.; Gutiérrez-Marco, J.C.; Dronov, A. 2009. The new chronostratigraphic classification of the Ordovician System and its relations to major regional series and stages and to δ13C chemostratigraphy. Lethaia 42: 97-107.

Castro de Machuca, B.; Arancibia, G.; Morata, D.; Belmar, M.; Previley, L.; Pontoriero, S. 2008. P-T-t evolution of an Early Silurian medium-grade shear zone on the west side of the Famatinian magmatic arc, Argentina: Implications for the assembly of the Western Gondwana margin. Gondwana Research 13 (2): 216-226.

Clark, D.L.; Sweet, W.C.; Bergström, S.M.; Klapper, G.; Austin, R.L.; Rhodes, F.H.T.; Müller, K.J.; Ziegler, W.; Lindström, M.; Miller, J.F.; Harris, A.G. 1981. Treatise on Invertebrate Paleontology, Part W, Supplement 2, Conodonta. Geological Society of America: 202 p. Boulder.

Cooper, R.A.; Sadler, P.M.; Hammer, O.; Gradstein, F.M. 2012. Chapter 20-The Ordovician Period. In The Geologic Time Scale (Gradstein, F.M.; Ogg, J.G.; Schmitz, M.D.; Ogg, G.M.; editors). Elsevier: 489-523. Boston.

Cowan, D.S. 1985. Structural styles in Mesozoic and Cenozoic mélanges in the western Cordillera of North America. Geological Society of America, Bulletin 96 (4): 451-462.

Cuerda, A.J. 1981. Graptolites del Silúrico inferior de la Formación Rinconada, Precordillera de San Juan. Ameghiniana 18 (3-4): 241-247.

Dzik, J. 1994. Conodonts of the Mójcza Limestone. Palaentologica Polonica 53: 43-128.

Ethington, R.L.; Clark, D.L. 1981. Lower and Middle Ordovician Conodonts from the Ibex Area, Western Millard County, Utah. Brigham Young University Geology Studies 28: 1-160.

Feltes, N.A.; Albanesi, G.L.; Bergström, S.M. 2016. Conodont biostratigraphy and global correlation of the middle Darriwilian-lower Sandbian (Ordovician) Las Aguaditas Formation, Precordillera of San Juan, Argentina. Andean Geology 43 (1): 60-85. doi: 10.5027/andgeoV43n1-a04.

Festa, A.; Ogata, K.; Pini, G.A.; Dilek, Y.; Alonso, J.L. 2016. Origin and significance of olistostromes in the evolution of orogenic belts: A global synthesis. Gondwana Research 39: 180-203.

García Muro, V.J.; Rubinstein, C.V. 2015. New biostratigraphic proposal for the lower Paleozoic Tucunuco Group (San Juan, Precordillera, Argentina) based on marine and terrestrial palynomorphs. Ameghiniana 54 (2): 265-285.

Gosen, W. von; Buggisch, W.; Lehnert, O. 1995. Evolution of the Early Paleozoic mélange at the eastern margin of the Argentine Precordillera. Journal of South America Earth Sciences 8 (3): 405-424.

Heim, A. 1948. Observaciones tectónicas en la Rinconada, Precordillera de San Juan. Boletín Dirección de Minas y Geología, Secretaria de Industria y Comercio de la Nación 64: 1-44. Buenos Aires.

Heredia, S.; Carlorosi, J.; Mestre, A.; Soria, T. 2013. Stratigraphical distribution of the Ordovician conodont Erraticodon Dzik in Argentina. Journal of South American Earth Sciences 45: 224-234.

Hsü, K.J.; Ohrbom, R. 1969. Mélanges of San Francisco Peninsula-a geological reinterpretation of type Franciscan. American Association of Petroleum Geologists Bulletin 53 (7): 1348-1367.

Kaufmann, C.; Ortega, G. 2016. La Zona de Holmograptus spinosus (Darriwiliano medio) en la sierra de Villicum, Precordillera Oriental, provincia de San Juan. In Jornadas de Geología de Precordillera, No. 3, Acta Geológica Lilloana 28 (Suplemento): 101-105. San Juan.

Lehnert, O. 1995. Ordovizische Conodonten aus der Präkordillere Westargentiniens: Ihre Bedeutung für Stratigraphie und Paläogeographie. Erlanger Geologische Abhandlungen 125: 1-193.

Löfgren, A. 1978. Arenigian and Llanvirnian conodonts from Jämtland, northern Sweden. Fossils and Strata 13: 1-129.

Maletz, J. 2009. Holmograptus spinosus and the Middle Ordovician (Darriwilian) graptolite biostratigraphy at Les Mechins (Quebec, Canada). Canadian Journal of Earth Sciences 46: 739-755.

Mestre, A.; Heredia, S. 2014. El Paleozoico Inferior del borde oriental de la Sierra de Pedernal-Cienaguita, Precordillera Oriental. Serie Correlación Geológica 30 (1): 5-12.

Ortega, G.; Albanesi, G.L.; Frigerio, S.E. 2007. Early Darriwilian graptolite and conodont biofacies in the los Azules Formation, cerro Viejo section, central Precordillera, Argentina. Palaeogeography, Palaeoclimatology, Palaeoecology 245: 245-263.

Ortega, G.; Voldman, G.G.; Banchig, A.L.; Albanesi, G.L.; Cardó, R.; Alonso, J.L.; Fernández, L.P. 2016. Primeros registros de la Zona de Holmograptus spinosus (Ordovícico Medio) en la sierra de Rinconada, Precordillera Oriental, provincia de San Juan, Argentina. In Congreso de la Asociación Paleontológica Argentina, No. 11, Resúmenes: p. 73. Río Negro.

Peralta, S.H. 1986. Graptolitos del Llandoveriano inferior en el Paleozoico inferior clástico en el pie oriental de la sierra de Villicum, Precordillera Oriental. In Jornadas sobre Geología de la Precordillera, No. 1, Actas: 134-138. San Juan.

Peralta, S.H. 1993. Estratigrafía y consideraciones paleoambientales de los depósitos marino-clásticos eopaleozoicos de la Precordillera Oriental de San Juan. In Congreso Geológico Argentino, No. 12, Actas 1: 128-137. Mendoza.

Peralta, S.H.; Uliarte, E. 1986. Estructura de la Formación Rinconada (Eopaleozoico) en su localidad tipo, Precordillera de San Juan. In Jornadas sobre Geología de la Precordillera, No. 1, Actas: 237-242. San Juan.

Raymond, L.A. 1984. Classification of melanges. In Melanges: Their Nature, Origin and Significance (Raymond, L.A.; editor). Geological Society of America, Special Paper 198: 7-20. Boulder.

Repetski, J.E. 1982. Conodonts from the El Paso Group (Lower Ordovician) of westernmost Texas and southern New Mexico. New Mexico Bureau of Mining and Mineral Research, Memoir 40: 1-117.

Sarmiento, G.; Vaccari, N.; Peralta, S.H. 1988. Conodontes ordovícicos de la Rinconada, Precordillera de San Juan, Argentina. In Congreso Argentino de Paleontología y Bioestratigrafía, No. 4, Actas 3: 219-224. Mendoza.

Serpagli, E. 1974. Lower Ordovician conodonts from Precordilleran Argentina (Province of San Juan). Bollettino della Società Paleontologica Italiana 13: 17-98.

Stone, J. 1987. Review of investigative techniques used in the study of conodonts. In Conodonts: Investigative Techniques and Applications (Austin, R.L.; editor). Ellis Horwood Limited: 17-34. Chichester.

Stouge, S. 2012. Middle Ordovician (late Dapingian-Darriwilian) conodonts from the Cow Head Group and Lower Head Formation, western Newfoundland, Canada. Canadian Journal of Earth Sciences 49: 59-90.

Thomas, W.A.; Astini, R.A. 2007. Vestiges of an Ordovician west-vergent thin-skinned Ocloyic thrust belt in the Argentine Precordillera, southern Central Andes. Journal of Structural Geology 29: 1369-1385.

Thomas, W.A.; Astini, R.A.; Mueller, P.A.; McClelland, W.C. 2015. Detrital-zircon geochronology and provenance of the Ocloyic synorogenic clastic wedge, and Ordovician accretion of the Argentine Precordillera terrane. Geosphere 11 (6): 1749-1769.

Voldman, G.G.; Albanesi, G.L.; Alonso, J.L.; Fernández, L.P.; Banchig, A.L.; Cardó, R.; Ortega, G.; Vallaure, A.M. 2015. New conodont records from the Rinconada Formation, eastern margin of the Argentine Precordillera: Tectono-stratigraphic implications. Stratigraphy 12 (2 supplement): 79-83.

Voldman, G.G.; Alonso, J.L.; Banchig, A.L.; Albanesi, G.L. 2017a. Silurian conodonts from the Rinconada Formation, Argentine Precordillera. Ameghiniana 54 (4): 390- 404.

Voldman, G.G.; Albanesi, G.L.; Ortega, G.; Giuliano, M.E.; Monaldi, C.R. 2017b. New conodont taxa and biozones from the Lower Ordovician of the Cordillera Oriental, NW Argentina. Geological Journal 52 (3): 394-414.

Volkheimer, W.; Pöthe de Baldis, E.D.; Baldis, B.A. 1980. Quitinozoos de la base del Silúrico de la Sierra de Villicum (Provincia de San Juan, Argentina). Revista del Museo Argentino de Ciencias Naturales Bernardino Rivadavia 2: 121-135.
