Andean Geology 44 (2): 147-178, May, 2017
Andean Geology
doi: 10.5027/andgeoV44n2-a03
Geochemistry of Permian to Triassic igneous rocks from northern Chile (28º-30º15’S): Implications on the dynamics of the proto-Andean margin
Felipe Coloma1, Ximena Valin2, * Verónica Oliveros2, Paulina Vásquez1,
Christian Creixell
1, Esteban Salazar1, Mihai, N. Ducea3, 4

1 Servicio Nacional de Geología y Minería, Avda. Santa María 0104, Santiago, Chile.;;;

2 Departamento Ciencias de la Tierra, Universidad de Concepción, Víctor Lamas 1290, Casilla 160-C, Concepción, Chile.;

3 Department of Geosciences, University of Arizona, Tucson, AZ 85721, USA.

4 Universitatea Bucuresti, Facultatea de Geologie Geofizica, Strada N. Balcescu Nr 1, Bucuresti, Romania

* Corresponding author:

Permian to Triassic igneous rocks cropping out in the Coastal and Frontal cordilleras in northern Chile between 28º00’S and 30º15’S have long been interpreted to represent  products of magmatism related to an extensional tectonic setting, either as the result of crustal anatexis or asthenospheric mantle decompression melting, in a passive continental margin. Eighty-six samples of plutonic (61) and volcanic (25) rocks from this region are characterized petrographically and geochemically. They are Permian to Early Jurassic in age, but the majority of the studied rocks correspond to the Lower to Middle Triassic Chollay Plutonic Complex, the volumetrically most important unit in the area. The rock samples have features typical of magmas derived from flux-induced melting of a depleted mantle such as: broad range of petrographic composition with predominance of intermediate to acid members, highly porphyrytic volcanic rocks, magnetite as the Fe-Ti oxide mineral phase, enrichment in LILE over HFSE, marked depletion in Nb, Ta, Ti, and P and moderate to no negative Eu anomalies. Few of the studied rock samples (<10%) have alkaline signature and trace element contents representative of anorogenic magmatism. In this work, we propose that subduction of an oceanic plate beneath the South American continent is responsible for the evolution of the margin from the Permian to Early Jurassic, at the studied latitudes. A preliminary interpretation of the margin architecture of the Andean margin from the Permian to the Triassic would be that the Chanchoquin and Chollay plutonic complexes represent the roots of a magmatic arc developed from the Permian to the Middle or early Late Triassic, whereas the Guanaco Sonso and Pastos Blancos formations would be the shallower parts of such arc. The La Totora Formation and some volumetrically minor Upper Triassic intrusive units represent magmatic products with alkaline signatures, which developed immediately before the establishment of the magmatic arc in the present-day Coastal Cordillera (during the Rhaetian to Early Jurassic).

Keywords: Triassic, Subduction, Pre-andean, Frontal cordillera, Geochemistry.



1. Introduction

The Permian to Triassic is a controversial period for the southwestern Gondwana margin evolution since it is thought to represent a significant magmatic lull that resulted from lack of subduction after the orogenic collapse following the Permian “San Rafael” orogenic event (Nasi et al., 1990; Mpodozis and Ramos, 1989; Mpodozis and Kay, 1992). The magmatic sources would have changed significantly, decreasing the crustal component, between the Late Permian and the Early Jurassic. This change, which occurred during the Triassic, is explained by some authors as the response to a shift from subduction in a compressive setting to an extensional continental rift-related tectonic setting due to Pangea breakup (Mpodozis and Kay, 1992; Hervé et al., 2014), or as extensional deformation in the overriding plate, in a continuous subduction setting (Vásquez et al., 2011; Poma et al., 2014; Del Rey et al., 2016).

In the Coastal and Frontal cordilleras of north-central Chile (the latter being that part of the Andes along the Chile-Argentina border between 28º20’ and 31º S that features uplifted Paleozoic basement blocks), successive Cretaceous to Miocene deformation fronts within the current flat-subduction segment of the Andes have generated both thin- and thick-skinned deformation in a fold-and thrust belt (Moscoso and Mpodozis, 1988; Martínez et al., 2012), exposing large portions of late Paleozoic and early Mesozoic basement between 27º00’ and 30º00’S (Ribba et al., 1988; Salazar et al., 2013; Hervé et al., 2014). Thus, the geological record representing the Gondwana and Early Andean stages of the evolution of the South American margin are well exposed, although highly deformed. In particular, units cropping out in the Precordillera and Frontal Cordillera of northern Chile between 28°00’ and 29°30’, are a good record of this key time frame prior to the Andean subduction.

In Argentina, the Late Permian to Triassic period is characterized by the widespread magmatism represented by the Choiyoi group, whose origin had been attributed to crustal anatexis due to lithospheric extension associated to an orogenic collapse (Llambías and Sato, 1990; Llambías et al., 1993). Acid explosive volcanism is well documented until the Early Triassic and followed by sedimentary rift deposits with basaltic rocks of anorogenic affinities, in the Cuyo and Ichigualasto basins (Ramos and Kay, 1991).

The geological cartography of northern Chile between 27°00’ and 30°00’ has been updated over the past decade with works performed, at 1:100.000 scale, by the Servicio Nacional de Geología y Minería (SERNAGEOMIN) (Welkner et al., 2006, Arévalo and Welkner, 2008; Moscoso et al., 2010; Salazar et al., 2013; Creixell et al., 2012; Creixell et al., 2013; Martínez et al., 2015; Ortiz and Merino, 2015; Salazar and Coloma, 2016). These works include large geochronological databases in addition to refined litho stratigraphic unit definitions. In particular, the Late Paleozoic to Triassic rock units has been significantly modified, incorporating several new units and redefining those previously known. Even though extensive outcrops of acidic volcanic and subvolcanic rocks from the Late Carboniferous to the Permian are exposed in the Precordillera and Frontal Cordilleras, and  interpreted as equivalents to the Choiyoi Group. The Triassic rock units are more diverse and include large plutonic complexes, explosive volcanic sequences of dacitic to rhyolitic composition, continental to marine sedimentary sequences with minor volcanic component, and volcanic sequences of basaltic-andesite to rhyolitic composition (Reutter, 1974; Nasi et al., 1990; Salazar et al., 2013; Ortiz and Merino, 2015; Salazar and Coloma, 2016). Thus, the development of a continental rift phase in the South American plate during the Triassic is not a straightforward from the geological record in northern Chile between 27º and 30º S. Furthermore, extensive geochemical data from the Triassic units is lacking, precluding a tectonic interpretation of the magmatism from its chemical signature.

In this paper, we present new petrographical and geochemical data for several, Late Paleozoic to Triassic, plutonic and volcanic units cropping out in the Coastal (28º00’ S-29º30’ S) and Frontal cordilleras of northern Chile (28°30’ S-30 ° 15’ S). The geochronology of these units has been presented elsewhere (Creixell et al., 2012; Valin, 2014; Vallejos, 2014; Salazar et al., 2013; Creixell et al., 2016; Ortiz and Merino, 2015; Salazar and Coloma, 2016). The new data allow us to revise previous models for the tectonic setting of the Paleozoic to Triassic magmatism, its sources and processes of generation.

2. Geological Setting

In the Coastal Cordillera (28º-29º S, Fig. 1), the Paleozoic basement is represented by the Devonian to Permian Punta de Choros Metamorphic Complex, composed by micaschists and metabasites (Creixell et al., 2012) and Chañaral Epimetamorphic complexes, which consists mainly of metaturbidites and metasedimentary rocks (Godoy and Lara, 1998) and the Carboniferous to Permian Llano de Chocolate Beds (Creixell et al., 2012, 2016). The latter is a sedimentary rock sequence, mainly continental, deposited in a delta environment with proximal volcanic deposits (Creixell et al., 2016). These Paleozoic units are unconformably overlaid by Triassic rocks of the Canto del Agua Formation, a geographically restricted sedimentary sequence, and the volcanic Jurassic rocks included in the La Negra Formation, and intruded by several plutonic complexes ranging in age from the Upper Triassic to the Lower Cretaceous (Welkner et al., 2006; Arévalo and Welkner, 2008; Creixell et al., 2012). Among the older Mesozoic intrusives are the Carrizal Bajo Plutonic complex, a suite of diorites, quartz diorites, granodiorites and granites bounded by synplutonic normal faults and an age range between 208 and 206 Ma, the Algodones Granite composed of monzogranites and granodiorites of 203-199 Ma and surrounded by  amphibole mylonites (Welkner et al., 2006; Arévalo and Welkner, 2008; Creixell et al., 2012) and the Quebrada La Vaca Tonalite, composed of tonalites and quartz diorites ranging in age from 193 to 191 Ma (Welkner et al., 2006; Creixell et al., 2012).

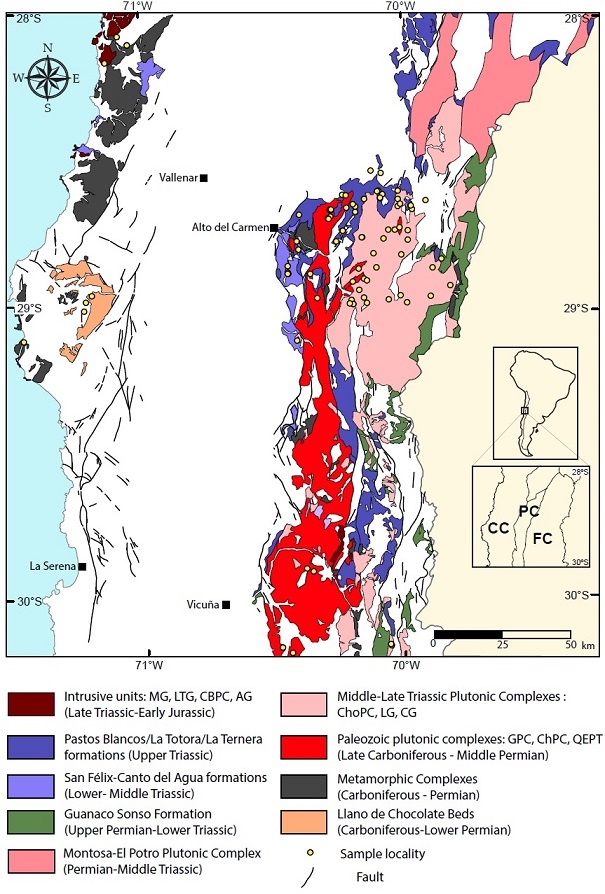

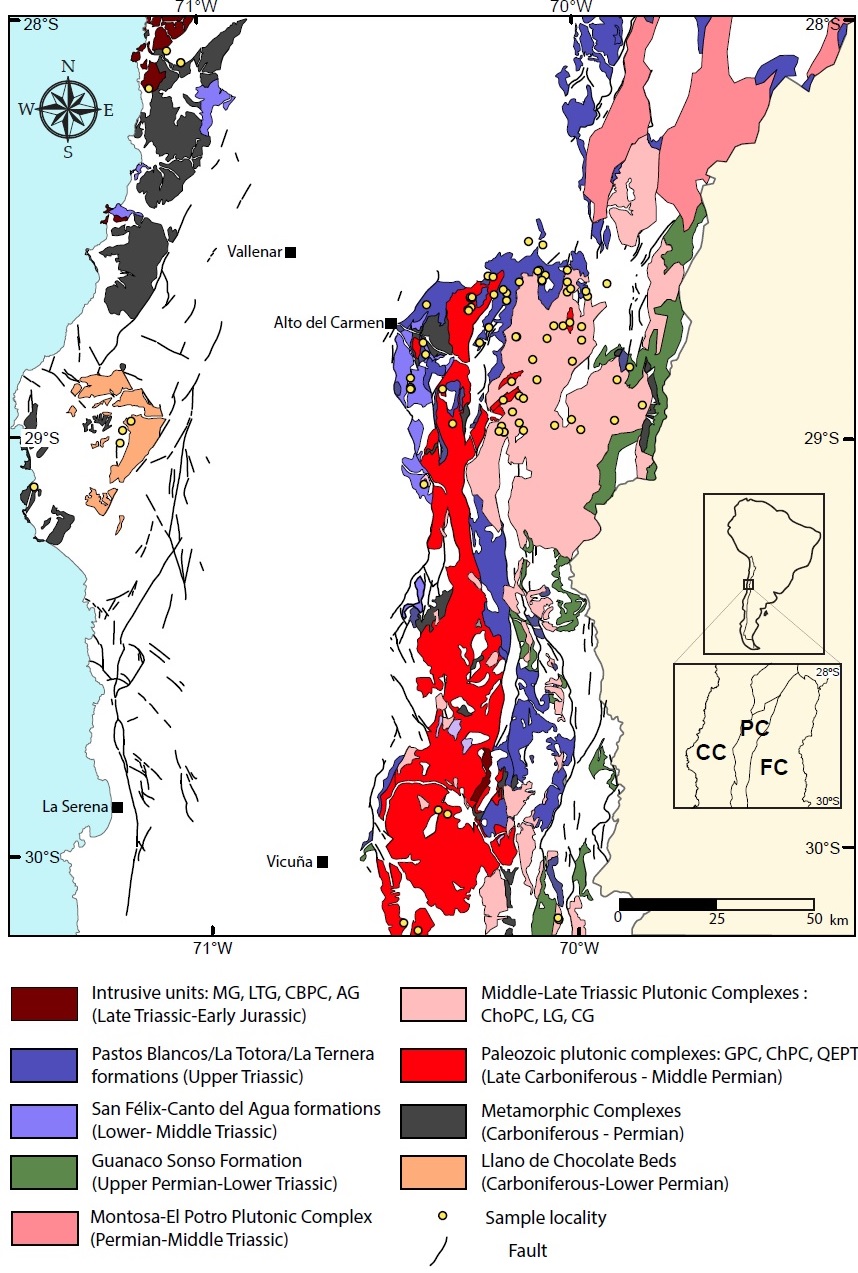

FIG. 1. Simplified geological map of the studied region including sample location. GPC: Guanta Plutonic Complex, ChPC: Chanchoquín Plutonic Complez, QEPT: Quebrada el Pintado Tonalites, ChoPC: Chollay Plutonic Complex, LG: La Laguna Gabbro, CG: Colorado Syenogranite, MG: Montegrande Granite; LTG: Los Tilos Pluton; CBPC: Carrizal Bajo Plutonic Complex; AG: Algodones Granite; CC: Coastal Cordillera, PC: Precordillera, FC: Frontal Cordillera.


Several Paleozoic and Mesozoic units are recognized in the Frontal Cordillera, the most relevant of which to the present study are listed in Table 1. The Permian and Triassic plutonic units have a distinct spatial distribution along the Frontal Cordillera, as two parallel, roughly N-S trending, belts. The western belt comprises Pennsylvanian to Cisularian granitoids of the Guanta and Chanchoquin plutonic complexes that intrude Late Devonian to Missisipian metamorphic rocks and penecontemporaneous volcanic deposits (Fig. 1). The eastern belt is composed mainly by outcrops of the Chollay Plutonic Complex, intruding Devonian metasediments, Carboniferous granitoids, Permian metamorphic rocks and tonalites, and penecontemporaneous volcanic deposits with minor components of Permian intrusives. In between the two belts, scattered outcrops of Carboniferous granitoids and high-grade gneiss and metaplutonic rocks are found (Salazar et al., 2013; Ortiz and Merino, 2015; Salazar and Coloma, 2016) (Fig. 1).

The Guanta Plutonic Complex (Ortiz and Merino, 2015), equivalent to the Guanta unit of Nasi et al. (1985), is composed of leuco to mesocratic, coarse to medium-grained, partly foliated, biotite and amphibole tonalites and granodiorites, ranging in age from 300 to 280 Ma (Nasi et al., 1985; Hervé et al., 2014; Ortiz and Merino, 2015). In continuity to the north, the Chanchoquín Plutonic Complex is a suite of medium to coarse grained granitoids composed of two-mica granodiorites, monzogranites, biotite and amphibole tonalites and diorites, that ranges from 297 to 285 Ma in age (Salazar et al., 2013). The Quebrada El Pintado Tonalites are small foliated plutonic bodies and correspond to tonalites and granodiorites of amphibole and biotite, of Middle Permian age (272-266 Ma, Salazar and Coloma, 2016). All the aforementioned units were previously assigned to the Elqui Superunit, an association of Carboniferous to Permian tabular coarse grained plutonic bodies believed to reflect significant crystallization depths  (Nasi et al., 1985). The Chollay Plutonic Complex, equivalent to the Chollay unit of Nasi et al. (1985), range in ages from 249 to 236 Ma and is composed of five different lithofacies, with medium to very coarse grained plutons that include gabbro-diorite, tonalite, syenogranite, granodiodiorite and monzogranite, being the two latter the most abundant (Salazar et al., 2013; Salazar and Coloma, 2016). The Colorado syenogranite corresponds to a group of hololeucocratic, fine-grained to porphyritic plutonic bodies of characteristic reddish color, that range in age from 225 to 219 (Nasi et al., 1985; Salazar et al., 2013; Maksaev et al., 2014). In the same geographic position as the Colorado syenogranite, several dioritic and granodioritic units have been lately described by Ortiz and Merino (2015), with an age of ca. 215 Ma. Other upper Triassic intrusive rocks are the La Laguna Gabbro, Montegrande Granite, Los Tilos Granodiorite (also called Los Tilos Pluton after Nasi et al., 1990; Hervé et al., 2014) and mafic dike swarms (Mpodozis and Cornejo, 1988; Martin et al., 1999; Creixell et al., 2009; Hervé et al., 2014). All these units were assigned to the Ingaguás Superunit by Nasi et al. (1985).

One of the oldest stratified units is the Upper Permian- Lower Triassic Guanaco Sonso Formation which is unconformably overlain by the Upper Triassic Pastos Blancos Formation (Nasi et al., 1990; Martin et al., 1999; Ortiz and Merino, 2015; Salazar and Coloma, 2016). These units were originally assigned to the Pastos Blancos Formation (Nasi et al., 1990) or to the Guanaco Sonso and Los Tilos Sequences of the Pastos Blancos Group (Martin et al., 1999). They consist mainly of pyroclastic and volcanoclastic rocks, of intermediate to acidic composition with minor basalts, (Martin et al., 1999; Salazar et al., 2013; Ortiz and Merino, 2015; Salazar and Coloma, 2016), but they are also including coarse sandstones, conglomerates and epiclastic rocks. While rocks of the Guanaco Sonso Formation unconformably overlie Paleozoic metamorphic basement, the rocks of Pastos Blancos Formation rest over the Chollay Plutonic Complex and is in turn intruded by the Colorado syenogranites and dykes. The San Félix Formation is a 6,000 m thick clastic continental-marine rock succession of Triassic age (Reutter, 1974) that contains a few crystalline and lithic lapilli tuffs levels in some of its five members and basic to intermediate lavas in the uppermost member (Salazar et al., 2013). Although the age range for this formation comprises the entire Triassic period, fossil content and U-Pb geochronology indicate that most of the sedimentation took place from the Lower to the Middle Triassic and only the uppermost member is Late Triassic in age, which is covered by and interfingers eastward with andesitic lavas of the La Totora Formation (Reutter, 1974; Salazar et al., 2013). The La Totora Formation is a volcanic sequence composed of lavas and tuffs of basic and intermediate composition, ranging in age from 221 to 212 Ma (Reutter, 1974; Salazar et al., 2013; Maksaev et al., 2014; Salazar y Coloma, 2016). East from the outcrops of the San Félix Formation, La Totora Formation covers unconformably the Chollay Plutonic Complex and is covered by the marine Lower to Middle Jurassic rocks of the Lautaro Formation.

3. Samples and methods

The complete dataset includes eighty-six samples of plutonic (61) and volcanic (25) rocks (Table 1, Fig. 1) belonging to twelve different Paleozoic and Mesozoic units. For the purposes of this study, the volcanic rocks collected from outcrops of the uppermost member of the San Félix Formation are assigned to the La Totora Formation, according to the information given in the previous chapter. The lithologies of the selected samples are: basaltic, basaltic-andesite and dacitic lavas, crystal and lithic lapilli tuffs, granodiorites, tonalites, granites, gabbros and diorites. Sixty-five samples were collected during the geological mapping of the Precordillera and Frontal Cordillera between 28º 30 ’ and 29º00’S by a team of the Servicio Nacional de Geología y Minería  (SERNAGEOMIN). The petrographic description and methods used in the geochemical analysis of these rock samples are detailed in Salazar et al. (2013) -they can be obtained from authors Coloma and Salazar upon request- and summarized here and in the following chapters. The remaining twenty-one samples were collected in the Coastal Cordillera and Precordillera between 28º S and 30º15’ S for petrographic and geochemical analysis. The thin sections were analyzed under the polarized-light microscope for a textural and mineralogical characterization. The samples were crushed and fresh fragments handpicked under binocular microscope. The selected fragments pulverized under 60 mm for chemical analyses of major and trace elements. Major element contents were determined through XRF (X rays fluorescence) whereas trace elemental concentrations were determined on a quadrupole single collector ICP-MS at the Geosciences Department of the University of Arizona. Analytical techniques, sample preparation procedures and standards were previously described in Chapman et al. (2015) and Rossel et al. (2013).

U-Pb geochronology of zircons was conducted by LA-MC-ICP-MS at the Arizona LaserChron Center (Gehrels et al., 2008). The analyses involve ablation of zircon with a New Wave/Lambda Physik DUV193 Excimer laser (operating at a wavelength of 193 nm) using a spot diameter of 25 or 35 mm. The ablated material is carried with helium gas into the plasma source of a GV Instruments Isoprobe, which is equipped with a flight tube of sufficient width that U, Th, and Pb isotopes are measured simultaneously. All measurements are made in static mode, using Faraday detectors for 238U and 232Th, an ion-counting channel for 204Pb, and either Faraday collectors or ion counting channels for 208-206Pb. Ion yields are ~1 mV ppm-1. Each analysis consists of one 20 s-integration on peaks with the laser off (for backgrounds), twenty 1 s-integrations with the laser firing, and a 30 s delay to purge the previous sample and to prepare for the next analysis. The ablation pit is ~15 mm in depth.

For each analysis, the errors in determining 206Pb/238U and 206Pb/204Pb result in a measurement error of ~1% (at 2s level) in the 206Pb/238U age. The errors in measurement of 206Pb/207Pb and 206Pb/204Pb also result in ~1% (2s) uncertainty in age for grains that are >1.0 Ga, but are substantially larger for younger grains due to low intensity of the 207Pb signal. For most analyses, the crossover in precision of 206Pb/238U and 206Pb/207Pb ages occurs at ~1.0 Ga. Common Pb correction is accomplished by using the measured 204Pb and assuming an initial Pb composition from Stacey and Kramers (1975) (with uncertainties of 1.0 for 206Pb/204Pb and 0.3 for 207Pb/204Pb). The measurement of 204Pb is unaffected by the presence of 204Hg because backgrounds are measured on peaks (thereby subtracting any background 204Hg and 204Pb), and because very little Hg is present in the argon gas. Interelement fractionation of Pb/U is generally ~20%, whereas fractionation of Pb isotopes is generally <2%. In-run analysis of fragments of a large Sri Lanka zircon crystal (generally every fifth measurement) with known age of 564±4 Ma (2s error) is used to correct for this fractionation (see Gehrels et al., 2008). The uncertainty resulting from the calibration correction is generally ~1% (2s) for both 206Pb/207Pb and 206Pb/238U ages.

The reported ages are determined from the weighted mean of the 206Pb/238U ages of the concordant and overlapping analyses (Ludwig, 2003). The reported uncertainty (labeled “mean”) is based on the scatter and precision of the set of 206Pb/238U or 206Pb/207Pb ages, weighted according to their measurement errors (shown at 1s). The systematic error, which includes contributions from the standard calibration, age of the calibration standard, composition of common Pb and U decay constants, is generally ~1-2% (2s).

4. Petrography of the plutonic and volcanic rocks

The petrography of the studied samples was carried out mainly in thin sections, in which the main mineralogy, both primary and secondary, was distinguished. Some images from the thin sections are detailed in figure 2, and the details of these descriptions are in the Appendix 1.




FIG. 2.     Microphotographs of the most relevant lithologies of the studied units: A. Tonalite, Chanchoquín Plutonic Complex; B. Tonalite, Quebrada el Pintado Tonalites; C. Monzogranite, Chollay Plutonic Complex; D. Tonalite,  Chollay Plutonic Complex; E. Granodiorite, Chollay Plutonic Complex; F. Dacite, Llano de Chocolate Beds; G. Andesitic clast in volcanic breccia, La Totora Formation; H. Crystalline tuff, San Félix Formation.




4.1. Llano de Chocolate Beds

In this unit, the volcanic and pyroclastic rocks are interbedded in the dominantly sedimentary sequence (Vallejos, 2014; Creixell et al., 2016) and they correspond to dacitic lavas and crystalline lapilli tuffs. The dacites have porphyrytic texture, slightly seriated, with felsitic groundmass. The phenocrysts correspond to reabsorbed quartz, plagioclase and biotite. Alteration minerals represents up to 5% of the rock, with calcite and clay minerals replacing plagioclase, and biotite is replaced by epidote and chlorite. Quartz, biotite, calcite and sericite also occur in veinlets. The tuffs have fragmental texture with fiammes, and phenocrysts of quartz and plagioclase. Secondary calcite and biotite occur in veinlets.

4.2. Chanchoquín Plutonic Complex

The Chanchoquín Plutonic Complex is composed mainly of tonalites and granodiorites with minor monzogranites and diorites, the studied samples include only tonalitic and granodioritic lithologies.  Granodiorites are fine to medium grained and contain quartz with undulatory extinction, plagioclase, orthoclase, biotite and minor muscovite or amphibole; accessory minerals are Fe-Ti oxides (mainly magnetite) and sphene. Perthitic texture is observed in some feldspar crystals. These lithologies are slightly altered (less than 10% volume of the rock) with sericite replacing feldspars and prehnite and epidote replacing biotite. Tonalites are medium to fine grained, they contain quartz with undulatory extinction and polycrystalline, zoned plagioclase, orthoclase, biotite, muscovite, minor amphibole, with Fe-Ti oxides and apatite as accessory minerals. Alteration minerals are generally less than the 8% of the rock, but in three samples they reach the 15%, with sericite replacing feldspars and chlorite, epidote and prehnite replacing mafic minerals. At the outcrop scale, the rocks are foliated to variable degrees.

4.3. Los Tilos Granodiorite

This unit is characterized by the presence of cordierite in its mineralogy, with allotromorphic inequigranular texture; its composition varies between granite and granodiorite and is composed by quartz, alkali feldspar, plagioclase, biotite, white mica with slight deformation, and cordierite. The quartz has undulatory extinction and locally shows a granoblastic texture, biotite is altered to chlorite and epidote, and shows slight deformation, similar to the white mica.

4.4. Quebrada El Pintado Tonalites

The rocks of this units are grey fine to medium grained tonalites with local millimetric to centimetric foliation. They contain polycrystalline quartz with undulatory extinction, plagioclase, minor orthoclase, biotite, amphibole, pyroxene, muscovite and Fe-Ti oxides, with apatite as accessory minerals. Myrmekitic and perthitic textures are observed in the feldspars. Secondary mineral represent less than the 6% of the volume of the rock, with sericite replacing feldspars, and chlorite and epidote replacing biotite.

4.5. Guanaco Sonso Formation

This volcanic and sedimentary unit is volumetrically important in the Frontal Cordillera (Fig. 1) and it is composed mainly of dacitic to rhyolitic, partly welded tuffs and lava flows of basaltic, dacitic and rhyolitic composition. Minor sedimentary beds of volcarenites, siliciclastic laminated conglomerate and medium to coarse grained sandstone are found, along with scarce outcrops of lacustrine mudstone and chert. The main lithology is crystal and lithic-bearing vitric lapilli tuffs, with plagioclase, quartz and amphibole phenocrysts, acid volcanic fragments and pumice of millimetric to centimetric size.

4.6. Chollay Plutonic Complex

The Chollay Plutonic Complex is the largest intrusive unit in the studied area (Fig. 1) and it is composed mainly of monzogranite and granodiorite, along with diorite to gabbro, tonalite and syenogranite. The monzogranites are pink and coarse grained rocks, which contain quartz with undulatory extinction and locally polycrystalline, sometimes zoned plagioclase, orthoclase with perthitic texture, minor microcline, biotite, muscovite, with Fe-Ti oxides (mainly magnetite) and sphene as accessory minerals; alteration minerals represent up to the 10% of the rock volume, with sericite replacing feldspars, and chlorite and epidote replacing biotite. The granodiorites are grayish white, fine to medium grained rocks, with zoned plagioclase, quartz with undulatory extinction and locally polycrystalline, orthoclase with perthitic texture, biotite, amphibole and muscovite, with sphene, apatite and rutile as accessory minerals, the alteration minerals can reach 15% in volume of the rock, with mainly sericite replacing feldspars and chlorite replacing biotite, while epidote and prehnite are also observed replacing mafic minerals. The diorites and gabbros are dark grey, medium to fine grained rocks, they contain zoned plagioclase and variable amount of olivine and clinopyroxene, the latter with amphibole rims, minor biotite, and Fe-Ti oxides, apatite and rutile as accessory minerals; alteration minerals can reach 12% of the volume of the rock, with sericite replacing plagioclase and scarce chlorite and prehnite. The tonalites are medium to fine grained, grey rocks, contain quartz with undulatory extinction, zoned plagioclase, scarce orthoclase, biotite, hornblende, and Fe-Ti oxides (mainly magnetite), with apatite and sphene as accessory minerals, and alteration minerals represent between 7 to 25% of the total volume of the rock, with sericite replacing plagioclase (4-15%), chlorite replacing biotite and amphibole (3-12%) and disseminated epidote. The syenogranites are orange, medium grained rocks, contain scarce plagioclase, ortoclase with pertitic texture, quartz with undulatory extinction, scarce Fe-Ti oxides, and zircon as accesory mineral.

4.7. Colorado Syenogranites

The lithologies in this plutonic unit vary from syenogranites to monzogranites with myrmekitic and graphic textures in the feldspars. The rocks are pink-orange, coarse to medium grained, with porphyric to phaneritic texture. Quartz with undulatory extinction, orthoclase, plagioclase and biotite are the main minerals with scarce opaque minerals (Fe-Ti oxides), and apatite and rutile as accessory minerals; alteration is weak and secondary minerals phases represent less than the 6% of the total volume of the rock, with sericite replacing plagioclase, chlorite replacing biotite and disseminated epidote.

4.8. San Félix Formation

The pyroclastic deposits are interbedded in the mainly siliciclastic rock sequence (Reutter, 1974; Ribba, 1985; Salazar et al., 2013; Vallejos, 2014), and they correspond to centimeter thick beds of lapilli and ash tuffs. The volcanic rocks have fragmental texture and locally eutaxitic, silicic alteration affected the matrix and plagioclases phenocrysts are replaced by sericite and clays, fine veins filled with sericite, biotite and quartz crosscut the rock.

4.9. Montegrande Granite

The Montegrande granite is an NNW elongated intrusive with an area of ca. 16 km2 (Parada, 1984). The granite is allotriomorphic inequigranular and is composed by alkali feldspar, quartz, plagioclase and minor amphibole, clinopyroxene, biotite and white mica. Alkali feldspar is anhedral and perthitic, while amphibole is interstitial, anhedral and often includes oxidized pyroxene, biotite and white mica are also interstitial. Locally, the amphibole is completely replaced by chlorite with minor biotite. The plagioclase is subhedral, with minor secondary sericite and often is rimmed by albite.

4.10. La Laguna Gabbro

It consists of small stocks with few hundreds of meters in diameter (Mpodozis and Cornejo, 1988, this work). The gabbros are coarse-grained with hypidiomorphic inequigranular texture with plagioclase, instersticial clinopyroxene, orthopyroxene, opaque minerals, and minor quartz and instersticial orthoclase. Locally, the rocks exhibit graphic texture. Clinopyroxene could be present as reaction rims which enclose opaque minerals. The alteration in these rocks is scarce, pyroxenes are altered to chlorite, epidote and opaque minerals whereas plagioclase are slightly altered to sericite.

4.11. La Totora Formation

This volcanic unit is composed by andesitic lava flows, volcanic breccias and a tuff level interbedded in the sequence. The lavas are reddish-violet andesites and basalts, with aphanitic to slightly porphyrytic texture, occasional vesicles and amygdales. The phenocrysts correspond to pyroxene and plagioclase with sieve texture, and the groundmass is hyalopilitic, locally intergranular, with plagioclase, pyroxene and olivine. The glass is altered to chlorite and Fe-Ti oxides. Secondary minerals represent up to 15% of the rock, with clay minerals, epidote and calcite replacing plagioclase, calcite in microveins, calcite and zeolite filling vesicles. The breccias are andesitic in composition. The clasts represent 15 to 40% of the total volume. They are lavas with porphyric and hyalophyric textures, plagioclase phenocryst (sieve textures) and glass, replaced by chlorite and Fe-Ti oxides. The matrix is similar in composition. The rocks are altered to calcite, quartz and clay minerals. Calcite is replacing plagioclase phenocryts and fill veinlets with quartz.

4.12. Carrizal Bajo Plutonic Complex and Algodones Granite

These plutonic bodies have a rather restricted distribution in the Coastal Cordillera (Welkner et al., 2006; Arévalo and Welkner, 2008) (Fig. 1). The samples of the Algodones granite correspond to medium grained quartz diorites, with plagioclase, quartz, clinopyroxene and biotite. These lithologies are slight to strongly altered (5 to 40% vol), chlorite and amphibole replace clinopyroxene, epidote and chlorite replace biotite and plagioclase crystals are replaced by sericite and clay minerals. The samples of the Carrizal Bajo Plutonic Complex correspond to medium to fine grained, equigranular biotite tonalites and granodiorites, and amphibole tonalite. They are slight to moderately altered, with chlorite and epidote replacing mafic minerals, and sericite and clay minerals replacing feldspars.

4.13. Dikes

They are hypabisal rocks with subophitic texture and basaltic-andesitic to andesitic in composition. The phenocrysts are principally plagioclase, with moderate alteration to sericite and clay minerals, Fe-Ti oxides and pyroxene, which is often altered to amphibole and chlorite.

5. Geochronological results and interpretation

Isotope chronology data have been published elsewhere for most of the studied rock units (see Martin et al., 1999; Welkner et al., 2006; Salazar et al., 2013; Hervé et al., 2014; Creixell et al., 2016; Ortiz and Merino, 2015; Salazar and Coloma, 2016) and summarized in Table 1. In this work, four samples of small intrusive rock units were selected for U-Pb dating in igneous zircons (Fig. 3). The detailed results are listed in the Appendix 2.

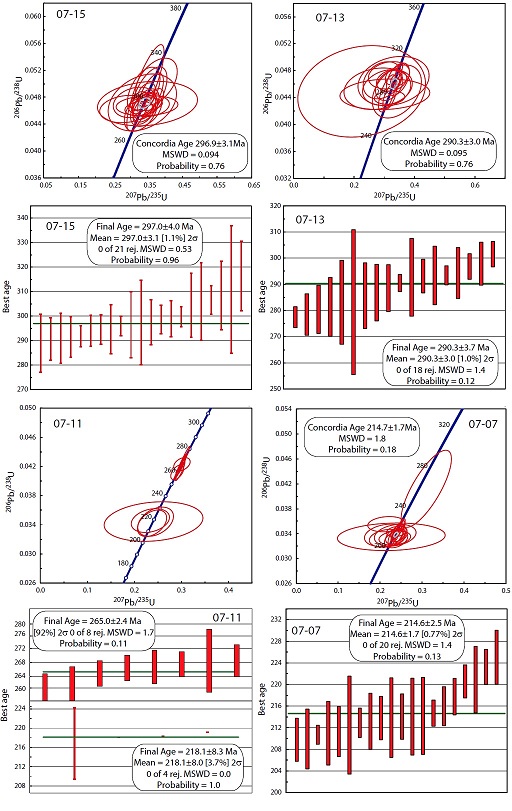

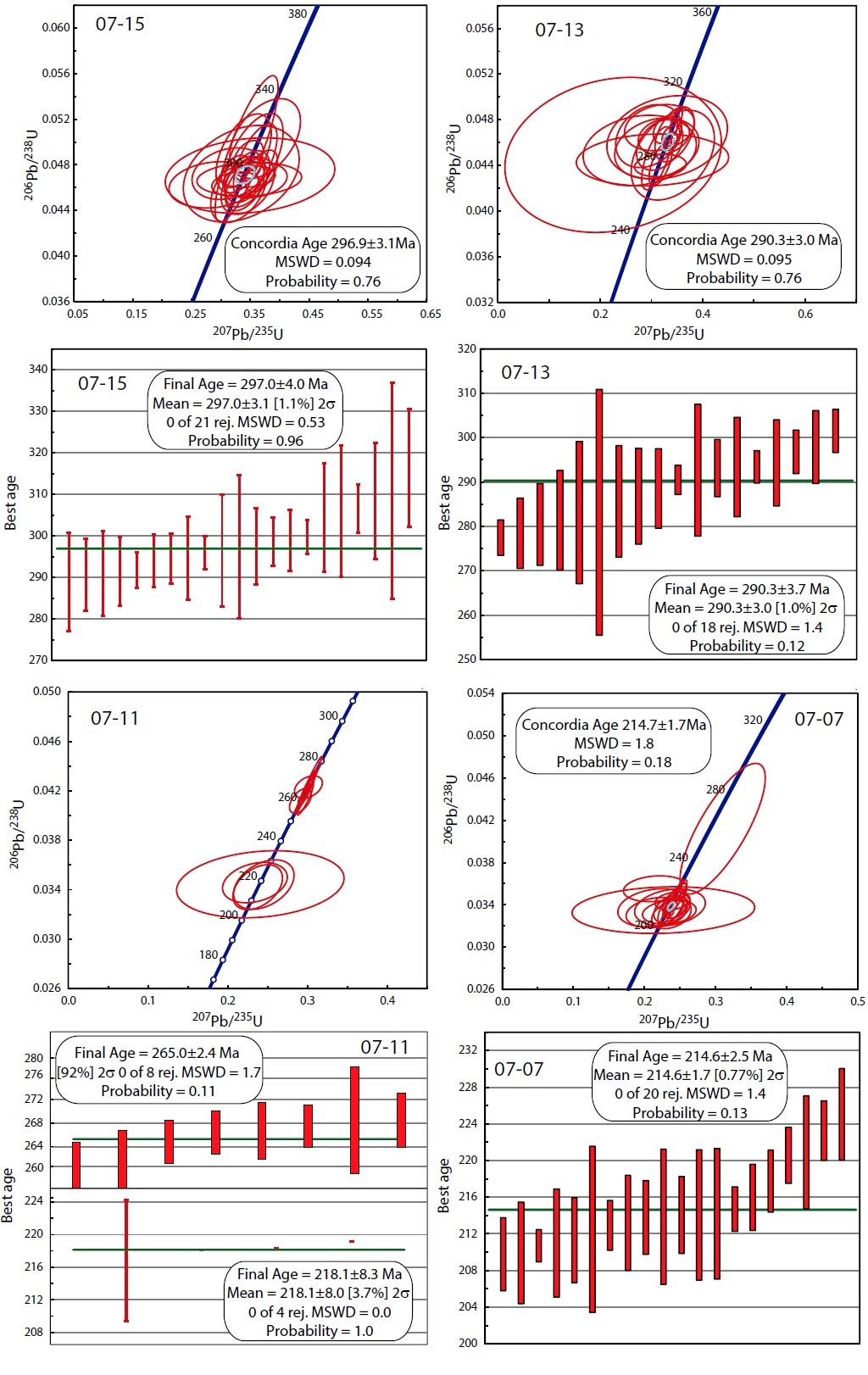

Fig. 3. Tera-Wasserburg concordia and estimated best U-Pb age plots for analyzed samples belonging to the Guanta Unit (O7-15), the  Los Tilos Pluton (O7-13), the La Laguna Gabbro (O7-11) and the Montegrande Granite (O7-07).


One sample from the Guanta unit (O7-15), equivalent to the Chanchoquín Plutonic Complex, displays an age distribution pattern with a single-peak, for which the best estimated age is 297.0±4.0 Ma. One sample from a body assignated to Los Tilos pluton (O7-13) also yielded a single-peak age distribution pattern with a best estimated age of 290.3±3.0 Ma. In both cases, there are no discordant ages from individual grains. The age of the Guanta unit agrees with previous reported data (Nasi et al., 1985; Hervé et al., 2014; Maksaev et al., 2014). In contrast, the Los Tilos pluton has been before assigned to the Ingaguás Superunit (Nasi et al., 1985) and dated at 215.6±1.9 Ma (Hervé et al., 2014) discordant with the result obtained in this work (290.3±3.0 Ma). Given that there are no younger single-grain ages, either concordant or discordant, in the analyzed sample, it is difficult to discard the result obtained for sample O7-13, but it is possible that it does not belong to the Los Tilos Pluton since the other data point to a Late Triassic rather than Early Permian age.

On the other hand, sample O7-07 from the Monte­grande Granite yielded a best estimated age of 214.6±1.5 Ma, with one single grain age of 260.3±25.2 Ma, suggesting possible assimilation of older crustal rocks during magma generation or evolution. This age is in agreement with the geochronological data previously reported, which range between 192±11 and 215.6±1.4 Ma (Brook et al., 1987; Hervé et al., 2014). In the case of the La Laguna Gabbro (sample O7-11), crustal assimilation by the Triassic magma is also a likely process since the rock exhibit a bimodal age distribution with peaks at 218.8±8.3 Ma and 265.0±2.4 Ma. Hervé et al. (2014) reported an age of 255.2±1.8 Ma but these authors discarded two younger single-grain ages at ca. 215 Ma and 225 Ma. We therefore think that the Late Triassic age is a plausible date for igneous crystallization of the gabbroic rocks, although some crustal material might have been assimilated in the process.

6. Geochemistry

Major and trace elements abundances for the studied volcanic and plutonic rocks are listed in Table 2 and in Salazar et al. (2013). Prior to the description of the geochemical results, the issue of the secondary alteration processes that affected the studied rocks is addressed.

6.1. Alteration

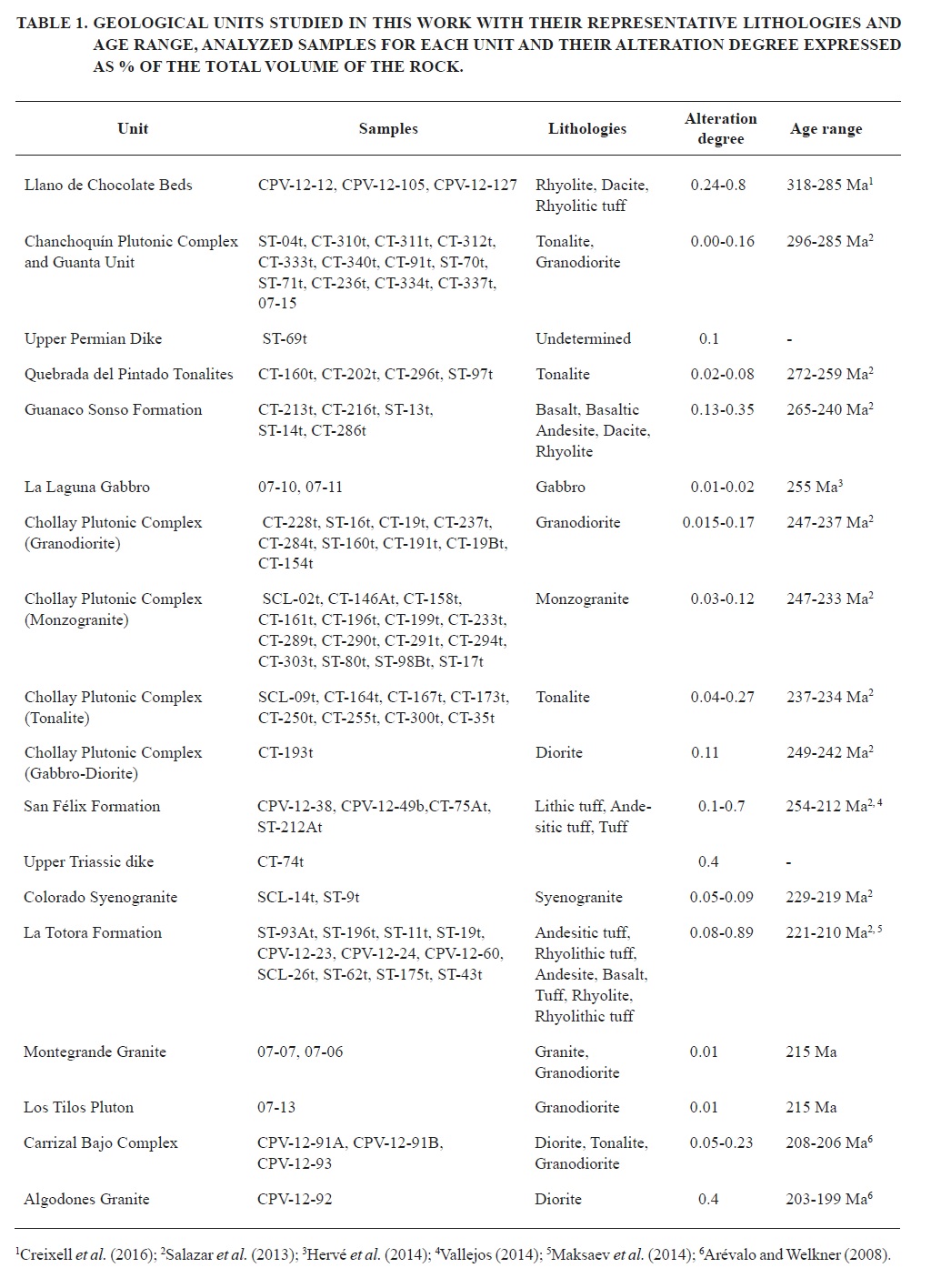

Secondary minerals are very common in the studied samples (see Table 1 and Appendix 1). The alteration minerals in the volcanic rocks can be up to the 25% of the total volume of the rock, whereas in the plutonic rocks is generally less than the 10%, with some exceptions up to 40% (Algodones granites). The exception are: sample CPV-12-105 (Llano de Chocolate beds), a silicified rhyolite or rhyolitic tuff for which the recognized volume of secondary quartz reaches the 85%; sample CPV-12-38 (San Félix Formation), a lithic tuff with a total volume of alteration minerals, mainly secondary quartz, of 39%; four samples of Coastal Cordillera intrusives (CPV-12-91A, CPV-12-92, CPV-12-93 and CPV-12-03) with total volume of alteration minerals ranging from 26 to 12%, being chlorite the main secondary phase; and four samples of the Chollay Plutonic Complex (CT-164q, CT-173q, CT-184q, CT-191q) with total volume of alteration minerals ranging from 26 to 12%, being sericite the main secondary phase. In addition, three samples of pyroclastic rocks (sample CPV-12-38 and CPV-12-49b, San Félix Formation; SCL-26q, La Totora Formation) are strongly altered and lithic fragments were not separate, which implies that these samples have not been considered in the interpretation of the tectonic implications. Calcite and sericite are ubiquitous alteration mineral phases in the volcanic rocks, whereas clay minerals, chlorite and sericite are the dominant secondary minerals in the plutonic rocks. Sericite and clay minerals replace plagioclase phenocrysts and calcite occurs in fractures, amygdules or as replacement of phenocrysts. The high loss on ignition in some of the volcanic and plutonic rocks is consistent with the widespread occurrence of calcite (Table 2).

Given that the discrimination of the convergent margin and within plate tectonic settings for igneous rocks is largely based in the content of incompatible (alkaline, large radii lithophile and high field strength) elements of the analyzed samples, and taking into account that some of these elements are mobile in hydrothermal processes, it is necessary to test the extent of mobility for the studied rocks. A comparison between the total alkalis versus silica (TAS) and Zr/Ti versus Nb/Yb classification diagrams was made (Figs. 4c, 4d). Slight enrichment in alkalis is observed in the volcanic rocks, which plot near the alkaline/sub-alkaline boundary. However, the classification based on the more immobile elements discards the alkaline character of the same rocks, with the exception of sample CPV-12-24, a basalt from the La Totora Formation. The potential bias of some mobile major and trace elements along with the high amount of material loss on ignition, that affects particularly the major elements, imply that the interpretations of the tectonic setting of the magmas that generated the studied rocks must be done with caution and based on the behavior of the less mobile elements, such as the rare earth (REE) and high field strength (HFSE) elements. In this work, we only considered for tectonic implications the rocks with less than 10% of total volume of alteration minerals.

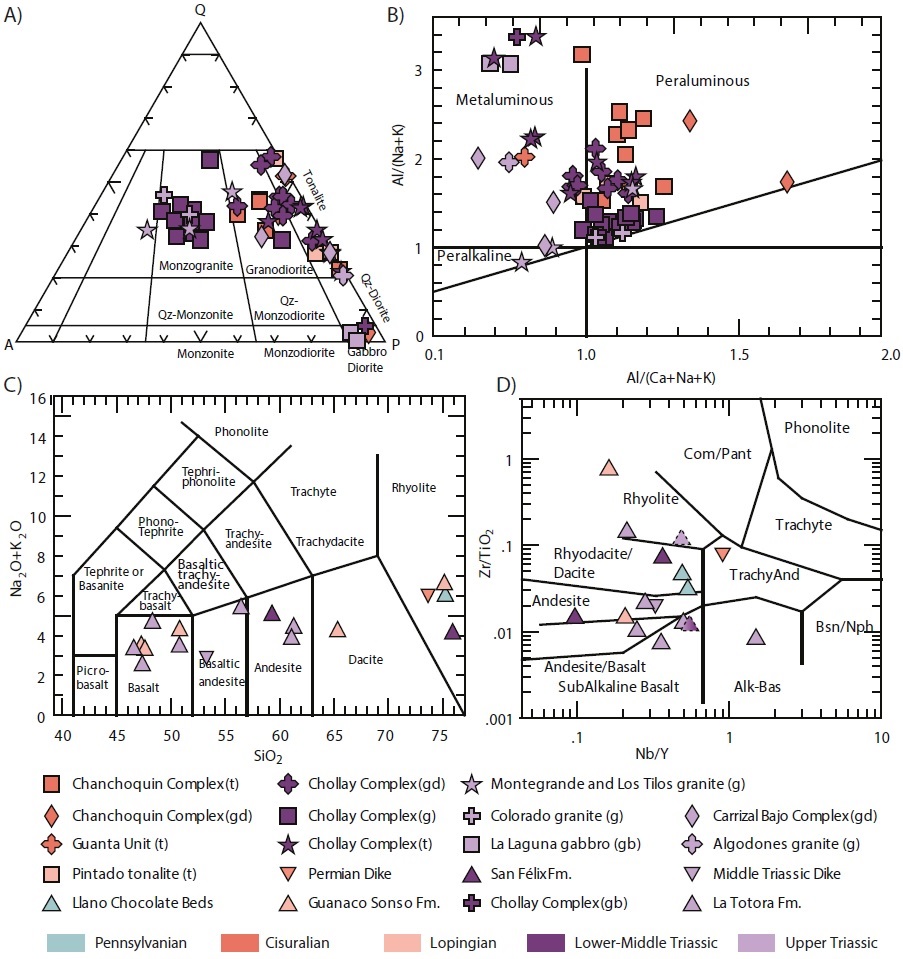

FIG. 4. a. QAP classification and b. alumina saturation index diagrams for plutonic rocks (Shand, 1927),  c. TAS (Lebas et al., 1986) and d.   Nb/Y versus Zr/TiO2 (Winchester and Floyd, 1977) classification diagrams for volcanic rocks. Symbols with dashed lines and color gradient represent the two strongly altered samples of volcaniclastic rocks from the San Félix (CPV-12-38) and La Totora (SCL-26Q) formation.


6.2. Major Elements

The contents of SiO2 (on anhydrous basis) of the volcanic rocks with variable alteration grade range between 48% and 91% (Fig. 4c). The pyroclastic rocks of the La Totora and San Félix Formations and the Llano de Chocolate Beds that have the highest Si O2 content are strong altered. This is consistent with the dispersion of the alkalis displayed for these samples in Fig. 4c. Although the number of studied samples precludes a significant statistical approach, a bimodal distribution of the volcanic rock within the different units is not observed, at least for the major element content. The alkali content of the rocks range from 3 to 8 wt% (oxide), and in general it increases with higher SiO2 content. Exceptions to this pattern are samples CPV-12-38 and CPV-12-105 with 2% and 10% alkalis, respectively. According to their SiO2 and K2O content the studied rocks would have calc-alkaline and high-K calc-alkaline affinities (Fig. 4c)(Peccerillo and Taylor, 1976; Irvine and Baragar, 1971) The wt% of TiO2, MgO and FeOt vary from 0.08 to 2.20, 0.49 to 16.00 and from 0.30 to 13.50, respectively. The dispersion for these elements is much less than for the alkalis and in general their concentration decreases with increasing SiO2 content. The Al2O3 content ranges between 8.83 and 18.50 wt%, decreasing, first very slightly and then progressively, with increasing SiO2 content. The systematic decrease in the contents of TiO2, FeOt, MgO, Al2O3 and CaO is compatible with progressive fractionation of plagioclase, Fe-Ti oxides, olivine and clinopyroxene, which is consistent with the observed mineralogy in the studied rocks (Appendix 1).

6.3. Trace elements

As observed in the multi-element diagrams (Fig. 5) most of the studied samples show enrichment in LILE compared to HFSE, relative to primitive mantle concentrations. High contents of Pb as well as a depletion in Nb-Ta, Ti and P are observed in rocks of all units. The volcanic rocks show a much larger dispersion in LILE than any of the plutonic lithologies, especially Cs and Rb. Such pattern is likely due to hydrothermal alteration or very low grade metamorphism. The rocks of the La Totora Formation have the lowest LILE contents but still enriched in this groups of elements compared to HFSE.

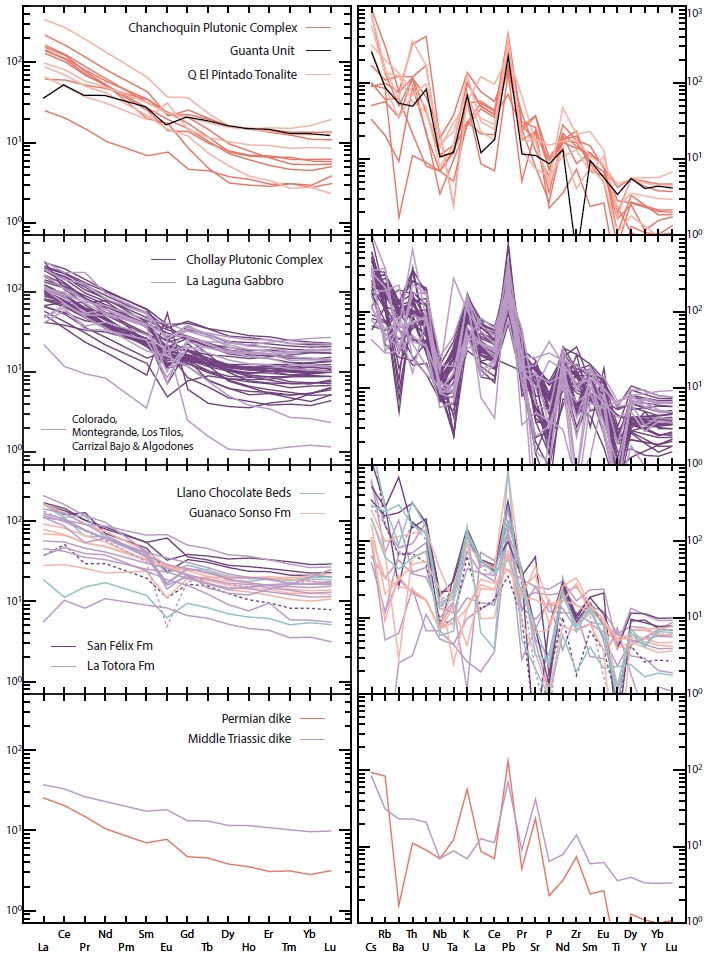

FIG. 5.     Spider diagrams of chondrite-normalized rare earth (left) and primitive mantle-normalized (right) trace elements abundance in the studied rocks. Normalizing values are from Sun and McDonough (1989). Dashed lines represent the two strongly altered samples of volcaniclastic rocks from the San Félix (CPV-12-38) and La Totora (SCL-26Q) formation.


Both plutonic and volcanic units show rather steep chondrite-normalized REE patterns (Fig. 5), with (La/Yb)N ranging from 3.4 to 52.2 for Permian rocks to 3.1 to 43.4 for Triassic rocks. Eu anomalies in volcanic rocks show a moderately negative correlation to SiO2 in all units, suggesting a modest contribution of plagioclase fractionation to magma evolution. The Eu/Eu* ranges from 0.6 to 1.2 in most of the volcanic rocks, and it around 1.0 for the majority of Triassic rocks (Fig.6a), suggesting relatively high oxygen fugacity conditions for those magmas. The plutonic rocks also lack significant negative Eu anomalies but have a wider range of Eu/Eu* between 0.2 and 1.8 (Fig. 7a). The Upper Triassic intrusives, both in the Coastal and Frontal cordilleras, exhibit the most marked negative anomalies and most positive as well, whereas the Chollay complex and the Permian intrusions have Eu/Eu* values around 1.

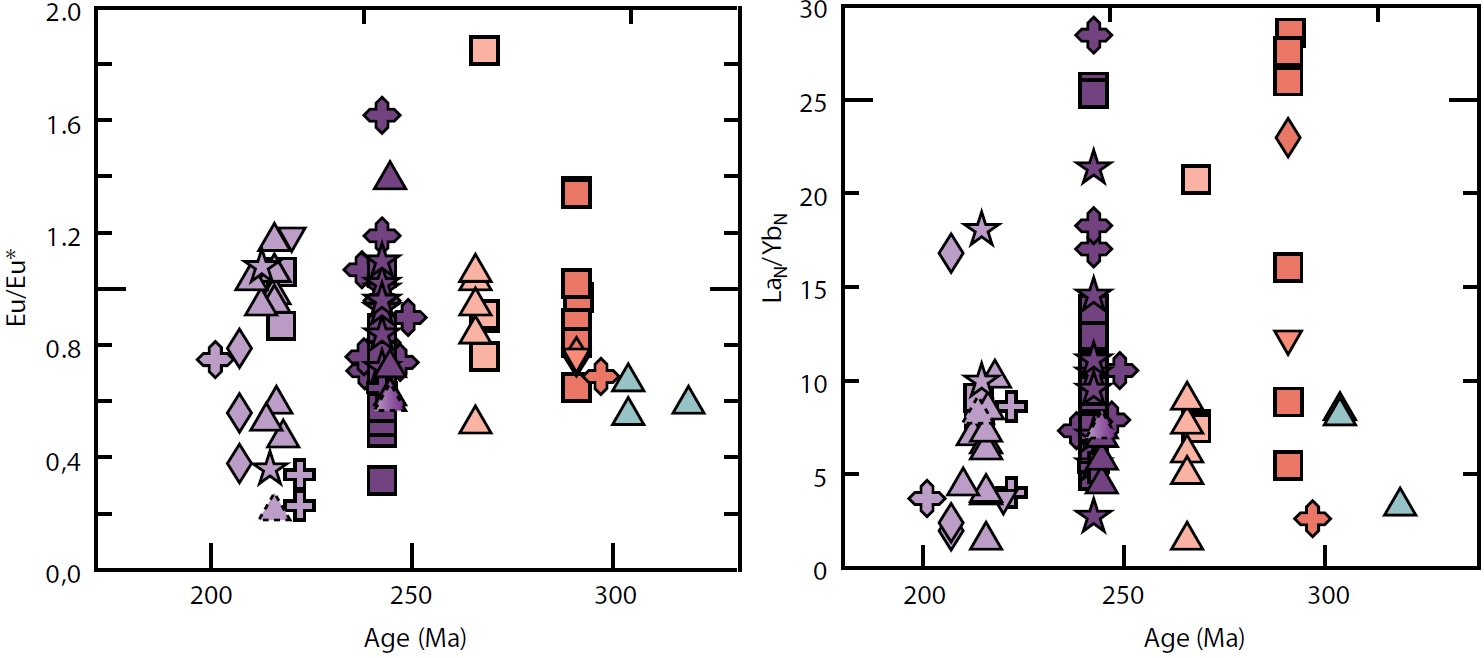

FIG. 6.     Age versus Eu/Eu* and LaN/YbN for the studied samples. All REE values normalized to chondrite abundances (Sun and McDonough, 1989). Symbols with dashed lines and color gradient represent the two strongly altered samples of volcaniclastic rocks from the San Félix (CPV-12-38) and La Totora (SCL-26Q) formation.

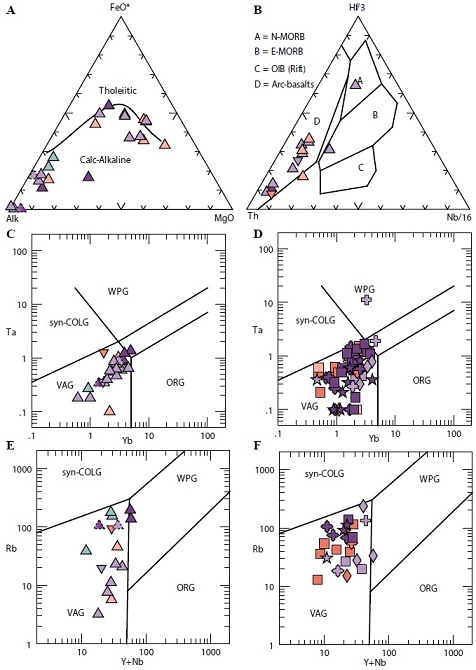

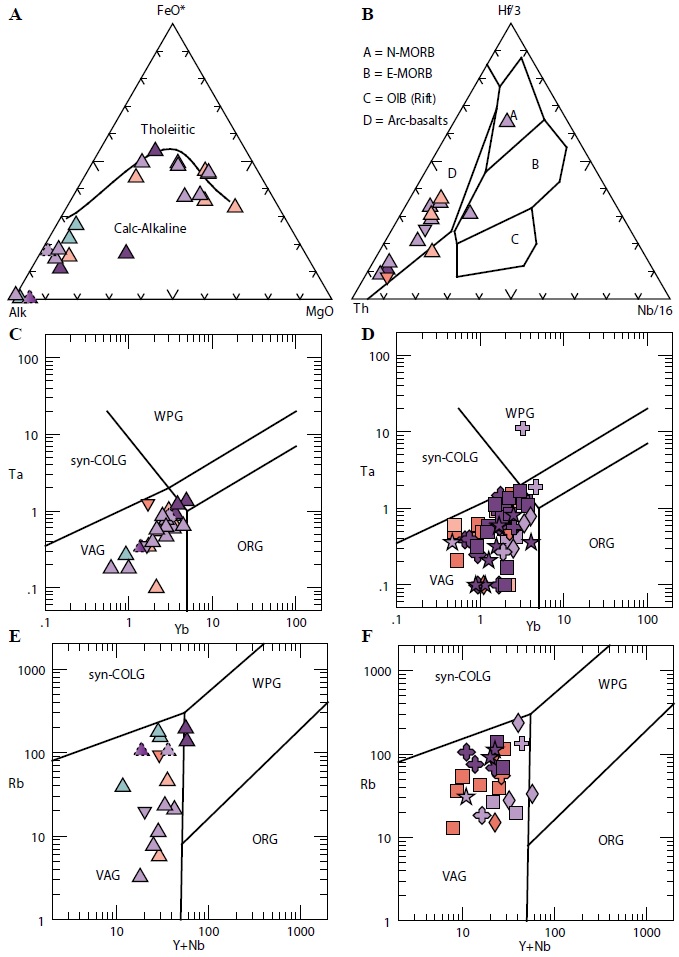

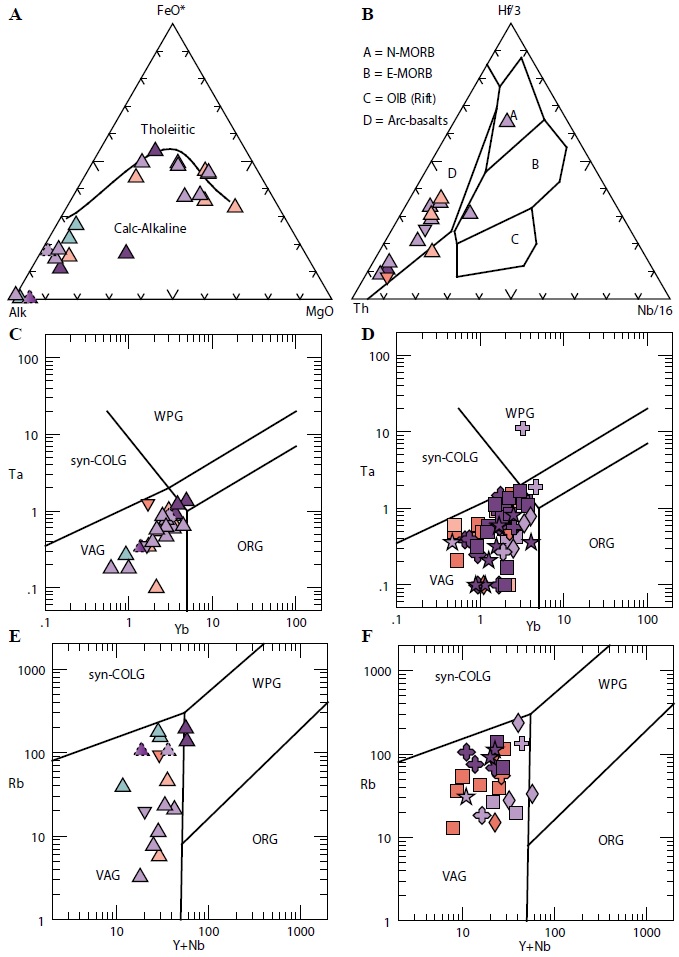

FIG. 7.      Tectonic discrimination diagrams for the studied samples. a. AFM  (Irvine and Baragar, 1971) and b. Th-Nb-Hf for basic and intermediated volcanic rocks;  Yb versus Ta diagram (Pearce et al., 1984) for c. acid volcanic and d. plutonic rocks; Yb+Nb versus Rb (Pearce et al., 1984) for e. acid volcanic and d. plutonic rocks. Symbols with dashed lines and color gradient represent the two strongly altered samples of volcaniclastic rocks from the San Félix (CPV-12-38) and La Totora (SCL-26Q) formation.


7. Discussion

7.1 . Sources and evolution of the proto-Andean magmatism

The studied rocks are very heterogeneous both petrographically and from their major element composition. The trace elements content is also variable, but they display similar geochemical patterns (e.g., REE) suggesting uniform chemical behavior (Fig. 5). In particular, the marked enrichment in LILE over HFSE is present in all the spider diagrams of figure 5, both for plutonic and volcanic rocks. The volcanic rocks are all subalkaline and plot within the calk-alkaline field of the AFM diagram (Fig. 7a). All but one of the basic and intermediate samples (CPV-12-24 of the La Totora Formation) have also HFSE contents representative of calc-alkaline affinities (Fig. 7b) and the more acidic rocks plot in the field of arc granites based on their LILE and HFSE contents (Fig. 7c, e). Although the number of analyzed volcanic rocks does not allow a robust statistical analysis, it is noteworthy to point out that they comprise the entire petrographic range for subalkaline volcanics, from basalt to rhyolites and there is no bimodal distribution in their composition (Fig. 4c, d). The plutonic rocks also lack bimodal distribution of their compositional ranges, and tonalite is the most abundant lithological type, followed by monzogranite and grandiorite (Fig. 4a). Very few basic intrusions, such as gabbro or diorite, are found among the studied intrusive units (Fig. 4a). In the tectonic discrimination diagrams of Pearce et al. (1984), nearly all samples plot in the “Volcanic Arc Granite” field (Fig. 7d, f). Only two samples of the Colorado Syenogranite unit are outside this pattern, plotting in the field of “within plate magmatism” (Fig. 7d).

The Colorado Syenogranite, the La Laguna Gabbro and the Montegrande granite are among the intrusive units with alkaline within plate affinity that are described in the literature (Parada, 1981, 1982; 1988; Nasi et al., 1985; Mpodozis and Kay, 1992) as representatives of the Upper Triassic magmatism. Taking into account the Colorado Syenogranite and the La Totora Formation samples analyzed in this study, it is clear that alkaline magmatism did occur during the Upper Triassic in the present-day Frontal Cordillera. Its volume and areal distribution however, seem to be significantly more restricted (Fig. 1) than that of the calc-alkaline magmatism as it was proposed before and it cannot be considered as representative of the main magmatic events or fluxes that built the continental crust during the Triassic. The origin of this alkaline magmatism may be related to the establishment of the arc in the present-day Coastal Cordillera (see below).

All volcanic rocks are highly porphyritic, suggesting a probably elevated water content of the magmas that favored crystal growth over nucleation prior to volatile inmiscibility or degassing (Cashman and Blundy, 2000; Winter, 2010). The ubiquitous presence of magnetite as the main Fe-Ti oxide mineral phase in both plutonic and volcanic rocks is also an indicator of rather elevated fO2 conditions in the magmas (Buddington and Lindsley, 1964). Hydrated minerals such as amphibole and biotite occur in all the petrographic range of the plutonic rocks, from gabbro to syenogranite, which is an undoubtedly evidence that the magmas were hydrated. These petrographic and geochemical patterns are often interpreted as the result of flux-melting of an asthenospheric mantle source, a process that usually takes place at convergent margins were an oceanic plate is subducted under the continent (Stern, 2002 and references therein).

If the magmatic source was indeed a depleted mantle, subsequently metasomatized by fluids that enriched it in mobile elements released by mineral breakdown of hydrated minerals from the subducted slab, then an assimilation of the continental crust during the ascent of such mantle-derived melts is likely (Hildreth and Moorbarth, 1988), especially because the acid components in the plutonic and volcanic rocks are volumetrically dominant. The subduction-related signature is present in both peraluminous and metaluminous intrusives, suggesting that such signal is not only derived from crustal assimilation. Even though high SiO2, Na2O, K2O and REE contents are observed, evidences of fractional crystallization are not entirely coupled to this signal. For example the rocks with the highest REE contents lack the characteristic negative Eu-anomaly associated to fractionation of plagioclase during magma differentiation (Table 2). The degree of crustal assimilation during the Triassic must have been, however, restricted or at least lower than that of the Paleozoic magmatism. This is inferred from the alumina content of the plutonic rocks, which is generally lower for the Chollay and other Triassic intrusives than for the Permian plutons (Fig. 4b). A similar hypothesis has been presented by Hervé et al. (2014) and del Rey et al. (2016) for the plutonic rocks of the Frontal Cordillera at the same latitudes of the present study. Based on the coupled variation between 176Hf/177Hf and d18O and the crystallization age of zircons from these units, these authors concluded that the crustal contamination of the magma sources decreased steadily from the Carboniferous to the Triassic. This is in agreement with the regional extension that should have taken place at continental margin as it has been proposed by several authors (Nasi et al., 1985; Mpodozis and Ramos, 1989; Mpodozis and Kay, 1992) and can also be related to crustal thinning since LaN/YbN for Triassic rocks are lower than their Permian counterparts (Fig. 6b). The decrease of a crustal component in the magma sources during the Triassic therefore suggest that the geochemical signature of the studied rocks cannot be solely attributed to heritage from partial melting of a crustal protolith formed during the Gondwana orogeny or earlier.

7.2. Tectonic framework for the Triassic magmatism: passive or active continental margin?

Current models for the tectonic setting of the South American margin during the Triassic, propose that subduction ceased or it was significantly diminished due to global extensional forces operating on the tectonic plates at this time (Mpodozis and Ramos, 1989) or morphed into a soft collision due to accretion of an allochtonous terrain to the continental margin (Mpodozis and Kay, 1992). Evidences supporting these models come both from field geology and geochemistry of Permian to Triassic rocks cropping out in Chile and Argentina. However, in light of the recently updated geological cartography and the more robust geochemical databases for relevant units, alternative tectonic setting cannot be ruled out (Del Rey et al., 2016).

The lines of evidence for the extensional-setting model in present-day Argentinean territory are in summary: a. the existence of huge volume of acid magmatism genetically related to crustal anatexis, represented by the Choiyoi group, a unit that is located along the eastern flank of the Andes, between 20° and 40°S (Llambías and Sato, 1990, 1995; Llambías et al., 1993, 2003); b. the generation of basaltic flows of alkaline or within plate geochemical signature, genetically related to the last stage of the Choiyoi Group magmatism (Ramos and Kay, 1991), c. the sedimentological and structural framework of rift activity in the Cuyo and Ichigualasto basins, both of Lower to Upper Triassic age (Spalletti, 1997; Spalletti et al., 2006; Giambiagi and Martínez, 2008; Giambiagi et al., 2011) and d) the petrological, sedimentological and structural framework of rift, and subduction-related, activity for the Uppermost Triassic-Lower Jurassic Pre-Cuyo group of the Neuquén Basin in Argentina (Spalletti, 1997; Franzese and Spalletti, 2001; Bechis et al., 2010; D’Elia et al., 2012a, b).

Along the western flank of the Andes and the forearc region of northern Chile between 28 and 31ºS, however, the magmatic units that can be related to rift activity are scarce. Bimodal magmatism with crustal or intraplate signature has been reported in the Middle to Upper Triassic Pichidangui Formation (Morata et al., 2000) and in the Limarí Complex (Parada et al., 1991, 1999) at the Coastal Cordillera of north central Chile; and bimodal intrusions of Upper Triassic age had long been recognized in the Frontal Cordillera (~29-30º S) (Parada, 1982, 1988; Nasi et al., 1985; Mpodozis and Kay, 1992; Hervé et al., 2014). In both cases, the volume of magmatism is restricted to the total volume of volcanism and plutonism of the Triassic period (see Fig. 1). Some of the Permian to Lower Triassic volcanic units that are considered to be equivalent to the Choiyoi Group (La Tabla, Pantanoso and Guanaco Sonso/Pastos Blancos formations) do not exhibit geochemical features of extensive crustal contribution, furthermore, the available isotopic data from the literature, would favor the hypothesis of mixed magma sources, a depleted mantle and the continental crust (Parada, 2013; Hervé et al., 2014; Del Rey et al., 2016). Alkaline and/or tholeiitic basalts associated to the late stages of this acid magmatism, and commonly interpreted as dry primitive volcanism resulting from low degrees of  decompression melting of the ascending asthenospheric mantle in a rift context, is not found. Basaltic and basaltic-andesitic flows that could correspond to rift activity are described in units such as the La Totora, La Ternera and Quebrada del Salitre Formation in the Precordillera and Frontal cordillera between 27º and 30º S, but they lack alkaline geochemical signature and their age is constrained to the Late Triassic (Reutter, 1974; Ribba et al., 1988; Blanco, 1996; Cornejo and Mpodozis, 1997), more than 20 Ma after ceasing of the Choiyoi-related acid volcanism (Llambías et al., 1993). Recent works have reported Triassic ages for some of the accretionary prisms in northernmost Chile (Casquet et al., 2014), suggesting that generation of an accretionary wedge as the result of subduction of an oceanic plate at the continental margin was an ongoing process at least until the Triassic and did not stop prior to the Carboniferous as it has been proposed before (Parada et al., 1999)

The differences in the magmatic products at both sides of the Andean range are thus important and call for likely distinct patterns of lithospheric evolution during the Triassic. In the continental interior, stretching of the lithosphere induced crustal anatexis due to ascent of the asthenospheric mantle generating well developed NW-oriented depocenters that accommodated the rift deformation (Spalletti, 1997; Llambías et al., 2003; Giambiagi et al., 2011). The geochemical and petrological characteristics of the volcanic and plutonic rocks  studied in this paper strongly suggest that they were generated in a subduction setting and the subduction was a continuous process that generated most of the magmatism in the arc region (Fig. 8a).

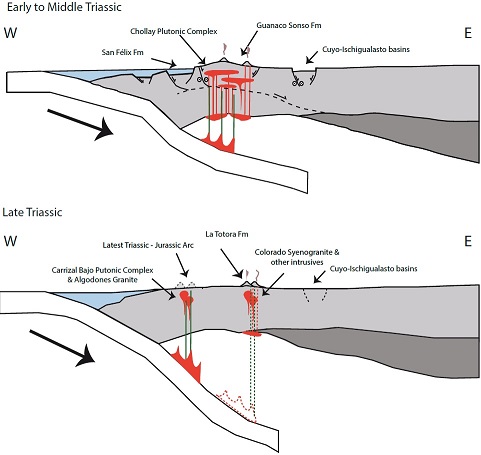

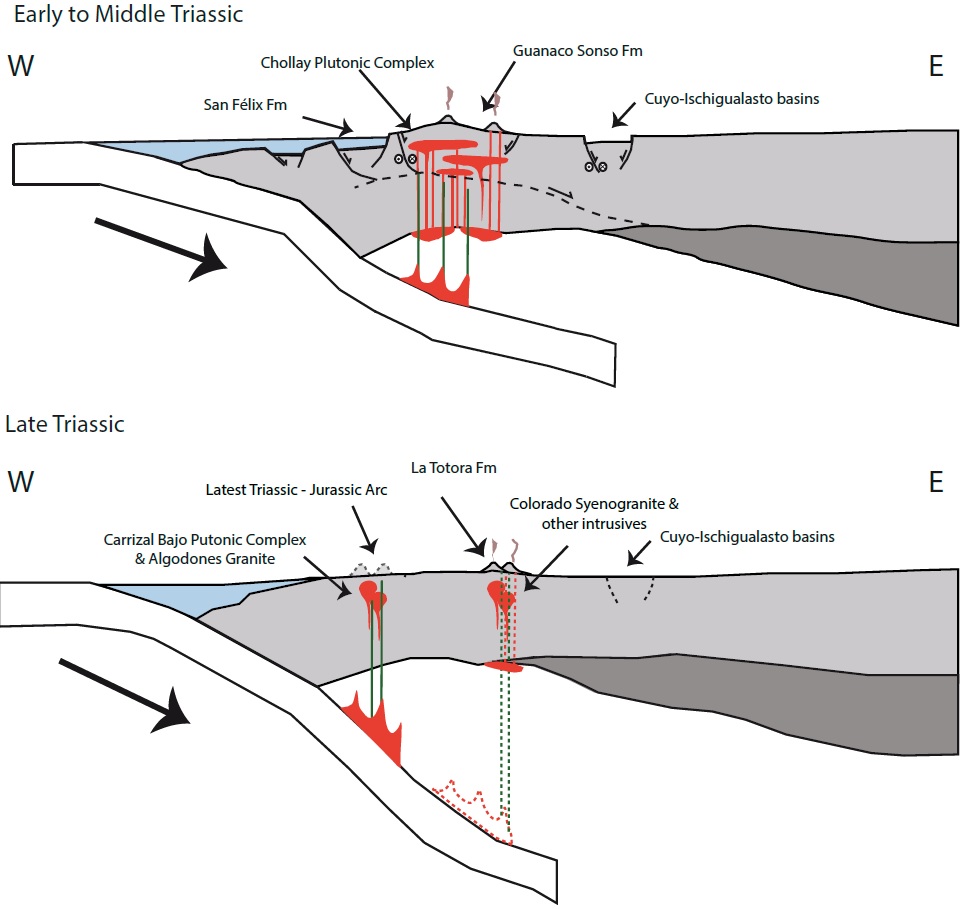

FIG. 8. Proposed tectonic setting for the Triassic magmatism at 28º-30º15’ S in the South American margin.



7.3.  Permian to Triassic margin architecture in the studied segment

Even though evidences supporting the idea that continental margin was subjected to active subduction of an oceanic plate during the Triassic have been collected from petrology and geochemistry, the architecture of the supra-subduction zone is still undetermined. The Llano de Chocolate beds have been interpreted as forearc magmatism occurred during the Permian because of their location close to the coeval accretionary prism (Creixell et al., 2016). Given the texture and composition of the Chanchoquin and Chollay plutonic complexes (coarse grained, mainly granodioritic to tonalitic, biotite and hornblende-bearing intrusives), they can be interpreted as representative of the root of an active continental magmatic arc developed from the Permian to the Middle Triassic (Pitcher et al., 1985; Pitcher, 1993; Winter, 2010). The Triassic Guanaco Sonso and Pastos Blancos formations would then represent shallower parts of the arc region, and the San Félix Formation would represent a proximal forearc basin that was active at least until the Early Triassic. Both units are composed of rhyolithic volcanic rocks similar in texture and composition to the subduction-related Miocene to recent acid volcanism emplaced in the same segment of the Andean arc (Kay and Mpodozis, 2001, 2002; Kay et al., 2013).

The La Totora Formation on the other hand, is composed of more undifferentiated volcanics and restricted to the Norian-Raethian, although it still retains the subduction-related geochemical and petrological signature. During the Upper Triassic plutonic bodies with alkaline or within plate affinities were intruded (La Laguna Gabbro, Colorado Syenogranite, Montegrande granite). The data presented in this study indicate that these units also have the geochemical signature of arc magmas, but along with the La Totora Formation they comprise the time frame prior to the establishment of the arc at the Coastal Cordillera during the Hettangian (Mpodozis and Ramos, 1989; Parada et al., 1999) (Fig. 8b). The first pulses of the well-known early Andean arc are represented by the La Negra Formation and its equivalents (Rogers and Hawkesworth, 1989; Pichowiak et al., 1990; Pichowiak, 1994) but given the signature of the Coastal Cordillera plutonic bodies studied in this work, they may have been the result of the earliest arc activity in the present-day coastal region. Furthermore, recent studies have reported Rhaetian volcanism in the Coastal Cordillera at 20°-22° S (Sepúlveda et al., 2014). Changes in the geometry of the subducted lithosphere or in tectonic conditions of the upper plate may have induced shift in the arc locus from the Frontal Cordillera to the Coastal Cordillera, but the precise timing an origin of such shifting is yet unknown.

8. Concluding remarks

The Triassic magmatism at the present-day Coastal and Frontal Cordilleras between 28°00’ and 29°30’ S is mainly represented by plutonic units comprising tonalitic to monzogranite rocks, with scarce syenogranites and more basic rocks such as gabbro and diorite, of which the Chollay Plutonic Complex is the volumetrically most important. Volcanic sequences are more restricted but not uncommon, and they are composed of rocks ranging from basalt to rhyolite, being more abundant the differentiated rocks.

The Permian to Jurassic rocks have petrological and geochemical characteristics typical of sub­duction-related magmas: calc-alkaline or volcanic arc granite affinities, mafic hydrated minerals as major constituent of the rocks, highly porphyritic texture in the volcanics, magnetite as the main Fe-Ti oxide mineral phase, systematic enrichment of LILE versus HFSE when compared to primitive mantle abundances and Nb-Ta troughs. Although alkaline magmatism of within plate affinities is also found, it is significantly more restricted in terms of total volume and areal distribution and unlikely to be representative of the main Triassic magmatic events.

The detailed architecture of the Andean margin from the Permian to the Triassic is relatively unknown. The Chanchoquín and Chollay plutonic complexes would represent the roots of a magmatic arc developed from the Permian to the Middle or early Late Triassic, whereas the Guanaco Sonso and Pastos Blancos formations would be the shallower parts of the volcanic arc. The San Félix formation likely represent a forearc basin developed throughout the Triassic. The La Totora Formation and some intrusive units that may have slight intraplate or transitional geochemical signature are products of a magmatism developed immediately before the establishment of the magmatic arc in the present-day coastal cordillera, which took place at some time during the Rhaetian to Early Jurassic.

This research was funded through the Fondecyt grant 1120715 and the Plan Nacional de Geología of the Servicio Nacional de Geología y Minería (SERNAGEOMIN). M. Ortiz, R. Merino and I. Murillo are thanked for the fruitful discussions on the updated geological mapping in northern Chile. The review of S. Kay greatly improved an earlier version of this manuscript.
