Andean Geology 42 (3): 386-396, September, 2015
Andean Geology
doi: 10.5027/andgeoV42n3-a06
Mineralogical investigations of agates from Cordón de Lila, Chile
Stefan Richter1, *Jens Götze1 , Hans Niemeyer2, Robert Möckel3

1 TU Bergakademie Freiberg, Institute of Mineralogy, Brennhausgasse 14, D-09596 Freiberg, Germany.;

2 Departamento de Ciencias Geológicas, Universidad Católica del Norte, Angamos 0610, Antofagasta, Chile.

3 Helmholtz-Zentrum Dresden-Rossendorf, Helmholtz Institute Freiberg for Resource Technology, Halsbruecker Straße 34, 09599 Freiberg, Germany.

* Corresponding author:

In the present study a first found of agates in Chile is reported from the Cordón de Lila region in northern Chile. The agates occur as veins and lenses in altered Permian volcanic rocks. The rock composition is rhyodacitic/dacitic consisting of a fine-grained K-feldspar-quartz groundmass with phenocrysts of plagioclase (An50-60) and pyroxene (augite). The volcanic host rocks show strong features of alteration and brecciation. Results of XRD, polarizing microscopy and cathodoluminescence (CL) microscopy and spectroscopy point to a late- to postvolcanic formation of the agates by hydrothermal fluids and SiO2 which was released during the alteration of unstable minerals and volcanic glass. Strongly varying agate micro-textures and the appearance of euhedral quartz crystals with µm-sized growth lamellae (so called Bambauer quartz) indicate fluctuations in the physico-chemical conditions (SiO2 concentration, pH) during alteration and agate formation. Another indication for the alteration processes is the occurrence of secondary calcite in the agate-bearing rocks.

Keywords: Cordón de Lila, Volcanic rocks, Mineralogy, Geochemistry, Agate.



1. Introdution

Agates are spectacular products of nature, which are to be found all over the world in different geological environments. From a textural point of view agate is banded chalcedony incorporating certain other SiO2 polymorphs and varieties (e.g., Heaney, 1993; Graetsch, 1994; Moxon, 1996; Götze et al., 1998; Moxon and Ríos, 2004). Other minerals such as Fe-oxides or carbonates are frequently intergrown with the SiO2-minerals pointing to complex processes of agate formation.

Agates most frequently formed in SiO2-rich (rhyolite, rhyodacite) and SiO2-poor (andesite, basalt) volcanic rocks. Many authors assume that the formation of volcanic agates is associated with late- or post-volcanic alteration or weathering of volcanic host rocks (e.g., Harder, 1993; Pabian and Zarins, 1994; Pabian and Zarins, Möckel and Götze, 2007; Götze, 2011). Alternatively, agates may also form as hydrothermal vein agates in fissures and fractures of crystalline rocks, or from low-temperature SiO2-rich solutions in pores and cavities of sedimentary rocks (Götze, 2011).

Volcanic agates were reported from different localities in southern America (e.g., Brazil, Uruguay, Argentina, Perú), in particular related to basic and intermediate volcanic rocks. For instance, in the Andean regions of Argentina (Patagonia and San Rafael, Mendoza) famous occurrences of agates exist (Zenz, 2005). Although Chile is a country which is widely dominated by the Andean Cordillera with manifold volcanic activities, no agates were described in Chile up to now. The present paper presents first agate founds in the northeast of Chile (Cordón de Lila region) and provides a basic mineralogical and geochemical characterization of the agates and the related agate-bearing volcanic rocks.

2. Geological Setting

The agate samples originate from the Permian Cerro Negro Formation in Cordón de Lila, northeast of Chile (Niemeyer, 1989, 2013). These rocks are the result of the subduction of an oceanic plate (Nazca plate) under the continental South American plate. Cordón de Lila consists of two blocks, a western and an eastern one, which are separated by the Tucucaro Fault (Fig. 1). These parts show differences in the geological composition. First occurrences of agates were found at the basal Cerro Negro Formation, which is situated within the eastern block (number 7 in figure 1).

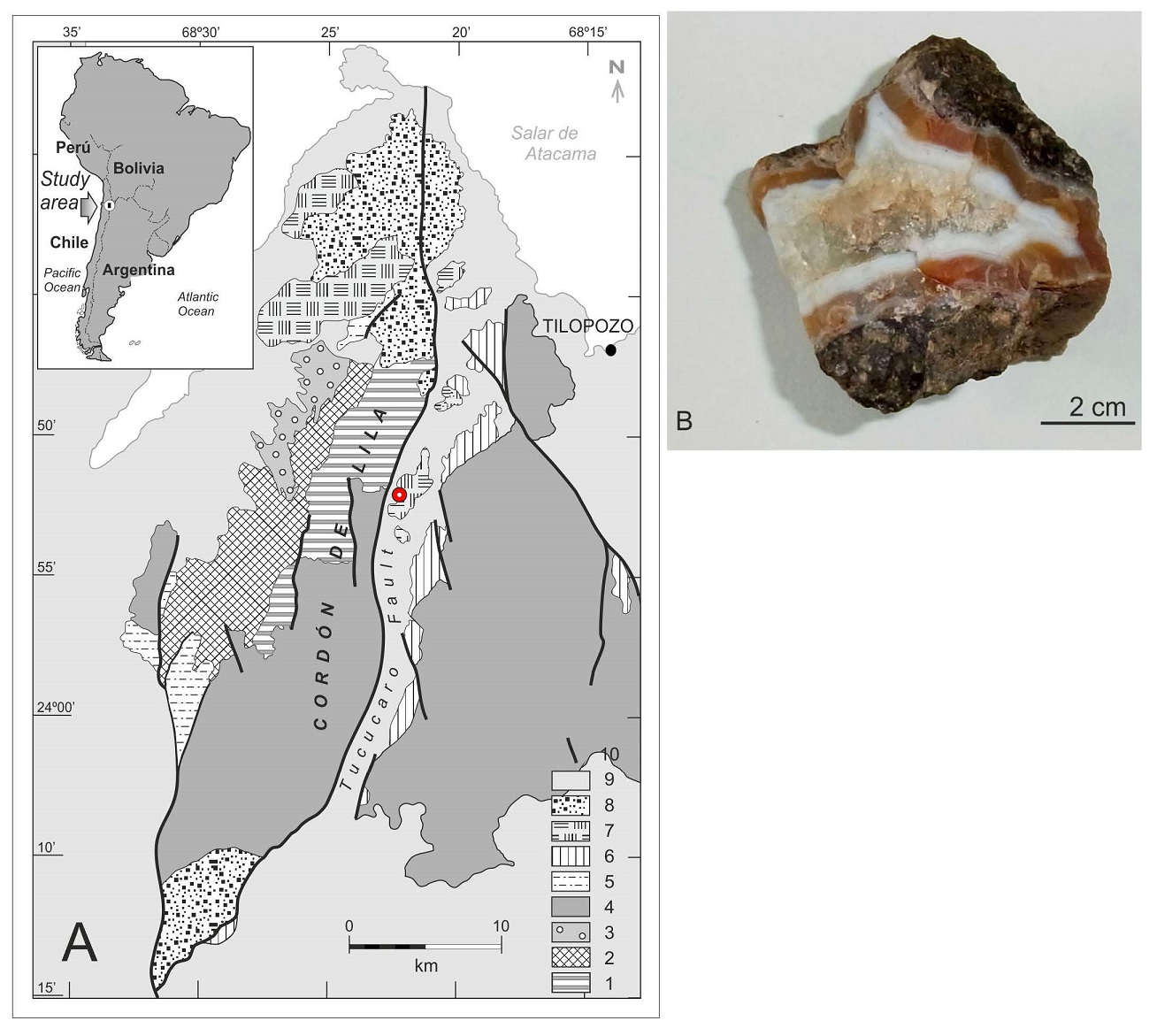

Fig. 1. A. Geology of Cordón de Lila with location of the agate samples (red dot) from the study area: 1. Cordón de Lila Complex (CISL), Lower Member: basalt and turbidite (Ordovician); 2. Cordón de Lila Complex (CISL), Upper Member: dacite and dacitic volcanic breccia (Ordovician); 3. Quebrada Grande Formation: conglomerate and sandstone (Ordovician); 4. Granitoid (Ordovician); 5. Quebrada Ancha Formation: quartzarenite (Silurian); 6. Lila Formation: sandstone and conglomerate (Devonian); 7. Cerro Negro Formation: dacite and andesite with sublayers of sandstone (Permian); 8. Granitoid (Upper Paleozoic); 9. Alluvium; 10. Fault; B. Agate sample.


The geological unit consists of a 400 m thick volcanic succession with certain sedimentary sub-layers (Muñoz, 2009). This formation is the uppermost stratified unit of the eastern block. The volcanic activities occurred during Permian and covered small areas. The western part of the Cordón de Lila is covered by granitic batholiths resulting in lacking surface exposure of volcanic rocks near the sample location.

Agates were found within Permian volcanic rocks in a location close to the border of the western and eastern block at 23°52’06’’ S and 68°22’15’’ W (Fig. 1).

3. Materials and Methods

3.1. Sample material

Out of a total of five samples, four (CH 1-4) were chosen for further investigations (Fig. 2). Sample CH1 is an agate breccia. It consists of a white matrix with a few centimeters long brownish to greenish-brown fragments. At the rim of the breccia, the contact to the host rock is visible (Fig. 2A).

Samples CH2-CH4 represent lithophysae of the volcanic host rock and differ markedly from sample CH 1 (Fig. 2B-D). The volcanic rocks show a porphyric texture with phenocrysts (3-4 mm) within a fine-grained, brown matrix. The agate zones itself are enclosed in small (<2 cm), SiO2-filled veins or appear as larger, oval areas (Fig. 2B).

Polished thin sections were prepared from samples CH 1-4 for microscopic investigations and cathodoluminescence (CL) studies. Additional sample material was selected for further chemical and mineralogical investigations. The rock material was crushed to <400 µm and aliquots were milled to a fraction <63 µm for geochemical analysis and 2-4 µm using a McCrone micronizing mill for X-ray diffraction (XRD) studies, respectively. The latter powder was mixed with 20 mass-% Al2O3 as internal standard for quantitative XRD measurements.

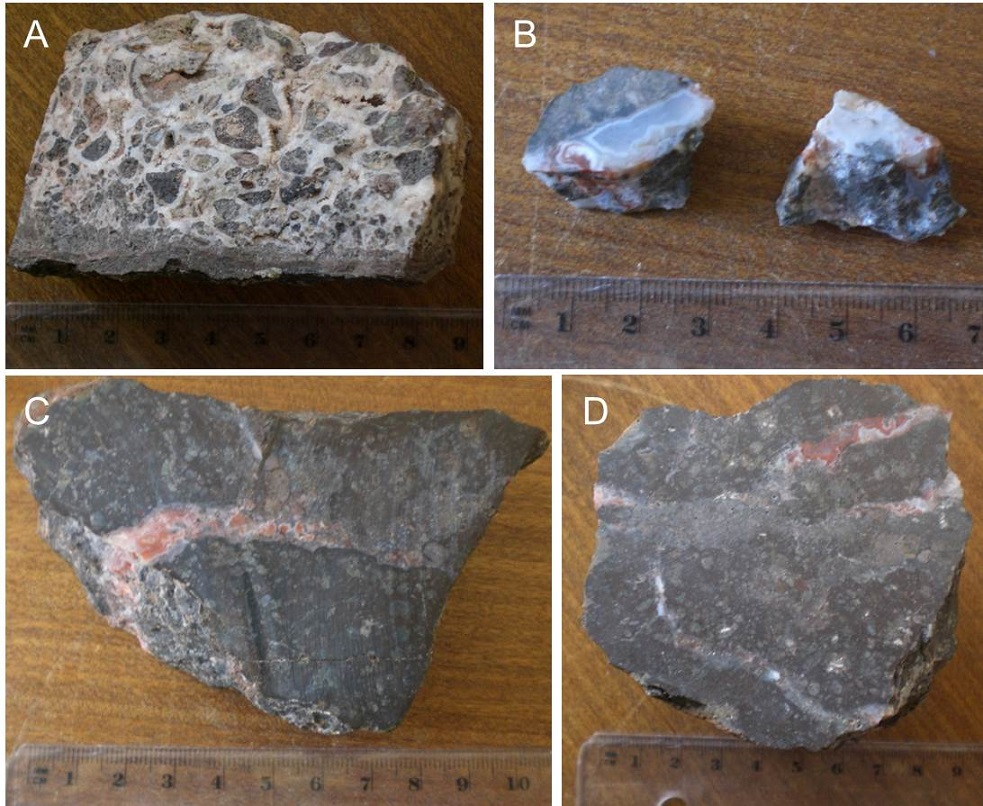

Fig. 2. Investigated samples of the present study. A. CH1, agate-breccia; B. CH2, bluish agate in host rock; C. CH3, small lithophyse; D. CH4, large lithophyse.


3.2. Analytical methods

The whole rock composition of the samples was investigated by chemical analyses using X-ray fluorescence (XRF). Fused pellets were made from 1 g of calcinated material mixed with 8g lithiumtetraborate (Li2B4O7). The measurements were done with a Panalytical Axios Minerals XRF device, equipped with a 4 kW Rhodium X-ray tube. The measurements were evaluated using the Panalytical Software package SuperQ.

The mineral composition of powdered samples was analyzed in aluminum sample holders with an X-ray diffractometer URD6 (Seifert/Freiberger Präzisionsmechanik) with CoKα radiation (40kV/30mA). The irradiated area was kept constant at 15mm². Measurements were conducted in the range between 5-80° 2 θ with steps of 0.03° 2θ and an accumulation time of  2sec/step. The resulting X-ray diffractograms were quantified using AutoQuan/BGMN (Bergmann et al., 1998).

Polarizing microscopy investigations were carried out using an Axio Imager 1 m (Carl Zeiss) equipped with a MRc5 digital camera. In addition, cathodoluminescence (CL) microscopy and spectroscopy studies were made on carbon coated polished thin sections. The CL microscope was a “hot cathode” CL microscope HC1-LM, which used an acceleration voltage of 14 kV and a beam current of 0.2 mA (Neuser et al., 1995). Images were taken with an Olympus DP72 digital camera. CL spectra in the wavelength range of 380-900 nm were recorded with an Acton Research SP-2356 spectrograph, which was linked to the microscope via an optical glass-fibre guide. CL spectra were recorded under standardized conditions with a spot size of about 30 µm in diameter by using a pinhole aperture. An Hg-halogen lamp was used for wavelength calibration.

4. Results

4.1. Mineralogy and geochemistry of host rocks

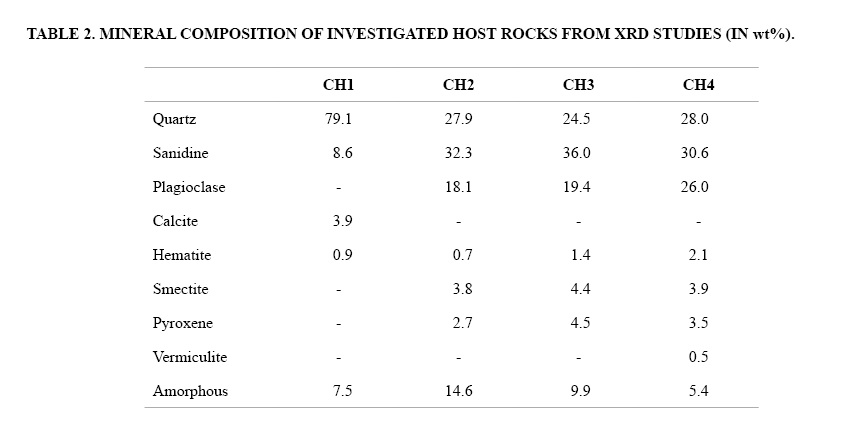

The chemical and mineralogical composition of the investigated host rocks is presented in Tables 1 and 2.

Samples CH-2 to CH-4 represent acidic volcanic rocks with SiO2 contents between 64.5 and 66.3 wt%. This is also shown in the mineral composition, which is dominated by quartz, sanidine and plagioclase. XRD data revealed two types of sanidine. The amount of amorphous material (e.g., volcanic glass) is remarkable and varies between 5.4 and 14.6 wt%. In addition, considerable amounts of smectite and vermiculite were detected.

In contrast, the SiO2 content of sample CH-1 is much higher (84.8 wt%) and indicates a high amount of secondary silica. In general, the breccia is a mixture of quartz and calcite, and only 8.6 wt% sanidine were detected.

4.2. Micro-texture and cathodoluminescence (CL)

Microscopic investigations showed that the matrix of sample CH-1 mainly consists of fine- to medium-grained quartz. Residues of dark, strongly altered phenocrysts (up to mm in size) are embedded within the matrix, sometimes together with iron oxides. Because of the strong degree of alteration and the small grain size it was not possible to identify the mineral composition of the phenocrysts (probably residues of feldspars).

Euhedral, prismatic quartz crystals are also grown in small cavities showing orientations inwards the holes (Fig. 3A). These crystals exhibit a short-lived blue CL colour and distinct growth and sector zoning (Fig. 3B). Crystals of calcite are dispersed in the quartz matrix, sometimes forming clusters of large crystals (Fig. 3C). They show a yellow to orange CL colour (Fig. 3D), which is a result of activation by Mn2+ replacing Ca2+ in the calcite structure (Götze, 2012).




Fig. 3. Microscopic textures of sample CH-2 (agate breccia) in polarized light (Pol) and cathodoluminescence (CL). A. Quartz matrix in polarized light with euhedral cystals grown in cavities; B. Quartz shows short-live blue CL and distinct zoning; C. Coarse-grained calcite crystals with pressure twinning; D. Calcite exhibits orange-yellow CL and distinct zoning.


Samples CH-2-4 show a typical porphyric texture with a fine-grained matrix and large phenocrysts of plagioclase and pyroxene (Fig. 4). CL studies revealed that the fine-grained matrix consists mainly of K-feldspar and quartz, which both do not appear as large crystals.

Most of the phenocrysts are plagioclases showing polysynthetic twinning in polarized light and greenish CL colour with growth zoning. Chemical analyses with SEM-EDX revealed variations in the chemical composition of the plagioclases between 3.8 and 5.2 atom-% Ca and 2.9 and 4.0 atom-% Na. In addition with results from CL spectroscopy we calculated plagioclase compositions of An50-60. The plagioclase crystals are often strongly altered and small areas of kaolinite (deep blue CL) were detected as alteration product.

Pyroxene phenocrysts also show strong features of alteration. Some of the crystals completely lost their characteristic properties. Nevertheless, pyroxene crystals could be identified based on their optical properties as augite. Accessory minerals detected in samples CH-2-4 are apatite, zircon and iron oxides.

Another feature of samples CH-2-4 is the presence of agate as well as fissures and veins of secondary quartz. The quartz fissures crosscut not only the rock matrix but also large crystals of plagioclase (Fig. 5) emphasizing the secondary origin of this generation. A conspicuous feature is the occurrence of small, µm-sized lamellae in euhedral quartz crystals (Fig. 6). According to the first description by Bambauer et al. (1961) these growth phenomena are called Bambauer quartz. This secondary type of quartz shows short-lived blue CL.




Fig. 4. Polarized light micrograph showing the typical porphyric texture of sample CH-2; phenocrysts of plagioclase and pyroxene are embedded in a fine-grained matrix of quartz and K-feldspar; a secondary quartz veinlet is crosscutting the rock.





Fig. 5. Secondary generation of quartz (qtz) in sample CH-3 crosscutting the matrix of fine-grained K-feldspar (kf) and quartz as well as plagioclase phenocrysts (plag). A. polarized light (Pol); B. cathodoluminescence (CL).





Fig. 6. Euhedral crystals of secondary quartz in sample CH-2 showing µm-sized growth lamellae (arrows), so-called Bambauer quartz.


4.3. Agate/chalcedony

The agate mineralization macroscopically consists mainly of wall-banded chalcedony layers of yellow to white, orange-red and pale blue coloration as well as macro-crystalline quartz (compare figures 1 and 2).

Microscopic investigations revealed that chalcedony shows differing grain sizes and morphology (granular and fibrous, Fig. 7), and is sometimes intimately intergrown with other SiO2 modifications and/or varieties such as quartz and quartzine (Fig. 8). Quartzine is intercalated between chalcedony bands and was identifiable by the different orientation of the quartz crystallites compared to chalcedony (Fig. 8). Hematite impurities (up to several µm in size) are commonly found in the chalcedony matrix.

Results of CL studies show details of the agate micro-texture partly consisting of different chalcedony generations. These generations are visible by their varying luminescence properties (see arrows in  figure 7D). In some cases agate is directly associated with quartz showing short-lived blue CL.




Fig. 7. Polarized light-CL micrographs of agate features in samples CH-2 (a-d) and CH-3 (e-h). A-B. Multi-coloured chalcedony bands in CL showing differences in grain size and texture; C-D. Different generations of silica; a late generation (blue CL-see arrows) is penetrating earlier quartz; E-F. Different types of chalcedony (granular and fibrous) showing different luminescence colours; G-H. Different generations of macro-crystalline quartz and chalcedony indicating changes in growth conditions.





Fig. 8. Polarized light micrograph with additional nγ/λ compensator showing a quartzine layer (bluish) intercalated between chalcedony layers (yellow) within agate of sample CH-2.


5. Discussion

The host rocks of the agates in the present study were clearly identified as volcanic rocks due to their typical porphyric texture. The rocks mainly consist of a fine-grained groundmass of K-feldspar and quartz with phenocrysts of plagioclase (An50-60) and pyroxene (augite). Based on the geochemical signature, the rocks plot into the rhyodacite/dacite field of the SiO2-Zr/TiO2-diagram according to Winchester and Floyd (1977) (Fig. 9).

The host rocks show strong features of alteration. Pyroxene is strongly altered and plagioclases also contain typical alteration products such as secondary carbonate (calcite) and kaolinite. Additional evidence for a hydrothermal overprint of the volcanic host rocks is provided by the occurrence of smectite and vermiculite (compare Table 2). Both are typical hydrothermal alteration products of volcanic materials. Sample CH-1 represents an agate breccia, which is probably the product of both mechanical and chemical overprint of the primary volcanic rocks. The breccia mainly consists of calcite and secondary quartz. The hydrothermal origin of this quartz was proved by the typical short-lived blue CL (Götze, 2012).

Information concerning the physico-chemical conditions could also be drawn from the occurrence of hydrothermal Bambauer quartz with typical growth lamellae (Fig. 6). According to Rykart (1989) the formation of such lamellae is related to low temperature hydrothermal conditions with strong fluctuations in silica concentration and pH conditions. These fluctuations are probably also the reason for the manifold forms of appearance of different SiO2 phases within the agates (Fig. 7). There are strong indications for several agate generations from the CL studies (e.g., Fig. 7C-D).

The common occurrence of hydrothermal quartz and agate point to the same silica source for the mineralisation processes. Since agates occur in lithophysae, breccia and veins within the same geological context, it is obvious that agate forming fluids filled both existing cavities and replaced solid rocks. Accordingly, the agate-forming process can be related to late- or post-volcanic hydrothermal processes which resulted in a strong alteration of the volcanic host rocks. The SiO2 for silicification can both originate from magmatic-hydrothermal fluids and silica which was released during the alteration of primary minerals and volcanic glass from the groundmass.

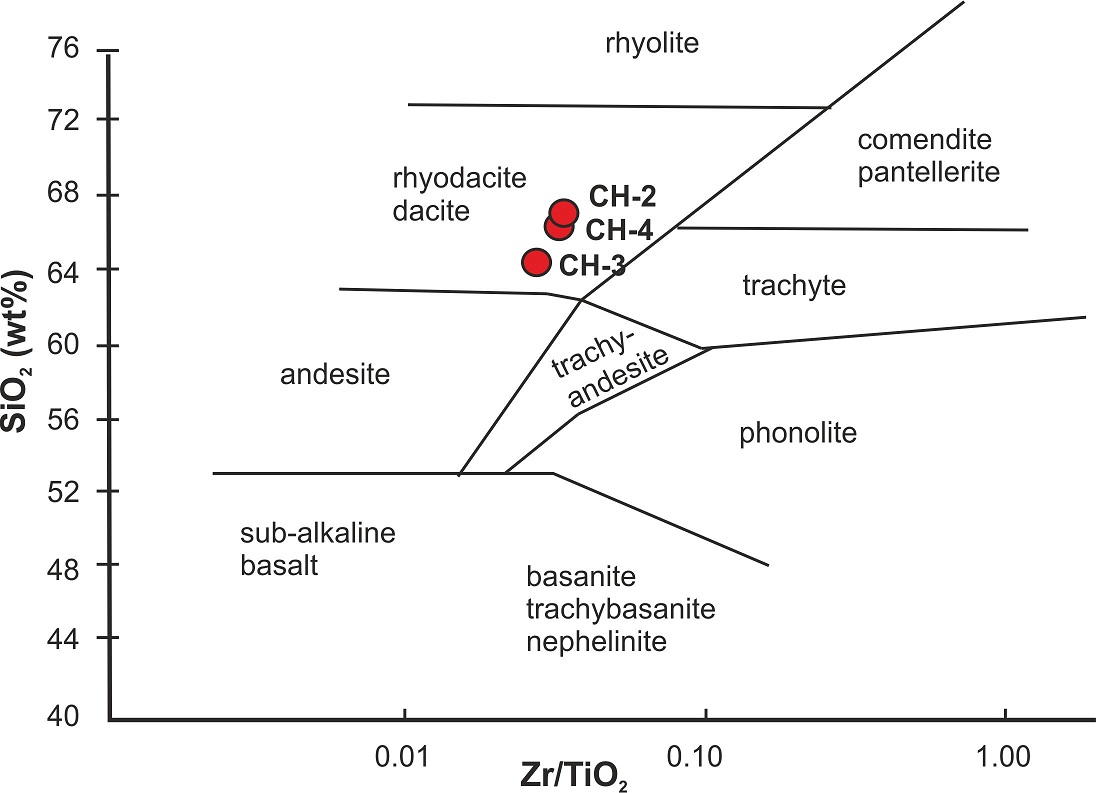

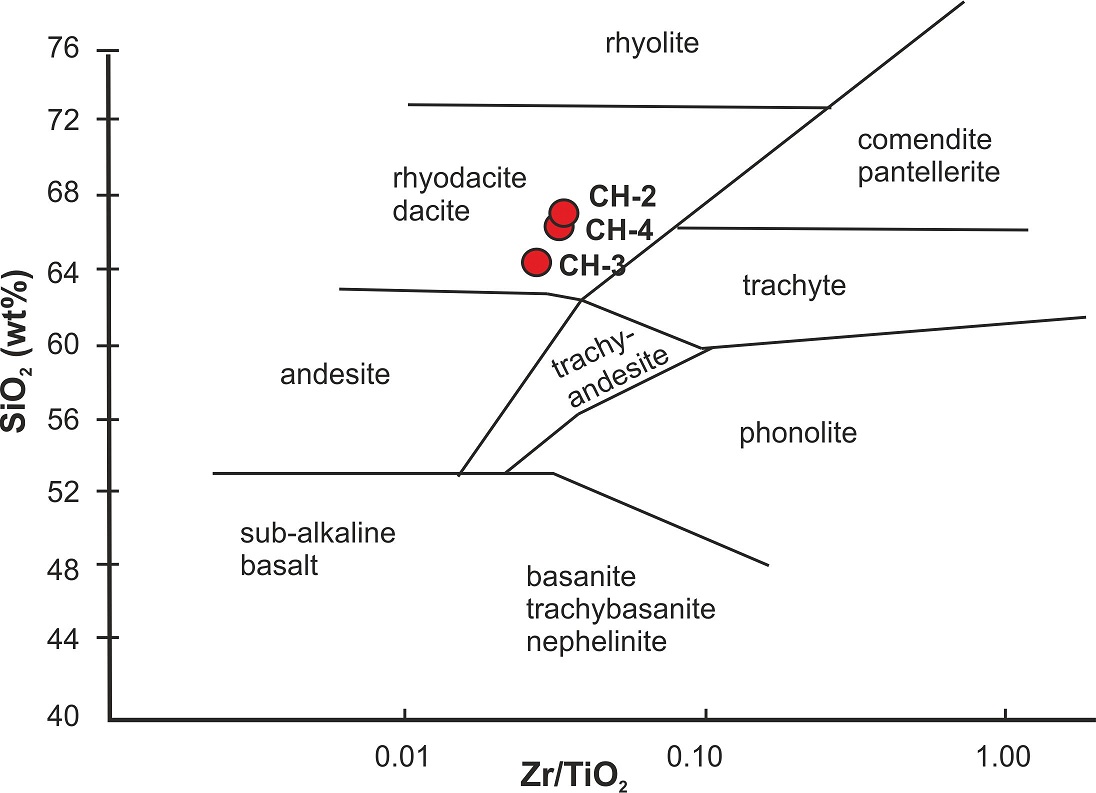

Fig. 9. Classification of the investigated volcanic rocks (red dots) according to Winchester and Floyd (1977).


6. Conclusions

The present study first presents data about the occurrence of agates in volcanic rocks from the Cordón de Lila region in northern Chile. Agates from Chile were unknown so far, although the geological environment is favourable for agate formation and agate occurrences have been reported from other Andean countries such as Argentina.

The results of the study show that agates occur in rhyodacites/dacites which have undergone late- to post-volcanic hydrothermal alteration. The silica necessary for agate formation probably derives both from hydrothermal fluids and SiO2 which was released during the alteration of unstable minerals and volcanic glass. Different agate micro-textures and the appearance of Bambauer quartz point to remarkable fluctuations in the physico-chemical conditions (SiO2 concentration, pH) during alteration and agate formation.

We thank R. Kleeberg, G. Geyer and M. Magnus for their help during the analytical work and with sample preparation, respectively. The review of L. Hartmann improved the quality of the paper.


Bambauer, H.U.; Brunner, G.O.; Laves, F. 1961. Beobachtungen über Lamellenbau an Bergkristallen. Zeitschrift für Kristallographie 116: 173-181.


Bergmann, J.; Friedel, P.; Kleeberg, R. 1998. BGMN-a new fundamental parameters based Rietveld program for laboratory X-ray sources, its use in quantitative analysis and structure investigations. Commission of Powder Diffraction, International Union of Crystallography CPD Newsletter 20: 5-8.


Götze, J. 2011. Agate-fascination between legend and science. In Agates III (Zenz, J.; editor), Bode-Verlag GmbH: 19-133. Salzhemmendorf.


Götze, J. 2012. Application of cathodoluminescence (CL) microscopy and spectroscopy in geosciences. Microscopy and Microanalysis 18: 1270-1284.


Götze, J.; Nasdala, L.; Kleeberg, R.; Wenzel, M. 1998. Occurrence and distribution of “moganite” in agate/chalcedony: a combined micro-Raman, Rietveld, and cathodoluminescence study. Contributions to Mineralogy and Petrology 133: 96-105.


Graetsch, H. 1994. Structural characteristics of opaline and microcrystalline silica minerals. Reviews in Mineralogy and Geochemistry 29: 209-232.


Harder, H. 1993. Agates-formation as a multi component colloid chemical precipitation at low temperatures. Neues Jahrbuch Mineralogie Monatshefte H1: 31-48.


Heaney, P.J. 1993. A proposed mechanism for the growth of chalcedony. Contributions to Mineralogy and Petrology 115: 66-74.


Möckel, R.; Götze, J. 2007. Achate aus sächsischen Vulkaniten des Erzgebirgischen Beckens. Veröffentlichung Museum für Naturkunde Chemnitz 30: 25-60.


Moxon, T. 1996. Agate: Microstructure and possible origin. Terra Publications: 106 p. Doncaster.


Moxon, T.; Ríos, S. 2004. Moganite and water content as a function of age in agate: an XRD and thermogravimetric study. European Journal of Mineralogy 4: 693-706.


Muñoz, C. 2009. Caracterización estratigráfica, petro-gráfica y petrológica de los Estratos de Cerro Negro en el área del Cordón de Lila, Región de Antofagasta. Memoria de Título (Unpublished), Departamento de Ciencias Geológicas, Universidad Católica del Norte, Chile.


Neuser, R.D.; Bruhn, F.; Götze, J.; Habermann, D.; Richter, D.K. 1995. Kathodolumineszenz: Methodik und Anwendung. Zentralblatt für Geologie und Paläontologie Teil I H.1/2: 287-306.


Niemeyer, H. 1989. El Complejo igneo-sedimentario del Cordón de Lila, Región de Antofagasta: Significado Tectónico. Revista Geológica de Chile 16 (2): 163-181. doi: 10.5027/andgeoV16n2-a03.


Niemeyer, H. 2013. Geología del área Cerro Lila- Peine, Región de Antofagasta. Servicio Nacional de Geología y Minería. Carta Geológica de Chile. Serie Geología Básica 147: 39 p. 1 mapa escala 1: 100.000. Santiago.


Pabian, R.K.; Zarins, A. 1994. Banded agates-Origins and inclusions. Educational Circular, No. 12. University of Nebraska: 32 p. Lincoln.


Rykart, R. 1989. Quarz-Monographie. Ott Verlag: 462 p. Thun, Switzerland.


Winchester, J.; Floyd, P.A. 1977. Geochemical discrimination of different magma series and their differentiation products using immobile elements. Chemical Geology 20: 325-343.


Zenz, J. 2005. Achate. Bode-Verlag: 376 p. Haltern.
