Comment on Reply to Comment of Finger et al. (2013) on:
‘Evidence for an Early-Middle Miocene age of the Navidad Formation (central Chile): Paleontological, paleoclimatic and
tectonic implications’ of Gutiérrez et al.
(2013, Andean Geology 40 (1): 66-78)

Alfonso Encinas1, Kenneth L. Finger2, Sven N. Nielsen3 Ximena Contardo4

1 Departamento de Ciencias de la Tierra, Universidad de Concepción, Casilla 160-C, Concepción, Chile.
aencinas@udec.cl

2 University of California Museum of Paleontology, 1101 Valley Life Sciences Building, Berkeley, CA 94720-4780, USA.
kfinger@berkeley.edu

3 Instituto de Ciencias Ambientales y Evolutivas, Universidad Austral de Chile, Casilla 567, Valdivia, Chile.
sven.nielsen@uach.cl

4 Universidad Andrés Bello, Facultad de Ingeniería, Geología, Quillota 980, Viña del Mar, Chile.
ximena.contardo@unab.cl

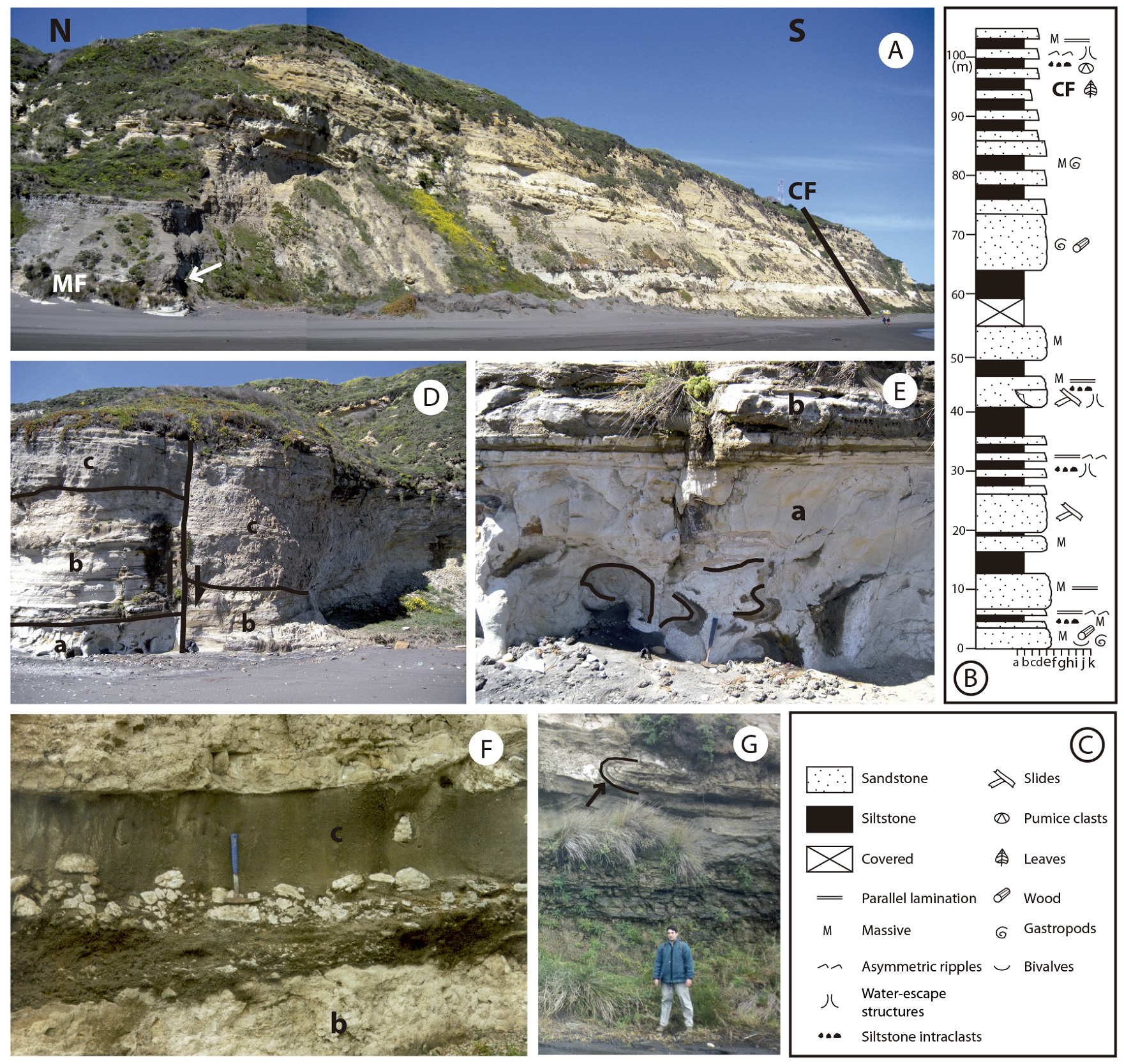

FIG. 1. A. Coastal cliff north of Matanzas showing a succession of horizontal sandstone and siltstone. CF: strata bearing Centinela flora (Troncoso and Encinas, 2006); MF: strata bearing Matanzas flora (leaves are most abundant in base of cliff ~25 m to the north; Troncoso, 1991 and Gutiérrez et al., 2013). Black line indicates location of column in B, the upper part of which is not visible. The location of picture F is indicated by an arrow; B. Representative column of the Matanzas cliff (modified from section MAT of Encinas, 2006) showing alternating sandstone and siltstone and the location of the Centinela flora (CF) strata at the top; C. Legend of column shown in B; D. Basal part of cliff succession ~25 m north of exposure shown in A. a: massive tuffaceous sandstone with distorted (rolled) stratified intraclasts; b: turbidites; c: sandstone, massive at base and stratified at top; E. Detail of intervals a and b shown in left part of D. The general shape of some of the distorted stratified intraclasts is partially delineated; F. Detail of intervals b and c (location in A). Interval c shows an erosive contact overlain by a massive sandstone with abundant siltstone intraclasts, some of them floating, and also containing shallow-water molluscs, shark teeth, bathyal foraminifera, and psychrospheric ostracodes. From Encinas et al. (2008); G. Basal part of the Matanzas succession exposed north of A. Arrow points to a partially delineated slump.

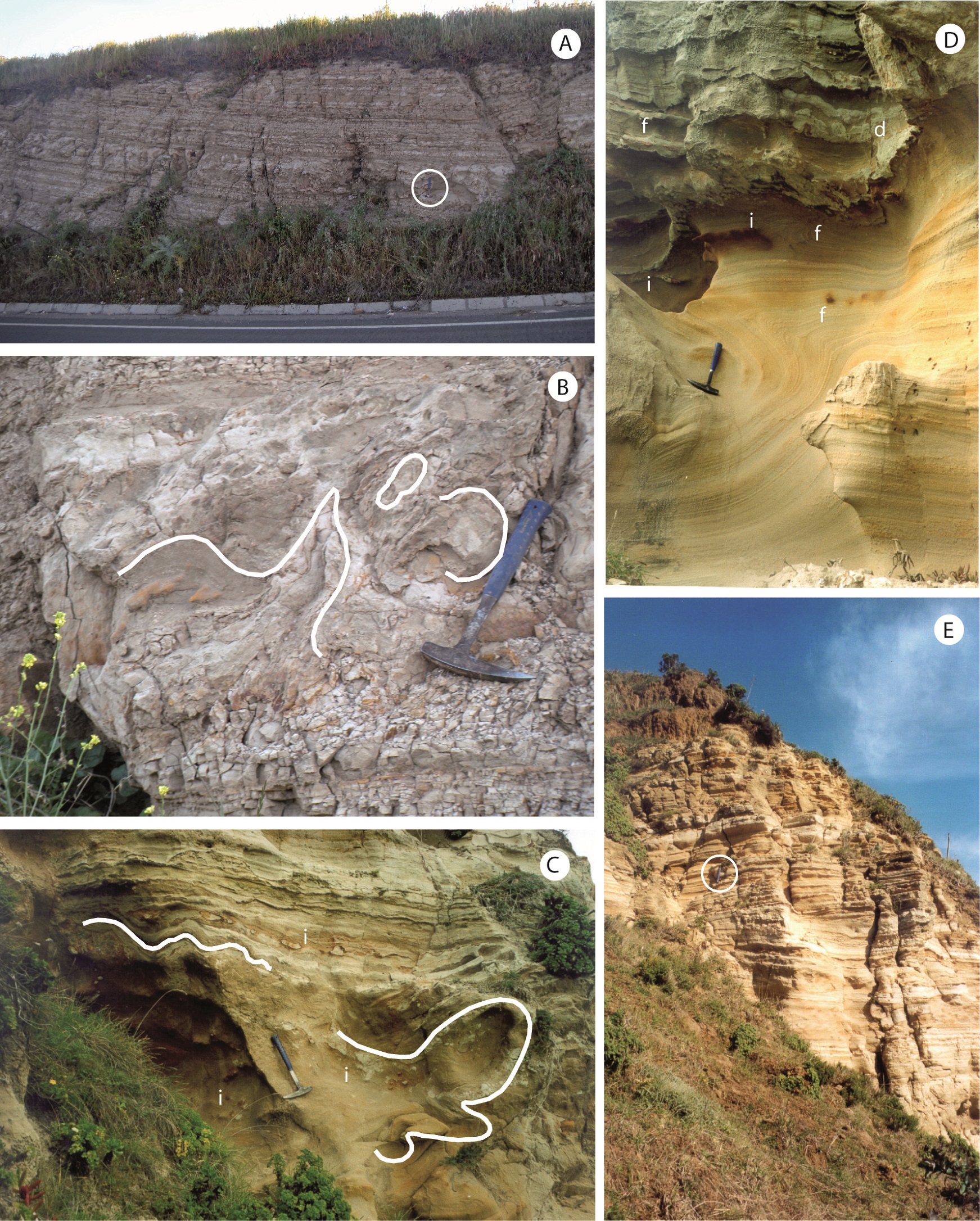

FIG. 2. Strata bearing the Pololos (A and B), Boca Pupuya (C and D) and Centinela (E) floras. Locations of these floras are indicated in Gutiérrez et al. (2013); Troncoso (1991) and Troncoso and Encinas (2006). A. Rhythmically interbedded tufacceous sandstone and siltstone at Cerro Los Pololos. Encircled hammer is at the location of photo B; B. Slump showing important soft-sediment folding. The folds structure is partially delineated but difficult to follow due to intense deformation; C. Succession of tuffaceous sandstone and siltstone north of Boca Pupuya. The lower part of the section is composed mainly of massive and parallel-laminated sandstone and shows soft-sediment folding (partially delineated), while the upper part comprises rhythmically interbedded sandstone and siltstone. Intraclasts (i) are locally abundant; D. Succession of parallel-laminated sandstone overlain by rhythmically interbedded sandstone and siltstone at Boca Pupuya. A large sheared flame is in lower half of succession. Other flames are indicated (f). Intraclasts (i) are abundant in some beds. Upper half of succession includes some disrupted beds (d); E. Rhythmically interbedded tuffaceous sandstone and siltstone at Cerro Centinela. Encircled hammer for scale.





Decapod crustaceans inhabit all ocean depths (Feldmann et al., 1991); thus, the presence of unidentified, articulated crabs in strata of the Navidad Formation is not necessarily indicative of shallow-marine deposition. Furthermore, the displacement of live crabs from shallow- to deep-water by gravity flows is not uncommon, and it is possible for them to colonize and bioturbate the new substrate, although they commonly die rapidly due to anoxia (Fig. 6.7 in Buatois et al., 2002).

Well-preserved shallow-water molluscs have been found in turbidites and other kind of gravity-flow deposits (e.g., Aalto and Miller, 1999; Walker, 2001). As an example for the Navidad Formation, molluscs in a massive sandstone with abundant floating intraclasts have excellent preservation (Nielsen and Frassinetti, 2003, figures 8, 11; Finger et al., 2007, figures 12 B, E, M). Le Roux et al. (2013) purport ‘the fact that the sediment matrix within their shells is the same as that of the surrounding host’ is further evidence of an in situ molluscan fauna, but it only indicates that the fossils were not reworked from older strata. We do not envisage why it should be considered as indicative of in situ deposition as gravity flows typically displace their entire load (i.e., sediment and fossils) downslope. In addition, if the molluscs were alive when transported, their shells would not be infilled with sediment from their original environment unless that sediment was also displaced.

Le Roux et al. (2013) indicate that ‘it would be hard to imagine delicate insect body parts surviving transport by a turbidity current’. The presence of insects in any marine deposit is considered exceptional as they are usually destroyed not only by currents or waves but by biological activity (e.g., scavenging, bacterial decomposition), or diagenesis (Martínez-Delclós et al., 2004). Although the explanation by Le Roux et al. (2013) for their preservation seems logical, it is flawed because remains of delicate terrestrial insects have been found in marine turbidites elsewhere (e.g., Gaudant and Busquets, 1996). Gutiérrez et al. (2013) and Le Roux et al. (2013) purport that the insect remains in the Navidad Formation are in strata deposited in a tranquil, shallow-marine setting. We cannot respond fully to this assertation because they neither describe the locality or sedimentary facies of their material. However, the arthropods shown by Le Roux et al. (2013, their figure 2) are original body parts that appear to have been extracted when processing for pollen. According to entomologists, figures presented by Le Roux et al. (2013) represent an oribatid mite (figure 2.1), a trichogrammatid wasp (figure 2.2-2.4) and lepidopterid scales (figure 2.5-2.6) (written communications, M. Elgueta and A. Polaszek, 2013). All of them still exist, so they could be contaminants. We observed insects on outcrops of the Navidad Formation and occasionally found them in rock samples processed for microfossils. Thus, it remains for Le Roux et al. (2013) to present convincing evidence that their presented insects are indeed fossils. If this is the case, it would be valuable to describe them more fully, as there is almost no fossil record for Cenozoic terrestrial arthropods in Chile.

2.2. Shallow-marine invertebrate species

Another argument presented by Le Roux et al. (2013) in favor of a shallow-marine environment for the Navidad Formation is based on the presence of marine invertebrate species indicative of shallow-marine sandy and rocky settings. They claim some of the fossils dispersed in the rock are in situ. They also question the transport of species characteristic of rocky coasts by turbidity currents by considering it unlikely that they could have been displaced from the shoreline and down a continental shelf that typically has a low gradient (0.1°).

As we mentioned previously, we cannot affirm that all of the fossils in the Navidad Formation were transported to deep-water because this unit presents shallow- and deep-marine facies. However, the arguments presented by Le Roux et al. (2013) to demonstrate shallow-water deposition are again invalid because any coastal or land-derived organism has the potential of being transported into deeper water by a gravity flow (e.g., Feldmann et al., 1991; Bernet et al., 2000; Hilton, 2003; Zavala et al., 2012) and deep-water organisms can also be displaced farther downslope (Miller, 2008). For example, rocky shoreline invertebrates, including barnacles, have been recorded in deep-water turbidites off the Canary Islands (Goldstrand, 1998). As proposed by Encinas et al. (2008) for the Navidad Formation, displacement from shallow- to deep-water is enhanced if the continental shelf is narrow, which means the heads of submarine canyons will be near the coast (Goldstrand, 1998). Some of the rocky shoreline species found in this unit occur in conglomerate beds interbedded with turbidites and thin siltstone beds (e.g., section SBP in Encinas, 2006), indicating that the fossils were transported at least below fair-weather wave base and not near the coast.

Molluscs in the Navidad Formation (which are not only entire but also fragmented) are commonly concentrated in lenses. We concur with Le Roux et al. (2013) that this does not indicate long distances of transport. Some of these beds, however, show sedimentological and paleontological evidence of deep-water deposition. An example is the bed at the base of the Matanzas section, where classic turbidites are overlain by a massive sandstone containing large floating intraclasts shallow-water molluscs, shark teeth, bathyal foraminifera, and psychrospheric ostracodes. Isolated mollusc fossils are also dispersed throughout the sedimentary rocks in the Navidad Formation. Yet, this is not evidence of in situ deposition nor did we observe the molluscs oriented into living position. Although well-documented as a rich fauna, molluscs in the Navidad Formation are not particularly common relative to the amount of the unit that is exposed. Their distribution is intermittent and they are not present in many beds regardless of lithology, which argues against the generalization that deposition was in situ.

2.3. Microfossils

Finger et al. (2013) discussed the reliability of bathyal (i.e., at least >200 m) paleodepths indicated by benthic foraminifers. Le Roux et al. (2013) argued that ‘Lipps (1993) maintained that deep water benthic foraminifers have shown great evolutionary stability only after 15 Ma and especially after the Late Miocene, in which most of the extant benthic species appeared. There is thus no guarantee that Early Miocene species inhabited the same water depths as their successors’. We consider their argument as illogical. The comment by Lipps is misinterpreted by Le Roux, as it does not state anything about foraminiferal depth distributions before and after 15 Ma, but only refers to the fact that the majority of modern species appeared after that time (personal communication, J.H. Lipps, 2013). Many modern species of benthic foraminifers that live at bathyal depths first appeared in the Late Oligocene-Early Miocene, by which time the opening of the Drake Passage, thought to have been ~41 Ma (Scher and Martin, 2006), most likely enabled the modern stratification of the South Pacific Ocean in which cold Antarctic waters sink progressively deeper as they migrate northward. In addition, there is no evidence to suggest a mass migration of those new species from shallow- to deep-water around 15 Ma. The fact that 36 (11%) of the bathyal species found in our study have been recorded as provincially extant is also misconstrued by Le Roux et al. (2013), as those species are significant and sufficient for our paleodepth interpretation. To clarify that percentage, in the Navidad Formation there are 63 extant species of foraminifera that have been recorded only at bathyal depths, 36 of which have been recorded off south-central Chile (Finger, 2013). The number of bathyal species in the unit is substantially greater when modern distributions elsewhere are considered. In addition, most of the Neogene benthic foraminifera recovered from ODP Site 1237, drilled in the Nazca plate off Perú at a water depth of 3,212 m (Mix et al., 2003), are identical or similar to those we reported from the Navidad Formation (Finger et al., 2007; Finger, 2013). This finding provides independent evidence that those species lived at bathyal depths in the Pacific during the Early Miocene making unlikely that all of them lived at shallow water during the same period.

Another argument favoring bathyal deposition for the Navidad Formation is the presence of psychrospheric ostracodes (Finger et al., 2007; Finger et al., 2013). These species characterize cold water masses, usually are at a depth of at least 500 m, although they can occur shallower at high latitudes and in areas of strong upwelling (Benson, 1975). Le Roux et al. (2013) misunderstand these concepts when they argue that psychrospheric ostracodes ‘cannot be used to infer water depths of more than 500 m, as this ignores the effect of upwelling’. First, the 500 m water-depth is the usual minimum (upper depth limit), not the maximum, in the bathymetric range of these organisms. Second, Le Roux et al. (2013) apparently assume that coastal upwelling occurred in the Navidad basin during the Early Miocene, but there is no supporting evidence, such as an abundance of phosphate or diatoms, in the Navidad Formation (Finger et al., 2007).

2.4. Sedimentology

Finger et al. (2013) presented sedimentological evidence of deep-marine deposition for most of the Navidad Formation. In their rebuttal, Le Roux et al. (2013) clearly misunderstood some of our arguments, do not clarify some of their comments, and commit some errors worthy of discussion.

Many of the Navidad exposures exhibit sedimentary features characteristic of gravity flow deposits, whereas typical shallow marine facies, although locally present, are uncommon (Encinas, 2006; Encinas et al., 2008; Finger et al., 2013). Le Roux et al. (2013) claims that ‘the absence of hummocky cross-bedding in the Navidad Formation is also not an indication of deep-water, as these structures are nowhere common’. In fact, we do not refer exclusively to this particular sedimentary structure, but to those of all shallow-marine facies typical of wave-, river-, or tide-dominated coastal systems, such as trough or planar cross-bedding, hummocky cross-stratification, flaser bedding, and herringbone cross-stratification. Cross-bedding is a very common feature in any kind of shallow-marine setting (e.g., Bhattacharya, 2006; Clifton, 2006), but it is rare in the Navidad Formation. The only shallow-water structure mentioned by Le Roux et al. (2013) is wave ripple marks, which they correctly note cannot form in deep-water. We only observed what could be symmetrical ripple marks in a section along the eastern shore of the Punta Perro peninsula (section PPE in Encinas, 2006); however, they are poorly preserved and we are inclined to interpret them as current ripple marks. If they are confirmed to be wave ripple marks, it would merely indicate that this particular section was deposited at shallow-water. Yet, it is not clear if Le Roux et al. (2013) refer solely to the PPE section (sensu Encinas, 2006) or if they found wave ripples elsewhere in the Navidad Formation, as Gutiérrez et al. (2013) indicate the presence of ‘wave ripples in the sandstones’ and Le Roux et al. (2013) mention their occurrence in some of the sandstone packages (e.g., Punta Perro). We cannot ascertain these reported features because Le Roux et al. (2013) do not indicate their exact location or provide convincing photodocumentation.

Among the deep-water indications we (Finger et al., 2013) presented is that observed at Punta Perro, where granitic boulders scattered atop a thick siltstone succession are associated with a synsedimentary breccia composed of large stratified blocks of siltstone and sandstone (Fig. 3). As indicated by Finger et al. (2013), large boulders (commonly termed as olistoliths) offshore are typically derived from shelf-margin failure (commonly triggered by earthquakes) and displaced downslope by mass movements such as block slides, debris avalanches, debris flows, and hyperconcentrated flows (Lucente and Pini, 2003; Festa et al., 2010). We believe the large stratified blocks in the associated breccia at Punta Perro (Fig. 3) were ripped-up from the substrate by the boulders as they moved downslope. Le Roux et al. (2013) confused these boulders with those found in the basal conglomerate of the Navidad Formation exposed on the western edge of the Punta Perro peninsula (e.g., Tavera, 1979; Encinas et al., 2006). The boulders referred to by Finger et al. (2013) are located near the mouth of the Rapel River, north of the basal conglomerate.

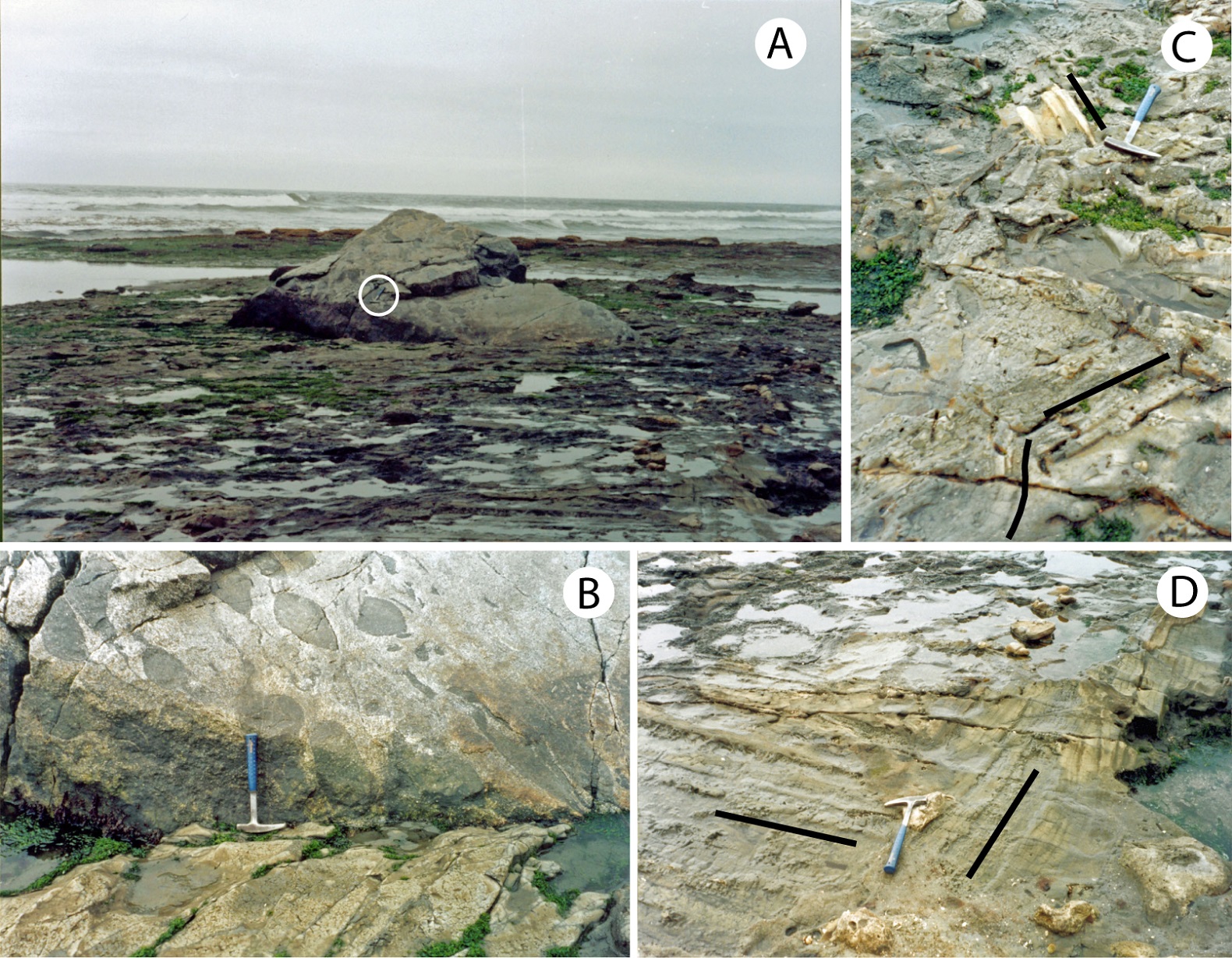

FIG. 3. A. Large granitic boulder associated with siltstone and sedimentary breccia near the mouth of the Rapel River at Punta Perro. Other boulders of smaller size occur in the succession but are not visible in photo. Encircled hammer for scale. B. Detail of siltstone onlapping boulder, demonstrating that the megaclast is embedded in, and therefore contemporaneous with, the sedimentary succession. C.-D. Details of associated breccia composed of large stratified blocks of siltstone and sandstone showing different orientations (partially delineated).



Another argument Le Roux et al. (2013) use against deep-water deposition states that ‘most turbidite successions worldwide are very homogeneous’ and the Navidad Formation consists instead of ‘heterogeneous sandstone packages of 30-40 m’ interbedded with ‘siltstone-shale packages’. They interpret these as characteristically deltaic based on the ‘many similarities between the deposits of prograding deltas and submarine slope fans’, noting features such as ‘the presence of coarsening-upward successions and of shifting distributary channels’. They further their case with an interpretation of a seismic line ‘modified from Contardo et al., 2008’ (Fig. 3 in Le Roux et al., 2013) where they observe ‘3 prominent sandstone packages that might represent delta platform deposits alternating with siltstone-shale packages that show what appear to be westward-sloping, prograding beds possibly reflecting delta slope sedimentation’.

That turbidite successions are typically homogenous is a common misconception among geologists. Posamentier and Walker (2006) remark that ‘deep-water deposits commonly are complex and consequently do not neatly fit any single facies model’. According to these authors, deep-marine successions consist of a variety of lithofacies (e.g., turbidites, structureless sandstones, pebbly sandstones, conglomerates, slumps) organized in different architectural or depositional elements (including slope channels and canyons, channels, overbank deposits, splays, and mass-transport complexes). Amalgamated massive sandstones without mudstone partings may be characteristic of shallow-water environments, but they can also form thick successions in deep-water, as is the case for the 200 m succession of the Annot Sandstone in France (Posamentier and Walker, 2006, p. 404). This does not demonstrate that all the sandstone intervals in the Navidad Formation were deposited in deep-water (in fact, we suspect that some of the sandstone strata at Punta Perro are shallow-water deposits). However, many of the massive sandstones that are common in the Navidad Formation are interbedded with turbidites and display features typical of gravity flow deposits, such as large flutes, thin siltstone partings, water escape marks, sheared flames, floating clasts (ranging to >1 m in diameter), and rip-up siltstone clasts (Fig. 1F). The Navidad Formation is not, as purported by Le Roux et al. (2013), composed exclusively by thick packages of sandstone interbedded with siltstone. It comprises these and other lithofacies that vary in thickness from a few centimeters for turbidites to ~25 m for massive sandstones (Encinas, 2006; Encinas et al., 2008). We observed this, for example, in the coastal bluffs at Matanzas (Fig. 1) where, according to Gutiérrez et al. (2013), the entire Navidad Formation is exposed. We also disagree with the interpretation by Le Roux et al. (2013) that these sandstone-siltstone packages were deposited in a deltaic environment. Deltaic cycles typically range from a few meters to a hundred meters in thickness and are characterized by a succession of coarsening-upward facies showing a transition from the muddier facies of a prodelta to the sandier facies of a delta front (Bhattacharya, 2006). Although some of the Navidad Formation may be of deltaic origin, most sections of this unit, including those of the Matanzas bluffs (Fig. 1) do not show features characteristic of that environment. We did not observe any clear coarsening-upward arrangement at any scale, and sedimentary structures typical of shallow-marine environments (e.g., cross-bedding) are rather uncommon. The individual sandstone and siltstone intervals vary widely in thickness, their contacts are typically abrupt, and they commonly show sedimentary structures typical of gravity-flow deposits. Distributary channels on deltaic environments, on the other hand, usually occur on the delta plain, whereas those observed in the Navidad Formation contain fossils characteristic of open-marine settings. Regarding the seismic profile depicted in figure 3 of Le Roux et al. (2013), which they credit to Contardo et al. (2008), we were surprised to find out that it is not the same part of Line VG02-18 shown in the indicated source, but is the eastward extension of it. Le Roux et al. (2013) assume that the entire analyzed succession in that profile corresponds to the Navidad Formation, but there are no wells drilled offshore in this area to confirm this. In fact, Beicip-Franlab (1996) offer an alternative interpretation of a seismic profile made by ENAP in the same area, which indicates the presence of three marine sequences (Upper Cretaceous, Eocene, Oligocene-Miocene) that show a regional dipping of tectonic origin, not prograding clinoforms. Even if the entire profile were to correspond to the Navidad Formation, we do not comprehend how Le Roux et al. (2013) were able to recognize different lithologies in the seismograph. Further, according to the scale shown in the profile, the thickness of the three siltstone packages they identify vary from ~100 to 300 m, while that of the three sandstone packages is ~30-40 m. This contradicts Gutiérrez et al. (2013), who state that the Navidad Formation has a total thickness of 220 m and no siltstone or sandstone interval in the Matanzas section (Fig. 1) exceeds ~10 m. More importantly, two of the three subhorizontal reflectors interpreted by Le Roux et al. (2013) as ‘prominent sandstone packages’ actually correspond to the multiple reflections of the upper bed that can be observed in the uninterpreted seismic profile (Fig. 4).

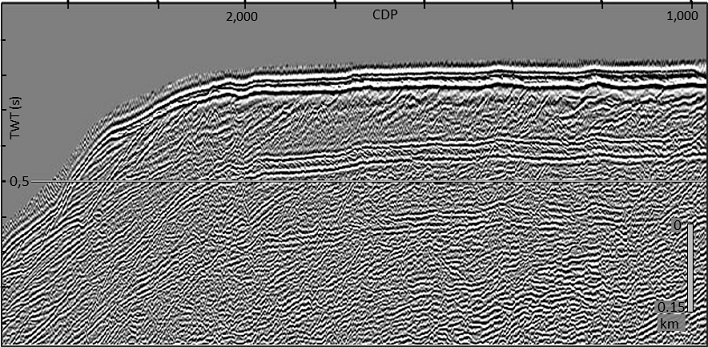

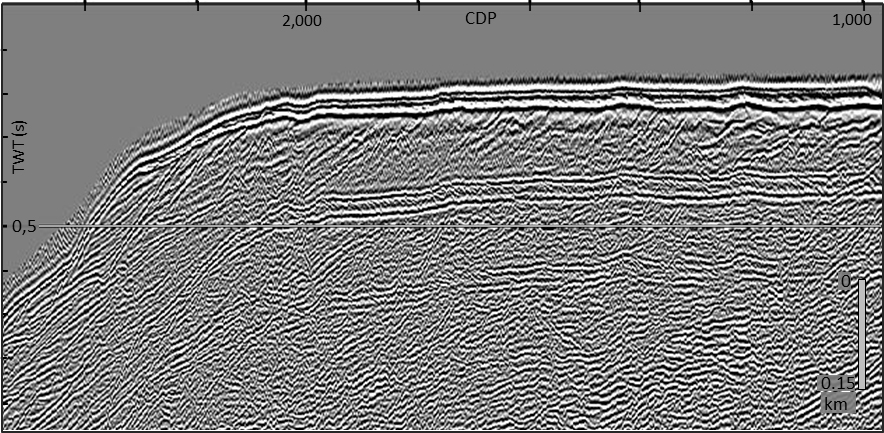

FIG. 4. Uninterpreted seismic line that Le Roux et al. (2013, figure 3) analyzed. The line is located east of line VGO2-18 (location in figure 1 of Contardo et al., 2008). It can be observed that two of the three subhorizontal reflectors interpreted by Le Roux et al. (2013) as ‘prominent sandstone packages’ actually correspond to multiple reflections of the upper bed. They have lower amplitudes than primary reflection due to loss of energy. TWT: two-way traveltime; CDP: common depth point.



2.5. Paleoseeps

As another feature favoring deep-water deposition, Finger et al. (2013) mention the presence of the hydrocarbon paleoseep in the Navidad Formation that was described by Contardo and Mena (2012). Le Roux et al. (2013) dismiss this by stating that ‘such seeps can occur in any sedimentary succession where hydrocarbons accumulate’ and that ʻthe isotopic characteristics described by Contardo and Mena (2012) indicate a paleoseep, not deep water’. Certainly cold seeps are widespread and occur on tectonically active and passive margins. Seep communities are known from depths of <15 m (Montagna et al., 1987) to >7,400 m in the Japan Trench (Fujikura et al., 1999). However, seep sites are usually located at depths below 300 m (Sibuet and Olu-Le Roy, 2002) and they differ in both source and form from those in shallower water (Levin, 2005). The trophic web at a shallow water seep is based on photosynthesis, but seep communities at bathyal and abyssal depths rely on chemosynthesis. Cold seeps fueling chemosynthesis-based benthic communities have been observed in deep sea areas ranging between 400 and 6,000 m (Sibuet and Olu-Le Roy, 1998). Isotopic signatures of δ¹³C also differ between deep and shallow marine environments. Seep samples recovered from deep water are characterized by exceptionally light δ¹³C signatures (e.g., -40‰ to -50‰ on the Black Ridge) (Van Dover et al., 2003; Campbell et al., 2008), while those at shallower seeps have less ¹³C depleted signatures (e.g., -16‰ and -20‰) (Dando et al., 1991). Deep-water seeps are also characterized by the presence of authigenic carbonate, mostly of microbial origin (Barbieri and Cavalazzi, 2004), that forms mounds, platforms, or other structures (Levin, 2005). In contrast, aerobic methane oxidation occurs in the presence of oxygen and leads to production of CO₂ and carbonate dissolution. For that reason, the optimal conditions for carbonate mound precipitation and preservation require low-energy, anaerobic environments, and deep water. Under these conditions, the carbonate mound can grow to a height of ~300 m associated with fossil venting as in the Porcupine Bight, Rockall Trough (van Weering et al., 2003; Levin, 2005).

On the slope off south-central Chile, localities of active methane seeps have been identified by their characteristic carbonate and biota recovered in bottom samples from depths of 350 to 1,000 m (Sellanes et al., 2004, 2008; Quiroga y Levin, 2010). In addition, high-resolution geoacoustic data have revealed cold-seep areas off central Chile at upper-slope depths of 600 to 1,000 m, and they include both active and fossil methane seeps (Klaucke et al., 2012). To date, the only shallow-water seep site documented from the Chilean margin is that at Mocha Island off central Chile. Jessen et al. (2011) studied the intertidal and subtidal gas seepage system at four main sites. They found that stable carbon isotopic signatures extracted from tissues of marine benthic organisms indicate a predominantly photosynthesis-based food web, although some specific taxa yielded lower isotopic ratios that suggest assimilation of methane-derived carbon, whose trophic structure and food source is analyzed by Sellanes et al. (2011).

For the Navidad Paleoseep (PSN), Contardo and Mena (2012) obtained mean δ¹³C values around -40‰ (in carbonate samples) and one of -29.5‰ PDB (Pee Dee Belemnite) from a lucinid bivalve shell, which is consistent with the low values reported from deep-water hydrocarbon seeps in both modern and ancient seeps (Levin, 2005; Campbell et al., 2008).

The Miocene PSN is also characterized by an authigenic carbonate mound and contains a variety of fossils, including lucinids bivalves, gastropods, tube worms, microbialites, and teredolites. Although lucinids are not restricted to seep environments (in fact, Lucinoma promaucana occurs in sandstones throughout the Navidad Formation), numerous species of this genus have been reported from Late Jurassic to Pliocene paleoseep deposits worldwide (Kiel, 2013; Campbell et al., 2008). Seep related lucinids have been registered as dominant around 300 to 1,700 m (Levin, 2005; Taylor and Glover, 2006).

3. Tectonosedimentary evolution and sequence stratigraphy of the Navidad basin

Le Roux et al. (2013) remark on the sedimentary evolution of the Navidad basin, the tectonic setting during deposition of the Neogene marine units that crop out in this area, and the relative sea level changes that took place during the basin filling. One of our interpretations they question is the ‘dramatic’ paleodepth of 1,500 m indicated in Finger et al., (2007) and Encinas et al., (2008) on the basis of benthic foraminifera. They alternatively propose that this unit comprises alternating packages of siltstones deposited at 200-300 m depth (which places them on the upper slope) during marine transgressions, and sandstones deposited at shallower depths during regressions. How they arrived at those maximum depths is not evident.

Finger et al. (2013) and Finger (2013) explain the inherent uncertainties involved in determining paleodepths on the basis of extant foraminiferal species. Thus, we realize that some of our species may have had shallow upper depth limits in the Early Miocene. However, we think it would be most unlikely that any significant number of the species we consider as bathyal depth indicators inhabited the shelf during that time interval, as we discussed before. Thus, it is probable that the depositional environment for part of the Navidad Formation was at least a few hundred meters deeper than the maximum paleodepth of 300 m proposed by Le Roux et al. (2013). Furthermore, several studies on convergent margins show that a paleodepth of 1,500 m is not necessarily ‘dramatic’ as defined by Le Roux et al. (2013). For example, work derived from DSDP-ODP projects demonstrate that several Pacific margins where the subject of 4-5 km of water-depth increase during the Neogene (e.g., Von Huene and Scholl, 1991; Clift and Vannucchi, 2004; references therein). In addition, Buret et al. (1997) studied a Neogene marine succession in the Hikurangi forearc of New Zealand that had a history somewhat similar to that of the Navidad basin, reaching water paleodepths of ~1,000 m in the Middle to Late Miocene before rising to shelfal depths in the Pliocene. According to the reasoning of Le Roux et al. (2013) the water-depth determinations of that study should be reliable because they were based on foraminifera younger than 15 Ma. A point of major disagreement with Le Roux et al. (2013), however, is their interpretation of the Navidad Formation as alternating packages of siltstones and sandstones, the former deposited at 200-300 m depth as a consequence of marine transgressions, and the latter deposited during marine regressions. As clarified above, this unit is not simply composed of just large packages of shallow-water sandstones and deep-water silt-stones but by several different facies in which these lithologies occur. It would be hard to imagine that the abrupt and repetitive changes between sandstones and siltstones seen in several sections such as that of Matanzas (Fig. 1) reflect water-depth shifts on the order of ~200 m. Although we agree that some lithological changes in the Navidad Formation are likely related to sea-level changes, deposition of sandstone and siltstone in most sections is better explained by alternating gravity flows and settling of fine-grained particles. Yet, the Navidad Formation is not exclusively formed by deep-water facies as mentioned above. Because it overlies a Paleozoic or Upper Cretaceous basement and underlies the shallow-marine Licancheu Formation (Encinas et al., 2006), it necessarily has to record a transgressive-regressive cycle. Unfortunately, there is no complete section of the Navidad Formation that includes the basal and upper contacts of this unit and from which its complete sedimentary evolution can be studied. The sedimentary environment of the upper part of the Navidad Formation is difficult to interpret because it is partially covered by vegetation. The basal contact of the Navidad Formation is clearly exposed only at Punta Topocalma and Cerro Guanaco (sections TOP and GUAN in Encinas, 2006) but those successions are short. The conglomerate containing large granitic blocks on the west side of the Punta Perro peninsula is thought to be the basal Navidad Formation (e.g., Cecioni, 1978; Tavera, 1979; Encinas et al., 2006), but this eludes confirmation because its contact with the basement is not exposed. Yet, the boulder conglomerate is seen in the intertidal platform but not in the nearby bluffs, which instead consist of a succession of sandstone and siltstone with local facies (e.g., slumps) characteristic of deep-water settings (figure 8 in Encinas et al., 2008). We now consider this is probably due to displacement by faulting parallel or oblique to the coast, as inferred by Cecioni (1970, 1978). In summary, the Navidad Formation comprises shallow- and deep-water facies but their relationship is difficult to ascertain because individual sections are separated by incised valleys or faults.

Another point of interest is the cause of the marine transgression associated with the deposition of the Navidad Formation. Based on previous studies on convergent margins, Encinas et al. (2008) proposed subduction erosion as the most probable cause of subsidence in this area. By this process, basal tectonic erosion removes the underside of the upper plate causing its thinning and margin subsidence. Von Huene and Scholl (1991) proposed that subduction erosion could explain the presence of Miocene unconformities in the margins of Perú and Japan that were carved near sea level and presently occur at a depth of more than 4,000 m. This process also has been considered to be the cause of Neogene subsidence of several Pacific margins, such as those of New Zealand (Buret et al., 1997), Costa Rica (Vannucchi et al., 2001), and Guatemala (Vannucchi et al., 2004). Thus, subduction erosion seems to be a reasonable mechanism to explain Miocene subsidence of the Navidad basin. Yet, Le Roux et al. (2013) discard this notion because ‘subduction erosion according to this theory would have been the direct effect of a decrease in the sedimentation rate in the oceanic trench caused by an increasingly dry climate’ and the Navidad region was subjected to high rainfall during the Early Miocene (e.g., Hinojosa and Villagrán, 2005). However, trench sedimentation rates are not solely related to regional climate, as they are also influenced by the relief of the overriding plate. For example, there are several margins dominated by tectonic erosion that are located in regions of high rainfall (Clift and Vannucchi, 2004). Subduction erosion is a complex process and what drives it is not well understood. Based on their global study of convergent margins, Clift and Vannucchi (2004) state that tectonic erosion ‘is favored in regions where convergence rates exceed 6±0.1 cm yr^-1 and where the trench sedimentary cover is < 1 km’. Accordingly, Melnick and Echtler (2006) proposed that ‘a low-relief Andes resulted in a sediment-starved trench, which, in addition to high plate-convergence rates, caused subduction erosion of the south-central Chilean margin during the Miocene’. Thus, a wet climate is insufficient reason to discard the notion that subduction erosion drove the Early Miocene subsidence of the Navidad basin. Regardless, we now consider that another possible mechanism for that subsidence is extension caused by negative rollback of the subducting slab. According to Muñoz et al. (2000), this occurred in south-central Chile at ∼25-24 Ma as a consequence of the transient steepening of the subduction angle during the transition from a more oblique South America-Farallón convergence to a more rapid and near normal South America-Nazca convergence. The erroneous assumption that the Navidad Formation was deposited during the Late Miocene-Early Pliocene gave Encinas et al. (2008) reason to discard this mechanism because they figured negative rollback would have resulted in the onset of widespread extension. Instead, a major tectonic compressive phase is well documented in the Andean Cordillera during that time (references in Encinas et al., 2008). Given the Early Miocene age that, for the most part, is now agreed upon for the Navidad Formation (Nielsen and Glodny, 2009; Gutiérrez et al., 2013; Finger et al., 2013; Finger, 2013), we no longer exclude negative roll-back as a possible cause.

Le Roux et al. (2013) make some comments about the sedimentary evolution and sequence stratigraphy of the Navidad basin that we wish to clarify. The Navidad Formation is overlain by shallow-marine strata of the Licancheu, Rapel, and La Cueva formations (Encinas et al., 2006). The architecture and sedimentary evolution of the basin is difficult to interpret because there are no complete sections where all four units are exposed, and their basal contacts can be observed at only a few locations. However, Encinas et al. (2006), noted that all these formations overlie each other or, locally, rest over a Paleozoic or Mesozoic basement. The basal strata of the Rapel and La Cueva formations are transgressive conglomerates overlying bioturbated surfaces that, in terms of sequence stratigraphy, represent co-planar surfaces of lowstand erosion and transgressive ravinement (Buatois and Encinas, 2006; Encinas et al., 2006). We did not observe a transgressive lag or a bioturbated surface between the Navidad and Licancheu formations, but the characteristics of this contact are difficult to study because it is partially obscured by vegetation. However, near the town of Rapel, the Licancheu Formation records the beginning of the transgression in the form of barnacles attached to the upper surface of the subjacent Paleozoic basement (Tavera, 1979; Encinas et al., 2006). Independently of the exact maximum water-paleodepth reached during deposition of the Navidad Formation, Le Roux et al. (2013) concord with us that part of this unit was deposited in deep-water. It can therefore be deduced that at the time of Navidad deposition, the paleocoast must have been located east of the outcrops of this unit exposed near the town of Navidad, although not necessarily very far away (e.g., in north Chile, the 2,000 mbsl contour is only ~20 km west of the Mejillones Peninsula). In the Rapel area, it appears that erosion of the Navidad Formation exposed the basement prior to the transgression that deposited the Licancheu Formation. In support of this, Melnick and Echtler (2006) noted that in the Arauco area there is an angular unconformity between the Ranquil Formation (which correlates with the Navidad Formation) and younger shallow-marine deposits (Melnick and Echtler, 2006). Thus, it seems plausible that the Navidad Formation had a similar history in which it was deformed, uplifted, and partially eroded before deposition of the Licancheu Formation. Le Roux et al. (2013), however, propose an alternative explanation when they consider the Neogene succession of the Navidad basin as, ‘a typical onlap situation, therefore indicating large-scale marine transgression that continued the deepening trend proposed by us for the Navidad Formation’. If the Navidad basin had been filling during a wide-spread and continuous marine transgression, and the paleocoast during deposition of the Licancheu Formation had been located east (inland) of the Navidad Formation, covering the formerly emerged basement, then the younger units would represent a progressively deepening sequence. In contrast, sedimentological evidence clearly indicates that the Licancheu, Rapel, and La Cueva formations were deposited in shallow-marine settings (Encinas, 2006; Encinas et al., 2006).

4. Stratigraphy of the Navidad Basin

Le Roux et al. (2013) make some considerations on the stratigraphy of the Navidad Formation and other Neogene marine units in the area. They state that the Lo Abarca Formation ‘may have a questionable correlation with the Navidad Formation’ and further support the stratigraphic scheme proposed by Gutiérrez et al. (2013) in which the Navidad Formation is divided into a lower unit composed of ‘coarse- to medium-grained sandstone interbedded with lenticular, pebbly sandstones’, and an upper unit consisting on ‘fine- to very fine-grained sandstones intercalated with shales and claystones’. They also propose bundling the Neogene formations (Navidad, Licancheu, Rapel, and La Cueva) in the Navidad area as the Darwin group.

Encinas et al. (2006) correlated the Lo Abarca and the Navidad formations based on their overlapping ages and similar facies. However, the temporal equivalence was based in the erroneous Late Miocene-Early Pliocene age presented for the Navidad Formation. In light of the new data that confirms an Early Miocene age for at least part of the Navidad Formation (Gutiérrez et al., 2013; Finger et al., 2013; Finger, 2013), and a late Middle Miocene-Pliocene? age for the Lo Abarca Formation (Encinas et al., 2010), we concur with Le Roux et al. (2013) that the two units are not correlative. We still differ, however, in the Gutiérrez et al. (2013) division of the Navidad Formation into a coarse-grained lower unit and a fine-grained upper unit. As pointed out by Finger et al. (2013), their stratigraphic scheme is based solely on the Punta Perro-Matanzas sections, but does not consider those where the Navidad Formation contacts the overlying Licancheu Formation. On the other hand, although we assume that Gutiérrez (2011) did careful mapping, we doubt if their correlation between the Punta Perro and Matanzas areas is accurate because of facies repetition and the separation of the sections by the mouth of the Estero Navidad (Finger et al., 2013). We are particularly perplexed as to how Gutiérrez et al. (2013) correlated the boulder conglomerate that is considered the base of the Navidad Formation (e.g., Tavera, 1979; Encinas et al., 2006) since it crops out at Punta Perro but not Matanzas. Further, a well drilled by ENAP in the vicinity of the town of Matanzas indicates that, unless there is a major fault in the area, the succession of horizontal strata exposed in the coastal cliff is underlain by at least 100 m of the Navidad Formation (Encinas et al., 2006). On the other hand, neither the sections measured by Encinas (2006) at Matanzas (Fig. 1) nor the composite column of Gutiérrez et al. (2013) display a lower, coarse-grained unit and an upper, fine-grained unit that indicate the deepening-upward succession proposed by Gutiérrez et al. (2013). On the contrary, these columns show a continuous and repetitive succession of alternating sandstone, siltstone, and minor conglomerate. In addition, the base of the Matanzas succession (Fig. 1), considered by Gutiérrez et al. (2013) as the basal part of the Navidad Formation, displays several siltstone intervals, deep-water facies (e.g., turbidites, slumps, and massive sandstones with large rip-up clasts, figure 1), and it has a microfauna that includes bathyal benthic foraminifera and ostracodes. The scheme of Gutiérrez et al. (2013) is not readily observed in the two sections that have the basal Navidad Formation superjacent to the basement, as the column at Cerro Guanaco (GUAN in Encinas, 2006) shows a succession of conglomerate and sandstone that is ~60 m thick, while that at Punta Topocalma (TOP in Encinas, 2006) is a mere ~5 m overlain by siltstone and minor sandstone. This demonstrates that the stratigraphy of the Navidad Formation is a complex issue and lithological correlation of disparate sections must be taken with caution because of lateral facies changes.

Finally, we agree with the proposal of Le Roux et al. (2013) to bundle the four Neogene successions in the Navidad area as a group. In fact, the Darwin Group was first proposed by Encinas et al. (2006) in the draft of the manuscript first submitted, but the journal editor advised against using a name that does not correspond to any locality in the area.

5. Conclusions

The Navidad Formation consists of shallow- and deep-marine facies whose stratigraphic relationships are difficult to determine because there is not a single section that records the totality of this unit and individual sections are separated by incised valleys or faults. Refinement of the stratigraphy and sedimentary evolution of this unit thus remains elusive, and some interpretations are still contested. We do not believe the Navidad Formation should be divided into a lower, coarse-grained unit, and an upper, fine-grained unit, thus forming a deepening-upward succession, because this is not evident at Matanzas.

We interpreted many of the sections as deep-water deposits because they exhibit sedimentary facies characteristic of gravity-flow deposits and contain bathyal species of foraminifers and ostracodes. Additionally, the environmental conditions required for authigenic carbonate deposition, their chemosynthetic associated communities and preservation of the Navidad Paleoseep are distinctive of deep water. Because paleoecological inferences based on the modern faunal data have inherent uncertainties, we cannot ascertain that the Navidad Formation was deposited at specific water depths; however, the presence of a significant number of deep-water species of foraminifera and ostracodes, many of which are extant, constitutes a strong argument favoring deposition of their samples well below the shelf-slope break.

Although we do not discard that some of the fossils in the Navidad Formation occur in shallow-marine facies, many arguments favoring shallow-water deposition are weak. Good preservation of terrestrial and nearshore species in this unit does not confirm their shallow-water deposition, as studies elsewhere have found well-preserved marine invertebrates, leaves, and terrestrial insects in turbidites. The occurrence of invertebrate species indicative of shallow-marine sandy and rocky settings is not a valid argument either because several studies have demonstrated that gravity flows can transport these organisms into deep-water, especially in settings were the continental shelf is narrow and the submarine canyon heads are located near the coast. Many of the leaf-rich successions of the Navidad Formation, as well as several concentrations of marine invertebrates, show facies characteristic of gravity-flow deposits and contain bathyal foraminifera and psychrospheric ostracodes.

We discard the notion that the Navidad Formation is simply composed by alternating packages of siltstones deposited at water depths of 200-300 m during marine transgressions, and sandstones deposited at shallower depths during regressions because these lithologies alternate repetitively, vary widely in thickness, and occur in a variety of facies, especially those most often associated with gravity-flow deposits.
