First radiometric age (U-Pb, LA-ICP-MS, on detrital zircons) from the Punta Topocalma Formation: insights on Late Cretaceous marine deposition in central Chile

*Alfonso Encinas1, Wolfgang Stinnesbeck2, Víctor A. Valencia3

1 Departamento de Ciencias de la Tierra, Universidad de Concepción, Casilla 160-C, Concepción, Chile.
aencinas@udec.cl

2 Institut für Geowissenschaften, Ruprecht-Karls-Universität, Im Neuenheimer Feld 234, D-69120 Heidelberg, Germany.
wolfgang.stinnesbeck@geow.uni-heidelberg.de

3 School of Earth and Environmental Sciences, Washington State University, Pullman, Washington 99164, USA.
vicvalencia1@gmail.com

*Corresponding author: aencinas@udec.cl

1.1. General outline

Campanian?-Maastrichtian (Upper Cretaceous) marine rocks crop out along the Pacific coast of central and south-central Chile between Algarrobo (33°S) and the Arauco Peninsula (37°S) (Stinnesbeck, 1986) (Fig. 1). Upper Cretaceous marine deposits have also been recognized in boreholes drilled on the continental shelf at the same latitudes (Mordojovich, 1981). These strata have been studied since the 19th century (e.g., D’Orbigny, 1842; Darwin, 1846; Philippi, 1887; Steinmann et al., 1895; Wilckens, 1904; Wetzel, 1930; Biró-Bagóczky, 1982; Stinnesbeck, 1986; Salazar et al., 2010; Buatois and Encinas, 2011) and constitute an important reference for the Upper Cretaceous of South America due to their diverse fossil fauna and flora that includes bivalves, gastropods, scaphopods, cephalopods, crustaceans, birds, plesiosaurs, mosasaurs, turtles, fish, pollen, and wood (for references see Salazar et al., 2010; Buatois and Encinas, 2011).

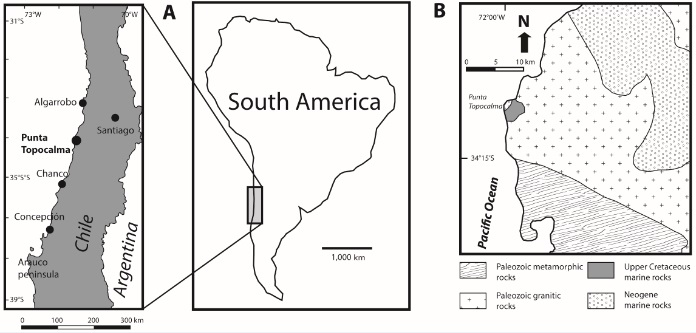

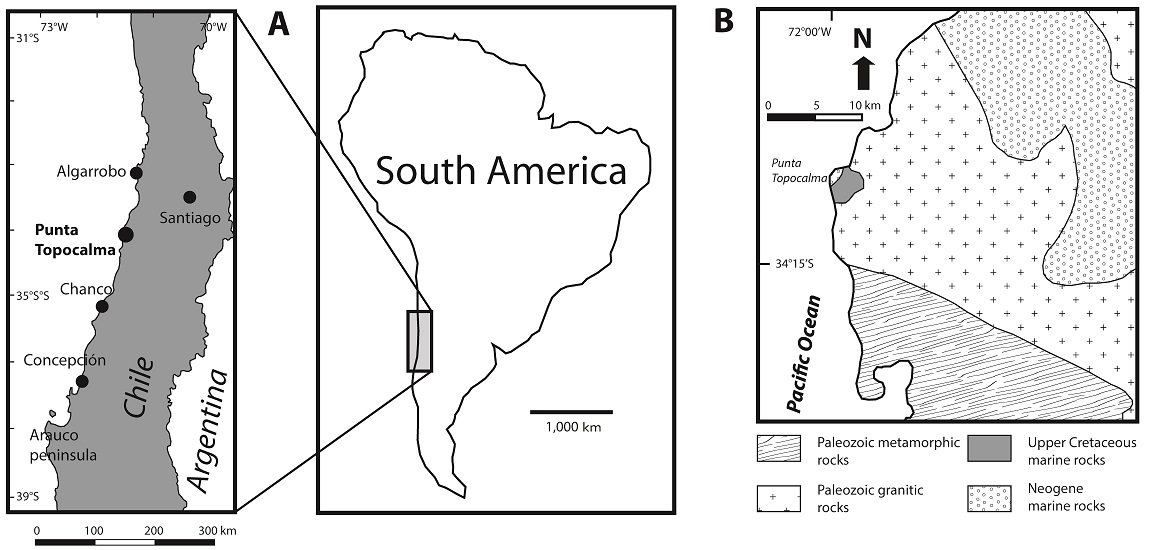

Fig. 1. A. Localities with outcrops of Upper Cretaceous marine deposits along the coast of central and south-central Chile; B. Geologic map of the study area (modified from Servicio Nacional de Geología y Minería, 2002; Encinas et al., 2006).



Most studies on Upper Cretaceous marine deposits have been carried out on the Quiriquina Formation that crops out in the vicinity of Concepción (~36°45’S) (Fig. 1). Biró-Bagóczky (1982) proposed Las Tablas Bay on Quiriquina Island as a type section for this lithostratigraphic unit and a section at Cocholgüe, on the coast of the bay of Concepción, as a complementary paratype. The Quiriquina Formation overlies plutonic and metamorphic upper Paleozoic rocks and underlies Paleogene fluvial to brackish strata (Stinnesbeck, 1986, 1996). This unit forms a fining-upward succession deposited in a coastal to shallow-marine environment that comprises, from base to top, a transgressive conglomerate, an interval of coarse-grained sandstone with interbedded conglomerate and coquina, and a fine-grained glauconitic sandstone to siltstone interval with calcareous concretions (Stinnesbeck,1986; Buatois and Encinas, 2011). Based on ammonites, a Late Senonian age was originally assigned to the Quiriquina Formation by Steinmann (1895). However, Stinnesbeck (1986, 1996) and Salazar et al. (2010) restricted the age of the unit to the Early to Late Maastrichtian, also based on ammonite occurrences.

Upper Cretaceous marine strata from other localities of central and south-central Chile are largely unstudied and their biostratigraphic ages are not precisely known (Fig. 1). They have been reported in the following localities: 1. the Arauco peninsula (~37°30’S) where strata of the Quiriquina Formation were identified in small outcrops and wells drilled in the area by coal and oil companies (see Stinnesbeck, 1986 and references therein); 2. Chanco (~35°S), where local strata were defined as the Chanco Formation and assigned to the late Campanian by Tavera (1988¹) based on stratigraphic correlations and fossil invertebrates. However, Suárez and Otero (2009) tentatively assigned the Chanco strata to the Maastrichtian because their facies and fossil content are similar to those identified in the Quiriquina Formation; 3. Punta Topocalma (~34°S) where they were defined as the Punta Topocalma Formation by Cecioni (1978) and assigned to the Upper Campanian based on ammonites (Pérez and Reyes,1980); 4. Algarrobo (~33°S) where they were defined as the Estratos de la Quebrada Municipalidad by Gana et al. (1996) and assigned to the early Maastrichtian by Levi and Aguirre (1966) based on ammonites, and by Suárez and Marquardt (2003) based on strontium isotope stratigraphy.

The Quiriquina Formation is biostratigraphically constrained to the Maastrichtian in its type sections around the bay of Concepción (e.g., Las Tablas, Cocholgüe, Tomé; Stinnesbeck 1986, 1996; Salazar et al., 2010), but the precise ages of potentially correlative Late Cretaceous units to the north and south of Concepción (Arauco, Chanco, Algarrobo, and Punta Topocalma) are less well known and it remains unclear to date whether deposition in these localities was strictly coeval or may have initiated earlier, during the Campanian (e.g., Pérez and Reyes, 1980; Biró-Bagóczky, 1982; Tavera, 1988). The presence of abundant pumice clasts in Upper Cretaceous marine strata at Punta Topocalma prompted us to carry out U-Pb (LA-ICPMS) geochronological analyses on detrital zircons. Here we present the first radiometric age from Upper Cretaceous marine deposit of the Chilean forearc basin and discuss possible stratigraphic implications for the regional geology.

2. The Punta Topocalma Formation

The Punta Topocalma Formation was defined by Cecioni (1978) in the homonymous locality (~34°S; Fig. 1). The unit at the type section is ~16 m thick and overlies Paleozoic granitoids (Fig. 2). The upper contact is a mild angular unconformity with marine Miocene sandstone and siltstone of the Navidad Formation (Tavera, 1979; Encinas et al., 2006), which is in turn overlain by cross-bedded sandstone interpreted as Pleistocene? eolian paleodune deposits. The Topococalma Formation comprises a basal interval, ~0.5 m thick, of fossiliferous conglomerate and locally very coarse sandstone, overlain by ~15 m of green to yellow, well-sorted, medium-grained massive sandstone with scarce thin-bedded intercalations of conglomerate and coquina. Pumice clasts are abundant at the top of the succession. Carbonate concretions of diagenetic origin are locally abundant. The unit contains ammonites, bivalves, fishes, reptiles, and wood fragments that are up to one meter long (Pérez and Reyes, 1980; Suárez et al., 2003).The poor preservation of sedimentary structures prevents a refined sedimentologic interpretation. However, the presence of well-sorted sandstone with relatively abundant large wood fragments suggests a shallow-marine environment. Thin intercalations of conglomerate and coquina are interpreted as storm deposits. Pumice clasts in the upper part of the succession were probably originated by episodes of explosive volcanism in the arc domain to the east.

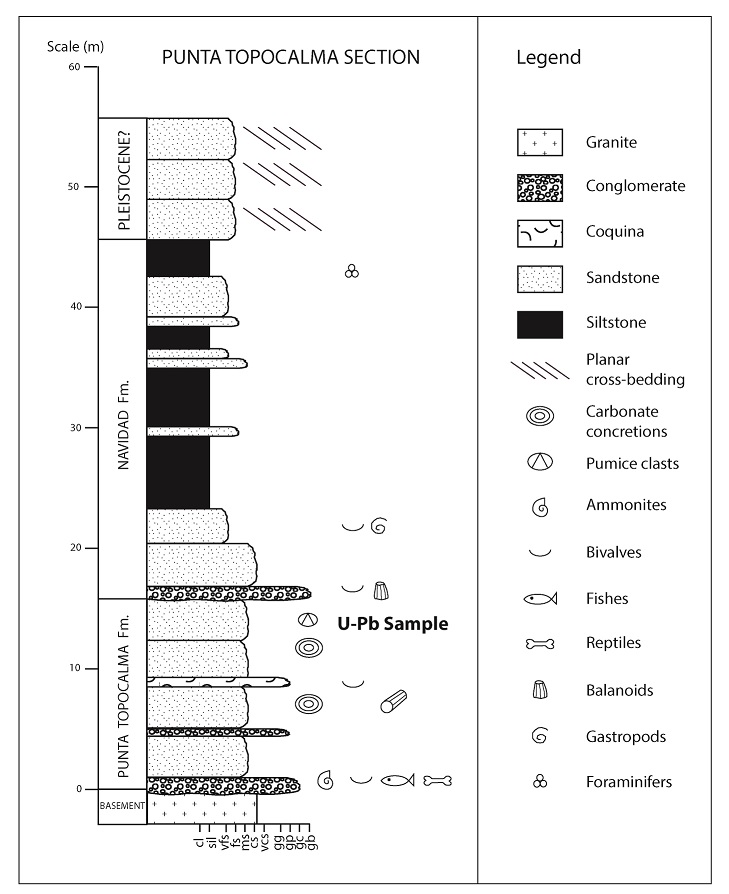

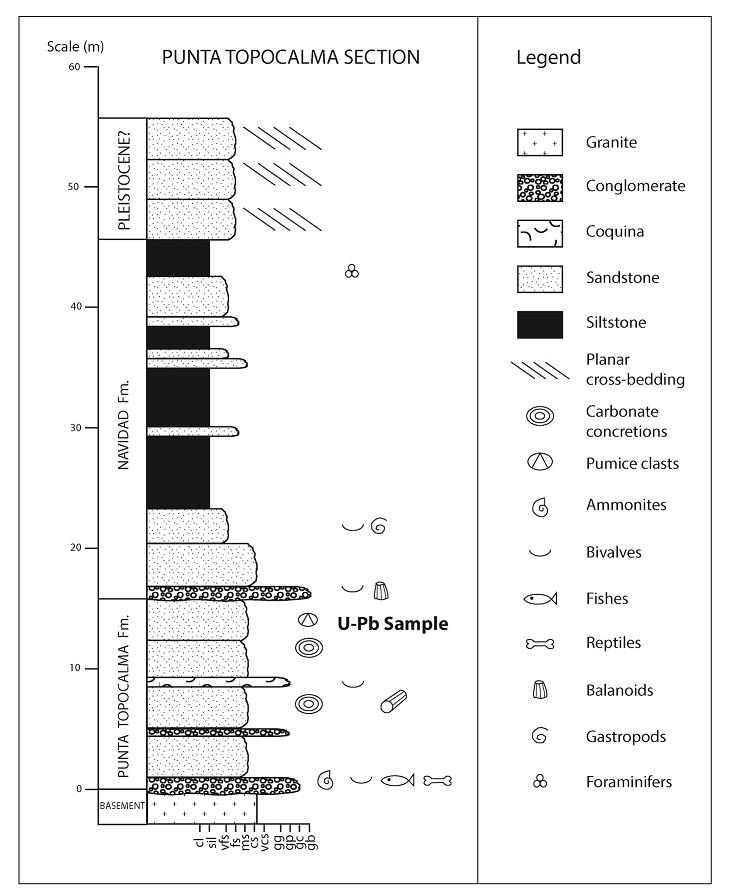

Fig. 2. Punta Topocalma section. Grain size: cl: clay; sil: silt; vfs: very fine sandstone; fs: fine s.; ms: medium s.; cs: coarse s.; vcs: very coarse s.; gg: gravel (granules); gp: gravel (pebbles); gc: gravel (cobbles); gb: gravel (boulders). The position of the U-Pb sample is indicated in the column.



3. U-Pb Geochronology

One sample, consisting of ~10 kg of medium-grained sandstone with abundant pumice clasts, was selected for U-Pb zircon geochronology. Heavy mineral concentrates of the < 350 µm fraction were separated using traditional techniques at ZirChron LLC, Tucson Arizona. A split of zircons from the non-magnetic fraction was mounted in a 1’ epoxy ring and slightly ground and polished previous to laser ablation analysis.

LA-ICP-MS U-Pb analyses were conducted at Washington State University prior to CL imaging (University of Idaho) using a New Wave Nd:YAG UV 213-nm laser coupled to a ThermoFinnigan Element 2 single collector, double-focusing, magnetic sector ICP-MS. Operating procedures and parameters are a modification of Chang et al. (2006). Laser spot size and repetition rate were 30 nm and 10 Hz, respectively. He and Ar carrier gases delivered the sample aerosol to the plasma. Each analysis consisted of a short blank analysis followed by 250 sweeps through masses 204, 206, 207, 208, 232, 235, and 238, taking approximately 30 seconds. Time-independent fractionation was corrected by normalizing U-Pb and Pb/Pb ratios to zircon standards (Chang et al., 2006). For this study we used two zircon standards: Plesovice, with an age of 338 Ma (Slama et al., 2008) and FC-1, with an age of 1,099 Ma (Paces and Miller, 1993). U-Pb ages and plots were calculated using Isoplot (Ludwig, 2003) and systematic and analytic errors (2σ) were included.

Zircon crystals in the sample analyzed are mainly magmatic based on the Th/U ratio (1.0-0.4:1), oscillatory and sector zoning, and morphology. Zircons are pink colored and crystals mostly prismatic in shape, CL image shows predominantly long and thin zircons with broad to narrow oscillatory growth zoning (3-6:1 c/a axial ratio), which is common in evolved volcanic rocks (Fig. 3). Detrital zircon grains used here, however, were randomly selected and not by shape, size, clarity, or other attributes. The maximum depositional age of the Punta Topocalma Formation sample is ~71.9±0.9 Ma (2 sigma, n=42) (Fig. 4). An abundant Mesozoic main detrital zircon population is present and ranges from 68-75 Ma (53% of the dated zircons). Other peak populations show ages of ~89-105 Ma (8%), ~288- 314 Ma (22%) and 321-352 Ma (10%). Single analyses at 572 Ma and 1,086 Ma are also present (Fig. 4).

Fig. 3. Cathodoluminiscence image from the analyzed zircons.

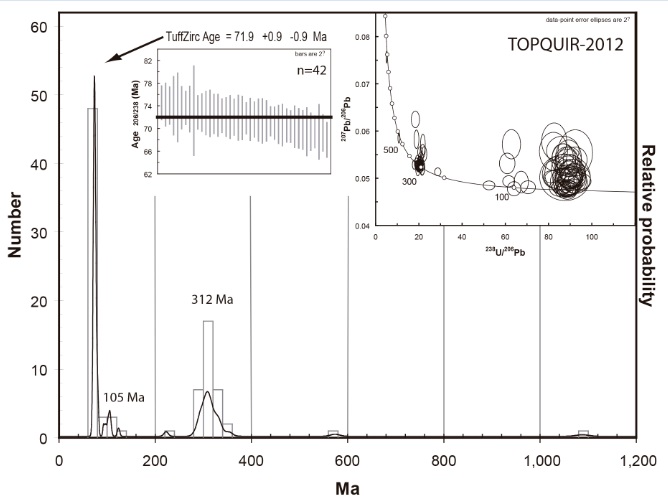

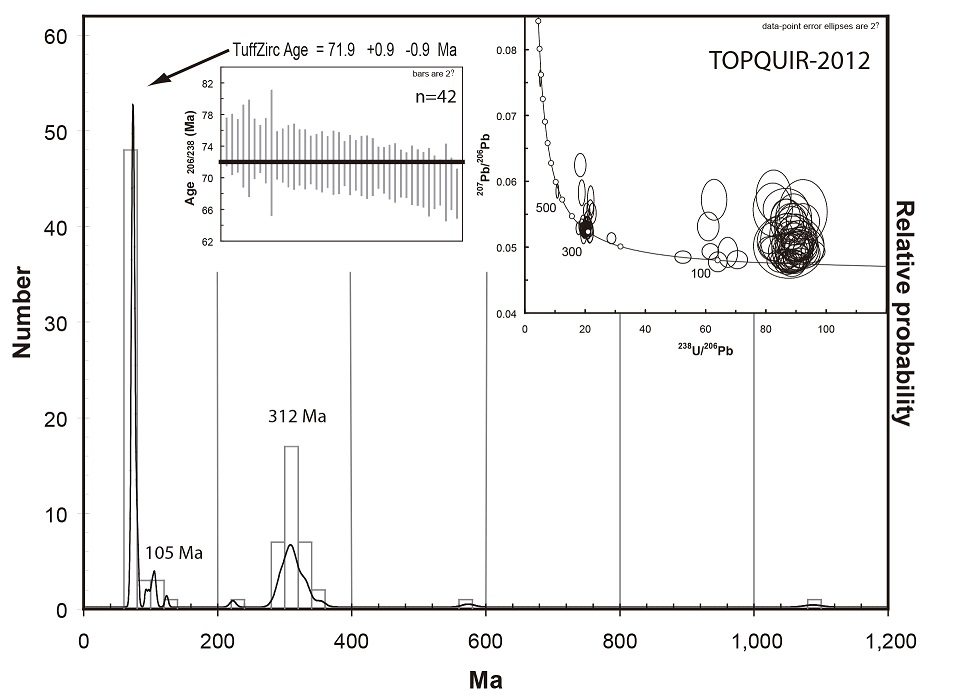

Fig. 4. U-Pb plots from analyzed sample including the Tera-Wasseburg diagram (right inset), the probability density plot with the main age peaks and the youngest age calculated with the Tuff-Zirc algorithm (Ludwig, 2003).



4. Discussion

The age of Upper Cretaceous marine rocks of the Chilean forearc is mainly based on the study of ammonites from the Quiriquina Formation in the area of Concepción bay. In this unit, the assemblage is exceptionally diverse (30 taxa assigned to 17 genera) and shows affinities with Indo-Pacific and European assemblages (Stinnesbeck, 1986; Salazar et al., 2010). Biró-Bagóczky (1982) proposed a Campanian-Maastrichtian age for the formation, but subsequently, Stinnesbeck (1986, 1996) and Salazar et al. (2010) restricted the age of the Quiriquina Formation to the Maastrichtian. Salazar et al. (2010) refined the biostratigraphic scheme proposed by Stinnesbeck (1986) and divided the Quiriquina Formation into three biozones: 1. the Baculites anceps biozone, assigned to the late Early Maastrichtian; 2. the Eubaculites carinatus biozone, which is further divided into the Menuites fresvillensis subzone (early Late Maastrichtian) and the Kitchinites (K.) darwini subzone (middle to late Late Maastrichtian); and 3. a biozone without Baculitids tentatively assigned to the latest Late Maastrichtian. The Quiriquina ammonite assemblage correlates well with the top of the López de Bertodano Formation in Seymour Island, Antarctica, the Miria Formation in Western Australia, the top of Valudayur Formation in the Pondicherri district of southern India, and sections in the Biscay region in SW France and Spain. These units are mainly Late Maastrichtian in age, which is also indicated by the presence of planktonic foraminifers assigned to the Gansserina gansseri and Abathomphalus mayaroensis zones (Stinnesbeck, 1986, 1996; Salazar et al., 2010 and references therein).

Direct correlation between the Quiriquina Formation and reference successions for the Maastrichtian stage in Europe, however, must be taken with caution as there is no world-wide ammonite zonation for this period and planktonic index fossils such as foraminifers or coccolithophorids are not preserved in strata of the Quiriquina Formation and correlative units (Stinnesbeck, 1986, 1996; Salazar et al., 2010). In addition, the use of independent radiometric dating methods to test the accuracy of correlations based on ammonite biostratigraphy is hampered, in the area of Concepción bay, by the absence of interbedded volcanic rocks.

As noted above, deposition of Upper Cretaceous marine rocks in other localities of the Chilean forearc could have started earlier, in the Campanian or the Early Maastrichtian (Levi and Aguirre, 1966; Pérez and Reyes, 1980; Tavera, 1988; Suárez and Marquardt, 2003). Studies on the precise age of these successions, however, are scarce and their conclusions must be taken with some caution as they were likely skewed by insufficient fossil sampling and sparse documentation. The Punta Topocalma Formation was assigned to the Late Campanian by Pérez and Reyes (1980) based on the presence of the ammonites Gunnarites sp. and Grossouvrites sp. Pérez and Reyes (1980) cited the presence of the following taxa in strata of the Punta Topocalma Formation: Baculites sp., Gunnarites sp., Grossouvreites sp., Buchotrigonia (B.) topocalmensis sp. nov., Pacitrigonia banetiana (D’ Orbigny), Cardium (B.) acuticostatum (D’ Orbigny) and lnoceramus sp. The fossils collected by Pérez and Reyes (1980) were briefly revised by Stinnesbeck (1986) who was given access to the collection at Servicio Nacional de Geología y Minería, in Santiago. Stinnesbeck (1986, p. 124) states the presence of Maorites aff. tenuicostatus, Nostoceras sp., Baculites sp., Inoceramus (Endocostea) biroi, Pacitrigonia hanetiana, Buchotrigonia topocalmensis, Cardium (Bucardium) acuticostatum, Aphrodina quiriquinae, ?Mytilus sp., Nucula aff. N. (Leionucula) ceciliana, Perna sp., Turbo ovallei, and Calyptraea sp. Suárez et al. (2003) also noted the occurrence of Centrophoroides sp., Charcharias sp., Ischirhiza chilensis sp., Teleostei indet., and Elasmosauridae indet.

The interpretation of Pérez and Reyes (1980) that the Punta Topocalma Formation is older than the classical sections of the Quiriquina Formation is based on the absence of unequivocal Maastrichtian index fossils, such as Eubaculites carinatus, Fresvillia constricta, Hoploscaphites constrictus, Pachydiscus. (P.) jacquoti, and Menuites fresvillensis. These ammonites are characteristic faunal elements in the type sections of the Quiriquina Formation at Las Tablas and at Cocholgüe and are well known from Maastrichtian strata outside South America (e.g., Europe). However, they have never been reported in the Punta Topocalma Formation. The faunal ranges of the Punta Topocalma ammonites Gunnarites, Grossouvrites, and Baculites are not well known at generic level, but clearly include both the Campanian and Maastrichtian, at least for the Austral realm (Patagonia, Antarctica) (Macellari, 1985, 1988; Stinnesbeck et al., 2012). Nostoceras, determined by Stinnesbeck (1986, p. 124) in the Punta Topocalma collection of Pérez and Reyes (1980), is known to range from the Late Campanian to Early Maastrichtian (Ifrim et al., 2004). Tentatively, Maorites aff. tenuicostatus (determined by Stinnesbeck, 1986, p. 124) may correspond to Maorites densicostatus (Marshall; see Salazar et al., 2010), a taxon described from the Santonian to Maastrichtian of New Zealand; elsewhere in the southern South Pacific region. M. densicostatus may be restricted to the Maastrichtian (Salazar et al., 2010).

The bivalve assemblage at Punta Topocalma includes trigoniids and inoceramids which have variously been interpreted to be of biostratigraphical significance. Buchotrigonia (B.) topocalmensis, a characteristic faunal component at Punta Topocalma, was never identified in the Concepción area, while Pacitrigonia hanetiana is known from both localities. Inoceramids are abundant throughout the Late Cretaceous, but a global extinction of this important bivalve genus was registered within the Early Maastrichtian (MacLeod et al., 1996). The Punta Topocalma species determined as Inoceramus sp. by Pérez and Reyes (1980) was assigned to I. (Endocostea) biroi by Stinnesbeck (1986, p. 124). This taxon was established by Stinnesbeck (op. cit.) in the basal Quiriquina Formation of the Concepcion area (e.g., Las Tablas), where it is constrained to the unit of ‘yellow cross-bedded sandstone’ near the base of the formation. I. (Endocostea) biroi is there associated with Baculites anceps, an Early to Late Maastrichtian taxon (Salazar et al., 2010).

According to these arguments, the Punta Topocalma Formation could be Late Campanian or Early Maastrichtian in age. Faunal differences between the Punta Topocalma and the Quiriquina formations are clearly stated by the presence of Buchotrigonia topocalmensis and Nostoceras in the first unit and may reflect earlier deposition of the Punta Topocalma Formation, or a stratigraphic overlap with the basal Quiriquina Formation at Concepcion bay (e.g., the unit of yellow cross-bedded sandstone at Las Tablas section).

Alternatively, however, other causes may also exist to explain faunal differences between the two outcrop areas, such as insufficient sampling and poor fossil preservation at Punta Topocalma, or differences in paleoecological setting. Future paleontological and biostratigraphical research is clearly needed for Punta Topocalma to decide whether these sediments are Early Maastrichtian in age and thus coeval to the basal Quiriquina Formation, or Late Campanian and thus slightly older.

These uncertainties regarding the biostratigraphical interpretation of the Punta Topocalma section are well reflected by the U-Pb radiometric age of 71.9+0.9 Ma for the youngest zircon population of the sample analyzed in this study. This age is close to the Campanian-Maastrichtian boundary which has been established at 72.1±0.2 Ma (Cohen et al., 2013). The Punta Topocalma age of 71.9+0.9 Ma is considered as a maximum depositional age because it was calculated from detrital zircons. However, the rock sample was obtained from an interval with abundant pumice clasts which were likely derived from explosive volcanism coeval with sediment deposition and are the probable source of the Late Cretaceous zircon population. The ammonites reported by Pérez and Reyes (1980) were obtained from the basal conglomerate of the Punta Topocalma section and must therefore be older than the rock sample used for U-Pb geochronology, which was obtained from the upper part of the succession. On the other hand, thickness of the Punta Topocalma section is only ~16 m and depositional rates for shallow-marine settings are generally high. Therefore, the difference in age between the base and top of the succession may not differ significantly. The 71.9+0.9 Ma U-Pb age reported here does neither prove nor refute the late Campanian age assigned by Pérez and Reyes (1980) for the Punta Tococalma Formation.

The sample analyzed by U-Pb geochronology shows four distinct detrital zircon populations of ~68-75 Ma (Maastrichtian- Campanian), ~89-105 Ma (Coniacian-Albian), ~288-314 Ma (Artinskian- Moskovian), and 321-352 (Bashkirian-Tournaisian) which allows for some paleogeographic interpretations. Radiometric ages of 308±15 Ma (Rb/Sr), 299±10 Ma (U-Pb), and 309 Ma (U-Pb) were obtained from Paleozoic granitoids that crop out in the Coastal Cordillera of central Chile (Godoy and Loske, 1988; Wall et al., 1996 and references therein). These plutonic rocks are the most likely source for the Permian-upper Carboniferous populations of detrital zircons from the Punta Topocalma section. The oldest group of zircons (321-352) could have also been derived from upper Paleozoic metamorphic rocks that crop out in the same area (Wall et al., 1996).

K-Ar radiometric ages between 118 and 91 Ma where obtained from plutonic rocks (granitoids and gabbros) of the western Coastal Cordillera near Valparaíso (~33°S) (Gana et al., 1996). An age of 107±0.62 Ma (⁴⁰Ar/³⁹Ar) was obtained for granitoids from the eastern Coastal Cordillera, south of Santiago (~33°30’S, Sellés and Gana, 2001). Radiometric (U-Pb) ages between 106 and 110 Ma were obtained by Wall et al. (1999) from basal strata of the Las Chilcas Formation, a volcano-sedimentary unit in the eastern part of the Coastal Cordillera near Santiago. In addition, Martínez-Pardo et al. (1994) assigned an Albian age to a limestone unit that forms part of this formation, based on benthic foraminifers. Thus, the ~89-105 Ma zircon population from the Punta Topocalma Formation was likely derived from plutonic rocks of the Coastal Cordillera of central Chile, or from volcano-sedimentary strata of the Las Chilcas Formation exposed in the eastern Coastal Cordillera and Central Valley.

Three ⁴⁰Ar/³⁹Ar ages of 72.4±1.4, 71.9±1.4, and 71.4±1.4 Ma were obtained by Gana and Wall (1997) from tuffs and ignimbrites of the Lo Valle Formation, a volcano-sedimentary unit that crops out in the Central Depression in the vicinity of Santiago. In addition, a K-Ar age of 72±3 Ma was obtained by Sellés and Gana (2001) from volcanic rocks (lavas) that crop out in the eastern Coastal Cordillera south of Santiago (~34°S), but these were assigned to the upper Las Chilcas Formation by the authors. These radiometric ages are similar to, or even indistinguishable from the U-Pb age of 71.9+0.9 Ma obtained here for the Punta Topocalma Formation. We therefore suggest that the Lo Valle and the upper Las Chilcas formations were deposited coeval to marine sediments of the Punta Topocalma Formation.

5. Conclusions

The first radiometric dating (U-Pb on detrital zircons) for Upper Cretaceous marine strata of the Chilean forearc was carried out at Punta Topocalma and indicates a probable depositional age of 71.9+0.9 Ma (latest Campanian-earliest Maastrichtian). Provenance analysis based on the age of detrital zircon populations suggests that the source of sediments of the Punta Topocalma Formation was plutonic and volcano-sedimentary rocks from the Coastal Cordillera and the Central Depression of central Chile. The Lo Valle Formation, a volcano-sedimentary unit in the Central Depression, recorded deposition of the Upper Cretaceous volcanic arc that was coeval with marine sedimentation in the Punta Topocalma area.

Acknowledgments
This research was funded by Fondecyt Project number 1110914 of Conicyt. Research in Chile by WS was funded by the Deutsche Forschungsgemeinschaft (STI 128/15) and the Bundesministerium für Wissenschaft und Forschung (BMBF CHL10/A09). The authors are grateful to Dr. Ch. Salazar and an anonymous reviewer for their helpful suggestions and constructive comments.

¹ Tavera, J. 1988. Formación Quiriquina. Localidades para la formación. Estratotipos y fauna (latitudes 33°21’-37°50’). Unpublished monograph, Departamento de Geología, Universidad de Chile: 212 p.

References

Biró-Bagóczky, L. 1982. Revisión y redefinición de los ‘Estratos de Quiriquina’, Campaniano-Maastrichtiano, en su localidad tipo en la Isla Quiriquina, 36º35’ Lat. S, Chile, Sudamérica, con un perfil complementario en Cocholgüe. In Congreso Geológico Chileno No. 3, Actas 3: A29-64. Concepción.



Buatois, L.A.; Encinas, A. 2011. Ichnology, sequence stratigraphy and depositional evolution of an Upper Cretaceous rocky shoreline in central Chile: Bioerosion structures in a transgressed metamorphic basement. Cretaceous Research 32: 203-212.



Cecioni, G. 1978. Petroleum possibilities of the Darwin’s Navidad Formation near Santiago, Chile. Publicación Ocasional del Museo Nacional de Historia Natural, Chile 25: 3-28.



Chang, Z.; Vervoort, J.D.; Knaack, C.; McClelland, W.C. 2006. U-Pb dating of zircon by LA-ICP-MS. Geochemistry, Geophysics, Geosystems 7 (5): 1-14.



Cohen, K.M.; Finney, S.M.; Gibbard, P.L.; Fan, J.X. 2013. The ICS International Chronostratigraphic Chart. Episodes 36 (3): 199-204.



Darwin, C. 1846. Geological Observations on South America. Smith Elder and Co.: 279 p. London.

D’Orbigny, A. 1842. Voyage dans l’Amérique méridionale 1826-1833, tome 3, 3e partie, Géologie (289, 10 pls); 4e partie Paléontologie (188, 22 pls). Paris.



Encinas, A.; Le Roux, J.P.; Buatois, L.A.; Nielsen, S.N.; Finger, K.L.; Fourtanier, E.; Lavenu, A. 2006. Nuevo esquema estratigráfico para los depósitos marinos mio-pliocenos del área de Navidad (33°00’-34°30’S), Chile central. Revista Geológica de Chile 33 (2): 221-246.



Gana, P.; Wall, R.; Gutiérrez, A. 1996. Mapa Geológico del área de Valparaíso-Curacaví, Región de Valparaíso y Región Metropolitana. Servicio Nacional de Geología y Minería, Mapas Geológicos 1: 20 p., escala 1:100.000. Santiago.



Gana, P.; Wall, R. 1997. Evidencias geocronológicas ⁴⁰Ar/³⁹Ar y K-Ar de un hiatus Cretácico Superior-Eoceno en Chile central (33-33°30’S). Revista Geológica de Chile 24 (2): 145-163.



Godoy, E.; Loske, W. 1988. Tectonismo sinplutónico de dioritas Jurásicas al sur de Valparaíso: datos U-Pb sobre la ‘fase Quintay’. Revista Geológica de Chile 15 (2): 119-127.



Ifrim, C.; Stinnesbeck, W.; López-Oliva, J.G. 2004. Maastrichtian cephalopods from the Mendez Formation at Cerralvo, Nuevo León, North-Eastern Mexico. Palaeontology 47 (6): 1-53.



Levi de Valenzuela, B.; Aguirre, L. 1966. El Conglome-rado de Algarrobo y su relación con las formaciones del Cretácico Superior de Chile Central. Instituto de Investigaciones Geológicas 17: 417-431.



Ludwig, K.R. 2003. User’s Manual for Isoplot 3.00, A Geochronological Toolkit for Microsoft Excel. Berkeley Geochronology Center Special Publication 4: 70 p.



Macellari, C.E. 1985. Paleobiografía y Edad de Maorites-Gunnarites (Ammonoidea) del Cretácico Superior de la Antártica y Patagonia. Ameghiniana 21: 223-242.



Macellari, C.E. 1988. Late Cretaceous Kossmaticeratidae (Ammonoidea) from the Magallanes Basin, Chile. Journal of Paleontology 62: 889-905.



MacLeod, K.G.; Huber, B.T.; Ward, P.D. 1996. The biostratigraphy and paleobiogeography of Maastrichtian inoceramids. In The Cretaceous-Tertiary Event and other Catastrophes in Earth History (Ryder, G.; Fastovsky, D.E.; Gartner, S.; editors). Geological Society of America, Special Paper 307: 361-373.



Martínez-Pardo, R.; Gallego, A.; Martínez-Guzmán, R. 1994. Middle Albian marine planktonic microfossils from the Santiago basin, central Chile: their depositional and paleogeographic meaning. Revista Geológica de Chile 21 (2): 173-187.



Mordojovich, C. 1981. Sedimentary basins of Chilean Pacific offshore. In Energy resources of the Pacific region. American Association of Petroleum Geologists Special Volumes, Studies in Geology 12: 63-68.



Paces, J.B.; Miller, J.D. 1993. Precise U-Pb ages of Duluth complex and related mafic intrusions, northeastern Minnesota; geochronological insights to physical, petrogenetic, paleomagnetic, and tectonomagmatic processes associated with the 1.1 Ga midcontinent rift system. Journal of Geophysical Research 98 (B8): 13997-14013. doi: 10.1029/93JB01159.



Pérez-D’Angelo, E.; Reyes, R. 1980. Buchotrigonia (Buchotrigonia) topocalmensis (Trigoniidae; Bivalvia) del Cretácico Superior de Chile. Revista Geológica de Chile 9: 37-55.



Philippi, R.A. 1887. Die tertiären und quartären Versteinerungen Chiles. Brockhaus: 266 p. 58 pls. Leipzig.



Salazar, C.; Stinnesbeck, W.; Quinzio-Sinn, L.A. 2010. Ammonites from the Maastrichtian (Upper Cretaceous) Quiriquina Formation in central Chile. Neues Jahrbuch Geologie und Paläontologie Abhandlungen 257: 181-236.



Sellés, D.; Gana, P. 2001. Geología del área Talagante-San Francisco de Mostazal, Regiones Metropolitana de Santiago y del Libertador General Bernardo O’Higgins. Servicio Nacional de Geología y Minería, Serie Geología Básica 74: 30 p., escala 1:100.000. Santiago.



Servicio Nacional de Geología y Minería, 2002. Mapa geológico de Chile. Servicio Nacional de Geología y Minería, Geología Básica 75, 1 mapa en 3 hojas, escala 1:1.000.000. Santiago.



Slama, J.; Kosler, I.; Condon, D.; Crowley, J.; Gerdes, A.; Hanchar, J.; Horstwood, M.; Morris, G.A.; Nasdala, L.; Norberg, N.; Schaltegger, U.; Schoene, B.; Tubrett, M.N.; Whitehouse, M.J. 2008. Plešovice zircon- A new natural reference material for U-Pb and Hf isotopic microanalysis. Chemical Geology 249 (1-2): 1-35.



Steinmann, G. 1895. Die Cephalopoden der Quiriquina-Schichten. Neues Jahrbuch für Mineralogie, Geologie und Paläontologie 10: 64-94.



Steinmann, G.; Deeke, W.; Möricke, W. 1895. Das Alter und die Fauna der Quiriquina Schichten in Chile. Neues Jahrbuch für Mineralogie, Geologie und Paläontologie: 118 p.



Stinnesbeck, W. 1986. Zu den faunistischen und palökologischen Verhältnissen in der Quriquina Formation (Maastrichtium) Zentral-Chiles. Palaeontographica A194: 99- 237, 1-16 pl.



Stinnesbeck, W. 1996. Ammonite Extinctions and Environmental Changes across the Cretaceous-Tertiary Boundary in Central Chile. In The Cretaceous-Tertiary Boundary Mass Extinction: Biotic and Environmental Events (MacLeod, N.; Keller, G.; editors), Norton Press: 289-302. New York.



Stinnesbeck, W.; Ifrim, C.; Salazar, C. 2012. The last Cretaceous ammonites in Latin America. Acta Pa-leontologica Polonica 57 (4): 717-728.



Suárez, M.E.; Marquardt, C. 2003. Revisión preliminar de las faunas de peces elasmobranquios del Mesozoico y Cenozoico de Chile. In Congreso Geológico Chileno No. 10, Sesión temática 3, Paleontología, Actas CD-Rom: 9 p. Concepción.



Suárez, M.E.; Quinzio, L.A.; Fritis, O.; Bonilla, R. 2003. Aportes al conocimiento de los vertebrados marinos de la Formación Quiriquina. In Congreso Geológico Chileno No. 10, Sesión temática 3, Paleontología, Actas CD-Rom: 9 p. Concepción.



Suárez, M.E.; Otero, R.A. 2009. Nuevos hallazgos de vertebrados marinos en el Campaniano-Maastrichtiano de Loanco, VII Región. In Simposio de Paleontología en Chile No. 1 (Rubilar, A.; Rubilar-Rogers, D.; Gutstein, C.; editores). Libro de Actas: 78-82. Santiago.



Tavera, J. 1979. Estratigrafía y Paleontología de la Formación Navidad, Provincia de Colchagua, Chile (Lat 30°50’-34°S). Boletín del Museo Nacional de Historia Natural de Chile 36 (5-10): 176 p.



Wall, R.; Gana, P.; Gutiérrez, A. 1996. Área de San Antonio- Melipilla, Regiones de Valparaíso, Metropolitana y del Libertador General Bernardo O’Higgins. Servicio Nacional de Geología y Minería, Mapas Geológicos 2: 20 p., escala 1:100.000. Santiago.



Wall, R.; Sellés, D.; Gana, P. 1999. Área Til Til-Santiago, Región Metropolitana. Servicio Nacional de Geología y Minería, Mapas Geológicos 11, escala 1:100.000. Santiago.



Wetzel, W. 1930. Die Quiriquina Schichten als Sediment und paläontologisches Archiv. Palaeontographica 73: 49-101.



Wilckens, O. 1904. Revision der Fauna der Quiriquina Schichten. Neues Jahrbuch für Mineralogie, Geologie und Paläontologie Beilage-Band 18: 181-284.
